    Radon fan– slab-on-grade construction
    Scope

    Install a radon fan or a passive radon vent system to prevent the accumulation of radon and soil gases in the home.

    Install an active radon vent system with fan if

    • the home is built in EPA Radon Zone 1
    • or, the home is tested for radon after construction and shows an indoor radon concentration level of  ≥ 4 picocuries/liter, regardless of what radon zone the home is located in (EPA Indoor airPLUS).

    Install an active radon vent system consisting of an in-line fan installed in a vertical vent pipe extending up from a sub-slab collection pipe or mat through the conditioned space of the home and through the roof that uses the fan to pull soil gases up and out of the house.

    • Determine vent pipe size and location.
    • Lay a perforated pipe or a collection mat around the interior of the foundation perimeter and insert a vertical “T” pipe connect to the pipe or mat.
    • Install the concrete slab or polyethylene vapor barrier or both over the ground. Ensure that the slab and/or vapor barrier do not cover the vertical opening of the T connector but are sealed around it.
    • Install the vertical pipe.
    • Run the pipe up through the interior of the house and through the roof.
    • Install an in-line fan.

    Install a passive radon venting system if the home is located in Radon Zone 2 or 3. See the guide Vertical Radon Ventilation Pipe.

    • Install a passive radon ventilation system consisting of a vertical vent pipe extending up from a sub-slab collection pipe or mat through the conditioned space of the home and through the roof that uses the natural stack effect to pull soil gases up and out of the house.
    • Install an electrical outlet in the attic near the vent stack in case a fan needs to be added later.
    • Test the home after construction is completed and add an in-line fan if the indoor radon concentration is ≥ 4 picocuries/liter.

    See the Compliance Tab for related codes and standards and criteria to meet the requirements of national programs such as DOE’s Zero Energy Ready Home programENERGY STAR Single-Family New Homes, and Indoor airPLUS.



    Description
    Description

    Radon is a naturally occurring radioactive gas that is estimated to cause approximately 21,000 lung cancer deaths per year in the United States. The amount of radon in the air is measured in “picocuries per liter of air,” or pCi/L. The average outdoor radon level is 0.4 pCi/L. The average indoor radon level is estimated at 1.3 pCi/L. Roughly 1 out of 15 homes in the United States has elevated radon levels (4 pCi/L or greater).

    Radon and other soil gases (water vapor, herbicides, termiticides, methane, etc.) can create an unhealthy indoor environment if they accumulate inside the home. Radon can enter the home through cracks in concrete floors and foundation walls, joints between two or more construction materials, gaps in the materials comprising suspended floors, gaps around foundation penetrations, and cavities inside foundation walls.

    The U.S. Environmental Protection Agency publishes a map indicating likely radon levels across the United States (see Climate tab) and has established a maximum exposure limit of 4 picocuries per liter of indoor air. Regardless of individual county radon zone designation, high indoor radon levels have been found in every state, and factors impacting radon infiltration can be complex, including interactions between soil composition, weather, home design and construction, and ventilation from the HVAC system.

    Because local radon levels may vary from those shown on the county-level EPA radon map, because the amount of radon that will accumulate in a home can’t be determined until the home is built, and because the easiest time to install a radon mitigation system is during initial construction, the best practice recommendation is to install a passive ventilation stack in all new homes, with an electric outlet located in the attic near the vent stack so that it is available to power an in-line fan should post-construction testing dictate that an active radon system is needed to lower radon levels in the home. For more information, see Vertical Radon Ventilation Pipe.

    The first step in keeping radon and other soil gases out of the home is to install a continuous vapor barrier under the slab or over the crawlspace floor, and to perform thorough air sealing of floors and below-grade walls. See the following guides for more information on air sealing and vapor barriers for basements and crawlspaces.

    Because no vapor barrier is 100% foolproof, a passive or active radon mitigation system should be installed. The easiest time to install this is when the house is under construction, and the sub-slab gravel pad can be easily accessed to lay down a radon collection mat or pipe along the interior perimeter of the home. When this mat or pipe is attached to a vertical vent pipe which extends out through the roof, a negative pressure is created in the pipe, either actively via an in-line fan or passively due to the stack effect. This negative pressure draws soil gases up and out of the house.

    How to Install a Radon Fan – Slab-on-Grade Construction

    1. Select the location for the ventilation pipe (min. 3” in dia.). It should be installed in a vertical run through a warm part of the house and exhausted through the roof. See Figure 1. The pipe should discharge at least 2 feet above the roof and 10 feet away from any openings in the building to keep the soil gas from re-entering the building.
    2. Lay a min. 3-inch-diameter perforated pipe in a gravel trench or a collection mat on top of the gravel around the interior side of the foundation perimeter. Install the pipe in a loop and connect the ends to each side of a vertical “T” pipe connector. The perforated pipe should loop through all sub-slab areas; multiple connection points or interconnections may be required.
    3. Place the polyethylene vapor barrier and concrete slab around the vertical “T”; label and cover the open top of the vertical “T” before placing the concrete. Seal the perimeter of the “T” to the concrete to reduce soil gas entry.
    4. Install the vertical pipe by connecting it to the vertical “T.” Avoid 90-degree angles in the vertical portion of the pipe; use sweeps if turns are needed. Label the pipe on each floor so it is clear the pipe is not part of the sewer system.  If the ventilation pipe extends through an unconditioned attic, insulate the stack to control condensation in the pipe.
    5. Run the pipe through the roof and flash it properly.  Provide a screened rain cap at the termination to prevent rain entry and nesting animals.
    6. Install an electrical junction box for powering the fan and add the fan to the vertical pipe run.
    Radon fan, slab-on-grade construction.
    Figure 1. Radon fan - slab-on-grade construction. (Source: Building Science Corporation.)



    How to Install a Radon Fan – Crawlspace Construction

    1. Select the location for the ventilation pipe (min. 3” in dia.). It should be installed in a vertical run through a warm part of the house and exhausted through the roof.  The pipe discharge should be installed at least 2’ above the roof and 10’ away from any openings in the building to keep the soil gas from re-entering the building.
    2. Lay at least 5’ of min. 3” diameter horizontal perforated pipe on the soil at the location where you will run the vertical ventilation pipe and connect it to either side of a vertical “T”. See Figure 2.
    3. Install a continuous layer of polyethylene vapor barrier with joints taped over the soil.  Run the polyethylene sheet up the wall and mechanically attach and seal the edges to the wall.  Seal the vertical “T” to the polyethylene to reduce the soil gas entry.
    4. Install the vertical pipe by connecting it to the vertical “T.” Avoid 90-degree angles in the vertical portion of the pipe; use sweeps if turns are needed.  Label the pipe on each floor so it is clear the pipe is not part of the sewer system.  If the ventilation pipe extends through an unconditioned attic, insulate the stack to control condensation in the pipe.
    5. Run the pipe through the roof and flash it properly.  Provide a screened rain cap at the termination to prevent rain entry and nesting animals.
    6. Install an electrical junction box for powering the fan and add the fan to the vertical pipe run.
    Radon fan - crawlspace construction.
    Figure 2. Radon fan - crawlspace construction. (Source: Building Science Corporation.)



    How to Install Radon Fan – Basement Construction

    1. Select the location for the ventilation pipe (min. 3” in dia.). It should be installed in a vertical run through a warm part of the house and exhausted through the roof.  The pipe discharge should be installed at least 2’ above the roof and 10’ away from any openings in the building to keep the soil gas from re-entering the building.
    2. Lay a min. 3” diameter perforated pipe in a gravel trench or a collection mat on top of the gravel around the foundation perimeter.  Install the pipe in a loop to allow for the soil gas to enter the pipe from two sides and connect it to either side of a vertical “T”.  Communication to all sub-slab areas is required and multiple connection points or interconnections may be required. See Figure 3.
    3. Place the polyethylene vapor barrier and concrete slab around the vertical “T”; label and cover the open top of the vertical “T” before placing the concrete.  Seal the perimeter of the “T” to the concrete to reduce the soil gas entry.
    4. Install the vertical pipe by connecting it to the vertical “T.” Avoid 90-degree angles in the vertical portion of the pipe; use sweeps if turns are needed.  Label the pipe on each floor so it is clear the pipe is not part of the sewer system.  If the ventilation pipe extends through an unconditioned attic, insulate the stack to control condensation in the pipe.
    5. Run the pipe through the roof and flash it properly.  Provide a screened rain cap at the termination to prevent rain entry and nesting animals.
    6. Install an electrical junction box for powering the fan and add the fan to the vertical pipe run.
    Radon fan - basement construction.
    Figure 3. Radon fan - basement construction. (Source: Building Science Corporation.)



    How to Install Vertical Ventilation Pipe – Retrofit Basement Construction

    1. Select the location for the ventilation pipe to be installed in a vertical run through a warm part of the house and exhausted through the roof.  The pipe discharge should be installed at least 2’ above the roof and 10’ away from any openings in the building to keep the soil gas from re-entering the building.
    2. Lay down the drainage mesh over the existing concrete slab to create a soil gas collection space.  Place an inverted toilet flange at the selected location and secure it to the slab.
    3. Place the polyethylene vapor barrier over the drainage mesh and seal it to the flange with sealant and tape.
    4. Install rigid foam insulation over the polyethylene and seal the gap between the insulation and the flange with expanding foam.  Lay down the subfloor over the insulation.  Insulation under the slab is not required by the building code; therefore, it is up to the homeowner to decide whether or not insulating the slab should be part of the retrofit.  Types of rigid insulation appropriate for this use include extruded polystyrene (XPS) and expanded polystyrene (EPS). See Figure 4.
    5. Install the vertical pipe by cementing it to the flange. Avoid using 90-degree angles in the vertical portion of the pipe; use sweeps if turns are needed.  Label the pipe on each floor so it is clear the pipe is not part of the sewer system.  If the ventilation pipe extends through an unconditioned attic, insulate the stack to control condensation in the pipe. See Figure 5.
    6. Run the pipe through the roof and flash it properly.  Provide a screened rain cap at the termination to prevent rain entry and nesting animals.
    7. Install an electrical junction box for powering the fan and add the fan to the vertical pipe run.
    Radon fan - retrofit basement construction.
    Figure 4. Radon fan - retrofit basement construction. (Source: Building Science Corporation.)



    Detail showing connection of a radon vent stack to an existing basement slab.
    Figure 5. Detail showing connection of a radon vent stack to an existing basement slab. (Source: Building Science Corporation.)



    Success
    Ensuring Success

    The home can be tested with a short-term or a long-term radon test kit that can be obtained through the mail or at local hardware stores. The short-term tests remain in the home between 2 and 90 days and the long-term tests remain for longer than 90 days. If the radon level is higher than 4 picocuries per liter of air (pCi/L) the radon mitigation fan should be installed and activated. The installation instructions for the radon mitigation system should be followed carefully as improper installation of the system can actually increase radon levels in a home.

    Climate
    Climate

    In cold climates, the vertical ventilation pipe should be located inside a heated space.  The vertical ventilation pipe should not be placed in an exterior wall as it will reduce the natural thermal stack effect and may prohibit the installation of the fan in the future.

    In hot climates, the wind, a hot attic, or heat from the sun could all impact the effectiveness of a passive vent stack.

    EPA recommends that the radon mitigation system be installed in high radon potential areas (Zone 1).  The list of Zone 1 counties can be found on the EPA website.

    EPA Radon Zone Map.
    EPA Radon Zone Map.



    Training
    Right and Wrong Images

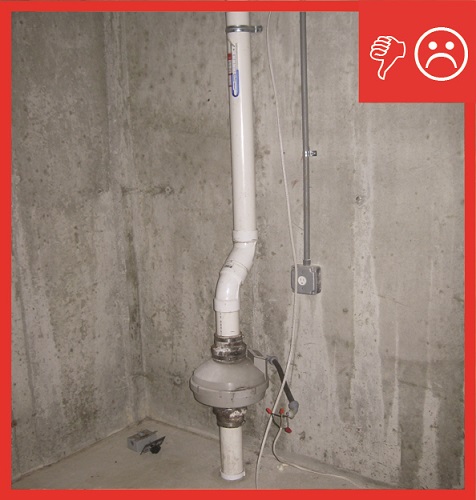

    Wrong - Radon fan installed in the basement
