Treat bulk water drainage issues and provide additional moisture control measures as needed to address site moisture issues before retrofitting a vented crawlspace to an unvented, insulated crawlspace.
See the Compliance Tab for related codes and standards requirements, and criteria to meet national programs such as DOE’s Zero Energy Ready Home program, ENERGY STAR Single-Family New Homes, and Indoor airPLUS.
When looking for opportunities to improve the energy efficiency of older single-family and multi-family residential buildings, sealing and insulating of vented crawlspaces is one retrofit measure that can improve the energy efficiency, comfort, and durability of the structure, particularly in climates with cold winters and/or hot humid summers. However, before any sealing and insulating of the crawlspace walls can take place, water drainage and moisture management issues in and around the crawlspace must be dealt with to ensure that the crawlspace will be dry and remain dry once enclosed.
See the guide Unvented Insulated Crawlspaces for more information on constructing sealed, insulated crawlspaces.
How to Address Water Management Issues in a Crawlspace
Several steps can be taken to address moisture issues in the crawlspace depending on the initial conditions at the site and the project budget:
- Reduce the chances of bulk intrusion of water into the crawlspace by re-grading the ground around the building to slope away from the structure, installing drainage pipes around exterior footings that drain to daylight or a drywell, and installing or modifying gutters and downspouts to ensure that they carry rainwater away from the foundation. Ensure that any existing concrete patios, sidewalks, or driveways slope away from the house. If they slope toward the house, consider replacing with pervious pavers or correctly sloped concrete, or install drains, for example at the base of a down-sloping driveway, to carry water away from the foundation.
- Block off and thoroughly seal crawlspace windows and vents with durable, waterproof materials that will prevent air and water leakage. Completely fill crawlspace window wells to above-grade levels.
- Install exhaust fans that will pull damp air out of the crawlspace, while indirectly pulling drier air from the dwelling unit into the crawlspace. This infusion of conditioned air will help to dry out the crawlspace.
- Install sump pumps in low-lying areas of the crawlspace floor that can be activated to carry away any water that accumulates at the crawlspace floor from seepage under the foundation walls or rising water table from periodic storm events. The sump pump should have a plastic pit that is 2-ft to 3-ft deep and perforated with holes drilled in the bottom so that if the water table rises (for example due to storm events), the water will be removed before it reaches the floor of the crawlspace. Use sump pumps that are equipped with gasketed, tight-fitting lids. For more on sump pumps, see the guide Drain or Sump Pump Installed in Basements or Crawlspaces.

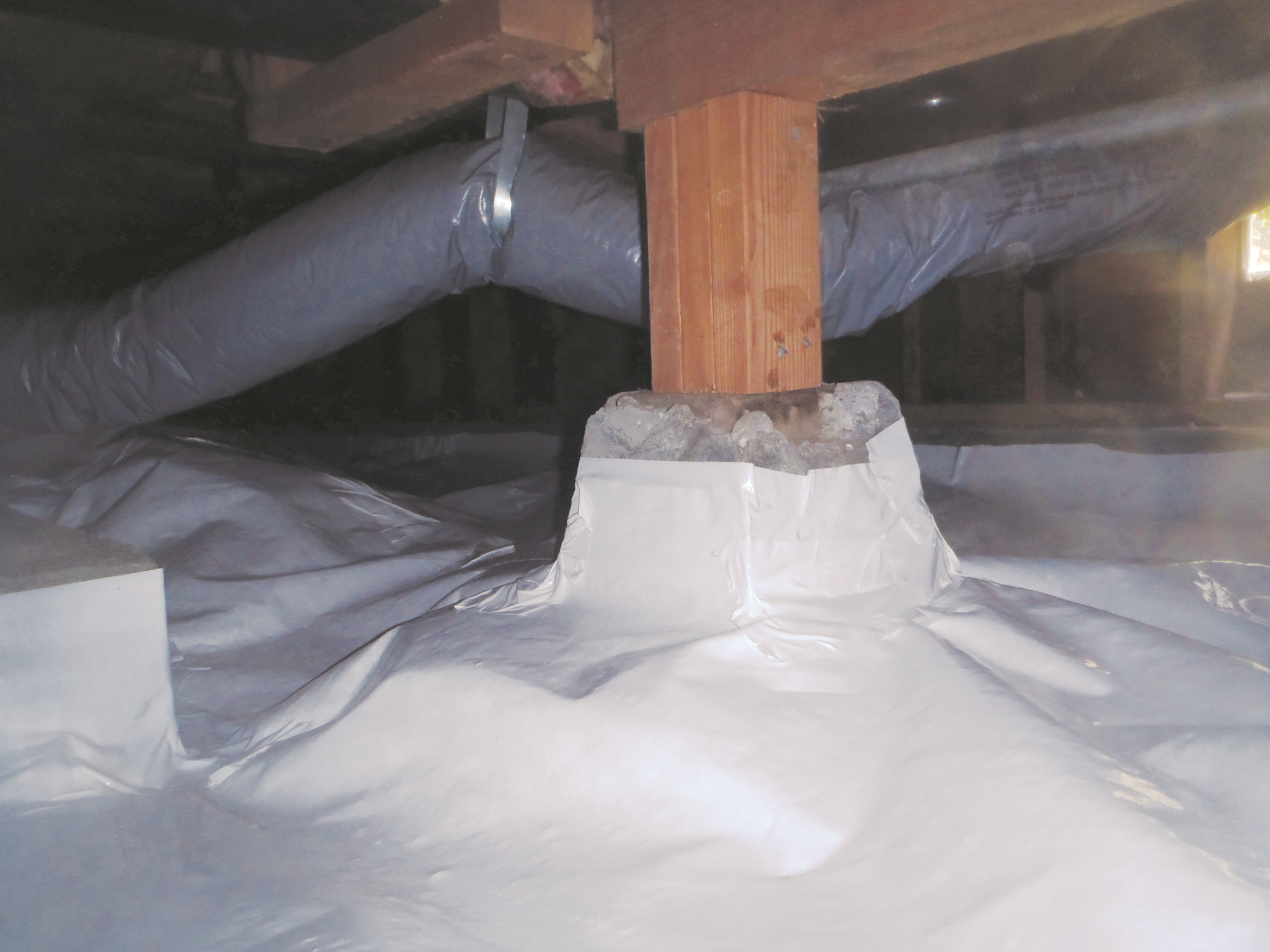

- Install a vapor barrier of 6-mil or thicker polyethylene sheeting that completely covers the crawlspace floor and extends up the foundation walls and any piers by 8 to 12 inches, or preferably up to the exterior ground level. The plastic should be secured with pressure-treated wood furring strips, mechanical fasteners, or fiberglass mesh tape and duct mastic. Seams in the vapor barrier sheeting should be overlapped 6 to 12 inches and taped. This vapor barrier can be covered with a concrete slab for additional durability. For more information, see the guides Capillary Break at Crawlspace Floors - Polyethylene Lapped Walls and Piers and Secured in the Ground and Capillary Break Beneath Slab - Polyethylene Sheeting or Rigid Insulation.
A period of post-retrofit monitoring should be conducted, preferably for one year, to track the crawlspace temperature and relative humidity conditions, and to test the moisture content of the rim and floor joists. If moisture accumulation is detected in the wood of the rim joists, mitigate by allowing air to reach the joists if necessary. For example if rigid foam has been installed in the rim joists and then moisture accumulation is detected in the wood, one-half inch of foam could be trimmed away around the joists to allow air to circulate around the wood (Rudd, 2014).
These recommendations for retrofitting a vented crawlspace to a sealed, insulated crawlspace apply primarily to climate zones 3 through 8. Crawlspaces are uncommon in climate zones 1 and 2, and the likelihood of termites in climate zones 1 and 2 discourages the use of below-grade foam insulation for unvented crawlspaces.
The map in Figure 1 shows the climate zones for states that have adopted energy codes equivalent to the International Energy Conservation Code (IECC) 2009, 12, 15, and 18. The map in Figure 2 shows the climate zones for states that have adopted energy codes equivalent to the IECC 2021. Climate zone-specific requirements specified in the IECC are shown in the Compliance Tab of this guide.
The Compliance tab contains both program and code information. Code language is excerpted and summarized below. For exact code language, refer to the applicable code, which may require purchase from the publisher. While we continually update our database, links may have changed since posting. Please contact our webmaster if you find broken links.
ENERGY STAR Single-Family New Homes, Version 3/3.1 (Rev. 11)
National Water Management System Builder Requirements
1. Water-Managed Site and Foundation.
1.7 Sump pit cover mechanically attached with full gasket seal or equivalent.
Please see the ENERGY STAR Single-Family New Homes Implementation Timeline for the program version and revision currently applicable in your state.
DOE Zero Energy Ready Home (Revision 07)
Exhibit 1 Mandatory Requirements.
Exhibit 1, Item 1) Certified under the ENERGY STAR Qualified Homes Program or the ENERGY STAR Multifamily New Construction Program.
Exhibit 1, Item 6) Certified under EPA Indoor airPLUS.
EPA Indoor airPLUS (Revision 04)
1.4 Basement and Crawlspace Insulation and Conditioned Air.
- Seal crawlspace and basement perimeter walls to prevent outside air infiltration.
- Insulate crawlspace and basement perimeter walls according to the prescriptive values determined by local code or R-5, whichever is greater.
- Provide conditioned air at a rate not less than 1 cfm per 50 sq. ft. of horizontal floor area. This can be achieved by a dedicated supply (2015 IRC section R408.3.2.2) or through crawl-space exhaust (2015 IRC section R408.3.2.1). However, if radon-resistant features are required (see Specification 2.1), do not use the crawlspace exhaust method.
See Indoor airPLUS Specifications for exceptions.
2009, 2012, 2015, 2018, and 2021 International Residential Code (IRC)
R408.3 Unvented crawl space. Ventilation openings in under-floor spaces specified in Sections R408.1 and R408.2 shall not be required where:
1. Exposed earth is covered with a continuous Class I vapor retarder. Joints of the vapor retarder shall overlap by 6 inches (152 mm) and shall be sealed or taped. The edges of the vapor retarder shall extend at least 6 inches (152 mm) up the stem wall and shall be attached and sealed to the stem wall; and
2. One of the following is provided for the under-floor space:
2.1. Continuously operated mechanical exhaust ventilation at a rate equal to 1 cubic foot per minute (0.47 L/s) for each 50 square feet (4.7m2) of crawlspace floor area, including an air pathway to the common area (such as a duct or transfer grille), and perimeter walls insulated in accordance with Section N1102.2.9 (N1102.2.10 in 2012 IRC, N1102.2.11 in 2015 and 2018 IRC);
2.2. Conditioned air supply sized to deliver at a rate equal to 1 cubic foot per minute (0.47 L/s) for each 50 square feet (4.7 m2) of under-floor area, including a return air pathway to the common area (such as a duct or transfer grille), and perimeter walls insulated in accordance with Section N1102.2.9 (N1102.2.10 in 2012 IRC, N1102.2.11 in 2015 and 2018 IRC);
2.3. Plenum in existing structures complying with Section M1601.5, if under-floor space is used as a plenum.
[2018 IRC Only] 2.4. Dehumidification sized to provide 70 pints (33 liters) of moisture removal per day for every 1,000 square feet (93 m2) of crawl space floor area.
[2021 IRC Only] 2.4 Dehumidification sized in accordance with manufacturer's specifications.
Retrofit: 2009, 2012, 2015, 2018, and 2021 IRC
Section R102.7.1 Additions, alterations, or repairs. Additions, alterations, renovations, or repairs shall conform to the provisions of this code, without requiring the unaltered portions of the existing building to comply with the requirements of this code, unless otherwise stated. (See code for additional requirements and exceptions.)
Appendix J regulates the repair, renovation, alteration, and reconstruction of existing buildings and is intended to encourage their continued safe use.
Access to some references may require purchase from the publisher. While we continually update our database, links may have changed since posting. Please contact our webmaster if you find broken links.
Hygrothermal Performance Study: A Field Study Comparison of the Energy and Moisture Performance Characteristics of Ventilated Versus Sealed Crawl Spaces in the South
The following authors and organizations contributed to the content in this Guide.
Building Science Corporation, lead for the Building Science Consortium (BSC), a DOE Building America Research Team
