Dropped Ceiling/Soffit Below Unconditioned Attic

    Scope
    Scope Images
    Install an air barrier over dropped ceilings or soffits
    Scope

    Install a continuous rigid air barrier or other supporting material to cap dropped ceilings or soffits.

    • Rigid air barrier material could include rigid foam insulation, drywall, plywood, or OSB, among others.
    • Install the air barrier flush with the surrounding ceiling.
    • Seal all seams, gaps, and holes in the air barrier with caulk or foam before installation of attic insulation.
    • Ensure that the air barrier is continuous and in full contact with the insulation.
    • If the dropped soffit runs along an exterior wall, ensure that an air barrier is installed on the interior side of the exterior wall insulation before installing the air barrier over the soffit.

    See the Compliance Tab for related codes and standards requirements, and criteria to meet national programs such as DOE’s Zero Energy Ready Home program, ENERGY STAR Single-Family New Homes, and Indoor airPLUS.

    Description
    Description

    Soffits (dropped ceilings) found over kitchen cabinets or sometimes running along hallways or room ceilings as duct or piping chases are often culprits for air leakage. The space above the soffit should be covered with an air barrier material to stop conditioned air from escaping through the soffit and into the attic and to stop unconditioned air from a ventilated attic from coming through the open soffit into the home through air leaks in the soffit. If the soffit is along an exterior wall and there is no air barrier material covering the wall insulation, this unconditioned air can flow through the wall cavity robbing the insulation of its insulating ability. These air barriers are often overlooked due to a sequencing issue. The framer builds the soffit before the drywaller can get to the wall behind it, and when the drywaller installs gypsum board, the soffit is left open from above to install ducts or recessed can lights. An air barrier material like rigid foam, gypsum board, OSB or plywood should be installed over the top of the soffit framing, level with the rest of the ceiling drywall, and the edges of the material should be sealed with caulk. Then attic insulation can be installed above it to a level equivalent with that of the rest of the attic when the rest of the attic is insulated. If the soffit runs along an exterior wall, drywall or some other rigid air barrier material should be installed on the exterior wall, and air sealed to the top plate, before the soffit framing is installed.

    These materials may be installed by insulators, framers, or drywallers. This task should be included in the contract for the appropriate trade depending on the workflow at the specific job site.

    How to Air Seal a Soffit or Dropped Ceiling

    For Ducts in an Interior Hallway

    1. Install the hallway framing for the sides of the soffit but not the bottom of the soffit.
    2. Install the air barrier for the ceiling and side walls of the soffit on the inside of the framing. Air barrier material may be gypsum board, OSB, plywood, or rigid foam. Caulk and fasten the air barrier to the framing. Caulk, mud, and tape to seal the seams between the top and sides of the soffit.
    3. Install ducts. Install framing for the bottom of the soffit. Caulk and fasten ceiling drywall for the bottom of the soffit.
    4. Install drywall on the hallway walls when the rest of the house is drywalled. Caulk, mud, and tape to airseal seams at the lower corners of the soffit to the hallway walls.
    Dropped hallway ceiling duct chase with drywalled soffit.
    Figure 1. Dropped hallway ceiling duct chase with drywalled soffit.



    Dropped hallway ceiling with drywall.
    Figure 2. Dropped hallway ceiling with drywall.



    For Soffits on an Exterior Wall

    1. Install cavity insulation in the exterior wall up to the top plate. Run a continuous bead of caulk along the top plate and install the drywall or other air barrier material on the wall and ceiling behind where the soffit will go. Caulk the seam where the wall and ceiling air barrier meet.
    2. Install framing for the soffit. Seal to the ceiling and wall air barrier material with a continuous bead of caulk.
    3. Install the drywall or other facing for the soffit. Seal to the soffit framing with a continuous bead of caulk. Install drywall on the remaining walls and ceiling. Caulk, mud and tape to seal the seams where these surfaces meet the soffit drywall. Install trim and cabinets if cabinets are being mounted under the soffit.
    4. In the attic, install insulation over the soffit as you would over the rest of the attic floor.
    Installing a soffit in an exterior wall.
    Figure 3. Installing a soffit in an exterior wall.



    For Soffits with Recessed Can Lights

    1. If on an exterior wall, cover the exterior wall behind the soffit with an air barrier material first. Attach the air barrier with a continuous bead of caulk along the top plate and use screws or nails to secure in place.
    2. Install framing for the soffit.
    3. Attach drywall to the side(s) and bottom of the soffit with a bead of caulk and fasteners. Caulk, mud, and tape the drywall at the seams to air seal it.
    4. Install can lights. Do not fill the soffit with insulation; insulation will be installed above the soffit.
    5. Cut air barrier material to fit between joist bays on the attic side of the ceiling. Notch for wiring if necessary. Fasten the air barrier material in place over the soffit with caulk. Caulk edges and caulk around wiring. Cover with attic insulation.
    Installing air barrier above a soffit.
    Figure 4. Installing air barrier above a soffit.



    Success
    Ensuring Success

    Blower door testing, conducted as part of whole-house energy performance testing, may help indicate whether air leakage at soffits has been successfully sealed. Some building codes and high-performance home labeling programs require that builders meet specified infiltration rates at the whole-house level. See the “Compliance” tab for specified infiltration rates for several codes and program. An infrared camera may also be helpful in detecting air leakage at the soffit, if a sufficient temperature difference exists between the attic and the conditioned space of the house.

    Climate
    Climate

    Minimum Insulation Requirements for New Homes as Listed in the 2009, 2012, 2015, and 2018 IECC

    Install insulation in amounts that meet or exceed code-required levels for your climate zone. Please see this table for the minimum insulation requirements for ceilings, walls, floors, and foundations in new homes, as listed in the 2009, 2012, 2015, and 2018 IECC and IRC.

      The map in Figure 1 shows the climate zones for states that have adopted energy codes equivalent to the International Energy Conservation Code (IECC) 2009, 12, 15, and 18. The map in Figure 2 shows the climate zones for states that have adopted energy codes equivalent to the IECC 2021. Climate zone-specific requirements specified in the IECC are shown in the Compliance Tab of this guide.

      Climate Zone Map from IECC 2009, 12, 15, and 18.
      Figure 1. Climate Zone Map from IECC 2009, 12, 15, and 18. (Source: 2012 IECC)



      Climate Zone Map from IECC 2021.
      Figure 2. Climate Zone Map from IECC 2021. (Source: 2021 IECC)



      Training
      Right and Wrong Images

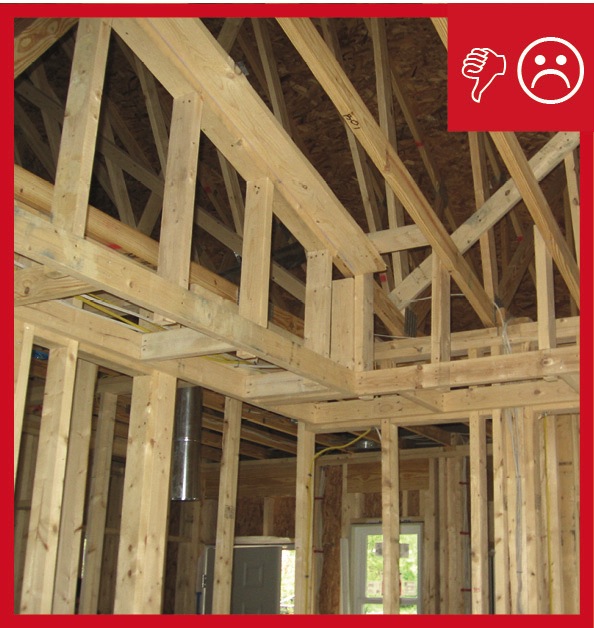

      Wrong – No air barrier is present between the dropped ceiling/soffit and the attic
      Wrong – No air barrier is present between the dropped ceiling/soffit and the attic

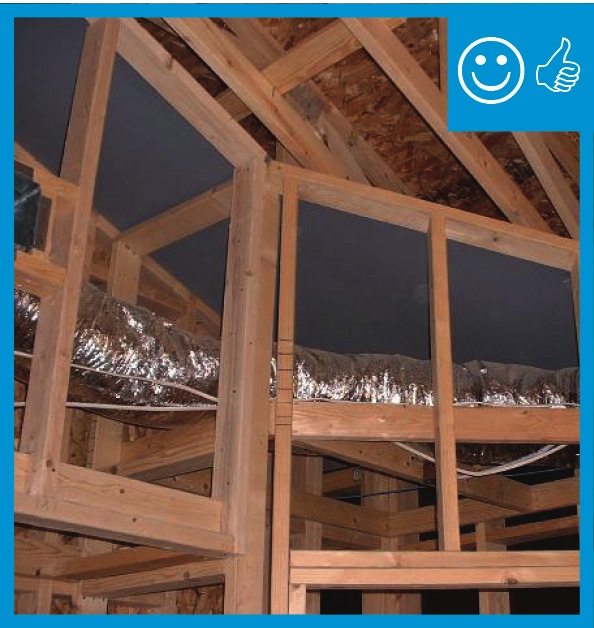

      Right – Air barrier is present between the dropped ceiling/soffit and the attic
      Right – Air barrier is present between the dropped ceiling/soffit and the attic

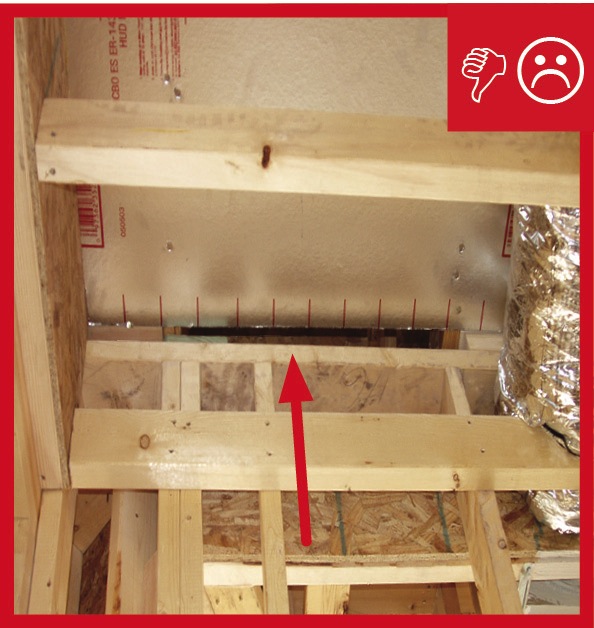

      Wrong – No air barrier is present between the dropped ceiling/soffit and the attic
      Wrong – No air barrier is present between the dropped ceiling/soffit and the attic

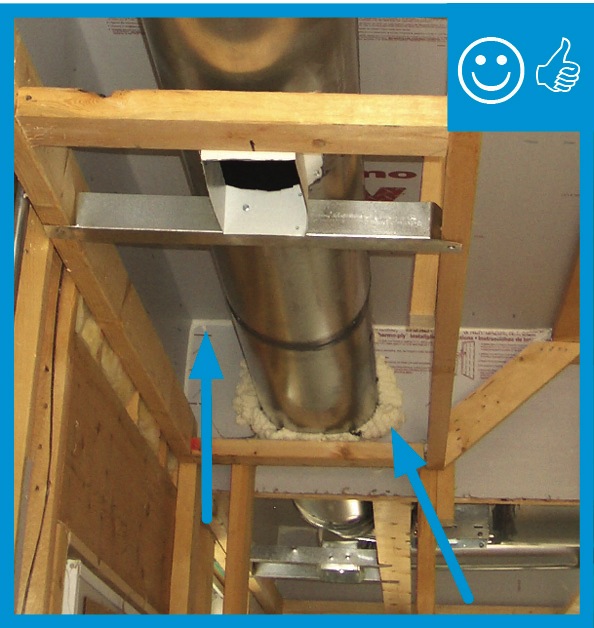

      Right – Air barrier is present between the dropped ceiling/soffit and the attic
      Right – Air barrier is present between the dropped ceiling/soffit and the attic

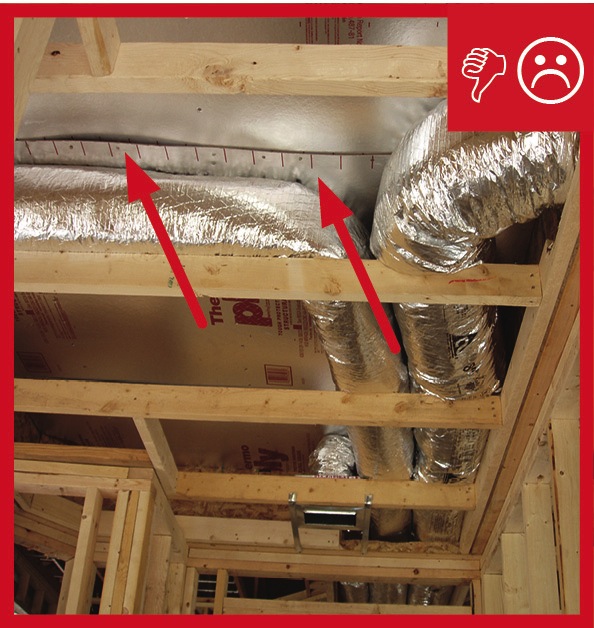

      Wrong – Seams of air barrier not sealed
      Wrong – Seams of air barrier not sealed

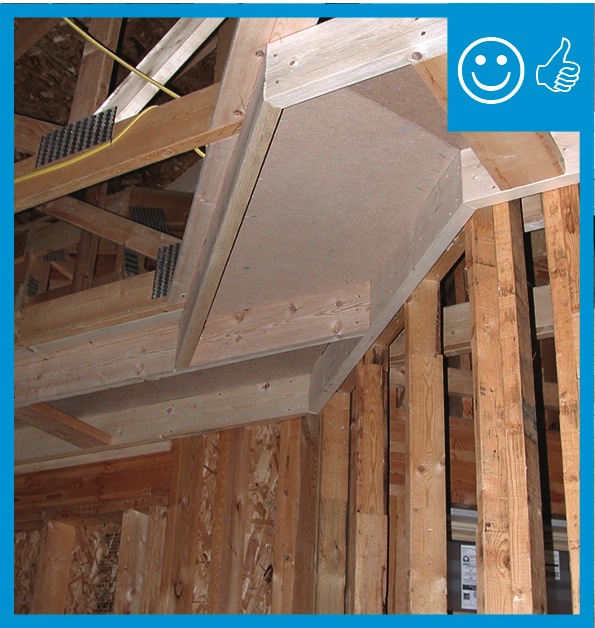

      Right – Seams and penetrations of air barrier properly sealed
      Right – Seams and penetrations of air barrier properly sealed
      Wrong – Seams of air barrier not sealed
      Wrong – Seams of air barrier not sealed
      Videos
      CAD
      CAD Files
      Air seal at duct soffit
      Air seal at duct soffit
      Download: DWG PDF
      Air seal at cabinet soffit - single-story
      Air seal at cabinet soffit - single-story
      Download: DWG PDF
      Air seal at built-out soffit
      Air seal at built-out soffit
      Download: DWG PDF
      Air seal at cabinet soffit - two-story
      Air seal at cabinet soffit - two-story
      Download: DWG PDF
      Compliance

      Compliance

      The Compliance tab contains both program and code information. Code language is excerpted and summarized below. For exact code language, refer to the applicable code, which may require purchase from the publisher. While we continually update our database, links may have changed since posting. Please contact our webmaster if you find broken links.



      ENERGY STAR Single-Family New Homes, Version 3/3.1 (Rev. 11)

      National Program Requirements

      The ENERGY STAR Reference Design Home is the set of efficiency features modeled to determine the ENERGY STAR ERI Target for each home pursuing certification. Therefore, while the features below are not mandatory, if they are not used then other measures will be needed to achieve the ENERGY STAR ERI Target. In addition, note that the Mandatory Requirements for All Certified Homes, Exhibit 2, contain additional requirements such as total duct leakage limits, minimum allowed insulation levels, and minimum allowed fenestration performance. Therefore, EPA recommends that partners review the documents in Exhibit 2 prior to selecting measures.

      Version 3.0 - Exhibit 1 ENERGY STAR Reference Design Home. Infiltration rates modeled as follows:

      • 6 ACH50 in CZs 1,2
      • 5 ACH50 in CZs 3,4
      • 4 ACH50 in CZs 5,6,7
      • 3 ACH50 in CZ 8

      Version 3.1 - Exhibit 1 ENERGY STAR Reference Design Home. Infiltration rates modeled as follows:

      • 4 ACH50 in CZs 1,2
      • 3 ACH50 in CZs 3,4,5,6,7,8

      National Rater Field Checklist

      Thermal Enclosure System.
      2. Fully-Aligned Air Barriers.7 At each insulated location below, a complete air barrier is provided that is fully aligned as follows:
      Ceilings: At interior or exterior horizontal surface of ceiling insulation in Climate Zones 1-3; at interior horizontal surface of ceiling insulation in Climate Zones 4-8. Also, at exterior vertical surface of ceiling insulation in all climate zones (e.g., using a wind baffle that extends to the full height of the insulation in every bay or a tabbed baffle in each bay with a soffit vent that prevents wind washing in adjacent bays).8​
      2.1 Dropped ceilings / soffits below unconditioned attics, and all other ceilings.

      Footnote 7) For purposes of this Checklist, an air barrier is defined as any durable solid material that blocks air flow between conditioned space and unconditioned space, including necessary sealing to block excessive air flow at edges and seams and adequate support to resist positive and negative pressures without displacement or damage. EPA recommends, but does not require, rigid air barriers. Open-cell or closed-cell foam shall have a finished thickness ≥ 5.5 in. or 1.5 in., respectively, to qualify as an air barrier unless the manufacturer indicates otherwise. If flexible air barriers such as house wrap are used, they shall be fully sealed at all seams and edges and supported using fasteners with caps or heads ≥ 1 in. diameter unless otherwise indicated by the manufacturer. Flexible air barriers shall not be made of kraft paper, paper-based products, or other materials that are easily torn. If polyethylene is used, its thickness shall be ≥ 6 mil.

      Footnote 8) All insulated ceiling surfaces, regardless of slope (e.g., cathedral ceilings, tray ceilings, conditioned attic roof decks, flat ceilings, sloped ceilings), must meet the requirements for ceilings.

      Please see the ENERGY STAR Single-Family New Homes Implementation Timeline for the program version and revision currently applicable in your state.



      DOE Zero Energy Ready Home (Revision 07)

      Exhibit 1 Mandatory Requirements.
      Exhibit 1, Item 1) Certified under the ENERGY STAR Qualified Homes Program or the ENERGY STAR Multifamily New Construction Program.
      Exhibit 2, Item 2) Ceiling, wall, floor, and slab insulation shall meet or exceed 2015 IECC levels and achieve Grade 1 installation, per RESNET standards.

      Exhibit 2 DOE Zero Energy Ready Home Target Home.
      The U.S. Department of Energy’s Zero Energy Ready Home program allows builders to choose a prescriptive or performance path. The DOE Zero Energy Ready Home prescriptive path requires builders to meet or exceed the minimum HVAC efficiencies listed in Exhibit 2 of the National Program Requirements (Rev 07), as shown below. The DOE Zero Energy Ready Home performance path allows builders to select a custom combination of measures for each home that is equivalent in performance to the minimum HERS index of a modeled target home that meets the requirements of Exhibit 2 as well as the mandatory requirements of Zero Energy Ready Home Exhibit 1.

      Exhibit 2, Insulation and Infiltration) Insulation levels shall meet the 2012 (or 2015) IECC and achieve Grade 1 installation per RESNET standards. Whole house leakage must be tested and meet the following infiltration limits:

      • Zones 1-2: ≤ 3 ACH50;
      • Zones 3-4: ≤ 2.5 ACH50;
      • Zones 5-7: ≤ 2 ACH50;
      • Zone 8: ≤ 1.5 ACH50;
      • Attached dwellings: ≤ 3 ACH50.

      Footnote 12) Building envelope assemblies, including exterior walls and unvented attic assemblies (where used), shall comply with the relevant vapor retarder provisions of the 2015 International Residential Code (IRC).

      Footnote 13) Insulation levels in a home shall meet or exceed the component insulation requirements in the 2015 International Energy Conservation Code (IECC) – Table R402.1.2. The following exceptions apply:

      a. Steel-frame ceilings, walls, and floors shall meet the insulation requirements of the 2015 IECC – Table 402.2.6.

      b. For ceilings with attic spaces, R-30 shall satisfy the requirement for R-38 and R-38 shall satisfy the requirement for R-49 wherever the full height of uncompressed insulation at the lower R-value extends over the wall top plate at the eaves. This exemption shall not apply if the alternative calculations in d) are used;

      c. For ceilings without attic spaces, R-30 shall satisfy the requirement for any required value above R-30 if the design of the roof / ceiling assembly does not provide sufficient space for the required insulation value. This exemption shall be limited to 500 sq. ft. or 20% of the total insulated ceiling area, whichever is less. This exemption shall not apply if the alternative calculations in d) are used;

      d. An alternative equivalent U-factor or total UA calculation may also be used to demonstrate compliance, as follows: An assembly with a U-factor equal to or less than specified in Table 402.1.4 of the 2015 IECC complies. A total building thermal envelope UA that is less than or equal to the total UA resulting from the U-factors in Table 402.1.4 also complies. The insulation levels of fenestration, ceilings, walls, floors, and slabs can be traded off using the UA approach under both the Prescriptive and the Performance Path. Also, note that while ceiling and slab insulation can be included in trade-off calculations, Items 3.1 through 3.3 of the ENERGY STAR Rev09 Rater Field Checklist shall be met regardless of the UA tradeoffs calculated. The UA calculation shall be done using a method consistent with the ASHRAE Handbook of Fundamentals and shall include the thermal bridging effects of framing materials. The calculation for a steel-frame envelope assembly shall use the ASHRAE zone method or a method providing equivalent results, and not a series-parallel path calculation method.

      Footnote 23) Envelope leakage shall be determined by an approved verifier using a RESNET-approved testing protocol.



      2009-2021 IECC and IRC Insulation Requirements Table

      The minimum insulation requirements for ceilings, walls, floors, and foundations in new homes, as listed in the 2009, 2012, 2015, 2018, and 2021 IECC and IRC, can be found in this table



      2009 International Energy Conservation Code (IECC)

      Table R402.1.1 Insulation and Fenestration Requirements – meet or exceed the insulation levels listed in this table.

      Table 402.4.2 Air Barrier and Insulation Inspection Component Criteria,  Ceiling/attic: Air barrier in any dropped ceiling/soffit is substantially aligned with insulation and any gaps are sealed. Table 402.4.2, Air barrier and thermal barrier: Air permeable insulation is not used as a sealing material.

      Section R402.4.2 Air sealing and insulation is demonstrated by testing or visual inspection. Testing.  The building should be tested for air leakage should have an air leakage rate of ≤ 7 at rough-in.

      2012 IECC

      Table R402.1.1 Insulation and Fenestration Requirements – meet or exceed the insulation levels listed in this table.

      Table R402.4.1.1 Air Barrier and Insulation Installation, Ceiling/attic: Air barrier in any dropped ceiling/soffit is substantially aligned with insulation and any gaps are sealed. Table R402.4.1.1, Air barrier and thermal barrier: A continuous air barrier is installed in the building envelope including rim joists and exposed edges of insulation. Breaks or joints in the air barrier are sealed. Air permeable insulation is not used as a sealing material.

      Section R402.4.1.2 Testing.  The building should be tested for air leakage and should have an air leakage rate of ≤ 5 in CZ 1 and 2 or ≤ 3 in CZ 3-8.

      20152018, and 2021 IECC

      Table R402.1.2 Insulation and Fenestration Requirements – meet or exceed the insulation levels listed in this table.

      Table R402.4.1.1 Air Barrier and Insulation Installation, Ceiling/attic: Air barrier in any dropped ceiling/soffit is substantially aligned with insulation and any gaps are sealed. General requirements: A continuous air barrier is installed in the building envelope; breaks and joints in the air barrier are sealed. Air-permeable insulation is not used as an air-sealing material.

      Section R402.4.1.2 Testing.  The building should be tested for air leakage in accordance with ASTM E 779 or E 1827 (or RESNET/ICC 380 in 2018 IECC) and should have an air leakage rate of ≤ 5 in CZ 1 and 2 or ≤ 3 in CZ 3-8.

      Retrofit:  2009, 2012, 2015, 2018,  and 2021 IECC

      Section R101.4.3 (in 2009 and 2012). Additions, alterations, renovations, or repairs shall conform to the provisions of this code, without requiring the unaltered portions of the existing building to comply with this code. (See code for additional requirements and exceptions.)

      Chapter 5 (in 2015, 2018, 2020). The provisions of this chapter shall control the alteration, repair, addition, and change of occupancy of existing buildings and structures.



      2009 International Residential Code (IRC)

      Table N1102.4.2 Air Barrier and Insulation Inspection Component Criteria,  Ceiling/attic: Air barrier in any dropped ceiling/soffit is substantially aligned with insulation and any gaps are sealed. Table N1102.4.2, Air barrier and thermal barrier: Air permeable insulation is not used as a sealing material.

      2012 IRC

      N1102.4.1.1 Air Barrier and Insulation Installation, Ceiling/attic: Air barrier in any dropped ceiling/soffit is substantially aligned with insulation and any gaps are sealed. Table N1102.4.1.1, Air barrier and thermal barrier: A continuous air barrier is installed in the building envelope including rim joists and exposed edges of insulation. Breaks or joints in the air barrier are sealed. Air permeable insulation is not used as a sealing material.

      20152018, and 2021 IRC

      N1102.4.1.1 Air Barrier and Insulation Installation, Ceiling/attic: Air barrier in any dropped ceiling/soffit is substantially aligned with insulation and any gaps are sealed. General requirements: A continuous air barrier is installed in the building envelope; breaks and joints in the air barrier are sealed. Air-permeable insulation is not used as an air-sealing material.

      Retrofit:  2009, 2012, 2015, 2018,  and 2021 IRC

      Section R102.7.1 Additions, alterations, or repairs. Additions, alterations, renovations, or repairs shall conform to the provisions of this code, without requiring the unaltered portions of the existing building to comply with the requirements of this code, unless otherwise stated. (See code for additional requirements and exceptions.)

      Appendix J regulates the repair, renovation, alteration, and reconstruction of existing buildings and is intended to encourage their continued safe use.



      Air Barrier Association of America (ABAA) 07261

      Self-Adhered Sheet Air Barrier. 2006. Air Barrier Association of America, Walpole, MA. This specification for self-adhered sheet air barriers is developed by a professional association, the Air Barrier Association of America, to provide guidance to the design professional.

      ABAA 07263

      Closed Cell, Medium-Density Spray Polyurethane Foam Air Barrier. 2011. Air Barrier Association of America, Walpole, MA. This specification for closed cell, medium-density spray polyurethane foam air barriers is developed by a professional association, the Air Barrier Association of America, to provide guidance to the design professional.

      Retrofit
      Existing Homes

      SCOPE

      Cover and air seal dropped soffits to prevent air leakage into the attic.

      • Assess the attic for leaks, mold, rot, knob and tube wiring, and asbestos and remediate before air sealing.
      • Remove insulation to expose the dropped soffit framing.
      • Install a rigid air barrier of plywood, OSB, drywall, or rigid insulation over the open soffit.
      • Air seal the edges of the rigid barrier and any seams in the barrier.
      • Air seal around any penetrations.
      • Install insulation over the soffit to match the adjacent attic insulation.
      • Measure the insulation level in the attic and increase to code-required minimum or higher, as necessary or desired.
      • If the dropped soffit runs along an exterior wall, check for, and install if needed, a solid air barrier along the exterior wall.
      • See the Scope and Description tabs for additional guidance.

      Guidance for mitigating asbestos-related issues from HUD, EPA, NIH, OSHA and FEMA is available in Homeowner's and Renter's Guide to Asbestos Cleanup After Disasters and Asbestos: Worker and Employer Guide to Hazards and Recommended Controls

      For more information on conditions that may be encountered when working in attics in existing homes, see the assessment guide on attics.

      See the U.S. Department of Energy’s Standard Work Specifications for more on air sealing and working in attics. Follow safe work practices as described in the Standard Work Specifications.

      DESCRIPTION

      Many older homes have dropped ceilings or soffits as duct or piping chases or as architectural features within the home, for example soffits over cabinets or around the edges of a room, or sometimes constructed as decorative arches in doorways. These may or may not be filled with insulation, usually do not have a continuous air barrier, and often are a source of air leakage and heat loss (especially when installed along an exterior wall if no solid air barrier is installed along the exterior wall). Dropped ceilings and soffits can be identified from a walk-through of the home. The contractor can note these locations on a sketch of the home, then visit the attic for further inspection to see which soffits are missing air barriers on top, and along the side if located on an exterior wall. The soffits should be covered using a rigid air barrier material like plywood, OSB, drywall, or rigid foam that is caulked and fastened in place following the instructions listed below and in the Description tab. (See especially the section “For Soffits with Recessed Can Lights,” Steps 1 and 5.)  This work will be performed inside the attic so use safe work practices and be aware of hazardous conditions as described in the attic assessment guide.

      How to Air Seal and Insulate a Dropped Ceiling or Soffit

      1. Identify locations of soffits and dropped ceilings from inside the home.
      2. Assess ceilings, attics, and roofs for signs of leaks, mold, rot, knob and tube wiring, and asbestos and repair or remediate as necessary before proceeding with air sealing.
      3. Remove and set aside attic insulation to reveal the open cavity of the dropped soffit. See Figure 1.
      4. If the dropped soffit runs along an exterior wall, ensure that exterior wall insulation is covered with a solid air barrier before air sealing the top of the soffit. If no solid air barrier covers the exterior wall insulation, cut plywood, OSB, drywall or rigid insulation to fit; apply caulk to the surface of the framing; install the solid barrier with nails or screws; and caulk or tape the seams. See Figure 3 on the Description tab. Then proceed with air sealing the top of the soffit as described above.
      5. Cut plywood, OSB, drywall, or rigid insulation to fit between the framing members forming the boundaries of the dropped soffit (see Figure 2 below and Description tab, Figure 4).
      6. Apply caulk to the top and side surfaces of the framing where the solid barrier material will be placed (Figures 3 and 4).
      7. Position solid material over the opening and fasten in place with sealant and nails or screws (Figure 5).
      8. Seal the edges of the plywood, OSB, or rigid insulation closure where it meets the framing with sealant (Figure 6). Seal joints in the plywood, OSB, or rigid insulation with sheathing tape or sealant. Caulk or foam around any penetrations (for lights and wiring, for example).
      9. Install insulation over the rigid board to match the adjacent attic insulation.
      10. Measure the insulation level in the attic and increase to code-required minimum or higher, as necessary.
      11. Note that it is not necessary to install insulation inside the soffit since insulation will be provided above the closure. Insulation should be removed from within the soffit if non-ICAT rated recessed lights are installed.
      Insulation is set aside to reveal an open soffit in the attic
      Figure 1. Insulation is set aside to reveal an open soffit in the attic. (Source: NM Energy$mart Academy in DOE Standard Work Specifications Flickr photo pool.)



      Rigid foam, OSB, plywood, drywall or another rigid air barrier material is cut to fit over the open soffit
      Figure 2. Rigid foam, OSB, plywood, drywall or another rigid air barrier material is cut to fit over the open soffit. (Source: NM Energy$mart Academy in DOE Standard Work Specifications Flickr photo pool.)



      Sealant is applied to the framing members that the rigid air barrier will sit on when it covers the open soffit.
      Figure 3. Sealant is applied to the framing members that the rigid air barrier will sit on when it covers the open soffit. (Source: NM Energy$mart Academy in DOE Standard Work Specifications Flickr photo pool.)



      Sealant is applied along the edges of the framing members before installing the rigid air barrier over the open soffit.
      Figure 4. Sealant is applied along the edges of the framing members before installing the rigid air barrier over the open soffit. (Source: NM Energy$mart Academy in DOE Standard Work Specifications Flickr photo pool.)



      Use caulk and spray foam to seal gaps around the air barrier covering the soffit.
      Figure 5. Use caulk and spray foam to seal gaps around the air barrier covering the soffit. (Source: NM Energy$mart Academy in DOE Standard Work Specifications Flickr photo pool.)



      Rigid foam, caulk, and spray foam are used to form a complete air barrier over an open soffit in the attic.
      Figure 6. Rigid foam, caulk, and spray foam are used to form a complete air barrier over an open soffit in the attic. (Source: NM Energy$mart Academy in DOE Standard Work Specifications Flickr photo pool.)



      COMPLIANCE

      See Compliance tab.

      More

      More Info.

      Access to some references may require purchase from the publisher. While we continually update our database, links may have changed since posting. Please contact our webmaster if you find broken links.

      Case Studies
      References and Resources*
      Author(s)
      U.S. Environmental Protection Agency,
      ENERGY STAR
      Organization(s)
      EPA
      Publication Date
      Description
      Guide describing details that serve as a visual reference for each of the line items in the Thermal Enclosure System Rater Checklist.
      Author(s)
      National Institution of Health,
      U.S. Environmental Protection Agency,
      U.S. Department of Housing and Urban Development,
      Occupational Safety and Health Administration
      Organization(s)
      NIH,
      OSHA,
      EPA,
      HUD
      Publication Date
      Description
      Guidance from HUD, EPA, NIH, and FEMA for workers who deal directly with asbestos.
      Author(s)
      Centers for Disease Control and Prevention,
      U.S. Environmental Protection Agency,
      Federal Emergency Management Agency,
      U.S. Department of Housing and Urban Development,
      National Institutes of Health,
      Hurricane Sandy Rebuilding Task Force
      Organization(s)
      FEMA,
      EPA,
      HUD,
      NIH,
      CDC
      Publication Date
      Description
      Guidance from EPA, FEMA, HUD, and NIH on how to deal with asbestos in homes following natural disasters.
      *For non-dated media, such as websites, the date listed is the date accessed.
      Contributors to this Guide

      The following authors and organizations contributed to the content in this Guide.

      Sales
      Building Science Measures
      Building Science-to-Sales Translator

      Fully Aligned Air Barriers = Whole-House Draft Barrier

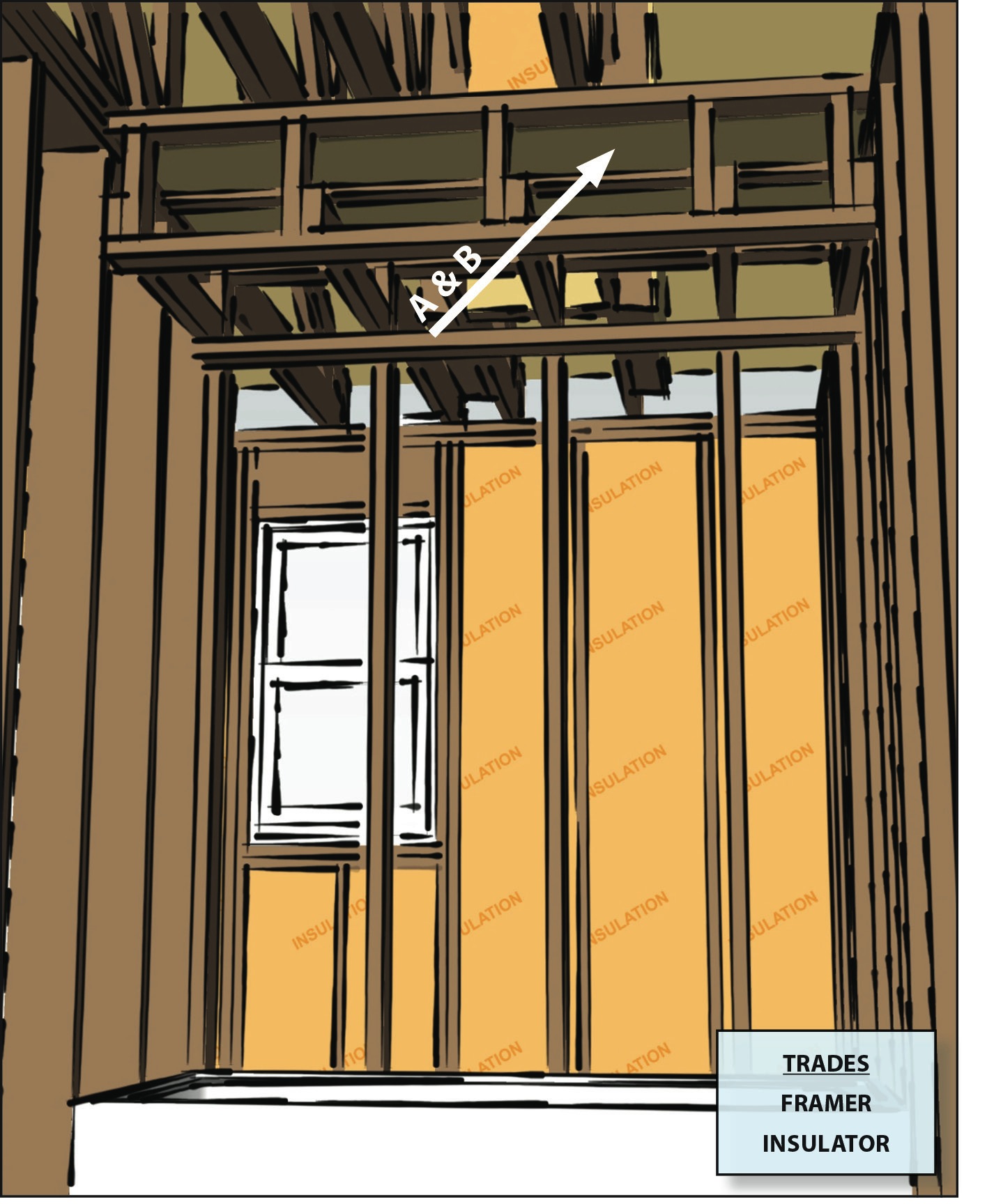

      Image(s)
      Technical Description

      A whole-house draft barrier is a continuous layer of air-tight materials that block air leaks. This barrier can be integrated with other materials to also function as a water barrier, thermal barrier, and vapor barrier. For example, rigid foam insulation can be used to block thermal flow as well as air flow when seams are sealed with tape, caulk, adhesives, or liquid-applied sealants. Some rigid foams have an integrated water control layer as well. Additionally, drywall can serve as an interior air barrier when the seams are taped and spackled, and caulk, spray foam, or gaskets are used to seal around wiring, plumbing, and other penetrations. It also serves as the vapor barrier when finished with paint. Insulation should be in full contact with the air barrier layer.

      Whole-House Draft Barrier
      Sales Message

      Whole-house draft barriers block air flow that can undermine the thermal protection with a complete high-performance insulation system. What this means to you is less wasted energy along with enhanced comfort, quiet, and durability. Wouldn’t you agree it would be a shame to only get a partial return on your investment in advanced insulation?

      Last Updated

      Did you find this information helpful?

      If you have questions and/or would like a reply to this feedback, please include your e-mail address in the message.
      This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
