Continuous Rigid Insulation Sheathing

    Scope
    Scope Images
    Install continuous rigid foam insulation or insulated siding to help reduce thermal bridging through wood- or metal-framed exterior walls.
    Scope

    Install continuous rigid insulation or insulated vinyl siding to help reduce thermal bridging through wood- or metal-framed exterior walls.

    • Install rigid insulation over or in place of plywood, OSB, or other wall sheathing.
    • Install over a water-resistant barrier. If rigid foam is rated for water resistance, no other water-resistant barrier is required, if seams in foam layer are sealed.
    • Seal all seams in the rigid insulation with a compatible tape; apply tape to clean, dry surfaces.
    • Install rigid foam or insulated vinyl siding over walls if they are metal framed.

    See the Compliance Tab for related codes and standards requirements, and criteria to meet national programs such as DOE’s Zero Energy Ready Home program, ENERGY STAR Single-Family New Homes, and Indoor airPLUS.

    Description
    Description

    Continuous rigid insulation is a construction solution that provides a thermally efficient building enclosure. Rigid insulation sheathing is typically made of a rigid plastic foam that is sold in 4x8- or 4x10-foot boards. The boards are available in several thicknesses and R-values; 1-inch and 2-inch are common thicknesses. Rigid insulation provides thermal protection and it can also serve as an air and moisture barrier.  This guide primarily describes rigid foam insulation products. Continuous rigid insulation boards are also available that are made from spun and compressed mineral fibers like glass wool or stone wool, or natural chopped and bonded fibers like wood or hemp.

    Continuous rigid insulation provides an effective solution to thermal bridging. Thermal bridging occurs wherever assembly components with low R-values (such as wood or steel) span from the interior to the exterior of the building. Steel framing has an R-value of 0.04 per inch and wood has an R-value of 1 per inch. In comparison, rigid insulation has an R-value 3.2 to 6.5 per inch, depending on whether it is low-density or high-density (BSC 2007). In traditional building construction, while the wall cavities are filled with insulation, there is no insulation at the window frames, door frames, studs, top plates and bottom plates; together this framing comprises nearly one-fourth of the wall area. Rigid insulation can be attached to the exterior side of the framing to provide a continuous insulating layer that reduces thermal losses through thermal bridging.

    Rigid insulation can also function to mitigate moisture problems in building construction. Rigid insulation can act as an integral part of the wall’s wind-driven rain screen and vapor and condensation management systems (see climate-specific factors).

    There are three types of rigid foam insulation: expanded polystyrene (EPS), extruded polystyrene (XPS), and polyisocyanurate (polyiso). EPS and XPS are thermoplastics, which are non-cross-linked polymers so they are susceptible to deterioration in high temperatures (BSC 2007). Polyiso is a thermoset, which is made up of cross-linked polymers so it has a much higher melting temperature. While properties can vary among specific products, XPS and polyiso tend to be higher density, higher R-value, and lower permeance than EPS (see Table 1).

    Insulated Sheathing R-Value, Density, Permeance, and other Properties.
    Table 1. Insulated Foam Sheathing R-Value, Density, Permeance, and other Properties.



    When using foam insulation, you’ll need to decide whether you intend to use OSB in addition to the rigid foam to serve as the building sheathing or if the rigid foam layer will itself serve as the sheathing, and you’ll need to determine what will serve as the drainage plane and where this layer will be. These decisions are determined somewhat by climate.

    The wall sections in Figure 1 (BSC 2007) show four options for the drainage plane based on climate factors:

    • Wall Section 1 - Insulating sheathing over house wrap over plywood or OSB – for regions with high winds and high rainfall. This strategy is the most durable assembly because the drainage plane (building paper or house wrap) is supported by the plywood sheathing and is protected against wind loading and other environmental factors by the insulating sheathing.
    • Wall Section 2 - Insulation sheathing over house wrap over studs – for most rainfall zones but not best in high-wind regions.
    • Wall Section 3 – House wrap installed over insulating sheathing over wood studs – ok for most rainfall zones but don’t use in high-wind regions. Fasteners used to install house wrap must reach through foam into studs.
    • Wall Section 4 - Insulating sheathing as the drainage plane – ok in areas of limited rainfall and exposure. All vertical joints and penetrations must be sealed.
    The rigid foam insulated sheathing can be placed exterior of the house wrap, interior of the house wrap, or it can take the place of the house wrap as the wall’s drainage plane.
    Figure 1. The rigid foam insulated sheathing can be placed exterior of the house wrap, interior of the house wrap, or it can take the place of the house wrap as the wall’s drainage plane.



    If rigid foam insulation will be used without OSB or plywood wall sheathing, determine what approach will be taken to meet local wind and earthquake code requirements. A common approach is to install exterior structural wood sheathing at the corners and at regular intervals as needed to meet code requirements for lateral load resistance. However, because the wood takes the place of the foam sheathing, it can create problems with drainage plane continuity and it leaves opportunities for thermal bridging.

    Three recommended alternatives are allowed: metal cross bracing, inset shear panels, or structural insulated sheathing products. With metal cross bracing, the metal braces are thin straps that do not interfere with the installation of the insulating sheathing, for example, diagonal 1x4 let-in braces or diagonal T profile steel strapping. The capacity of the metal cross bracing, however, may not be adequate for areas with high-wind loads and/or seismic activity. In these locations, a more robust form of lateral load resistance may be needed. Inset shear panels can provide for high levels of lateral load resistance and can be used in all wind and seismic zones. Inset shear panels are wood-framed panels that fit within the stud spacing of the wall assembly, so the exterior face of the panel is flush with the exterior face of the wood studs. Another option is to use a structural insulated sheathing. It must be installed following the manufacturer’s installation recommendations and certified to meet structural requirements. When using any of these options, check the plans with local code officials before finalizing wall-sheathing layout.

    Extruded polystyrene (XPS) and foil-faced polyisocyanurate (polyiso) are high-density rigid-foam insulations that can be used as exterior insulation and are generally approved to be used as a drainage plane if the joints are sealed. Insulation sheathing membranes rely on tape to complete the air barrier; the tapes should be applied on a clean, dry, warm surface. For the rigid insulation to be used as a water-resistive barrier, the vertical plane of the exterior face of the sheathing must be as smooth and continuous as possible.

    One of the complications of foam plastic insulation is that it typically is less thermally stable and will expand and contract more than standard structural sheathing. This is why two layers of foam are often specified with joints offsetting, so if gaps open up they do not span the entire thickness of the foam insulation.

    If you are using a structural insulated sheathing, then following the nail schedule provided by the manufacturer is very important to obtain the structural properties such as racking resistance that are mandated by codes. If a nonstructural insulated sheathing is used, nailing patterns become less important because the exterior cladding will be fastened through to the framing. Button cap nails are recommended by most sheathing manufacturers to maintain the holding strength and to avoid blow off during high winds before cladding installation.

    Furring strips can adequately support the weight of the cladding and resist wind and seismic forces if the right fasteners and spacing are used. The following is recommended:

    • Furring – wood 1x4s or 20-gauge steel
    • Fasteners - long enough to penetrate studs by at least 1½ inch if wood, by three threads if steel.
    • Foam Density. Use one of the following foams or foam with a greater density than these: Type II EPS or Type X XPS (per ASTM C578); Type 1 polyisocyanurate (per ASTM C1289) or Type IVB mineral fiber board (per ASTM C 612).
    • Fastener Schedule – as specified by the foam manufacturer, see examples in Table 2 for walls with studs spaced 16 in. on center and Table 3 for walls with studs spaced 24 in. on center (Holladay 2012).
    Fastener spacing for attaching furring strips if wall studs are 16 inch on center.

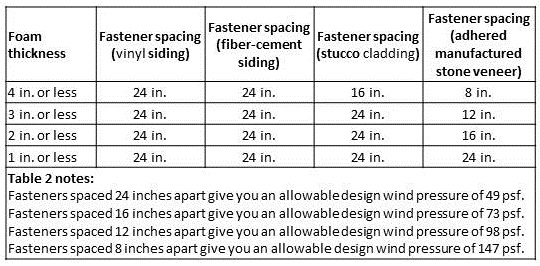

    Table 2. Fastener spacing for attaching furring strips if wall studs are 16 inch on center.



    Fastener spacing for attaching furring strips if studs are 24 inch on center.
    Table 3. Fastener spacing for attaching furring strips if studs are 24 inch on center.



    Installing siding over rigid foam resembles standard installation, yet requires longer fasteners if fastening to the framing. With thicker insulating sheathing, longer and stronger fasteners will be needed to avoid cladding creep.

    Stainless steel nails are the best choice, especially if the siding is to be finished with transparent or semitransparent stain. Use No. 304 stainless for general siding applications and No. 316 for seacoast exposures. Hot-dipped galvanized steel (per ASTM A 153), aluminum, and stainless steel fasteners are all corrosion-resistant and are acceptable. Electroplated and mechanically galvanized fasteners are not recommended. For best results, use “splitless” ring shank siding nails. These have thin shanks and blunt points to reduce splitting. Textured heads should be used to reduce the glossy appearance of the nail head. Hand nailing is preferred. The size of nails to use depends on the type and thickness of the siding. Use nails long enough to penetrate solid wood (sheathing and blocking or studs) a minimum of 1.5 inches.  However if you use ring shank rather than smooth shank nails, ¾ in. penetration into solid wood should be adequate, unless you are building in high-coastal wind areas (Holladay 2012).

    Insulated Siding

    Some brands of vinyl siding are manufactured with a layer of rigid foam adhered to the back. In order for insulated siding to qualify as home insulation, it must be installed directly over a water-resistive barrier and sheathing. When insulated siding is installed over furring strips, the space between the furring strips must be filled in with rigid insulation or another appropriate building material. Insulated siding installed over furring strips alone would not be considered home insulation.

    How to Install Rigid Insulation

    1. Lay Out
      1. Lay out the insulating sheathing panels so that vertical joints do not occur at the corners of window and door openings or over window heads if possible (BSC 2007).
      2. Install rigid insulating sheathing vertically with long joints in contact with one another per manufacturer’s specifications.  This is particularly important when the sheathing is structural.
      3. Install the rigid insulation so that it extends down to cover the sill plate on the foundation wall and up to the underside of the roof truss. If desired, the insulating sheathing can extend above the top plate (notch around the roof trusses) to act as a wind shield for the attic insulation (BSC 2007).
      4. When rigid insulating sheathing is installed directly on the framing, apply a continuous bead of manufacturer-approved caulk sealant (solvent-based sealants are typically not approved by the sheathing manufacturer) to the top and bottom plates to reduce air leakage into the wall cavity.
      5. If you are installing more than one layer of rigid foam, then stagger the seams of the second layer to improve airtightness and reduce the chance of thermal bridging. Seams between foam sheets should be sealed with caulk, canned foam, or a compatible tape (Smegal and Lstiburek 2012).
      6. If house wrap is installed, it is preferable to install it to the exterior of the rigid foam insulation.

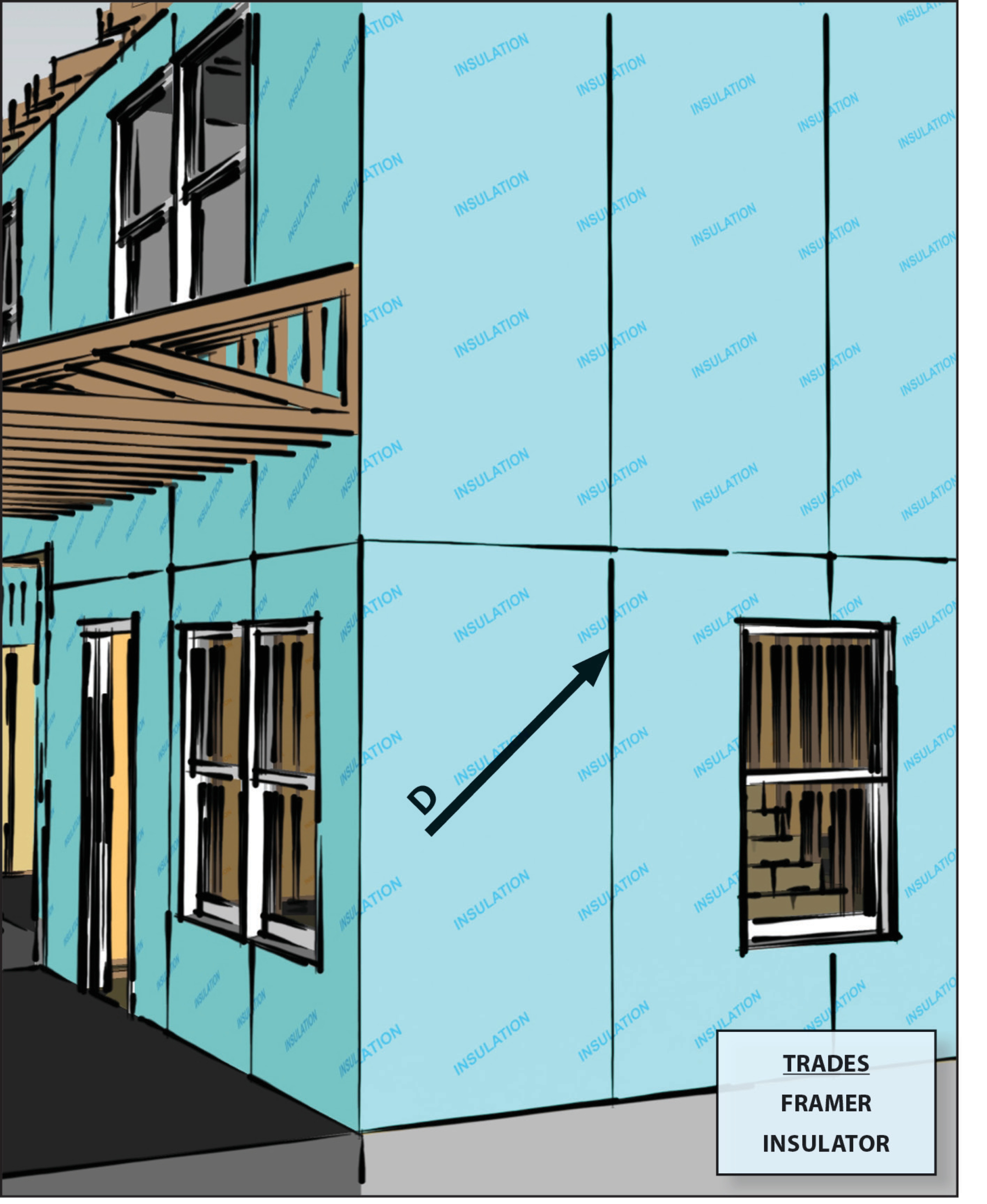

      Lay out the rigid foam sheathing joints so they do not align with the window and door edges.
      Figure 2. Lay out the rigid foam sheathing joints so they do not align with the window and door edges.
    2. Fastening
      1. Follow the nail schedule provided by the manufacturer.
      2. Drive the nail through the foam board and into a stud until the nail's cap rests flush against the foam board's exposed surface. Fasteners should penetrate framing at least three-quarters of an inch.
      3. If furring strips are not specified, then drive nails every 12 inches around the foam board's edges.
      4. Drive nails every 16 inches into studs that run through the center of the board.
      5. Measure and cut subsequent rigid foam boards to precisely fit against previous boards.
    3. Taping
      1. When rigid foam is used as the weather-resistive barrier and/or the air barrier, tape all seams using manufacturer-recommended tape per the manufacturer’s instructions. Wipe the surface of the foam with a clean dry cloth before taping to ensure good adhesion by removing dirt or oil residue which is common on foil-faced polyiso (Smegal and Lstiburek 2012).
      2. When rigid foam is used as the weather-resistive barrier, apply flashing shingle fashion around all openings for doors, windows, etc., to reduce bulk moisture intrusion and air infiltration.
      3. Center the tape over the joint to cover the fasteners. Fasteners located in the center areas of the boards do not need to be taped. Use a shingle fashion technique when taping joints. Avoid taping during extremes in temperature; install tape per the manufacturer’s instructions, which is generally between 15°F and 120°F.
      4. Apply pressure along the entire surface for a good bond. Remove all wrinkles and bubbles by smoothing the surface and, if necessary, repositioning.

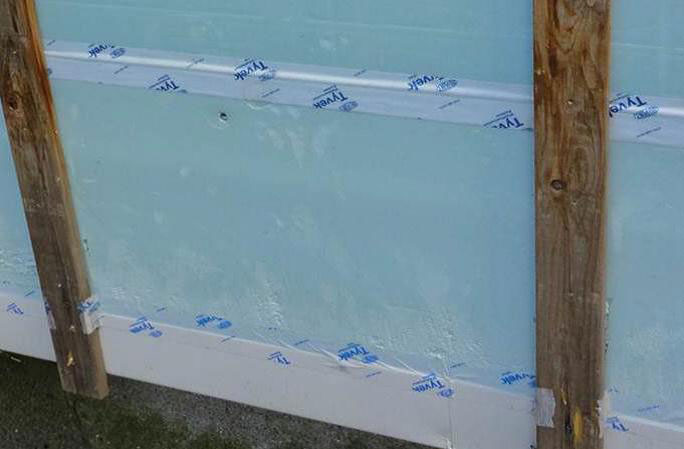

      With a quality installation, tape can last a long time. This sheathing tape was applied 15 years ago.
      Figure 3. With a quality installation, tape can last a long time. This sheathing tape was applied 15 years ago.
    4. Flashing
      1. Seal all mechanical penetrations in exterior walls using a compatible tape as shown in Figure 4. If the gap around the pipe is larger than ½ inch, it can be filled from the inside with spray foam that is trimmed flush on the outside then covered with tape.

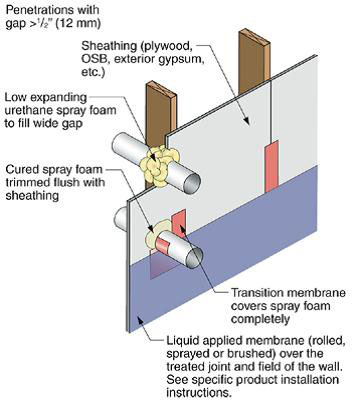

      Use flashing tape to seal around any pipes or vents that penetrate through the foam sheathing. Tape should be applied in an overlapping, shingle fashion. Use a flashing product that is compatible with the foam.
      Figure 4. Use flashing tape to seal around any pipes or vents that penetrate through the foam sheathing. Tape should be applied in an overlapping, shingle fashion. Use a flashing product that is compatible with the foam.
    5. Windows and Doors

      These instructions describe how to install foam sheathing around a window when no house wrap or OSB structural sheathing is used (for more on these instructions and additional instructions on installing foam on walls that have OSB sheathing, see BSC 2007). Three methods for installing windows in walls with rigid foam are also described in the standard practice document "FMA/AAMA/WDMA 500-16, Standard Practice for the Installation of Mounting Flange Windows into Walls Utilizing Foam Plastic Insulating Sheathing (FPIS) with a Separate Water-Resistive Barrier.”   This guide describes the following methods a) (where the foam is applied directly to the sheathing and house wrap ins installed over the foam using the following sequence) window buck; insulating foam; house wrap (WRB); sill flashing; window; jamb flashing; head flashing; head tape. A2) (house wrap is applied after the window is installed) the sequence is: window buck; insulating foam; skirt; sill flashing; window; jamb flashing; head flashing; house wrap (WRB); jamb tape; head tape. The window buck can be wood or a prefabricated rigid foam product. B) the window is installed into the window buck over the house wrap, and the foam insulation is applied next. This method uses either fluid-applied or peel-and-stick flashing. or C) the house wrap and the window are installed in the wall before the foam is applied; in this case, there’s no window buck (FMA, AAMA, WDMA 2016).

      1. Install foam sheathing up to rough framing on frame wall.
      2. Install a back dam on the window sill to prevent any water that leaks around frame from running to the interior.
      3. Install adhesive-backed sill flashing in one piece if flexible or in two pieces as shown if not flexible. Install corner flashing patches at sill if not using flexible flashing.
      4. Install adhesive-backed jamb flashings (jamb flashing is adhered to foam and stapled to frame).
      5. Apply sealant at jambs, head and sill. Alternatively, sealant can be applied to the back side of the nailing flange (sealants, house wraps, and flashings must be chemically compatible).
      6. Install window plumb, level, and square as per manufacturer’s instructions.
      7. Install jamb flashing.
      8. Install drip cap (if applicable). Install head flashing. Tape head flashing. Air seal around the perimeter on the interior with sealant or low-expanding foam.
    6. Furring
      1. Determine the appropriate fastener for the project’s wind-load requirements.
      2. Select the appropriate furring (strapping) material. For metal framing, use metal furring that is at least 20 gauge metal. For wood framing, use 1x4 lumber. The wood furring specific gravity should be equivalent to typical reference wood stud specific gravity.
      3. Locate the framing members by transferring the frame layout directly from the wall framing to each attachment of rigid foam insulation or snap vertical chalk lines onto the foam insulation at each stud location after foam has been installed. (Some foam products may be available with pre-marked fastener lines.)
      4. Install the furring strips (strapping) over the foam following the installation guidance provided by the furring fastener manufacturer (or the Foam Sheathing Coalition). The fastener must fully engage the framing or stud. Install fasteners prior to utilities to avoid potential damage. Correct any irregularities and unevenness in framing, sheathing, foam and other wall assembly components, including under driven nails, as these can telegraph through to the finished siding and trim. Avoid overdriving fasteners but make snug enough to remove gaps between the connected parts.
      5. When installing trim on inside corners, outside corners, and around wall penetrations (e.g., windows, doors, vents), use a wider furring strip if needed to accommodate the trim width and accommodate the wall framing offset that the foam thickness creates.
      6. An insect screen should be installed at the top and bottom of the furring strips. Place it on the insulated sheathing where the strips will start and end.  After the strips are installed, fold the screen over the strip ends and fasten to the top surface of the furring before installing the cladding.
    7. Cladding

      There are many types of cladding. Wood lap fastening is described below as an example (WRCLA 2012).  Follow your specific cladding manufacturer’s recommendations.

      1. Choose a siding pattern with narrower boards (8 inches or less) that are thicker. Thick, narrow siding is more stable than thinner, wider patterns and better able to resist dimensional changes. Use kiln-dried siding for more dimensional stability.
      2. Before installing siding, back prime all surfaces of wood siding (including ends) with 100% acrylic-latex primer that is allowed to cure above 50°F. Prime all field cuts. The end grain of all wood products absorbs liquid up to 250 times faster than other wood surfaces.
      3. Pre-drill holes at mitered corners, near edges and near ends to avoid splitting, if needed.
      4. Make sure the fastener length satisfies the wind pressure ratings requirements for your area.
        • For wood studs:
          • For foam sheathing up to 1 inch thick, add the foam thickness to the code-required fastener length to penetrate the framing by at least one inch.
          • For foam sheathing 1.25 to 1.5 inches thick, add the thickness of the sheathing to the fastener length to determine adequate length to penetrate the wood stud by a minimum of 1.25 inches.
        • For metal studs (with screws):
          • For foam sheathing up to 1.5 inches thick, use #8 screws that penetrate through the 20-gauge metal studs by 3 full threads; the screw head diameter shall be as required to meet code without the sheathing thickness.
        • For foam sheathing that is more than 1.5 inches thick, use furring strips:
          • Attach siding to furring strip with nails spaced at a maximum of 24 inches on center.
      5. Fasten each piece of siding independently. Do not nail overlapping pieces together as this restricts the natural movement of each piece and may cause splitting.
      6. Apply fasteners snug to surface but avoid overdriving fasteners, which can result in dimpling of the siding due to the compressible nature of the foam sheathing. Heavy nailing distorts the wood and may cause splitting. Hand nailing is preferred. Avoid the use of pneumatic nailers, if possible. If a pneumatic nailer must be used, reduce the air pressure and tap nails flush.
      7. Fill overdriven nail holes with exterior-grade wood putty specifically designed for filling exterior nail holes.
      8. Use light-colored finish coats to maximize heat reflection and reduce dimensional movement.

    How to Install Insulated Siding (Vinyl Siding Institute 2012)

    Always consult the manufacturer’s instructions, but the following general insulated siding installation instructions apply:

    1. A water-resistive barrier should be installed under all insulated siding. Insulated siding is not a watertight covering. It functions as an initial barrier to rain and reduces the amount of water that reaches the underlying water-resistive barrier.
    2. Be sure to use accessories that will accommodate the full thickness of the insulated siding. Consult the manufacturer’s instructions for specific accessories (e.g., J-channel, corner posts) or techniques that work best with a given product. Use the starter strip specified by the insulated siding manufacturer to ensure proper performance.
    3. When installing a panel, it is critical that the lock is fully engaged with the piece below it. Without stretching the panel, reach up and fasten it into place.
    4. On the factory-cut ends of insulated siding panels, the foam is set back from both ends of the panel. This set-back is required to ensure correct overlapping of adjacent panels. To correctly overlap the panels, insert the vinyl tab at the end of one panel in between the foam and the vinyl of the adjacent panel. Slide the panels together until the ends of the foam touch. It is recommended to have a gap of 1/8” during installation under cold weather conditions (i.e., 40°F or 4.4°C). For best appearance, lap factory ends only. If you must lap a non-factory end, create the required foam set-back and siding panel notches following the siding manufacturer’s instructions.
    5. When determining the length of the final panel of a course, measure from the edge of the foam on the installed panel to the corner, allowing 1/4” for expansion. Apply this measurement to the final panel, measuring the foam instead of the panel. This will ensure foam-to-foam contact, with the necessary amount of room for expansion of the siding.
    6. Using a circular saw with the fine-toothed plywood blade turned backwards, cut slowly with the vinyl face up. Be sure to cut all the way through the foam.
    7. Avoid using panels shorter than 24 inches long.
    8. When cutting insulated siding, use a circular saw with a fine-toothed (plywood) blade inserted backwards and cut slowly with the vinyl face up. Be sure to cut through the frame. Do not attempt to cut materials other than vinyl siding or insulated siding with a reversed direction saw blade.
    9. Fasten nails or other fasteners in the center of the nailing slot; make sure the fastener penetrates a minimum of 3/4” into framing, furring or another approved nailable surface. Do not drive the head of the fastener tightly against the siding nail hem; allow approximately 1/32”clearance (the thickness of a dime) between the fastener head and the vinyl siding. Consult manufacturer’s instructions for fastener specifications.
    10. Around windows and doors, because insulated siding is thicker than vinyl siding, use wood shims and either aluminum trim coil or vinyl lineals to build out door and window openings if needed.
    11. To complete the final course of insulated siding at the top of a wall, take the height measurement of the remaining open section in several locations and subtract 1/4” from each location to allow for movement. Cut the panel to the required measurement and cut back the foam 2 inches. Using a snap lock punch, punch the vinyl siding along the cut edge every 6 inches, so the raised lug is on the outside face. Install utility trim along the top of the wall to receive the top edge of the siding. Use shims under the utility trim to match the angle or distance from the wall of the siding edge. Push the siding into the utility trim. The raised lugs will catch and hold the siding firmly in place.
    Success
    Ensuring Success

    The HERS rater will inspect to determine if the total amount of wall insulation installed meets the minimum R-value requirement for the climate where the house is located. The rater should also verify that the wall is designed to provide adequate shear resistance if the foam insulation also serves as the exterior sheathing.

    Typical R-values for common insulation materials are summarized in this table, which also identifies the vapor retarder classification for each insulation.

    Climate
    Climate

    Insulation levels should meet or exceed the minimum levels specified in the applicable building code for the home's location and climate zone.

    The map in Figure 1 shows the climate zones for states that have adopted energy codes equivalent to the International Energy Conservation Code (IECC) 2009, 12, 15, and 18. The map in Figure 2 shows the climate zones for states that have adopted energy codes equivalent to the IECC 2021. Climate zone-specific requirements specified in the IECC are shown in the Compliance Tab of this guide.

    Climate Zone Map from IECC 2009, 12, 15, and 18.
    Figure 1. Climate Zone Map from IECC 2009, 12, 15, and 18. (Source: 2012 IECC)



    Climate Zone Map from IECC 2021.
    Figure 2. Climate Zone Map from IECC 2021. (Source: 2021 IECC)



    Rigid insulation sheathing can provide a vapor-resistant layer, depending on the thickness and whether the foam is open cell or closed cell. As a general rule for framed construction, the vapor-retarding layer should be placed in the interior of the assembly in cold climates (to prevent water vapor from the higher humidity interior air from diffusing into the assembly). In hot, humid climates, the vapor-retarding layer should be placed to the exterior of the assembly to prevent moisture-laden outside air from coming into contact with the back surface of the interior wall, which may have a temperature below the dew point of the air, resulting in condensation on the interior wall. Year-round dew point temperatures should be taken into account when designing the building’s wall assemblies.

    Training
    Right and Wrong Images

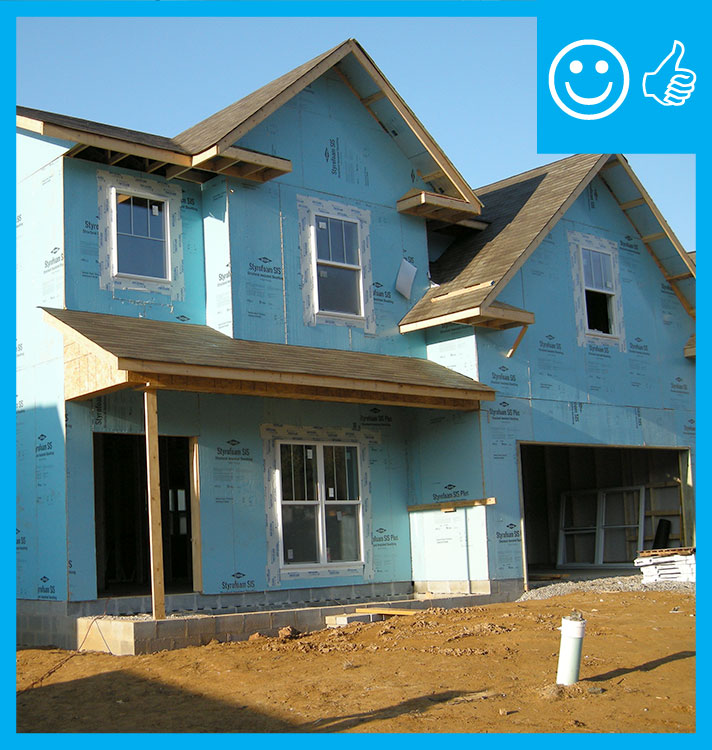

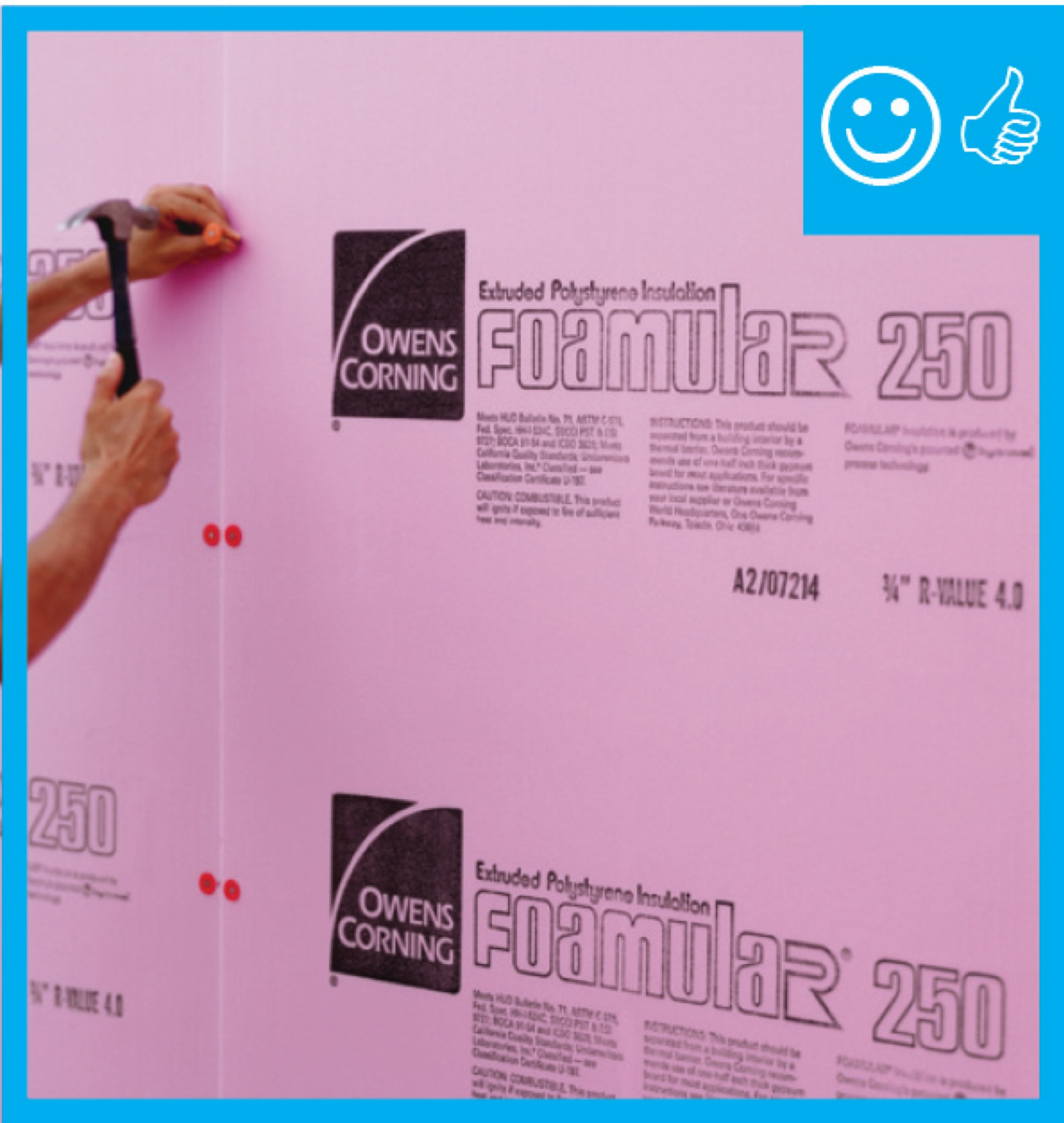

    Right – Continuous rigid insulation has been installed
    Right – Continuous rigid insulation has been installed
    Wrong – Rigid insulation is being installed without cap nails
    Wrong – Rigid insulation is being installed without cap nails
    Right – Rigid insulation is being installed with cap nails
    Right – Rigid insulation is being installed with cap nails

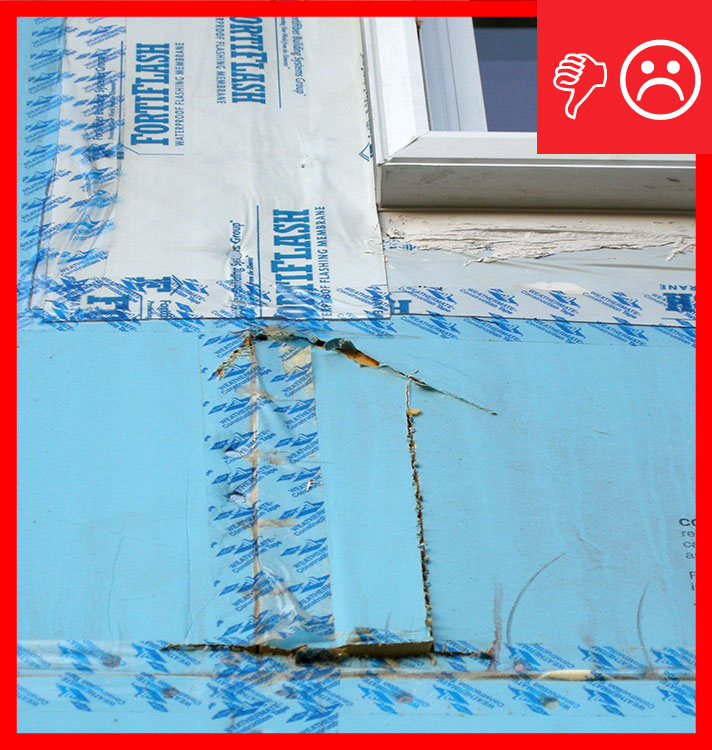

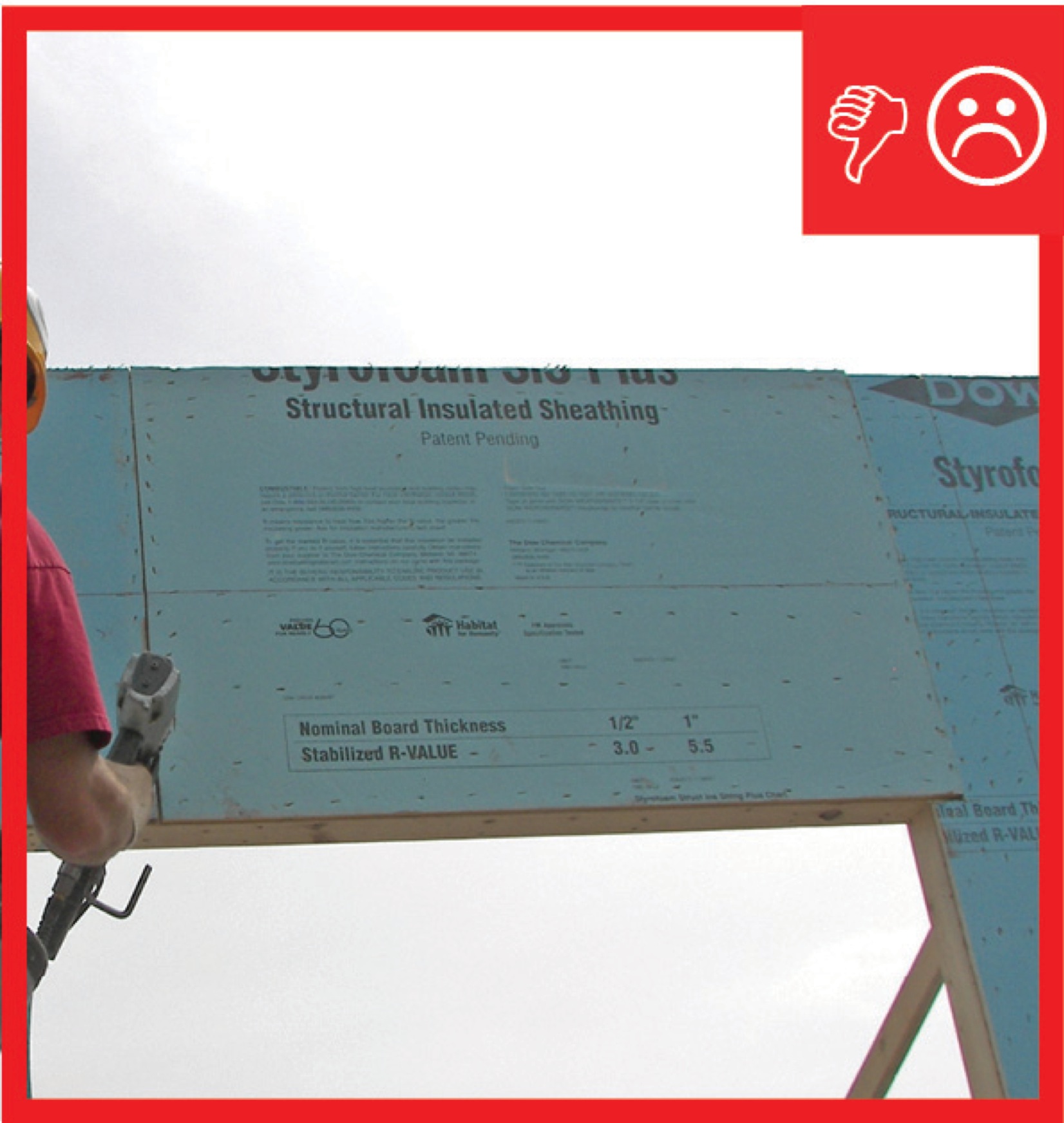

    Wrong – If the insulated sheathing will serve as an air barrier and drainage plane, any cuts and seams must be taped or sealed.
    Wrong – If the insulated sheathing will serve as an air barrier and drainage plane, any cuts and seams must be taped or sealed.

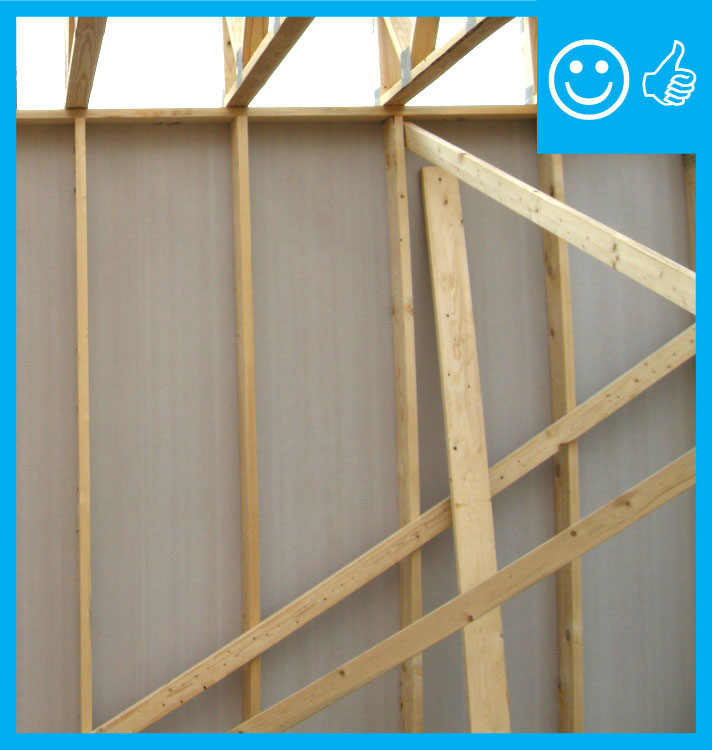

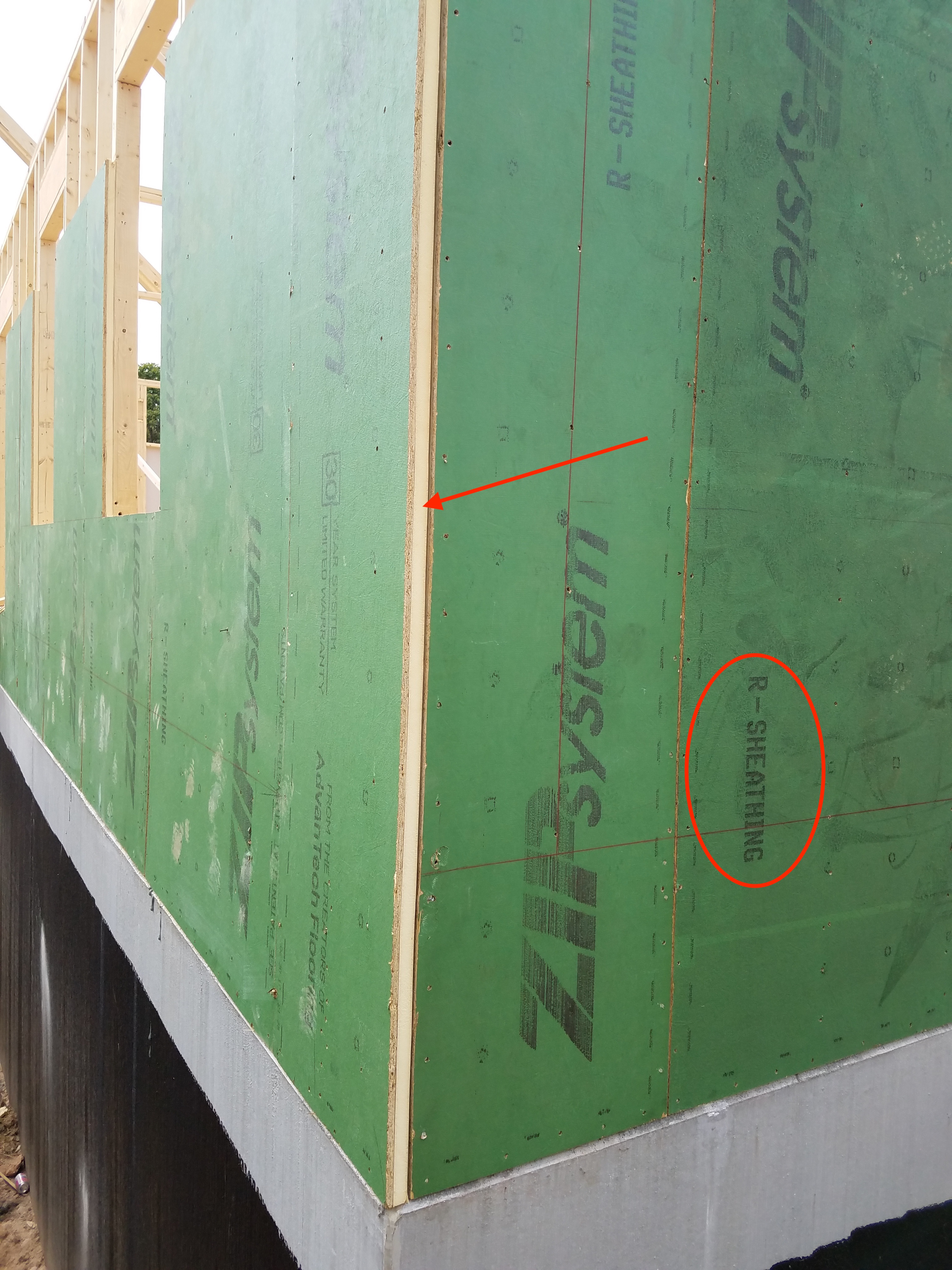

    Right – Structural insulated sheathing can provide racking strength (lateral load resistance), and serve as an air barrier and thermal barrier if installed according to manufacturer’s specifications with taped, sealed seams
    Right – Structural insulated sheathing can provide racking strength (lateral load resistance), and serve as an air barrier and thermal barrier if installed according to manufacturer’s specifications with taped, sealed seams

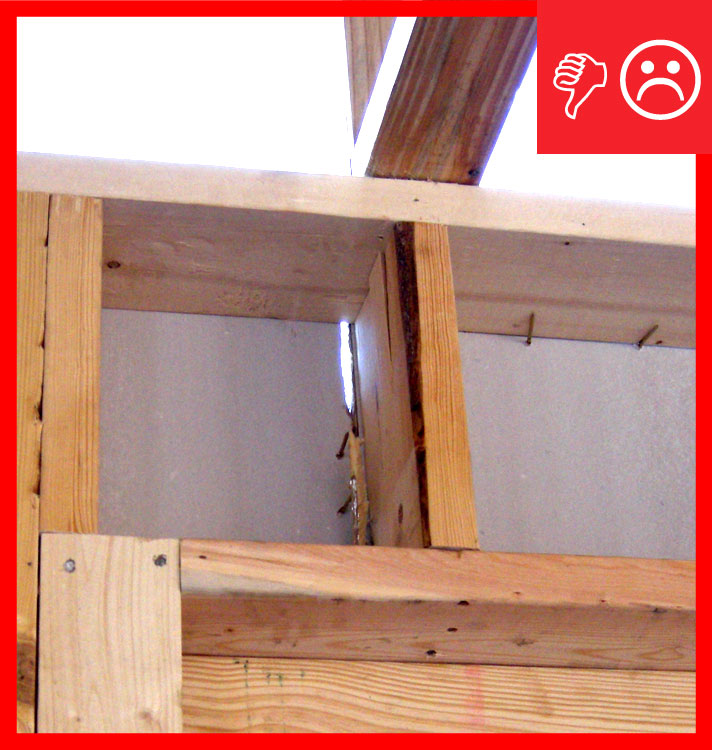

    Wrong – Insulated sheathing seams should align with framing members
    Wrong – Insulated sheathing seams should align with framing members

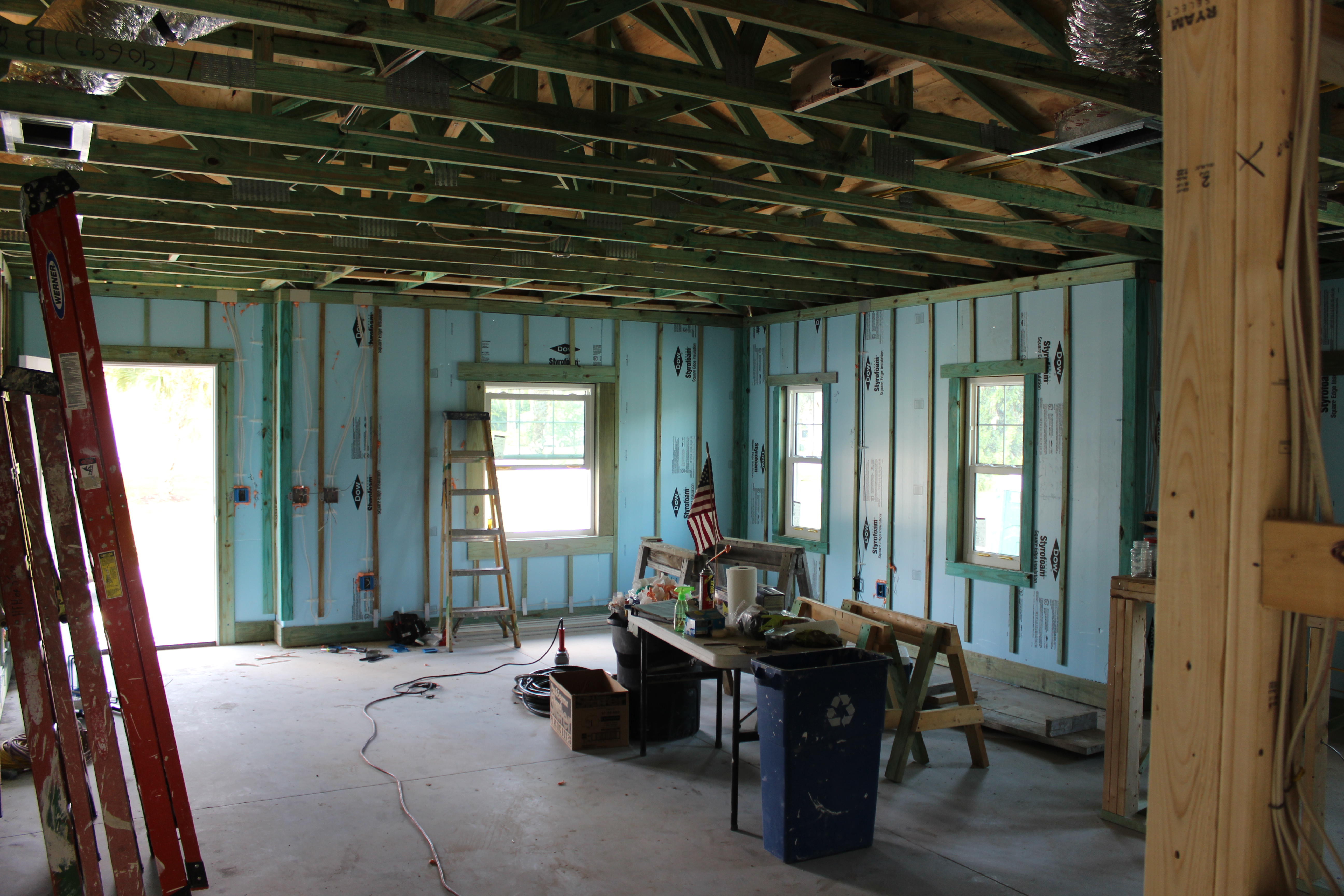

    No insulated sheathing seams are visible from the inside during framing
    No insulated sheathing seams are visible from the inside during framing

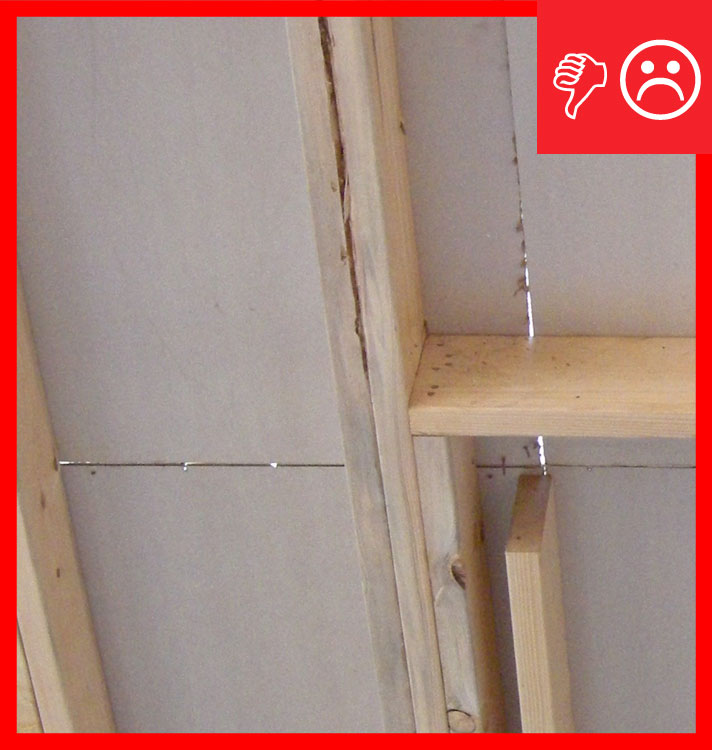

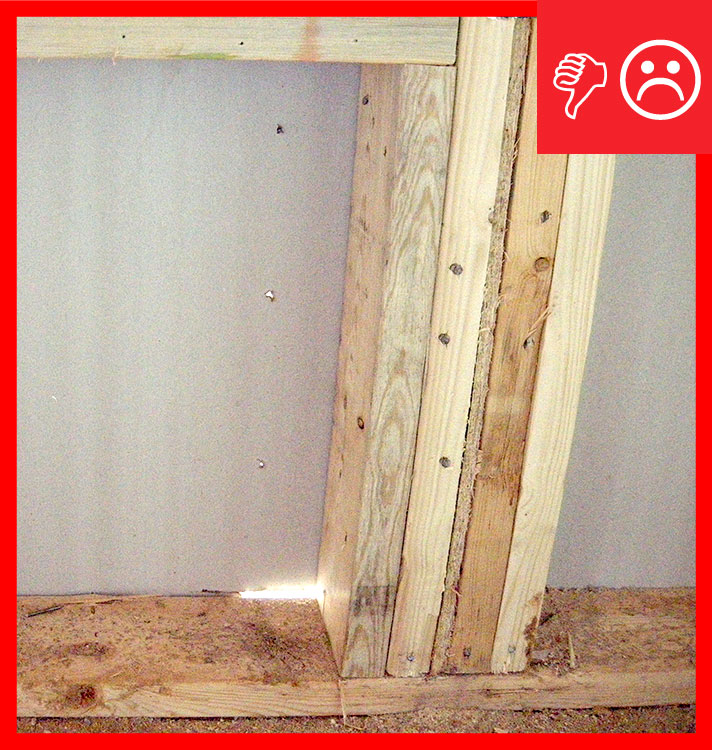

    Wrong – A visible gap in the insulated sheathing introduces unwanted outside air, creating a thermal bypass and encouraging convective air flow
    Wrong – A visible gap in the insulated sheathing introduces unwanted outside air, creating a thermal bypass and encouraging convective air flow
    Wrong – When insulated sheathing is installed correctly, you should not see daylight. Nail holes were also left unplugged.
    Wrong – When insulated sheathing is installed correctly, you should not see daylight. Nail holes were also left unplugged.
    Right – All insulated sheathing boards are installed according to the manufacturer’s recommended fastening schedule and taping specifications
    Right – All insulated sheathing boards are installed according to the manufacturer’s recommended fastening schedule and taping specifications

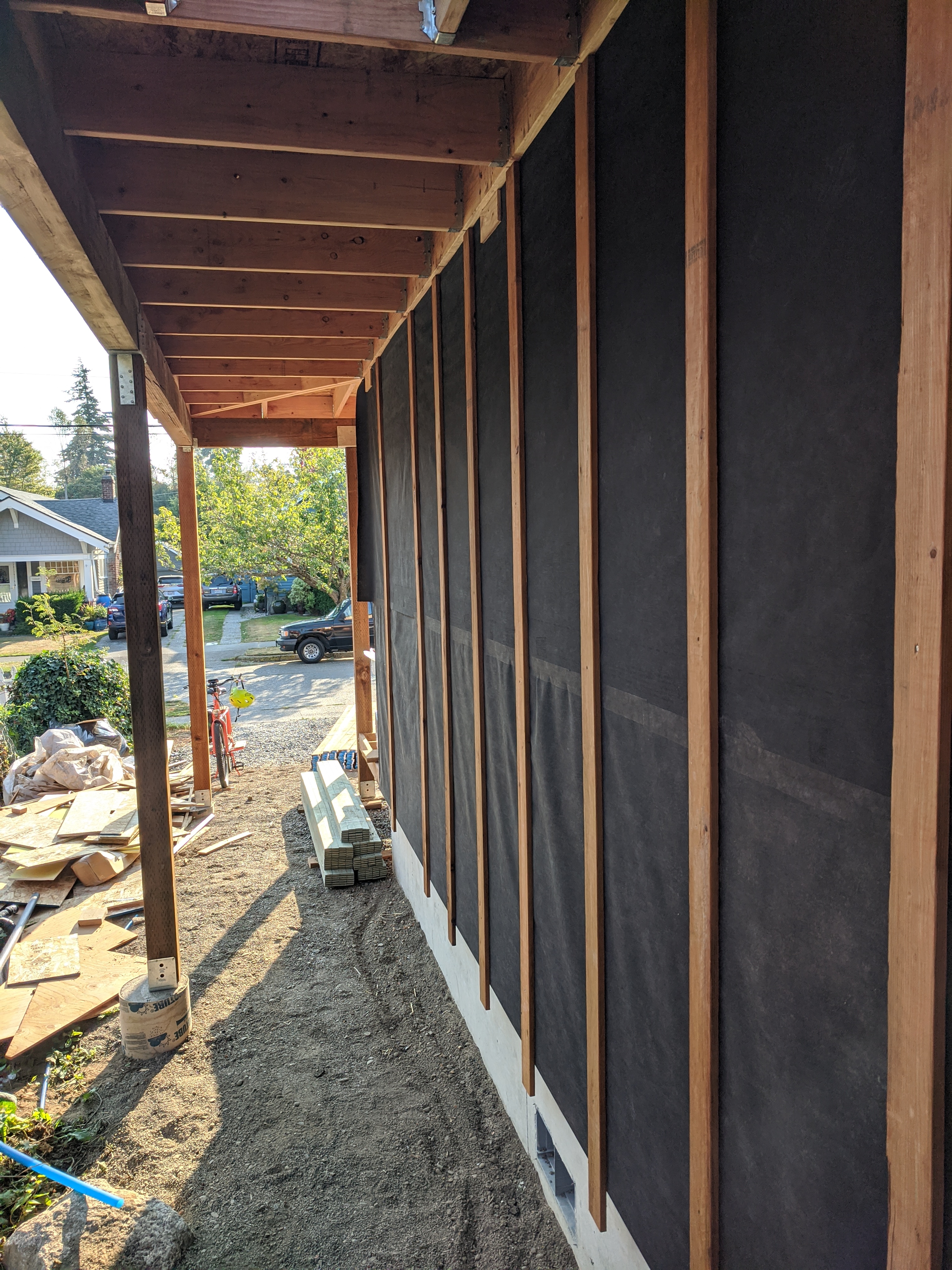

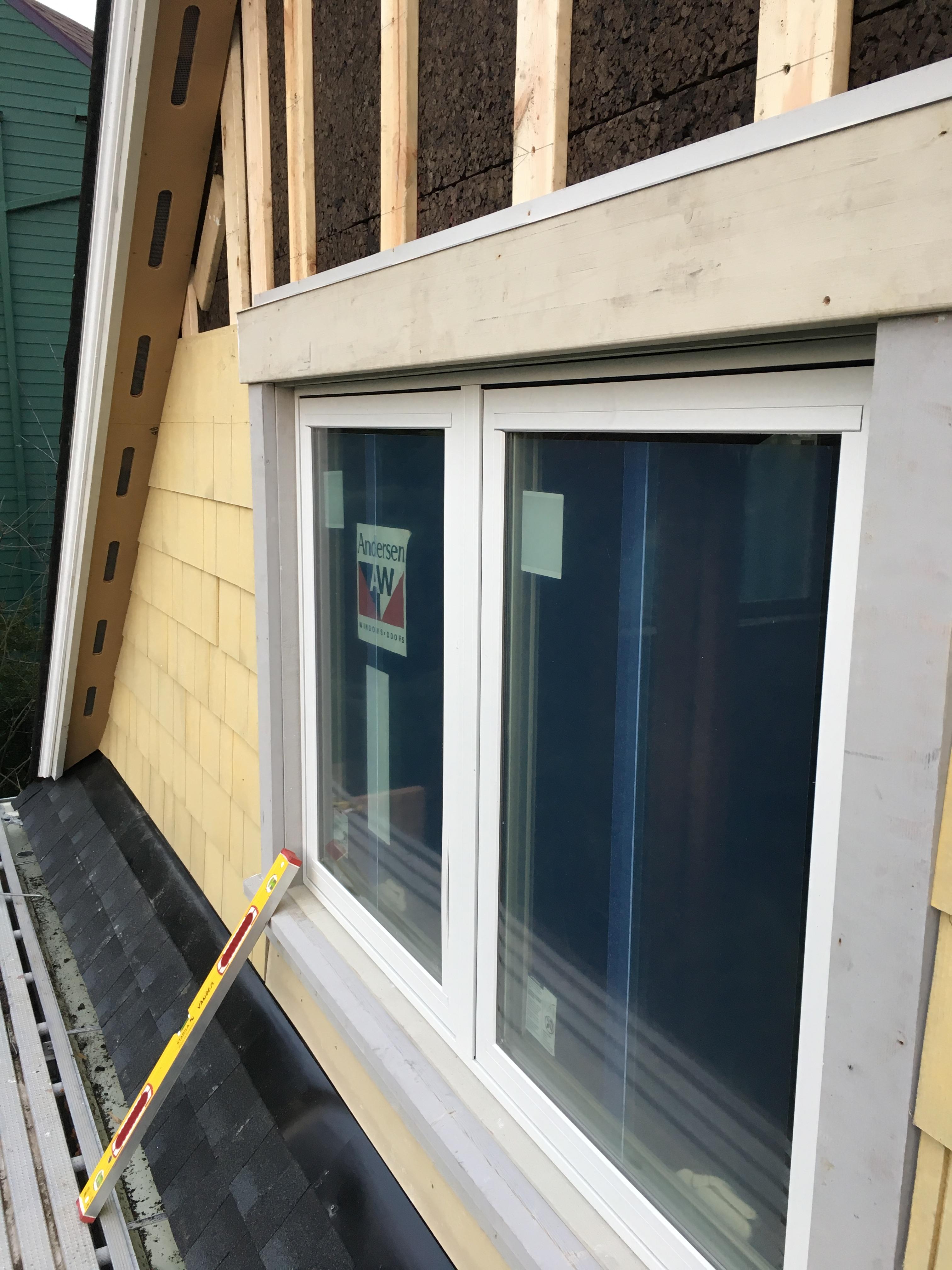

    Right – Furring strips provide a drainage and ventilation gap between the siding and the cork insulation.
    Right – Furring strips provide a drainage and ventilation gap between the siding and the cork insulation.
    Right – The coated OSB sheathing can take the place of house wrap to serve as the weather-resistant barrier because it is sealed at the seams with a paint-on flashing.
    Right – The coated OSB sheathing can take the place of house wrap to serve as the weather-resistant barrier because it is sealed at the seams with a paint-on flashing.

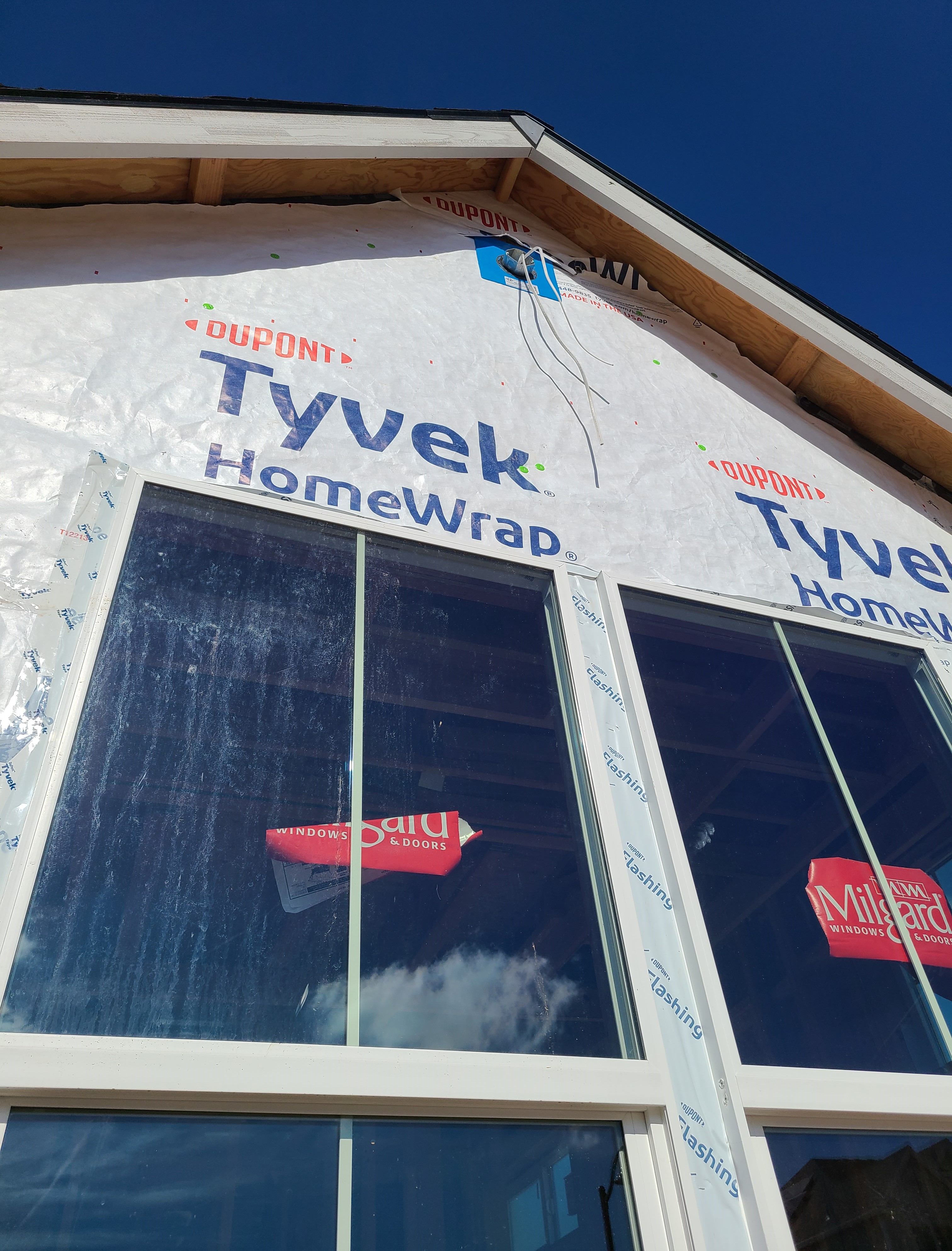

    Right – Housewrap was properly shingled and taped on this wall assembly which places the housewrap beneath the rigid foam sheathing; wall cavities will be filled with spray foam.
    Right – Housewrap was properly shingled and taped on this wall assembly which places the housewrap beneath the rigid foam sheathing; wall cavities will be filled with spray foam.

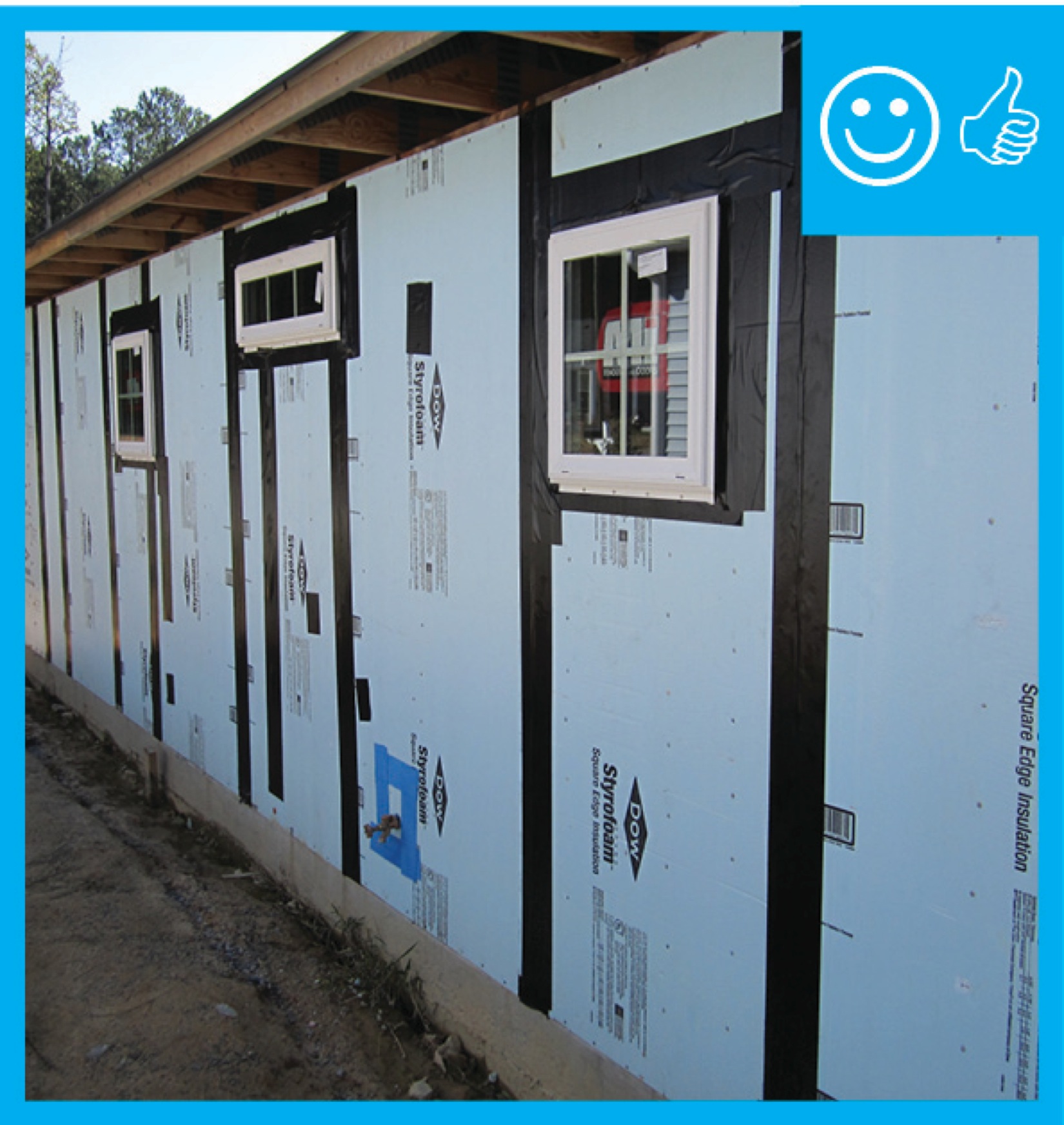

    Right- The rigid foam sheathing is taped at all seams before installing the metal lathe for stucco cladding.
    Right- The rigid foam sheathing is taped at all seams before installing the metal lathe for stucco cladding.

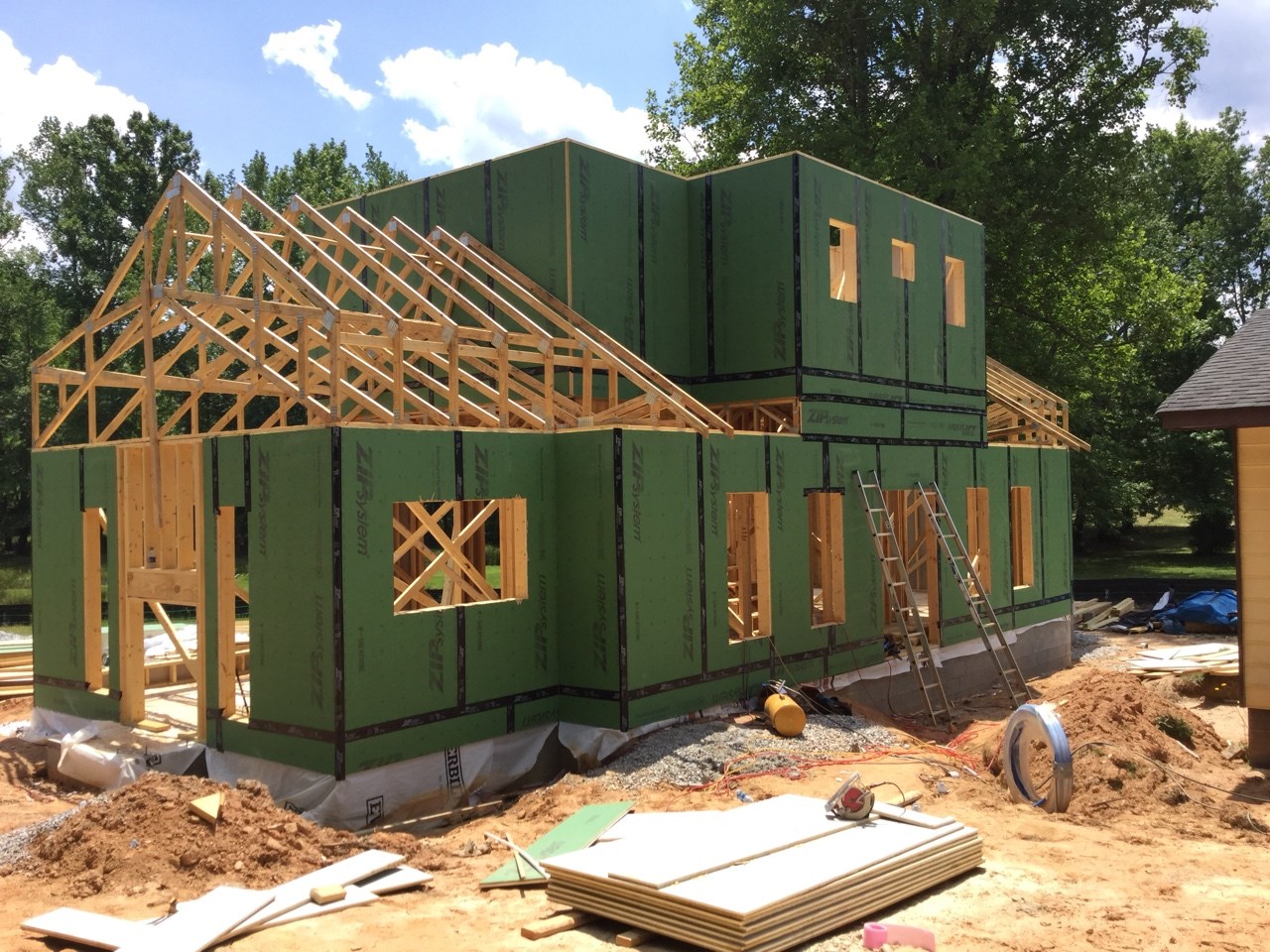

    Right – The seams are taped on the coated OSB sheathing of this home to provide a complete air barrier.
    Right – The seams are taped on the coated OSB sheathing of this home to provide a complete air barrier.
    Right – Furring strips provide a drainage gap between the rigid foam and the siding.
    Right – Furring strips provide a drainage gap between the rigid foam and the siding.
    Right – Coated sheathing is taped at all seams to serve as an exterior air barrier on the walls.
    Right – Coated sheathing is taped at all seams to serve as an exterior air barrier on the walls.

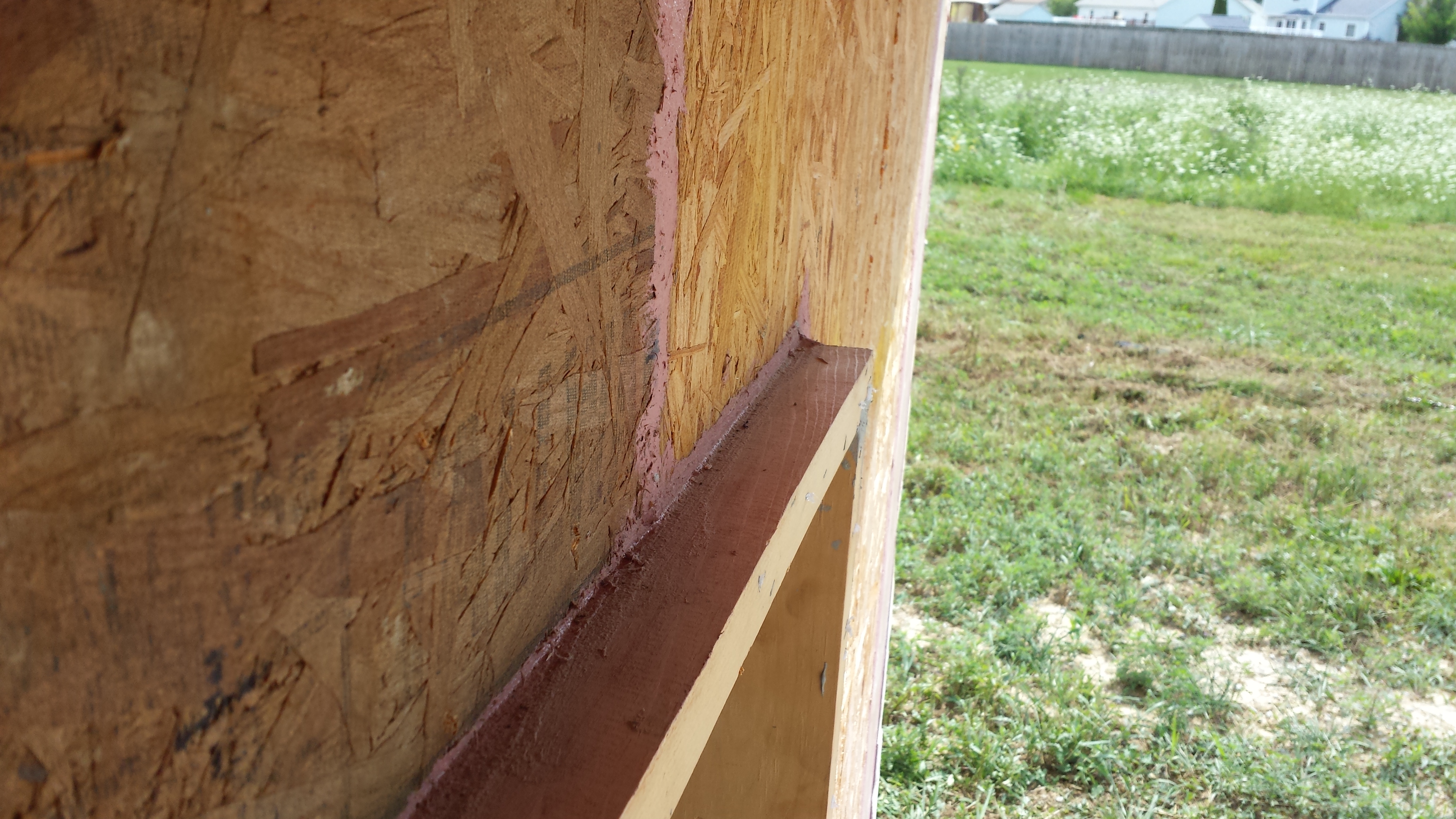

    Right - The seams in the OSB sheathing are sealed with a sprayer-applied sealant.
    Right - The seams in the OSB sheathing are sealed with a sprayer-applied sealant.
    Right – Some tape is pressure sensitive; a roller is used to apply even pressure to ensure full adhesion.
    Right – Some tape is pressure sensitive; a roller is used to apply even pressure to ensure full adhesion.
    Right – This coated OSB sheathing product is available with an integrated insulation layer.
    Right – This coated OSB sheathing product is available with an integrated insulation layer.
    Right – Furring strips were installed to provide a 3/8-inch drainage plane over the rigid foam and under the fiber cement lap siding.
    Right – Furring strips were installed to provide a 3/8-inch drainage plane over the rigid foam and under the fiber cement lap siding.
    Right- This concrete block home in the hot-humid climate is insulated on the interior with rigid EPS foam; all framing uses mold- and termite-resistant borate-treated lumber.
    Right- This concrete block home in the hot-humid climate is insulated on the interior with rigid EPS foam; all framing uses mold- and termite-resistant borate-treated lumber.
    Right - Furring strips create an air gap to allow penetrating moisture to drain instead of wicking into walls; they also provide a nailing surface for siding.
    Right - Furring strips create an air gap to allow penetrating moisture to drain instead of wicking into walls; they also provide a nailing surface for siding.

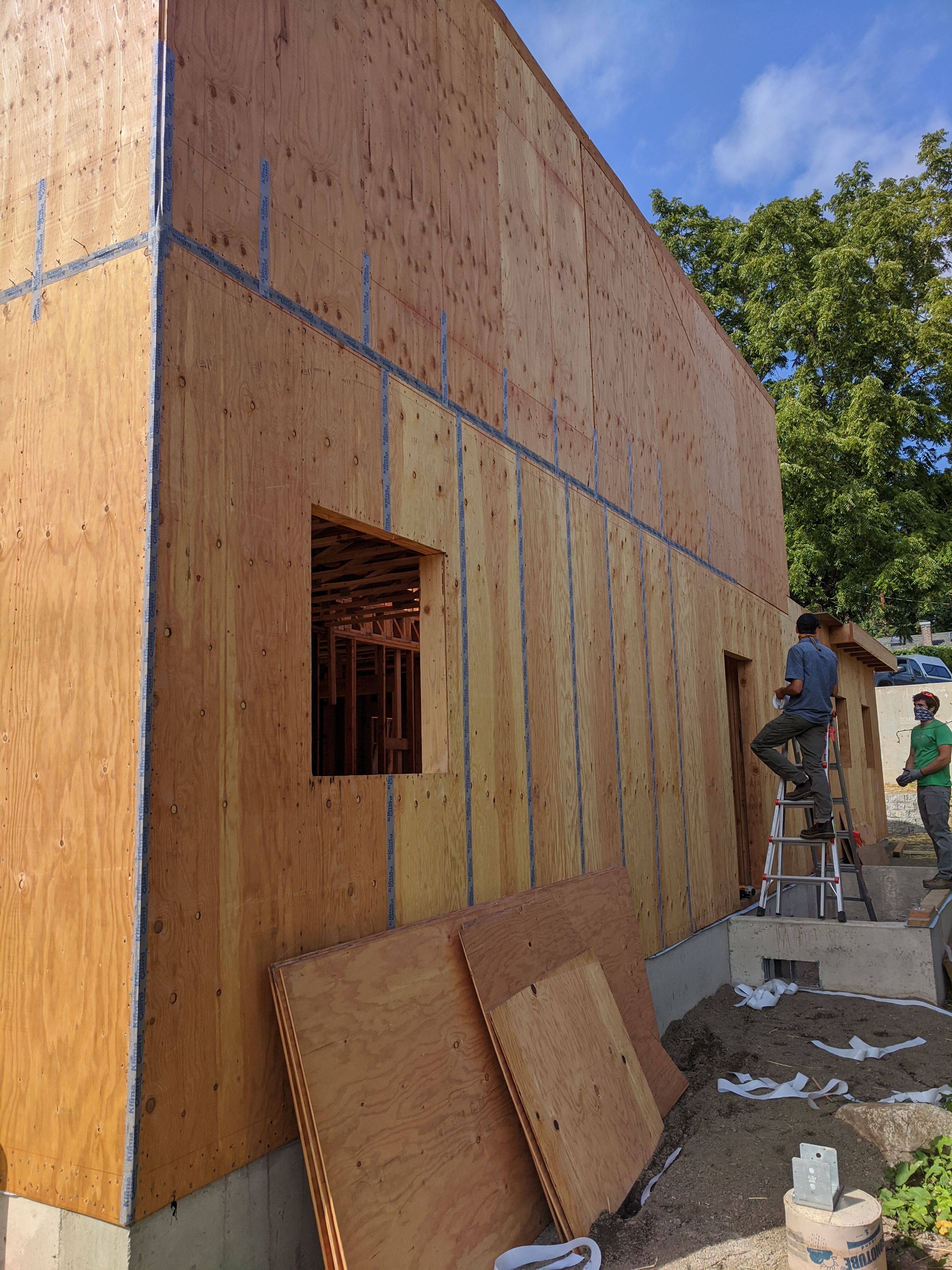

    Right - Plywoood sheathing is taped at the seams to create a continuous air barrier that prevents air infiltration through critical junctures in the wall, such as at corners and between floors.
    Right - Plywoood sheathing is taped at the seams to create a continuous air barrier that prevents air infiltration through critical junctures in the wall, such as at corners and between floors.
    Staggering sheathing seams makes it harder for moisture to infiltrate to the aig gap, where furring strips will allow permeating moisture to drain from the air gap.
    Staggering sheathing seams makes it harder for moisture to infiltrate to the aig gap, where furring strips will allow permeating moisture to drain from the air gap.

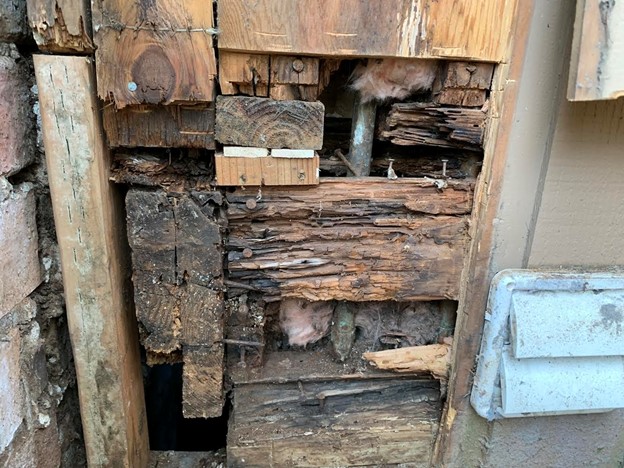

    Wrong - Lack of a weather-resistant barrier allowed water to get behind the siding and rot the framing in this corner rim joist area.
    Wrong - Lack of a weather-resistant barrier allowed water to get behind the siding and rot the framing in this corner rim joist area.

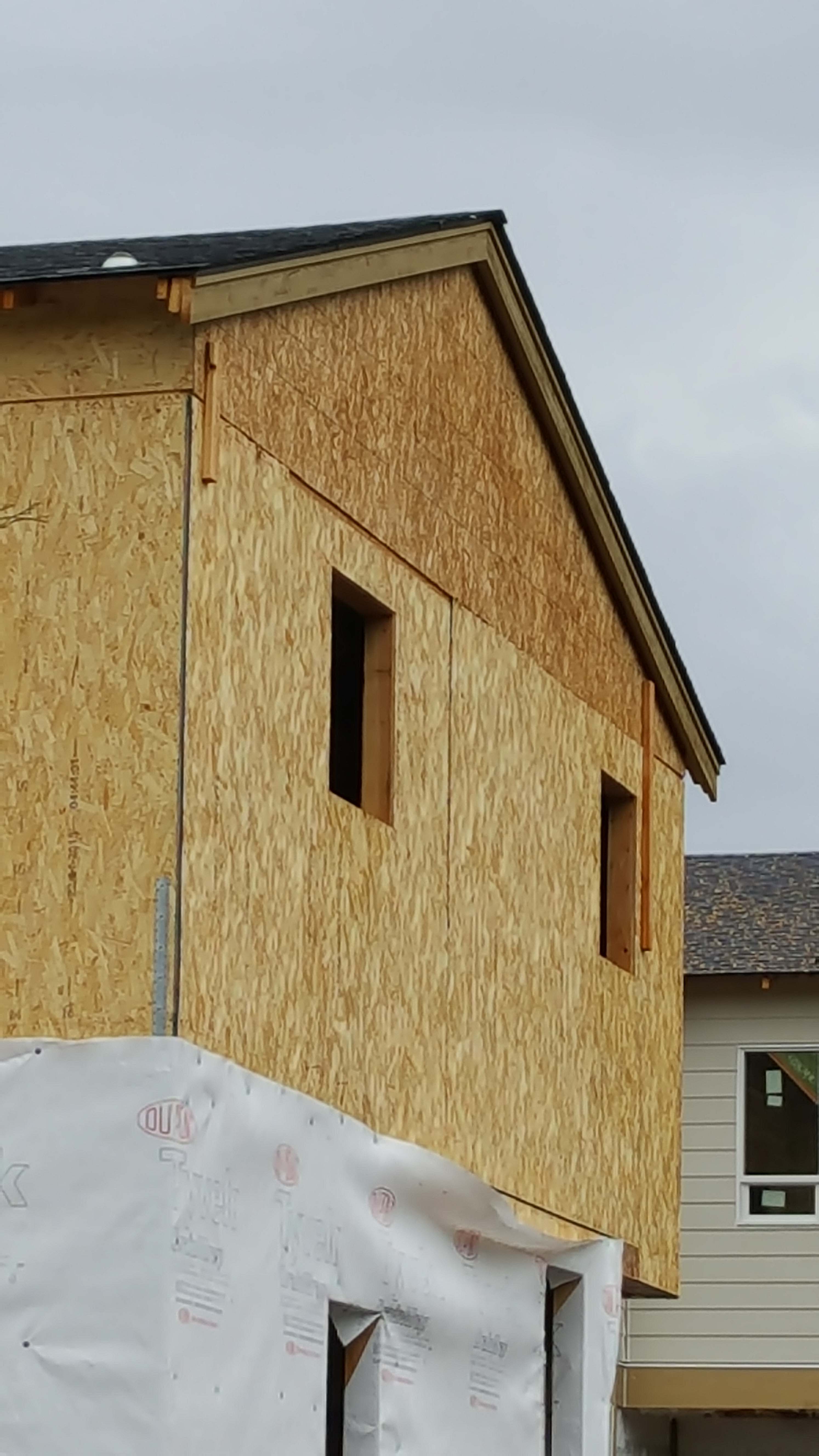

    Wrong - House wrap is not fully attached to sheathing.
    Wrong - House wrap is not fully attached to sheathing.

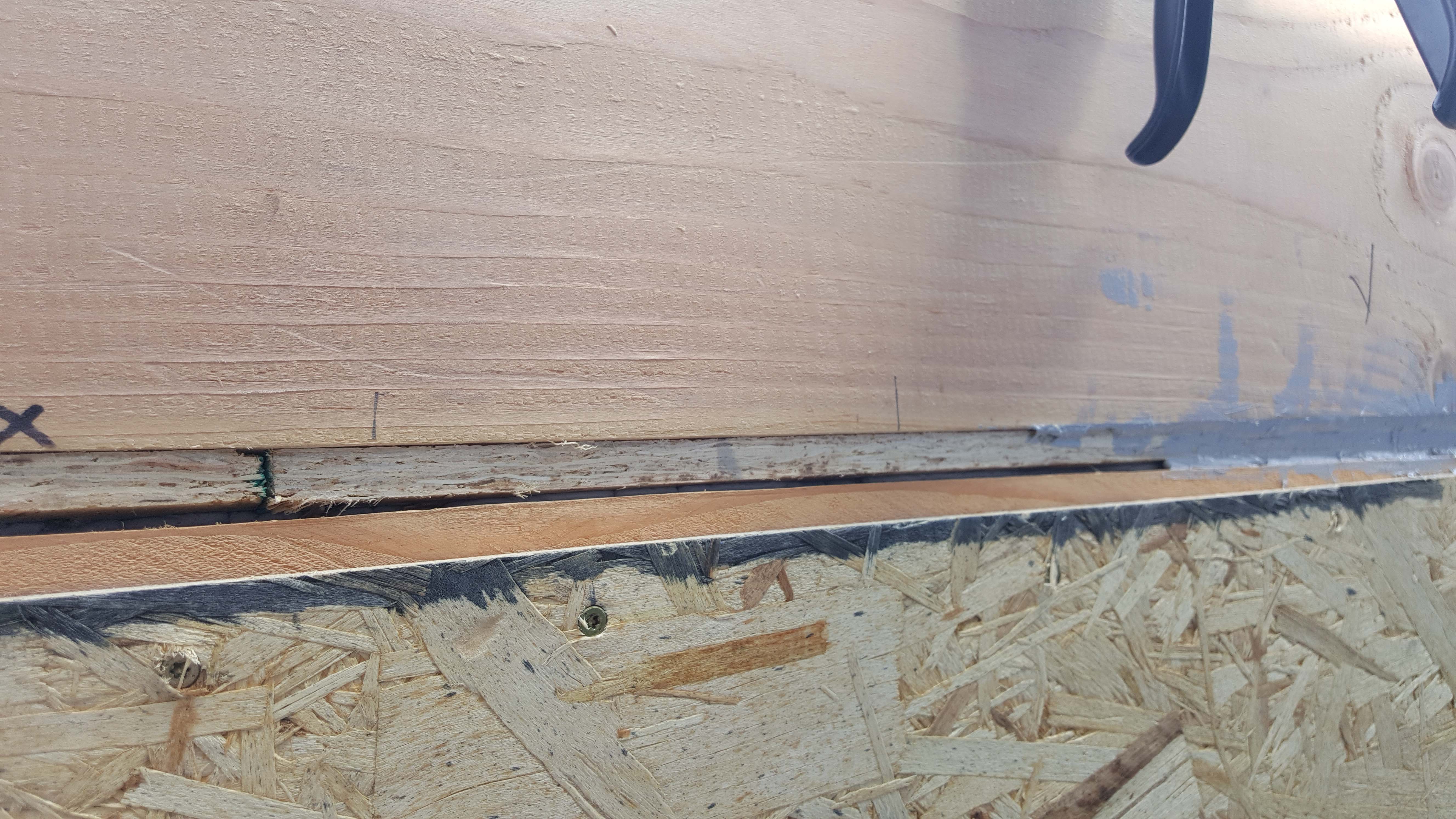

    Right - Mastic is being installed to air seal the wood-to-wood joints in this wall.
    Right - Mastic is being installed to air seal the wood-to-wood joints in this wall.

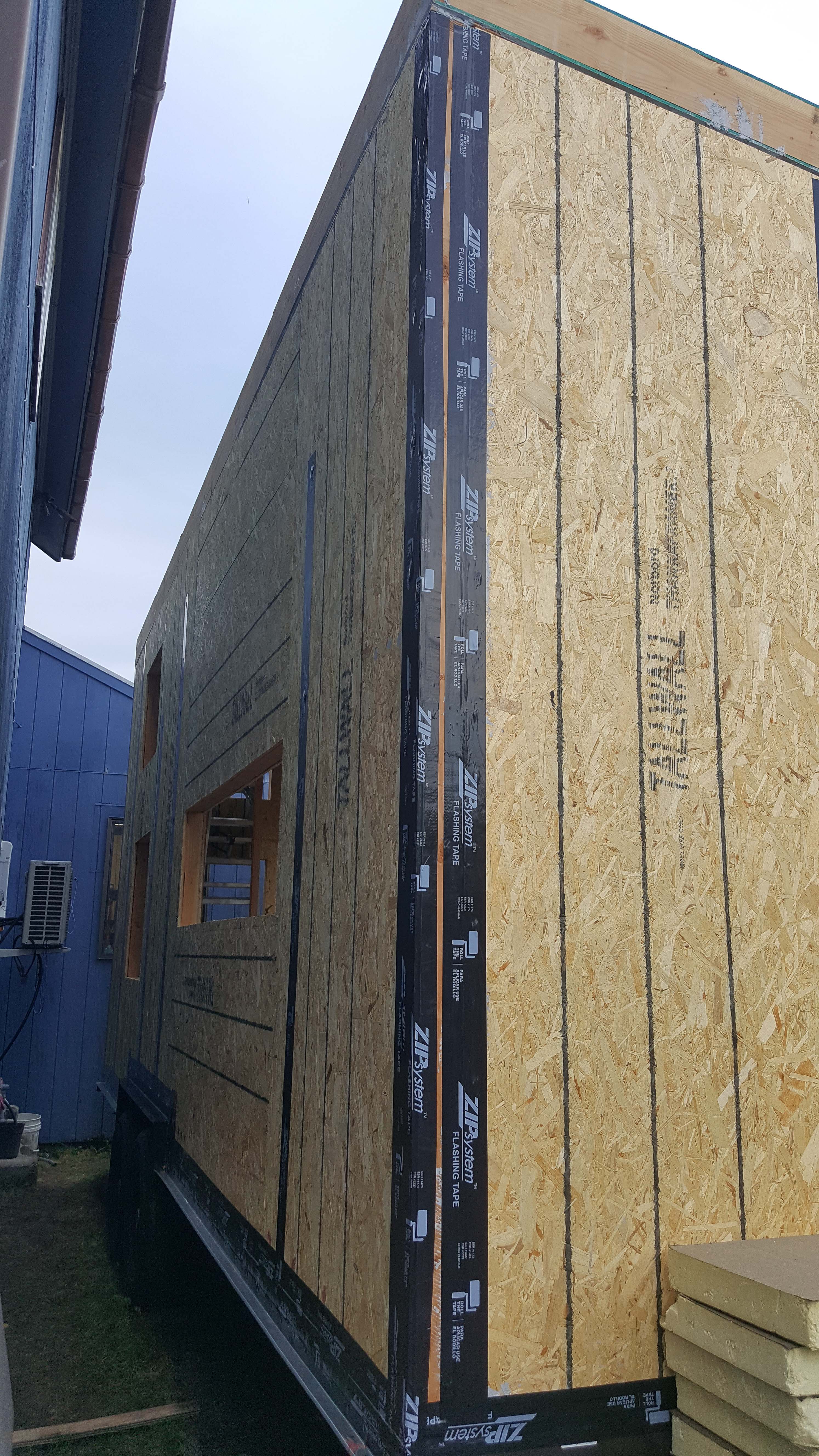

    Right - Assembly corner is air sealed with flashing tape.
    Right - Assembly corner is air sealed with flashing tape.

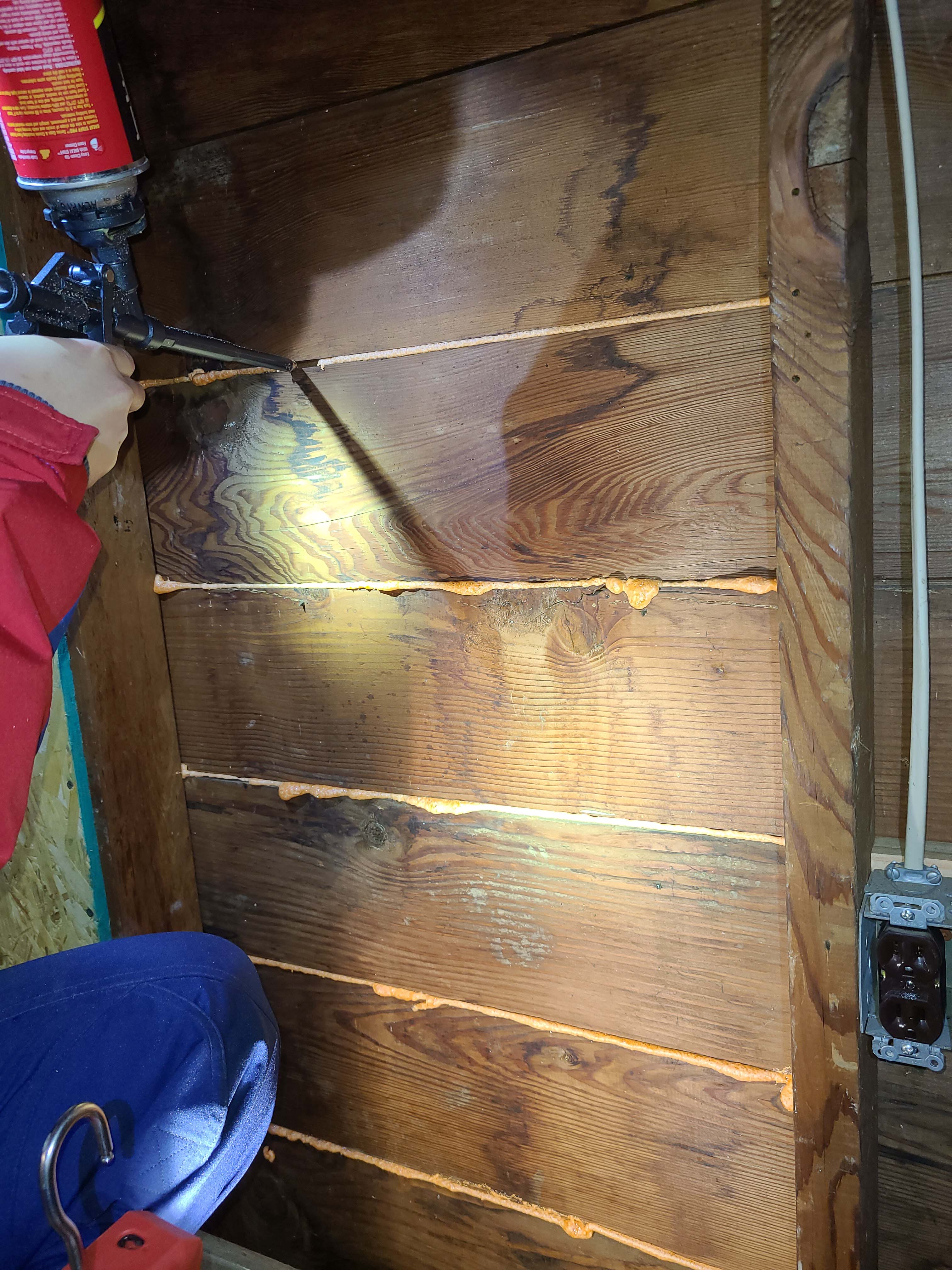

    Right - Wood board sheathing seams are being sealed with low-expanding spray foam.
    Right - Wood board sheathing seams are being sealed with low-expanding spray foam.

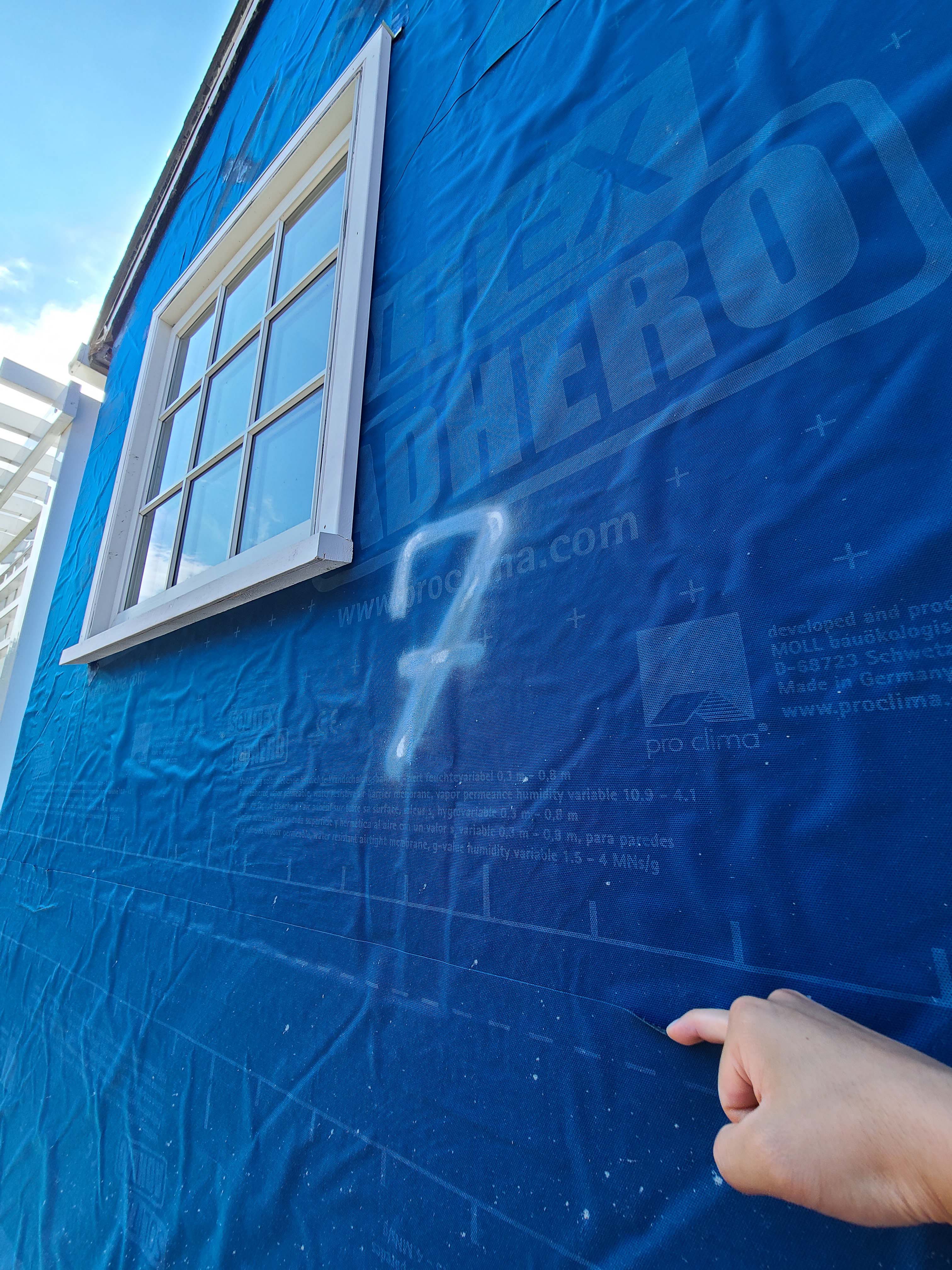

    Wrong - House wrap should be installed bottom to top, so that upper layers overlap the lower layers encouraging water to shed out instead of behind the house wrap.
    Wrong - House wrap should be installed bottom to top, so that upper layers overlap the lower layers encouraging water to shed out instead of behind the house wrap.

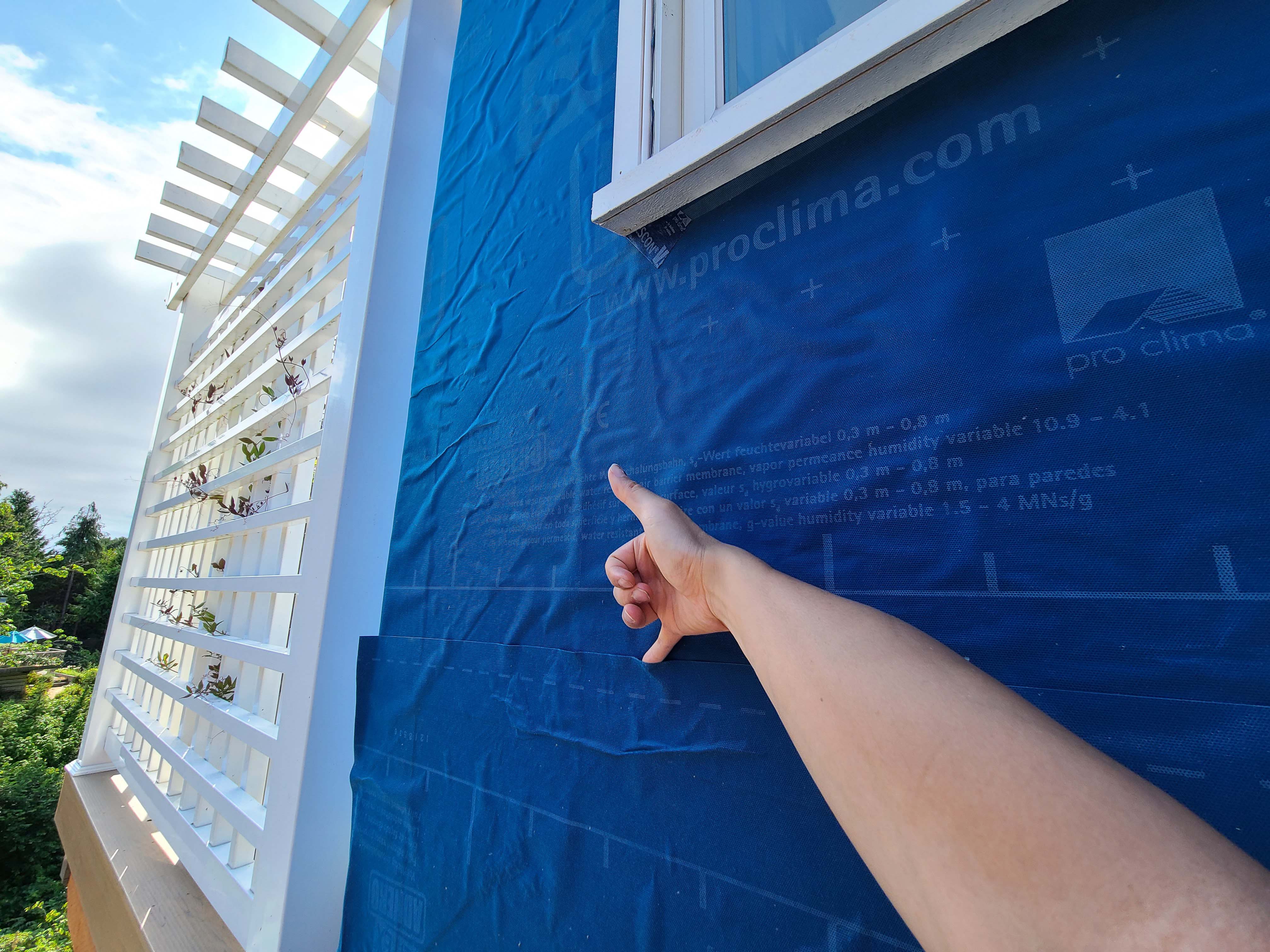

    Wrong - Self-adhered house wrap is underlapped instead of overlapped which will allow rain water to get behind house wrap.
    Wrong - Self-adhered house wrap is underlapped instead of overlapped which will allow rain water to get behind house wrap.

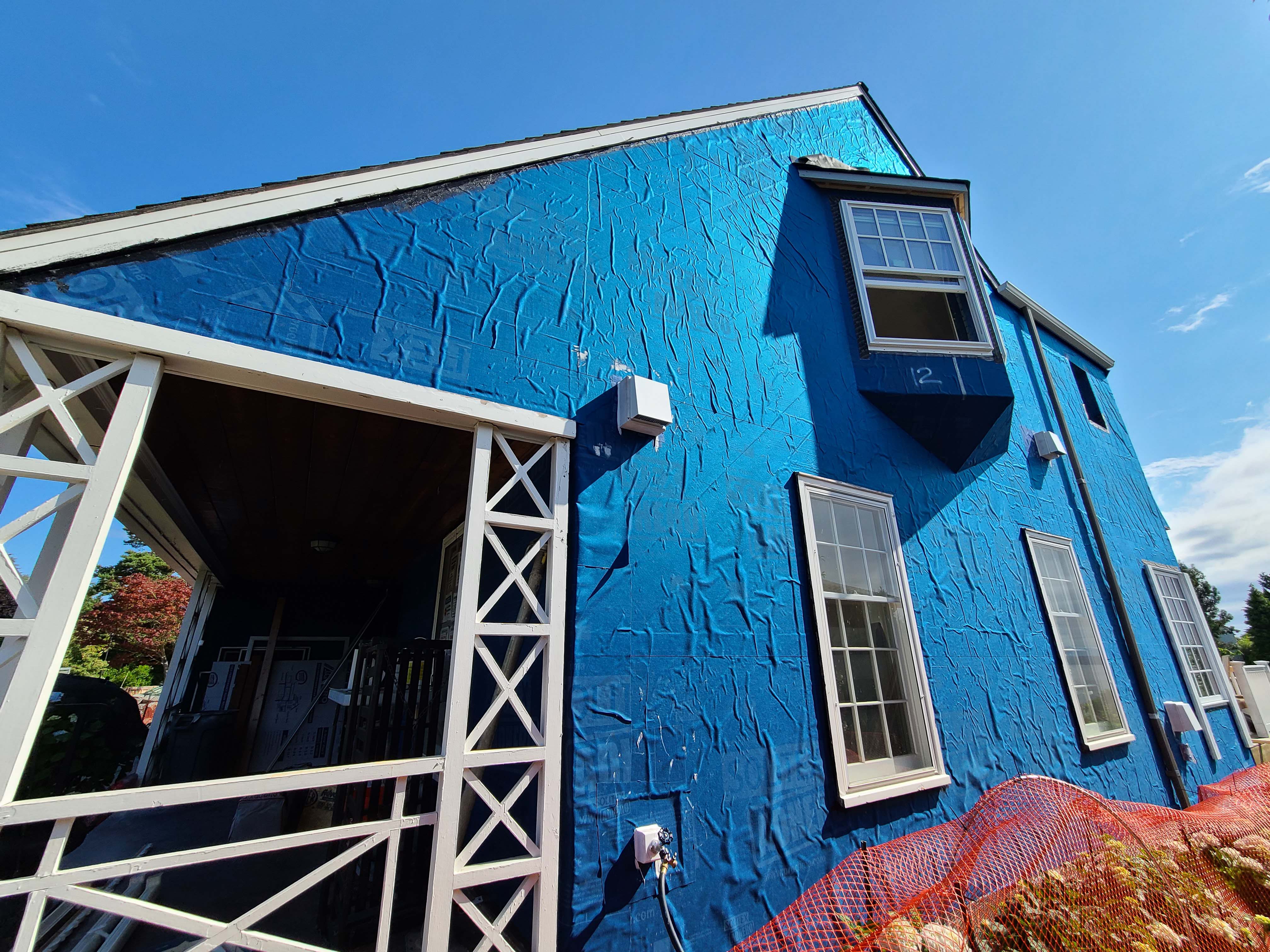

    Wrong - Self-adhered house wrap is poorly installed with many bubbles and gaps at seams.
    Wrong - Self-adhered house wrap is poorly installed with many bubbles and gaps at seams.
    Right - The house wrap is properly flashed and taped, and all penetrations are properly flashed.
    Right - The house wrap is properly flashed and taped, and all penetrations are properly flashed.

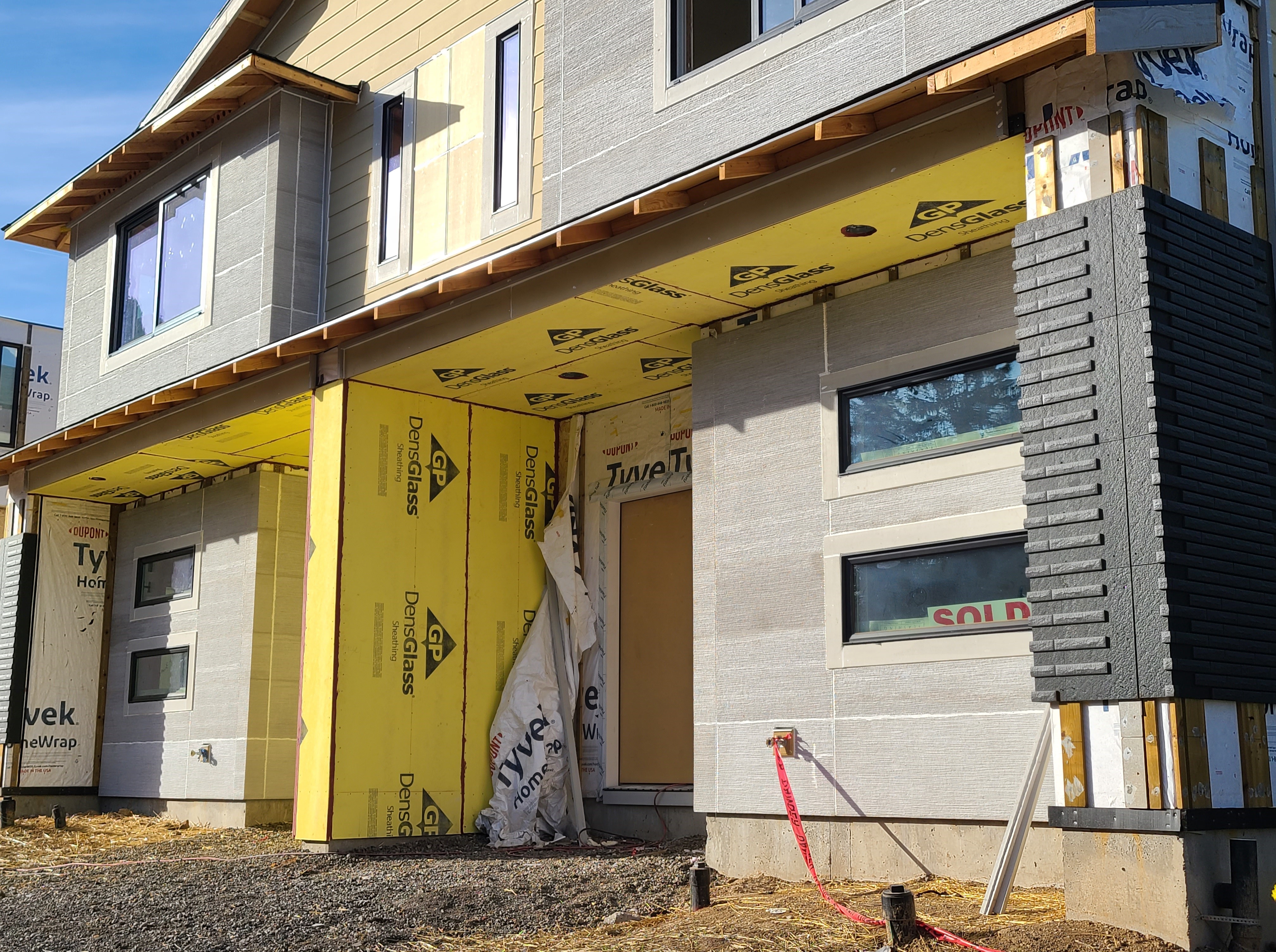

    Right - Mold- and water-resistant fiber glass insulating sheathing is installed after panelized walls are assembled on site.
    Right - Mold- and water-resistant fiber glass insulating sheathing is installed after panelized walls are assembled on site.

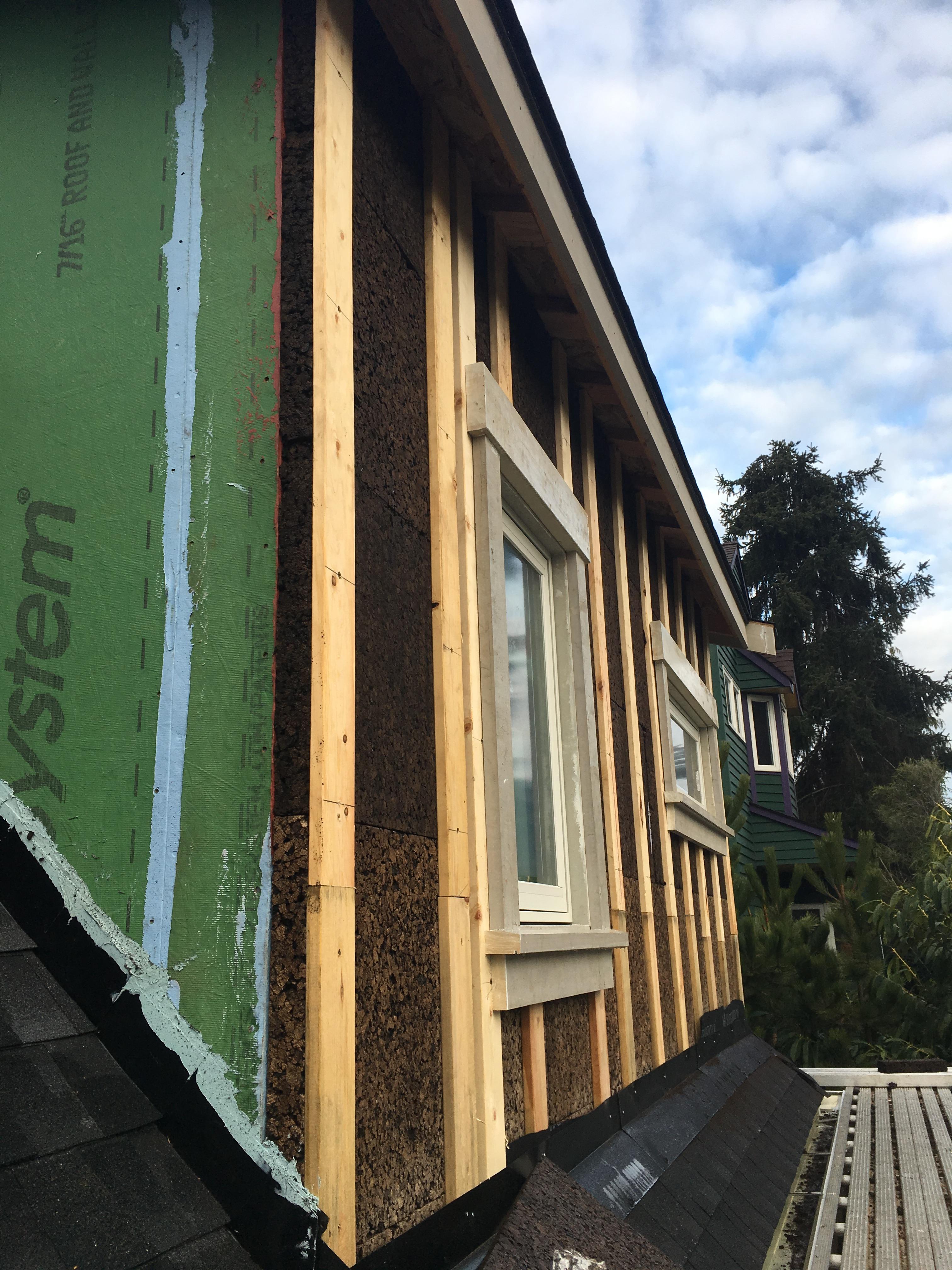

    RIght - Furring strips, house wrap, and siding are installed in the field after assembling panelized walls.
    RIght - Furring strips, house wrap, and siding are installed in the field after assembling panelized walls.
    Right - Panelized walls came to site with house wrap pre-installed and ready to unfurl to cover foundation-to-sheathing seam.
    Right - Panelized walls came to site with house wrap pre-installed and ready to unfurl to cover foundation-to-sheathing seam.

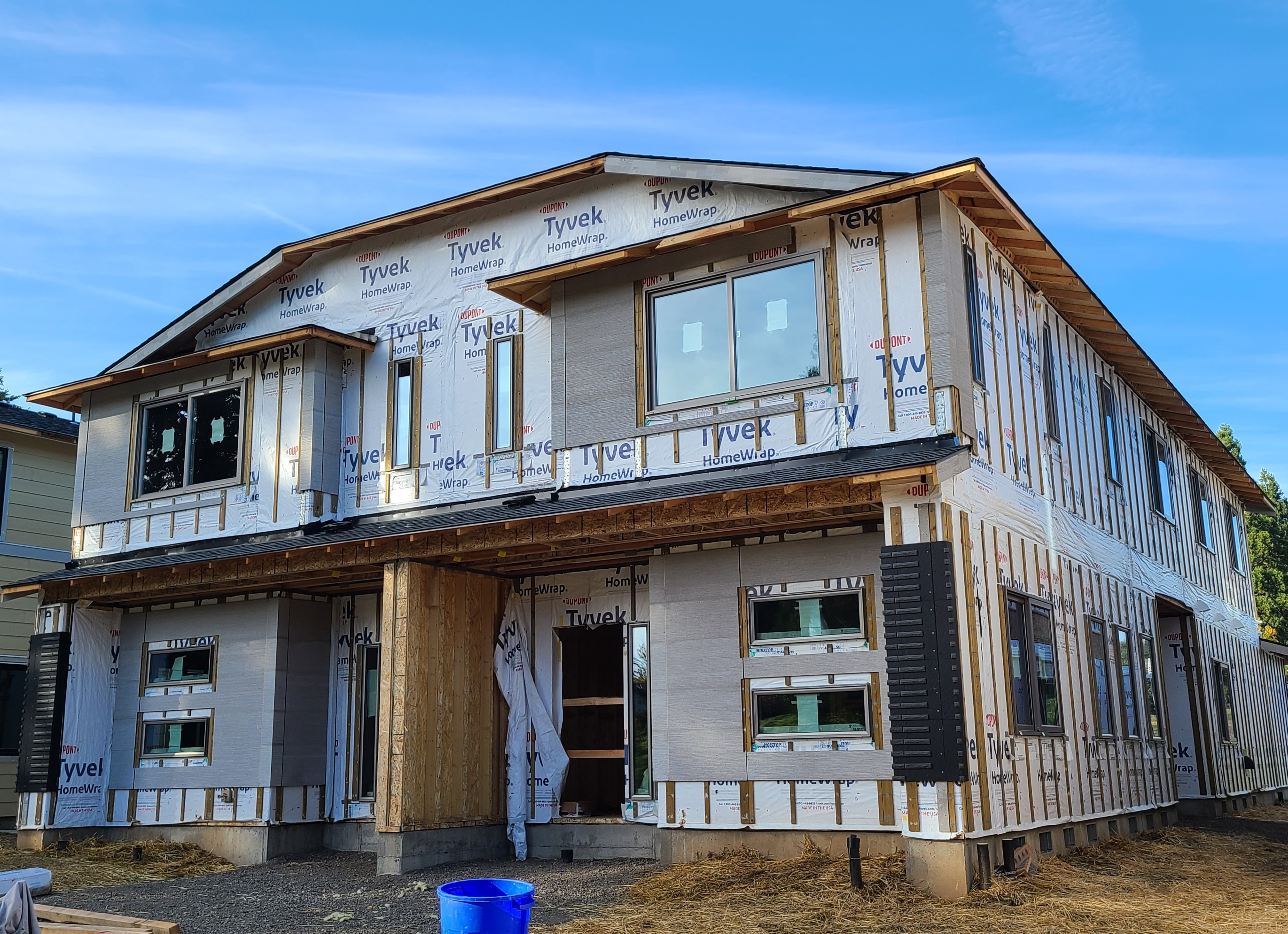

    Right - Panelized walls came to site with house wrap and furring strips pre-installed; seams will be overlapped and taped on site.
    Right - Panelized walls came to site with house wrap and furring strips pre-installed; seams will be overlapped and taped on site.

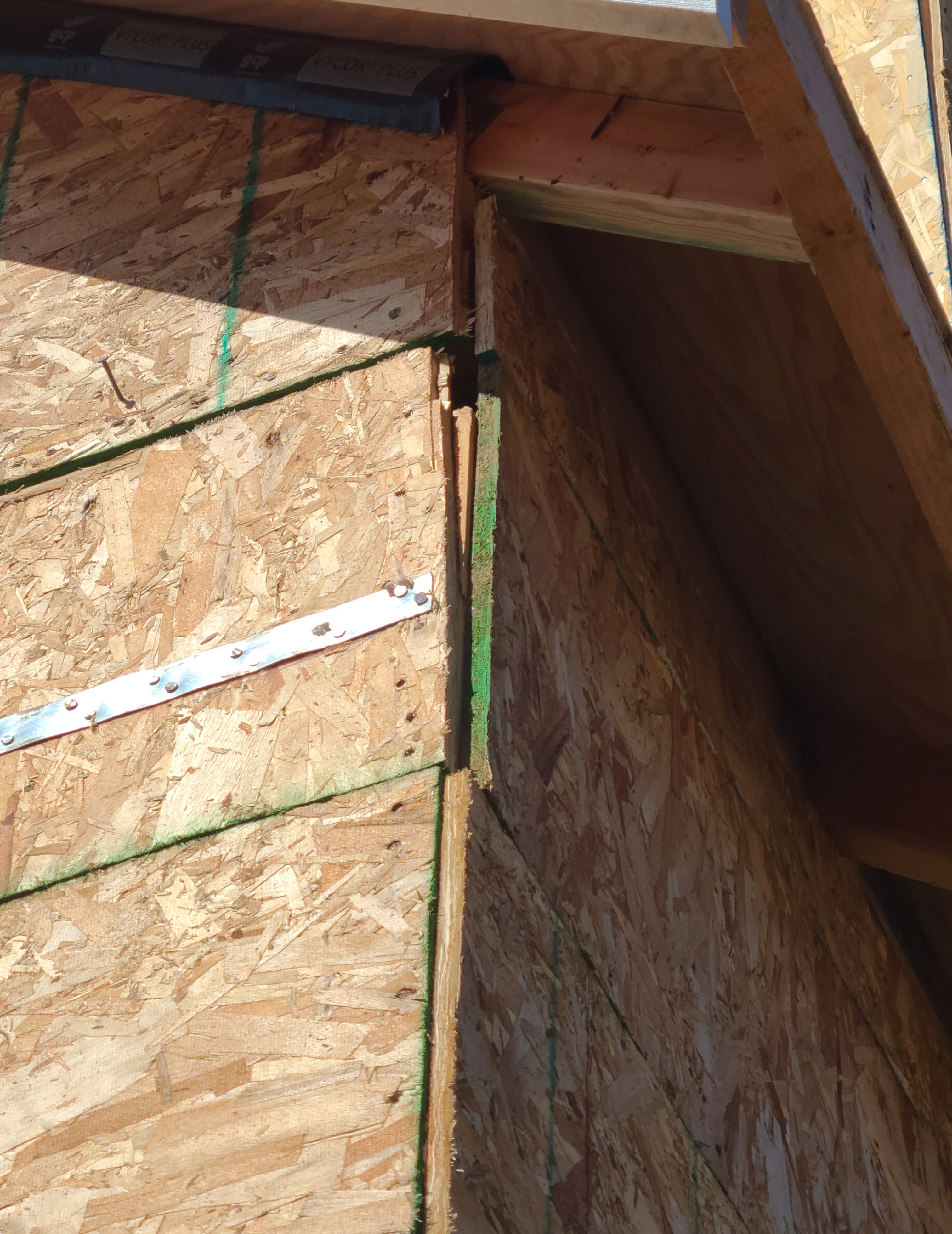

    Wrong - Sheathing was poorly cut and does not align at corners.
    Wrong - Sheathing was poorly cut and does not align at corners.
    Videos
    Publication Date
    Author(s)
    Cold Climate Housing Research Center
    Organization(s)
    CCHRC
    Description
    Video from Cold Climate Housing Research Center on complete wall system construction guidelines in cold climates. Part 1 of 2.
    Publication Date
    Author(s)
    Cold Climate Housing Research Center
    Organization(s)
    CCHRC
    Description
    Video from Cold Climate Housing Research Center on complete wall system construction guidelines in cold climates. Part 2 of 2.
    Compliance

    Compliance

    The Compliance tab contains both program and code information. Code language is excerpted and summarized below. For exact code language, refer to the applicable code, which may require purchase from the publisher. While we continually update our database, links may have changed since posting. Please contact our webmaster if you find broken links.



    ENERGY STAR Single-Family New Homes, Version 3/3.1 (Rev. 11)

    National Rater Field Checklist

    Thermal Enclosure System.
    3. Reduced Thermal Bridging.
    3.4 At above-grade walls separating conditioned from unconditioned space, one of the following options used (rim / band joists exempted):17
    3.4.1 Continuous rigid insulation, insulated siding, or combination of the two is: ≥ R-3 in CZ 1-4; ≥ R-5 in CZ 5-8.18, 19, 20

    Footnote 17) Mass walls utilized as the thermal mass component of a passive solar design (e.g., a Trombe wall) are exempt from this Item. To be eligible for this exemption, the passive solar design shall be comprised of the following five components: an aperture or collector, an absorber, thermal mass, a distribution system, and a control system. For more information, see: energy.gov/sites/prod/files/guide_to_passive_solar_home_design.pdf. Mass walls that are not part of a passive solar design (e.g., CMU block or log home enclosure) shall either utilize the strategies outlined in Item 3.4 or the pathway in the assembly with the least thermal resistance, as determined using a method consistent with the 2013 ASHRAE Handbook of Fundamentals, shall provide ≥ 50% of the applicable assembly resistance, defined as the reciprocal of the mass wall equivalent U-factor in the 2009 IECC Table 402.1.3. Documentation identifying the pathway with the least thermal resistance and its resistance value shall be collected by the Rater and any Builder Verified or Rater Verified box under Item 3.4 shall be checked.

    Footnote 18) Up to 10% of the total exterior wall surface area is exempted from the reduced thermal bridging requirements to accommodate intentional designed details (e.g., architectural details such as thermal fins, wing walls, or masonry fireplaces; structural details, such as steel columns). It shall be apparent to the Rater that the exempted areas are intentional designed details or the exempted area shall be documented in a plan provided by the builder, architect, or engineer. The Rater need not evaluate the necessity of the designed detail to certify the home.

    Footnote 19) If used, insulated siding shall be attached directly over a water-resistive barrier and sheathing. In addition, it shall provide the required R-value as demonstrated through either testing in accordance with ASTM C 1363 or by attaining the required R-value at its minimum thickness. Insulated sheathing rated for water protection can be used as a water resistant barrier if all seams are taped and sealed. If non-insulated structural sheathing is used at corners, the advanced framing details listed in Item 3.4.3 shall be met for those wall sections.

    Footnote 20) Steel framing shall meet the reduced thermal bridging requirements by complying with Item 3.4.1 of the Checklist

    Please see the ENERGY STAR Single-Family New Homes Implementation Timeline for the program version and revision currently applicable in your state.



    DOE Zero Energy Ready Home (Revision 07)

    Exhibit 1 Mandatory Requirements.
    Exhibit 1, Item 1) Certified under the ENERGY STAR Qualified Homes Program or the ENERGY STAR Multifamily New Construction Program.
    Exhibit 2, Item 2) Ceiling, wall, floor, and slab insulation shall meet or exceed 2015 IECC levels and achieve Grade 1 installation, per RESNET standards.



    American Society for Testing Materials (ASTM) C 1363 - 11

    Standard Test Method for Thermal Performance of Building Materials and Envelope Assemblies by Means of a Hot Box Apparatus. “This test method establishes the principles for the design of a hot box apparatus and the minimum requirements for the determination of the steady state thermal performance of building assemblies when exposed to controlled laboratory conditions. This method is also used to measure the thermal performance of a building material at standardized test conditions.”

    More

    More Info.

    Access to some references may require purchase from the publisher. While we continually update our database, links may have changed since posting. Please contact our webmaster if you find broken links.

    Case Studies
    References and Resources*
    Author(s)
    U.S. Environmental Protection Agency,
    ENERGY STAR
    Organization(s)
    EPA
    Publication Date
    Description
    Guide describing details that serve as a visual reference for each of the line items in the Thermal Enclosure System Rater Checklist.
    Author(s)
    Building Science Corporation
    Organization(s)
    BSC
    Publication Date
    Description
    Guide providing information on using exterior foam insulating sheathing in building wall assemblies to enhance thermal performance.
    Author(s)
    Holladay Martin
    Organization(s)
    Green Building Advisor,
    GBA
    Publication Date
    Description
    Information sheet about what length screws should be used, and how closely to space the screws when fastening furring strips to a foam-sheathed wall.
    Author(s)
    National Association of Home Builders Research Center,
    U.S. Department of Energy,
    Green Building Advisor,
    Oak Ridge National Laboratory,
    U.S. Environmental Protection Agency
    Organization(s)
    NAHB Research Center,
    DOE,
    GBA,
    ORNL,
    EPA
    Publication Date
    Description
    Document presenting step-by-step process for installing rigid insulating sheathing over wood studs or house wrap.
    Author(s)
    Lstiburek Joseph W,
    Smegal Jonathan
    Organization(s)
    Building Science Corporation,
    BSC
    Publication Date
    Description
    Report summarizing current research, summarizes issues that have been experienced with current best practices, and recommends ways in which the best practices can be improved for water managing sheathings.
    Author(s)
    Fenestration Manufacturers Association,
    American Architectural Manufacturers Association,
    Window & Door Manufacturers Association
    Organization(s)
    FMA,
    AAMA,
    WDMA
    Publication Date
    Description
    Guide describing the installation of windows in walls that have foam plastic insulating; guide provides several methods for attaching, supporting, and flashing windows in walls with rigid foam sheathing. (Note: The link only goes to the table of contents for the guide, the full guide can be...
    Author(s)
    American Society for Testing and Materials,
    ASTM International
    Organization(s)
    ASTM
    Publication Date
    Description
    Standard that describes the principles for the design of a hot box apparatus and the minimum requirements for the determination of steady state thermal performance of building assemblies when exposed to controlled laboratory conditions. The current version of the standard was published in 2019, and...
    Author(s)
    Building Science Corporation
    Organization(s)
    BSC
    Publication Date
    Description
    Guide providing information on using exterior foam insulating sheathing in building wall assemblies to enhance thermal performance.
    Author(s)
    Burkett Lena,
    Gunderson Patti
    Organization(s)
    U.S. Department of Energy,
    DOE
    Publication Date
    Description
    Fact sheet describing the Extended Plate Wall (EPW) a system that incorporates a 2-inch layer of foam plastic insulative sheathing within the framing for top and bottom plates, streamlining air sealing, window and door installation, weather resistive barrier application, and cladding attachment for...
    *For non-dated media, such as websites, the date listed is the date accessed.
    Contributors to this Guide

    The following authors and organizations contributed to the content in this Guide.

    Sales
    Building Science Measures
    Building Science-to-Sales Translator

    Exterior Insulation Sheathing = Continuous Exterior Thermal Blanket

    Image(s)
    Technical Description

    Wood framing accounts for 24% of conventionally framed walls and 14% of advanced-framed walls. This represents a large thermal hole since wood has about one-fourth the thermal resistance of most insulation materials. This problem is effectively addressed with a continuous thermal blanket of rigid foam installed on the exterior of the walls, either over the sheathing or in place of the wood sheathing. Advantages include blocking heat transfer through the studs, reducing drafts, and minimizing the risk of moisture problems by shifting condensation temperatures outside of the framing cavity.

    Continuous Exterior Thermal Blanket
    Sales Message

    Continuous exterior thermal blanket construction blocks excessive heat loss and gain though structural framing. What this means to you is less wasted energy along with enhanced comfort and quiet. Knowing there is one opportunity during construction to lock in quality construction, wouldn’t you agree advanced thermal protection is a great investment?

    Last Updated

    Did you find this information helpful?

    If you have questions and/or would like a reply to this feedback, please include your e-mail address in the message.
    This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
