    Function of ventilation controls is obvious (e.g., bathroom exhaust fan) or, if not, controls have been labeled
    Scope

    Ensure that ventilation controls are identified. For exhaust fans used as part of a whole-house mechanical ventilation system, if the identity of the switch controlling the ventilation fan isn’t obvious, then identify it in one of the following ways:

    • Install a switch that is differentiated or labeled by the manufacturer.
    • Install a permanent label indicating the function of the control.

    See the Compliance Tab for related codes and standards requirements, and criteria to meet national programs such as DOE’s Zero Energy Ready Home program, ENERGY STAR Single-Family New Homes, and Indoor airPLUS.

    Description
    Description

    Ventilation controls can sometimes look like ordinary light switches. For exhaust fans used as part of a whole-house mechanical ventilation system, the exhaust fan and other ventilation control switches should be permanently labeled as such, unless their function is obvious or they are labeled by the manufacturer; i.e., a label is required for a stand-alone wall switch, but not for a switch that is on the ventilation equipment.

    For more on exhaust fans controls, see Continuously Operating Ventilation and Exhaust Fans.

    How to Label Ventilation Controls

    1. Clearly label the ventilation controls (exhaust fan switch) or install controllers that are clearly labeled by the manufacturer.
    Ventilation control clearly labeled by installer.
    Figure 1. The ventilation control is clearly labeled by the installer. (Source:  Calcs Plus.)



    The ventilation control is clearly indicated by the manufacturer.
    Figure 2. The ventilation controller is next to the thermostat and has a manual override button. (Source:  Calcs Plus.)



    Success
    Ensuring Success

    The HERS rater should inspect to ensure that ventilation controls are clearly labeled, unless their function is obvious (for example, a bathroom exhaust fan).

    Climate
    Climate

    No climate-specific information applies.

    Training
    Right and Wrong Images

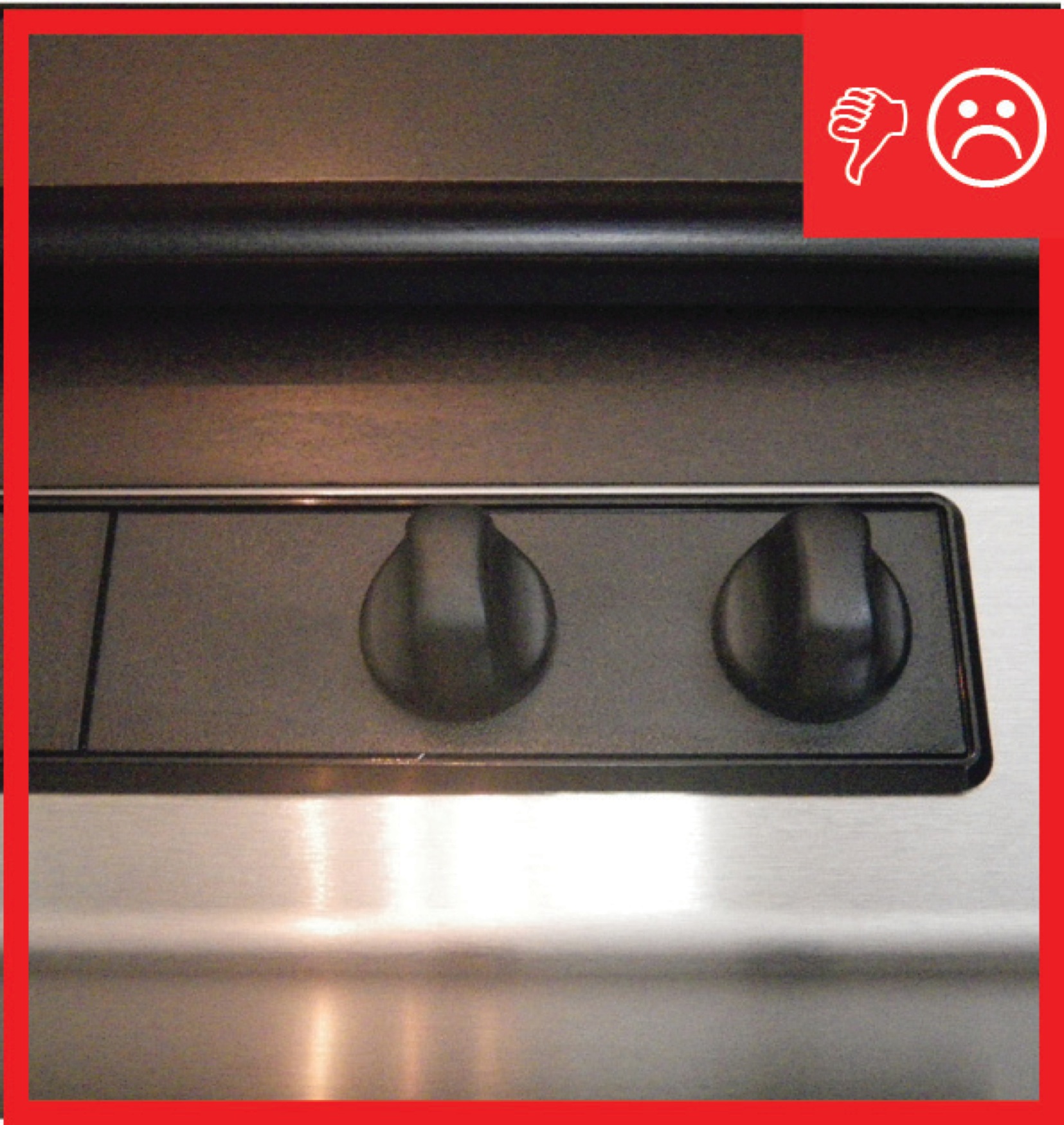

    Ventilation control is not obvious
    Ventilation control is not obvious

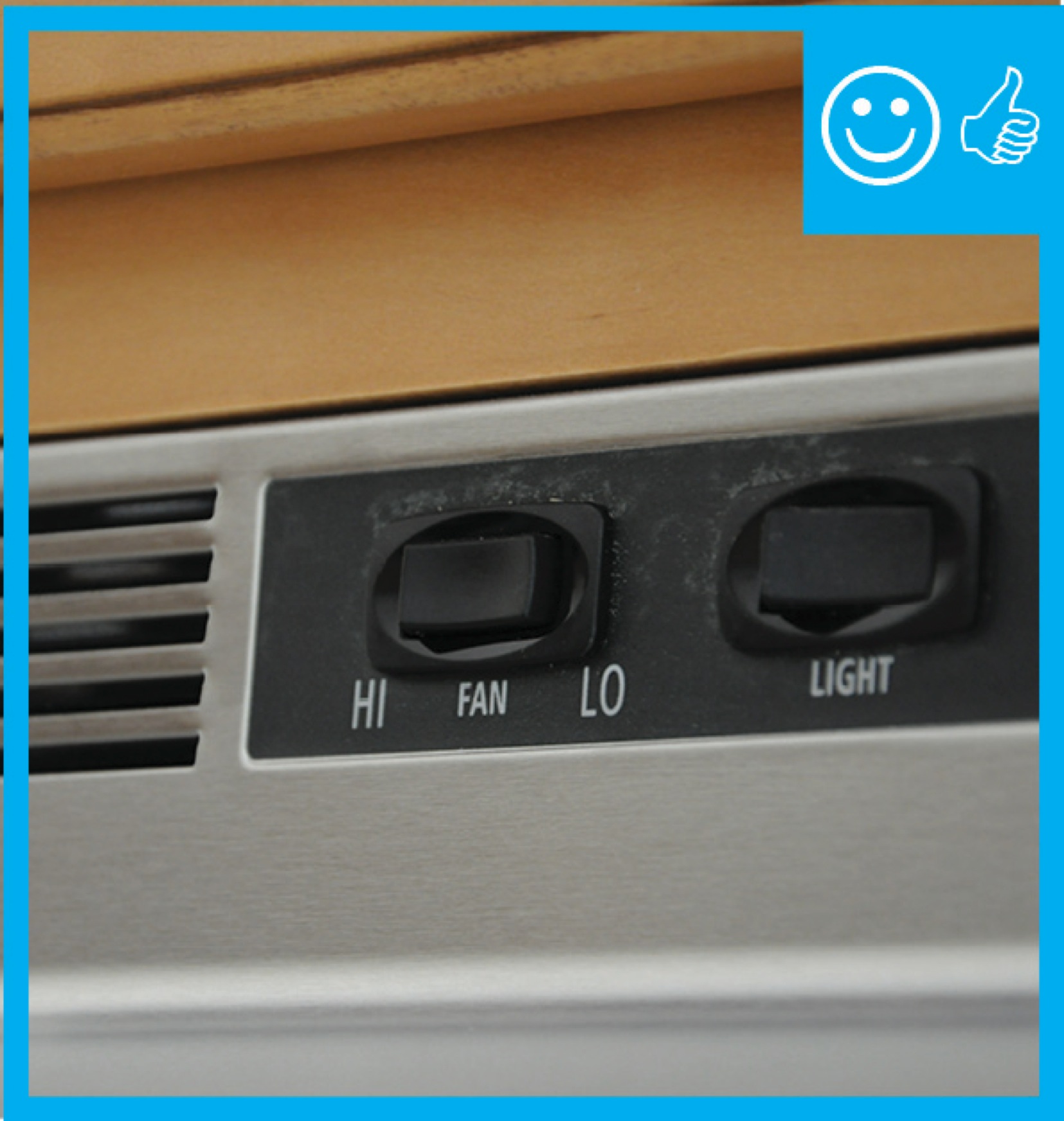

    Manufacturer labeled ventilation switch
    Manufacturer labeled ventilation switch

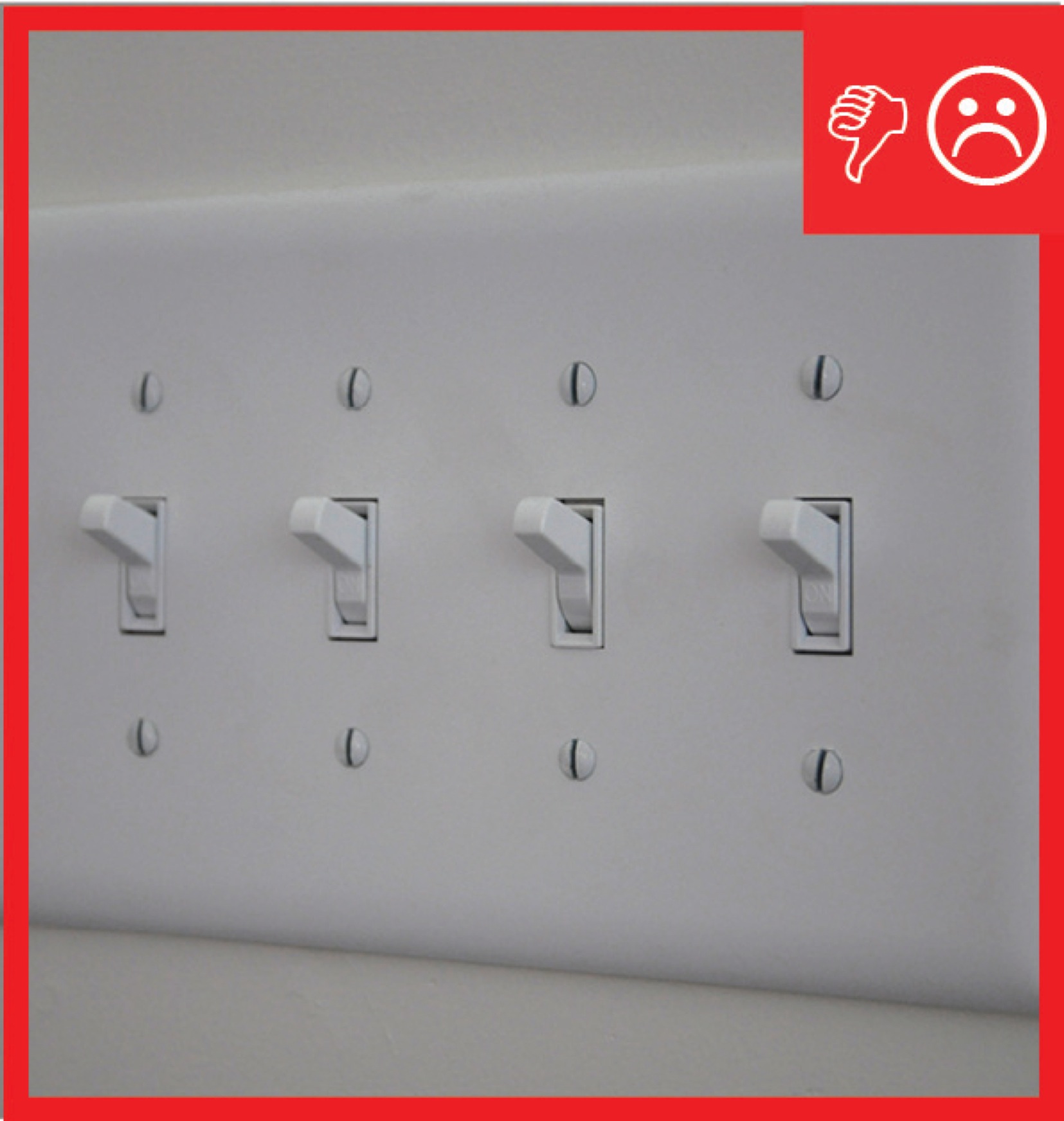

    Function of controls is not obvious
    Function of controls is not obvious

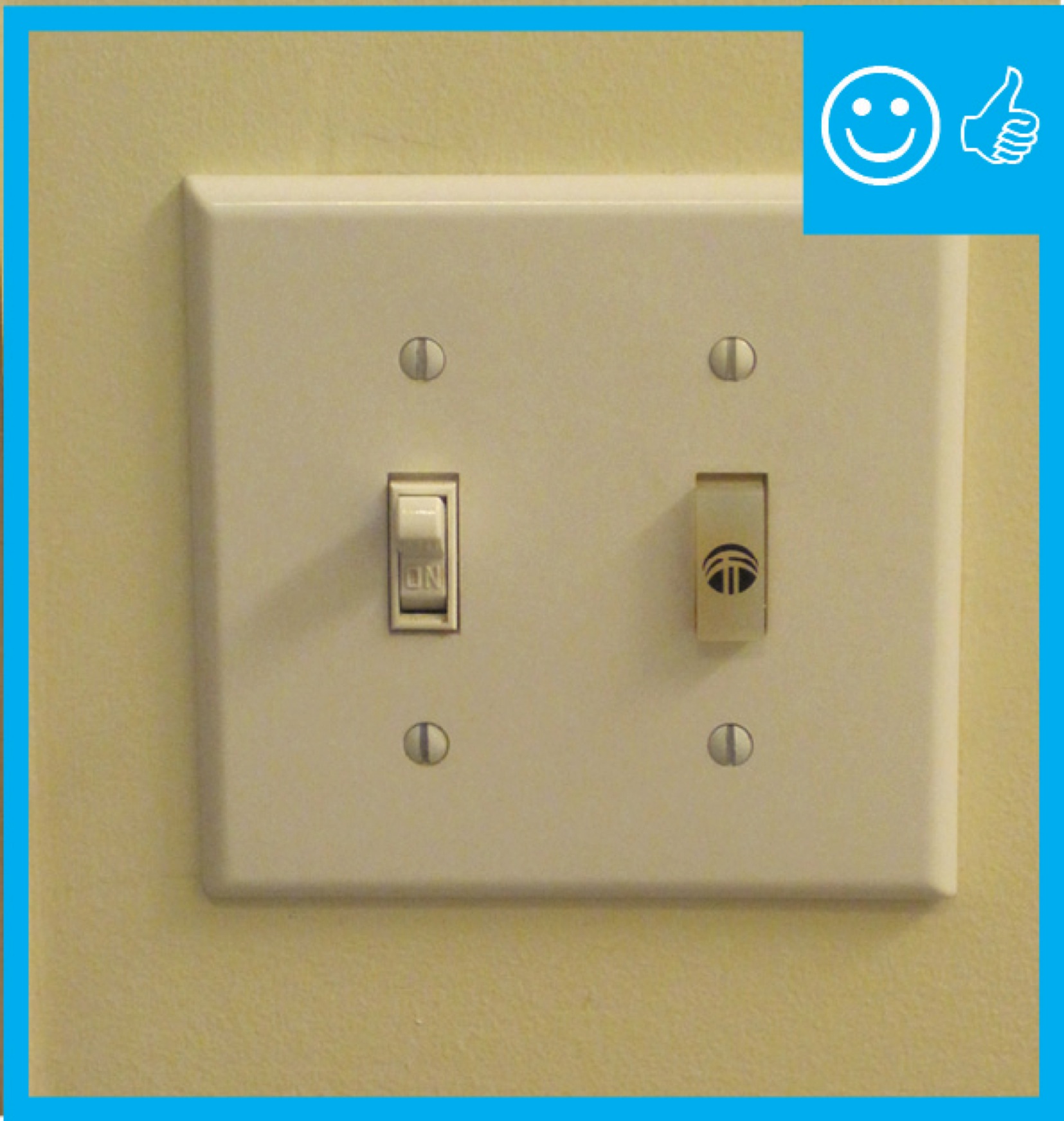

    Manufacturer labeled controls
    Manufacturer labeled controls

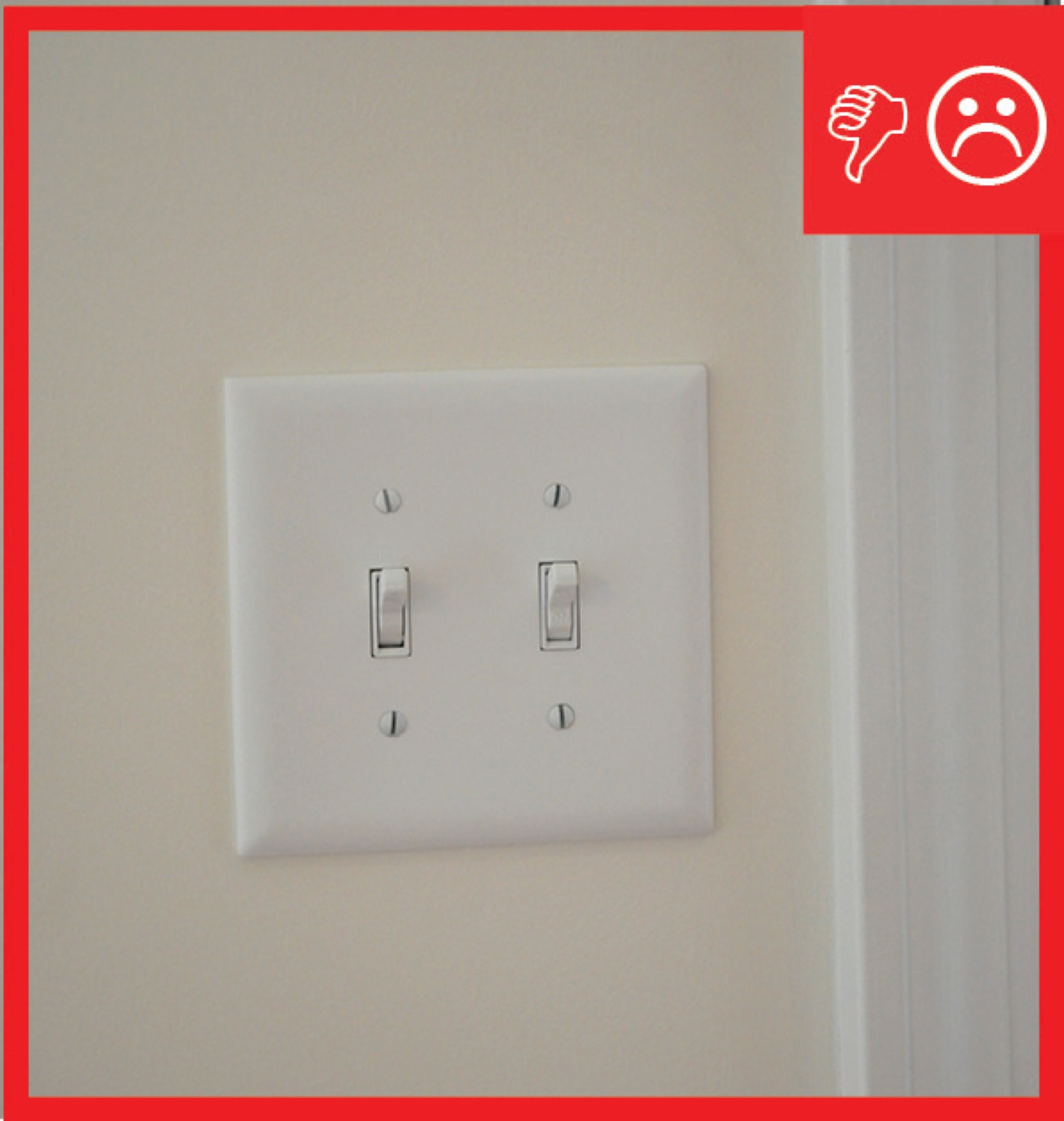

    Ventilation control is not obvious
    Ventilation control is not obvious

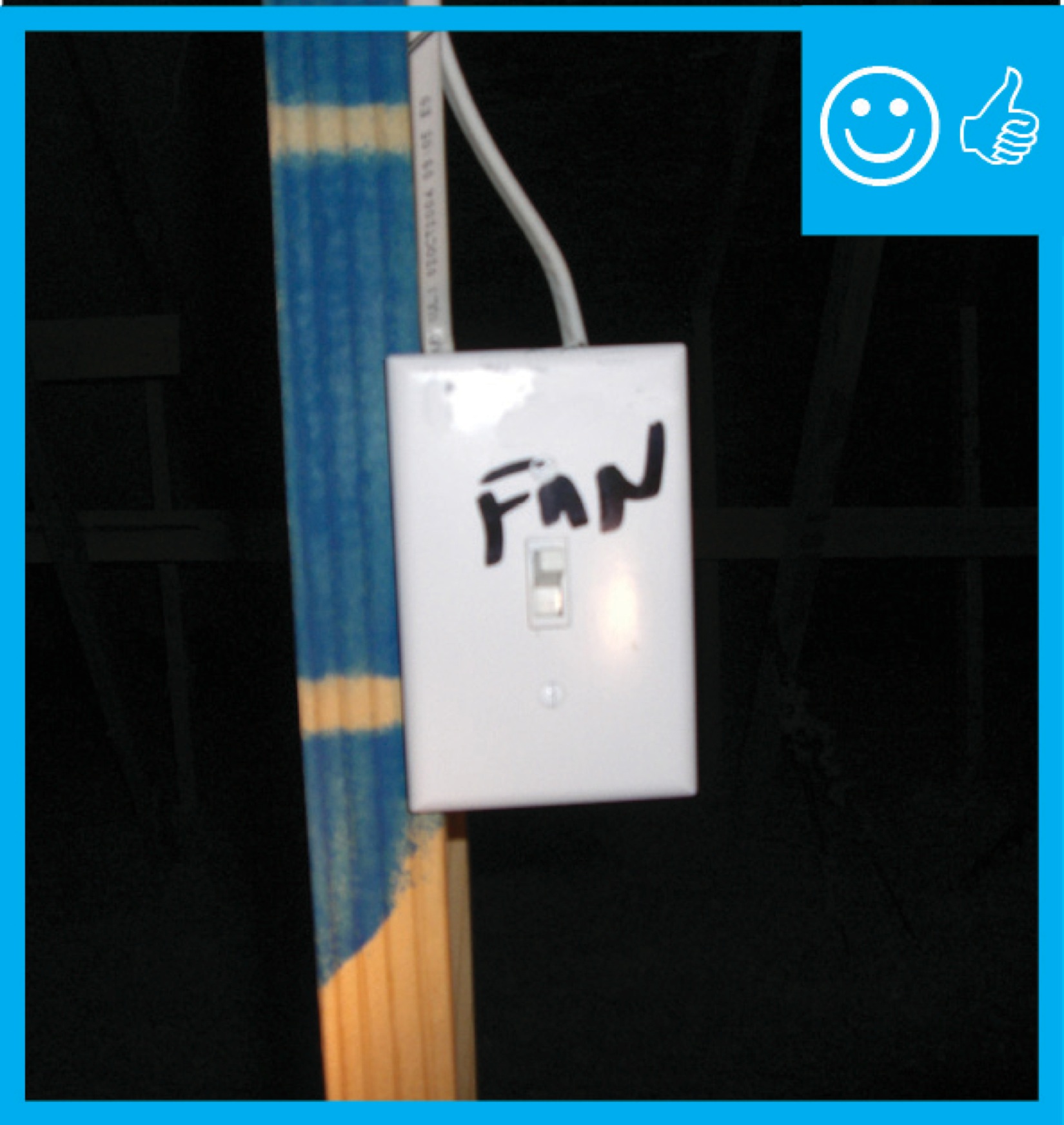

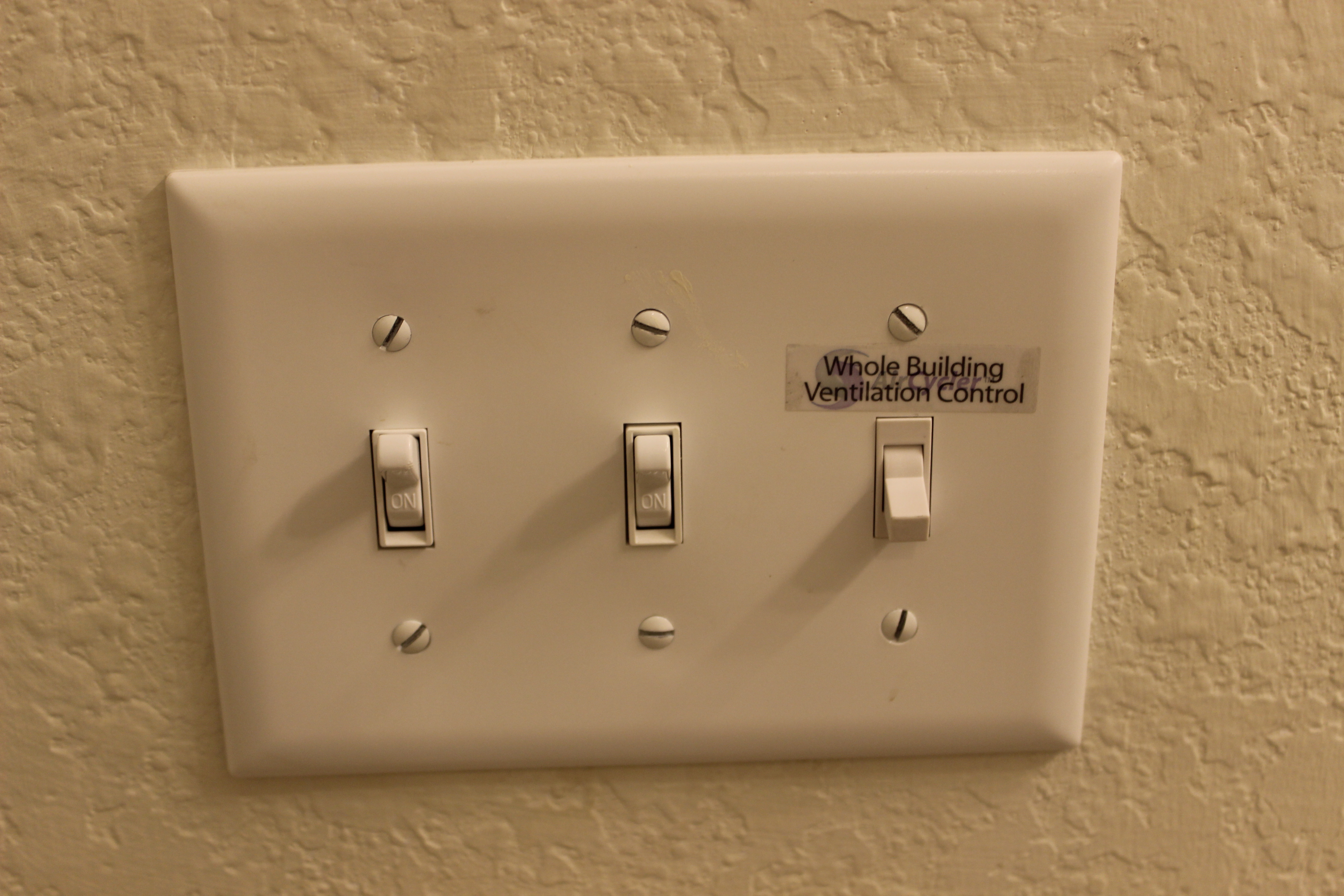

    Installer permanently labeled ventilation switch
