Hip Roof vs Gable Roof

    Scope
    Scope Images
    Wind path and uplift force for a gabled roof, a hip roof, and a pyramidal (another variant of a hip) roof design
    Scope

    This guide discusses the advantages and disadvantages of gable roofs and hip roofs and discusses how wind pressures impact these two roof types. All else being equal, hip roofs experience smaller wind pressures than gable roofs, making them a better choice for high-wind regions.

    • Understand the advantages and disadvantages of a gable roof versus a hip roof.
    • Brace roof trusses and rafters so they are able to resist wind and seismic loads no matter the direction.
    • Brace gable ends and gable overhangs.

    See the Compliance Tab for related codes and standards requirements, and criteria to meet national programs ssuch as DOE’s Zero Energy Ready Home programENERGY STAR Single-Family New Homes, and Indoor airPLUS.

    Description
    Description

    Description

    Many people give little thought to the shape of the roof beyond its aesthetic appeal. However, the shape of the roof actually plays a significant role in its wind resistance and durability. The two most common sloped roofs are gable and hip roofs. This guide will discuss the durability and performance differences between these two roof types.

    There are many practical advantages to both a gable and a hip roof, as outlined below; however, in areas that experience high winds and extreme weather, gable roofs catch more wind and rain, making them the less durable choice. This guide is not intended to steer you away from gable roofs but rather to highlight that they need more careful evaluation and possibly additional bracing to mitigate their disadvantages so they can withstand high winds. Between a hip roof and a gable roof, there will always be some tradeoffs between cost, aesthetics, and durability.

    Understand the Advantages and Disadvantages of a Gable Roof Versus a Hip Roof

    Advantages of a hip roof:

    • Performs better in high winds and extreme weather
    • Has eaves and gutters all the way around for better drainage
    • Offers potentially lower home insurance rates.

    Disadvantages of a hip roof

    • Comparatively more complicated to design and build
    • More expensive than gable roofs
    • Less attic storage space due to slopes on all sides
    • Reduced space for solar PV panels

    Advantages of a gable roof

    • Simple to design and construct
    • Very cost-effective roof design
    • Lots of attic storage
    • Easier to make into additional living space
    • Easy to vent.

    Disadvantages of a gable roof

    • Prone to damage from uplift and racking in high winds
    • Gable ends prone to water damage
    • Simple design may be considered less aesthetically pleasing.

    A hip roof has slopes on all four sides that come together at the top to form a ridge. As a result, a hip roof design is inherently braced against racking, whereas a gable roof needs to be properly braced in order to have adequate strength. Wind tunnel testing of hip versus gable roofs by Meecham (1992) and Shao et al. (2018) found that the peak wind-induced pressures can be as much as 50% lower in a hip roof versus a gable roof. The difference in the wind pressures is illustrated in Figure 1.

    Wind path and uplift force for a gabled roof, a hip roof, and a pyramidal (another variant of a hip) roof design.
    Figure 1. Wind path and uplift force for a gabled roof, a hip roof, and a pyramidal (another variant of a hip) roof design. (Source: Keote 2015.)



    Brace Roof Trusses and Rafters so They Are Able to Resist Wind and Seismic Loads No Matter the Direction

    Regardless of the roof type, it must be adequately braced. Truss manufacturers use software to analyze how the wind forces, as specified by ASCE 7 for the home’s ultimate design wind speed, will transfer through the truss system and, therefore, where the bracing is needed, as shown in Figure 2. The location where bracing is required is specified in truss package documentation, and some truss manufacturers also tag the location on the truss where bracing is required; an example of such a tag is shown in Figure 3.

    Example truss bracing for resisting wind loads as determined by design software used by truss manufactures.
    Figure 2. Example truss bracing for resisting wind loads as determined by design software used by truss manufactures. (Source: BCSI 2006.)



    Example of a truss bracing requirement tag that some truss manufactures place strategically onto the truss to remind installers.
    Figure 3. Example of a truss bracing requirement tag that some truss manufactures place strategically onto the truss to remind installers. (Source: BCSI 2006.)



    While the International Residential Code (IRC) Section R802.10.3 requires truss design documents, it doesn’t require those documents to specify the method and details of restraint or bracing to be used. Thus, stickers like the one shown in Figure 3 show different options for restraint. Unlike the IRC, the International Building Code (IBC) does require the method and details of restraint/bracing to be fully specified. Many truss manufactures will defer to the higher standards of the IBC, even for trusses going to a residential project.

    The IRC does have specifications on bracing the roof truss to the top plates in Section R602.10.8.2, which divides the specification depending on whether the house is in seismic design categories A, B, and C or categories D0, D1, and D2. One of the roof truss seismic bracing options in the IRC is illustrated in Figure 4 (Figure R602.10.8.2(3) in the IRC).

    One of the roof truss-to-top plate seismic bracing options in the IRC.
    Figure 4. One of the roof truss-to-top plate seismic bracing options in the IRC. (Source: IRC 2018.)



    Brace Gable End and Gable Overhangs

    Gable roofs are not inherently stable against the forces induced by hurricanes, high winds, and earthquakes. The connection between the roof and the gable end wall is particularly vulnerable and needs to be braced. The image below (Figure 5) shows a wall failure due to inadequate bracing of the gable end wall.

    End Wall failure due to inadequate bracing of the gable end wall.
    Figure 5. End Wall failure due to inadequate bracing of the gable end wall. (Source: FEMA 1993.)


    Even under normal weathering, the difference between a home with a gable roof and one with a hip roof is evident. The gable end wall of a house with a gable roof tends to experience greater weathering than a house with a hip roof. Below is a picture of a more extreme example (Figure 6).

    This gable end wall shows significant weathering due to exposure.
    Figure 6. This gable end wall shows significant weathering due to exposure. (Source: Louie 2020.)



    In order to prevent the gable end wall failure shown in Figure 5, the gable end wall must be properly braced. This bracing is shown in Figures 7, 8, and 9. The strength of the bracing required depends on the peak wind loads the home will experience at its location. These wind loads are determined via ASCE 7, which provides the methods under which these wind load pressures are calculated. Figure 7 shows the bracing that is typical of a home located not in a hurricane-prone zone.

    The negative suction forces as well as the wind load cycling imparted onto a home during a hurricane or high-wind event are often high enough that nailed connections alone are not enough to keep members together. Instead metal connectors are used such as the ones shown in Figures 8 and 9. The gable end wall must resist three forces via its connector strength and bracing lumber:  1) the uplift and downward pressures from the roof, 2) the horizontal pressure and suction forces on the wall, and 3) the shear/racking forces on the wall that will otherwise tip the gable roof over like dominos starting from the gable end wall.

    Example of a properly braced gable end wall.
    Figure 7. Example of a properly braced gable end wall. (Source: Honor Services 2020.)



    Gable end walls in hurricane-prone regions experience forces from wind pressures that are high enough that metal connectors rather than nails are often needed to resist the high forces, as shown in the example details in Figure 8 and 9.

    Example A of a gable truss and gable end wall bracing for a home in a hurricane region.
    Figure 8. Example A of a gable truss and gable end wall bracing for a home in a hurricane region. (Source: FEMA 1993.)



    Example B of a gable truss and gable end wall bracing for a home in a hurricane region.
    Figure 9. Example B of a gable truss and gable end wall bracing for a home in a hurricane region. (Source: FEMA 1993.)



    Because hip roofs tend to perform better than gable roofs in hurricane and high wind conditions, many home insurance companies offer discounts for homes with hip roofs. Insurance broker Colucci (2013) approximates this savings to range from $100 to $800 depending on other factors which can change the premium by as much as 50%. Some insurance companies require a wind mitigation inspection to be performed to get this discount, while others have agents who are qualified to make the decision themselves. Generally, a home must have a hip roof for over 90% of the home to qualify.
    For more complicated variants of these two roof types, such as a crossed gable, front gable, Dutch gable, or cross-hipped roof, the issues to keep in mind are valleys and exposed vertical walls. Leaks are most likely to occur in valleys and where a wall meets a roof. Exposed vertical walls experience high wind pressures and wind-driven rain making it likely for water to get behind the siding. In addition, siding materials and finishes are often not as durable as roofing materials. In general, the more complicated the roof design, the more opportunities it will have to leak water and the more surfaces it will have to catch the wind.

    Success
    Ensuring Success

    In order for a hip or gable roof to succeed in areas that experience high winds and extreme weather, it must be properly designed and braced. Study the bracing plans provided by the truss manufacturer and ensure that the correct bracing is installed where indicated on the plans.

    The quality of the construction workmanship significantly contributes to the durability of a roof, regardless of the roof type. Thus, it is important that all workers involved receive training on the proper construction techniques for building in an area that experiences high winds and extreme weather. This can be accomplished via adequate programs of training and continuous education for tradespeople, supervisors, and inspectors.

    Climate
    Climate

    Your local building code jurisdiction will have zoomed-in versions of the national wind maps presented in IRC Figure R301.2(4)A and R301.2(4)B and the national seismic map in IRC Figure 301.2(2). Alternatively you can find the ultimate wind speed for your address of interest by entering it in the online ASCE 7 Hazard Tool. Be sure to select the correct ASCE 7 version that matches the ASCE 7 version used in the IRC version adopted by your local building codes jurisdiction. The 2018 and newer IRC use ASCE 7-16 version whereas the 2015 version of the IRC uses ASCE 7-10. The seismic design category of your building address can also be found using the Seismic Design Map Tool by the Structural Engineers Association of California. Note this tool works nationally, not just in California.

    Training
    Right and Wrong Images

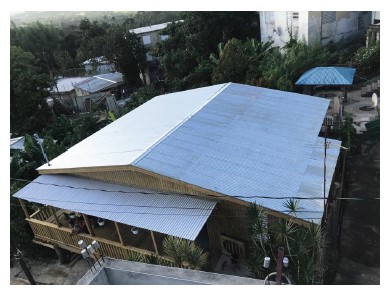

    Right - This roof has a low gable and is secured to the wall framing to resist wind uplift.
    Right - This roof has a low gable and is secured to the wall framing to resist wind uplift.

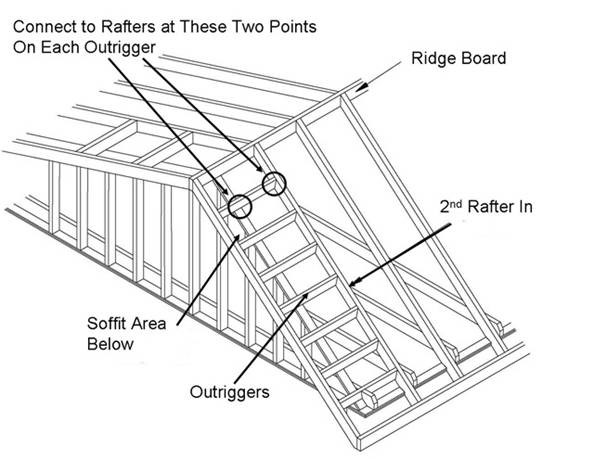

    Right - Lookout or outrigger framing for a gable overhang provides two points at each outrigger to add metal connectors to strengthen the overhang against wind uplift.
    Right - Lookout or outrigger framing for a gable overhang provides two points at each outrigger to add metal connectors to strengthen the overhang against wind uplift.

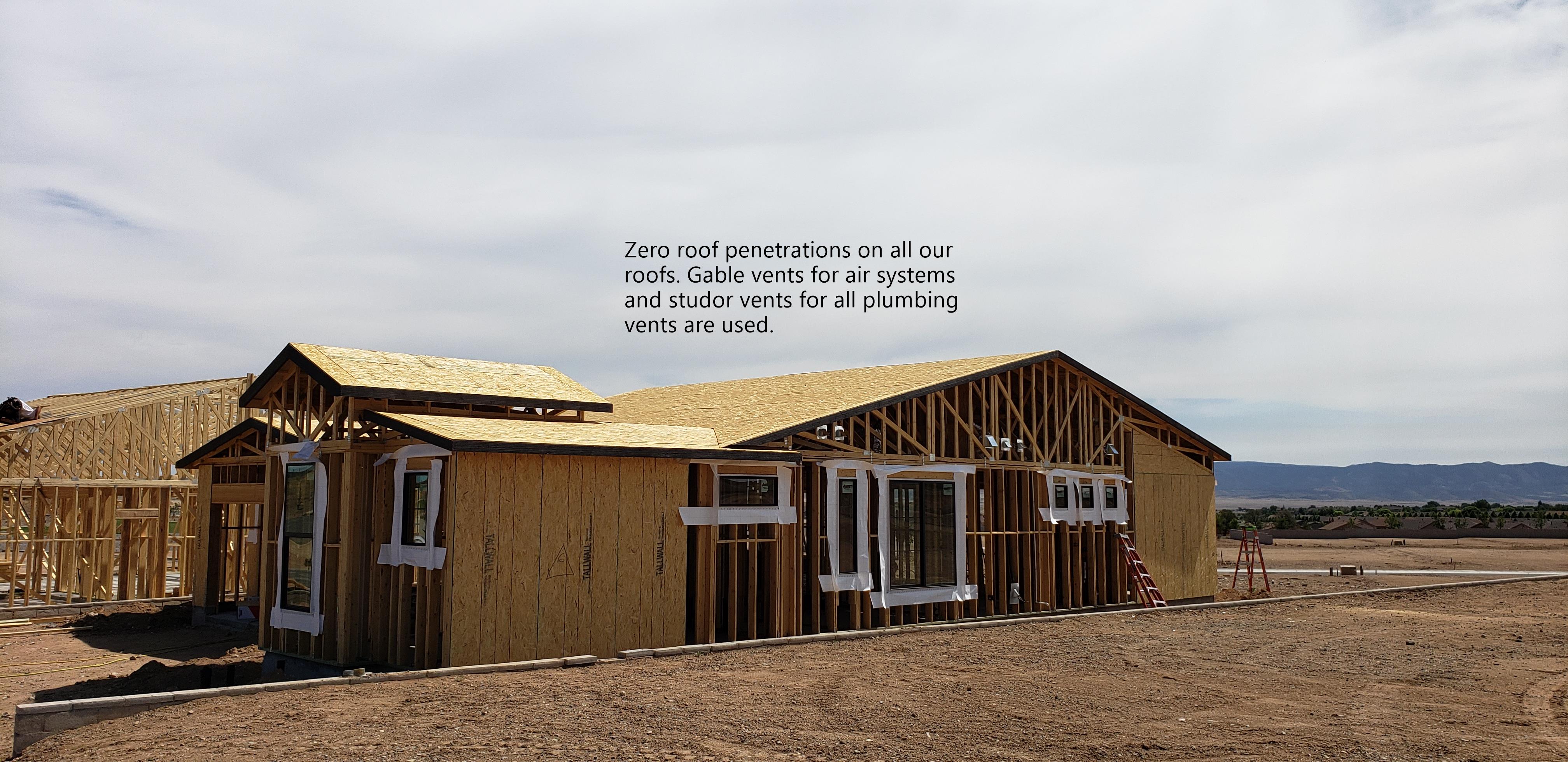

    Right – This home’s roof has zero penetrations because all venting is routed to gable walls.
    Right – This home’s roof has zero penetrations because all venting is routed to gable walls.

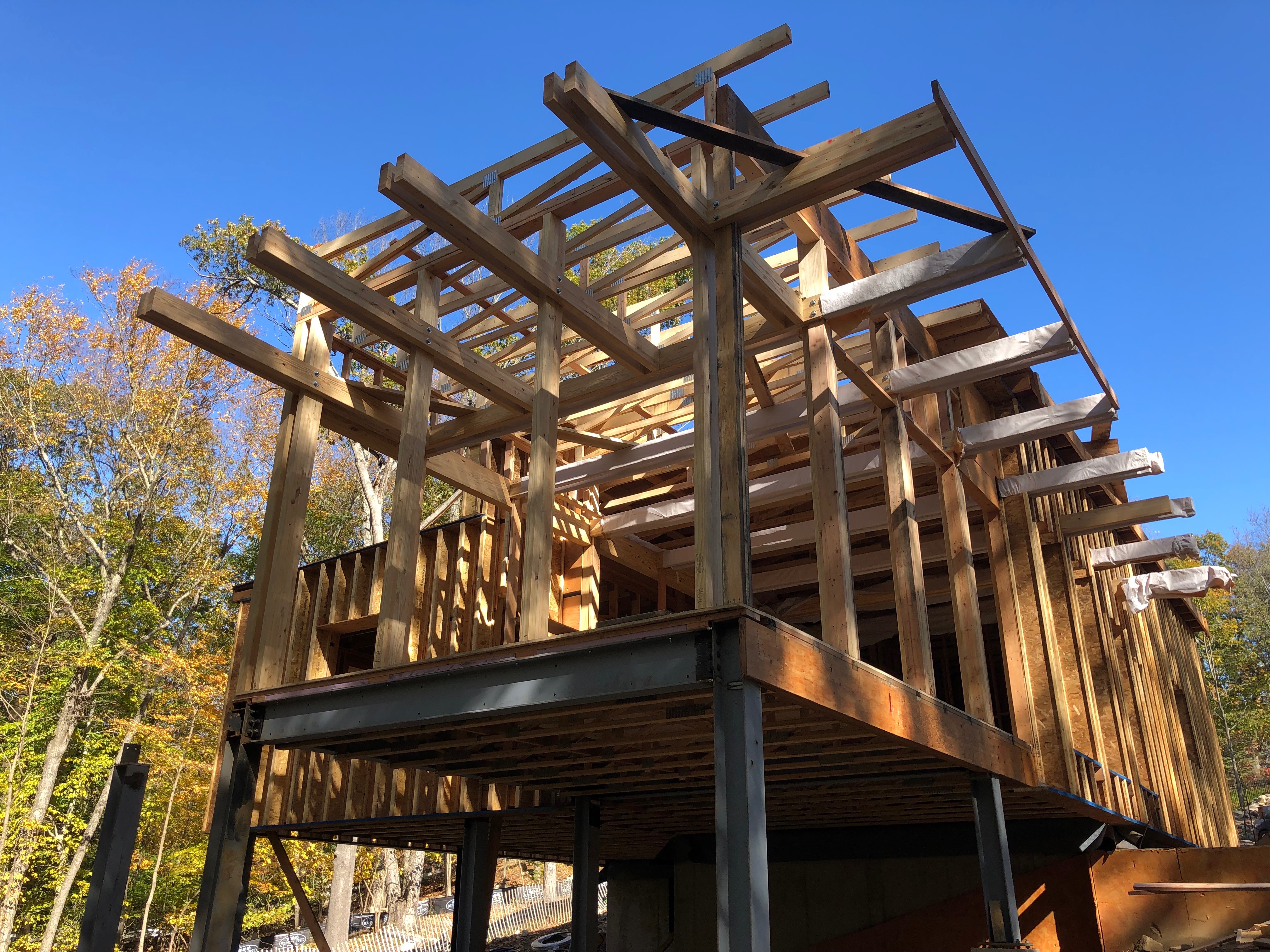

    Ceiling joists extend out to provide very strong roof overhangs that will resist uplift pressures in high winds.
    Ceiling joists extend out to provide very strong roof overhangs that will resist uplift pressures in high winds.
    Videos
    Publication Date
    Description
    Video explaining why having a strong roof is so important in hurricane zones and recommendations on how to construct a roof that will stand up to hurricane force winds from LSU AgCenter.
    Compliance

    Compliance

    The Compliance tab contains both program and code information. Code language is excerpted and summarized below. For exact code language, refer to the applicable code, which may require purchase from the publisher. While we continually update our database, links may have changed since posting. Please contact our webmaster if you find broken links.

    2018 and 2021 International Residential Code (IRC)

    Roof bracing requirements are based on the ultimate wind speed and the seismic design category of the home’s location. This information can be found in the national wind maps in the IRC, Figure R301.2(4)A and R301.2(4)B, and the national seismic map in IRC, Figure 301.2(2).

    The IRC requires in R802.10.3 truss design documents; however, it doesn’t require those documents to specify the method and details of restraint or bracing to be used. Thus, stickers like the one shown in Figure 3 show different options for restraint. Unlike the IRC, the IBC does require the method and details of restrain/bracing to be fully specified. Many truss manufacturers will defer to the higher standards of the IBC, even for trusses going to a residential project.

    The IRC does have specifications on bracing the roof truss to the top plates in Section R602.10.8.2, which divides the specification depending on whether the house is in seismic design categories A, B, and C or categories D0, D1, and D2 bracing, blocking. One of the roof truss seismic bracing options in the IRC is illustrated in Figure 4 (Figure R602.10.8.2(3) in the IRC).

    Retrofit: 2009201220152018, and 2021 IRC

    Section R102.7.1 Additions, alterations, or repairs. Additions, alterations, renovations, or repairs shall conform to the provisions of this code without requiring the unaltered portions of the existing building to comply with the requirements of this code unless otherwise stated. (See code for additional requirements and exceptions.)

    Appendix J regulates the repair, renovation, alteration, and reconstruction of existing buildings and is intended to encourage their continued safe use.

    Retrofit
    Existing Homes

    The decision on whether a home will have a hip roof or a gable roof is determined at the design stage, so this is a decision typically made during the design of new homes.
