Whole-Building Delivered Ventilation

Scope

Whole-house ventilation strategies can include balanced ventilation with an HRV or ERV and spot exhaust fans.
Whole-house ventilation strategies can include balanced ventilation with an HRV or ERV and spot exhaust fans.

Design a whole-house ventilation system that complies with all relevant codes and standards and provides adequate indoor air quality.

See the Compliance Tab for related codes and standards requirements, and criteria to meet national programs such as DOE’s Zero Energy Ready Home program, ENERGY STAR Certified Homes, and Indoor airPLUS.



Description

Ventilation systems are designed to meet two different tasks: spot ventilation and whole-building ventilation. Spot ventilation is for specific, non-continuous tasks such as removing moisture generated from cooking, bathing, etc. The following guides provide information about spot ventilation:

Whole-building mechanical ventilation is designed to provide a healthy indoor environment. The key to any healthy indoor environment is first to minimize the introduction of pollutants by:

After source control, air changes in a home are the most important factor in decreasing pollution concentrations. In existing homes with natural air change rates above 0.35 ACH, ventilation occurs somewhat naturally through gaps and cracks in the enclosure. In newer homes, with natural air change rates less than 0.35 ACH, additional mechanical ventilation has been shown to help decrease pollutant concentrations of dangerous aldehydes like formaldehyde and acetaldehyde.  After preventative measures have been taken, whole-house ventilation can be used to dilute and remove the remaining pollutants. There are three common types of mechanical ventilation used to meet the requirements outlined by the DOE Zero Energy Ready Home and ENERGY STAR programs: supply-only ventilation, exhaust-only ventilation, and balanced air ventilation. Although the latest ENERGY STAR requirements allow ventilation rates consistent with either ASHRAE 62.2-2010 or 2013, this guide will refer to ASHRAE 62.2-2010 whenever "ASHRAE 62.2" is mentioned.

Supply-Only Ventilation

Supply-only ventilation uses the HVAC system supply fan to pull in air from outdoors through a dedicated outdoor air intake. The outdoor air is typically filtered, conditioned, and circulated throughout the building through the HVAC system's central air handler. With supply-only ventilation, outdoor air enters the building from a known location and stale air leaves the building through an unknown location (through leaks in the building shell). The outdoor air is ducted from an intake located where the ambient air is deemed to be clean and where the intake grille is easy to access (for example, in a porch ceiling) for maintenance and changing of the filter, which is typically in the outdoor register grille. Outdoor air intakes should be at least 10 feet from the nearest exhaust or sanitary vent termination point.

Supply-only ventilation will create a positive pressure in the conditioned space relative to outdoors. This strategy typically depends on building envelope leaks to exit the stale air. If the systems in Figures 1 and 2 were drawing 80 CFM of outdoor air into the home while the air handler is operating, then at the same time 80 CFM must be exiting the building somewhere. That "somewhere" is the many leaks in the building envelope that connect indoors to outdoors. In humid climates where the conditioned indoor air is dryer than outdoor air, this is a good strategy; it will help keep building envelope materials (the insides of the walls) dry while providing ventilation air that is ideally both filtered and dehumidified. In cold, dry climates where indoor air is more humid than outdoor air (in high-performance buildings), supply-only ventilation would be a poor ventilation strategy.

With supply-only ventilation, the building is under positive pressure

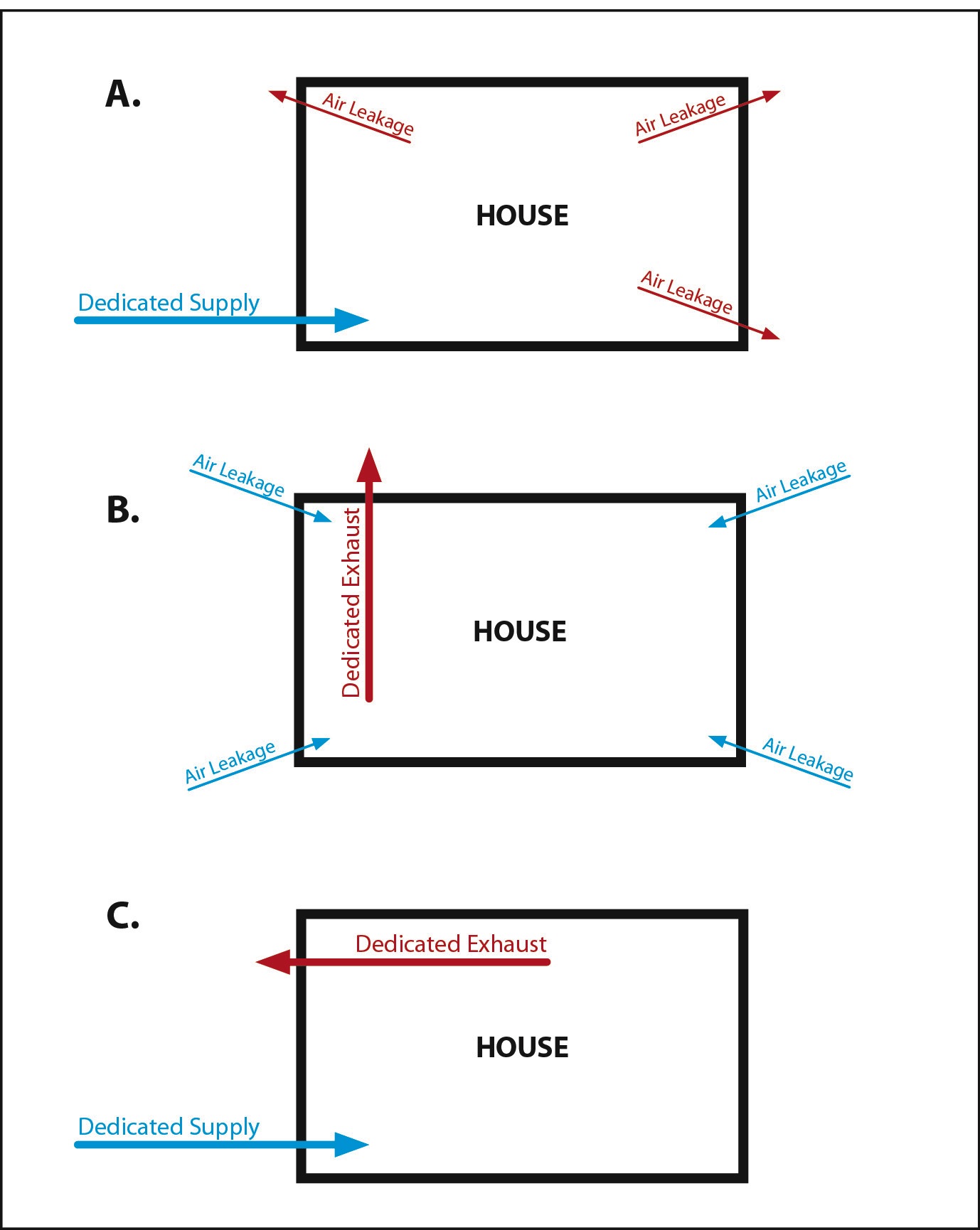

Figure 1 - With supply-only ventilation, the building is under positive pressure. Reference

The success of this strategy is dependent upon good design: an accurate HVAC load calculation, installation of HVAC equipment that closely matches the load, and a properly designed HVAC duct system. It is imperative that the cooling system not be oversized so that it will get maximum run time during 1% summer outdoor design conditions (as defined in ACCA Manual J, Table 1). If the designed target ventilation hourly rates are based on average cooling run time, oversizing the cooling or heating system will produce a ventilation rate that will be far short of the target ventilation rate.

Central Fan Integrated Supply Ventilation

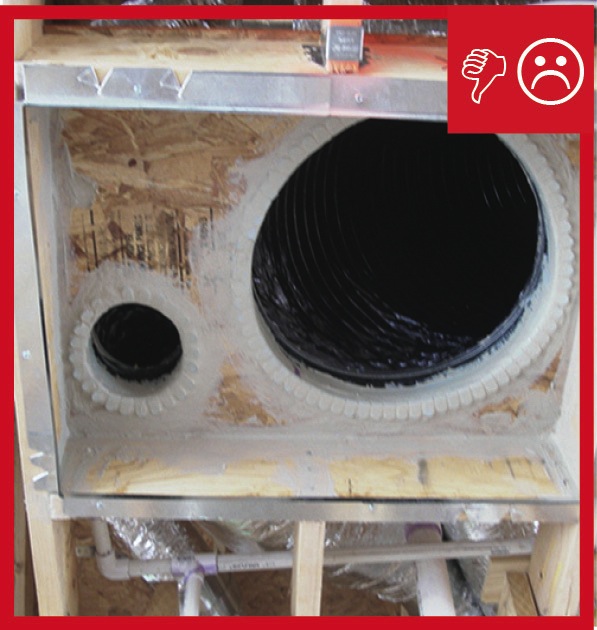

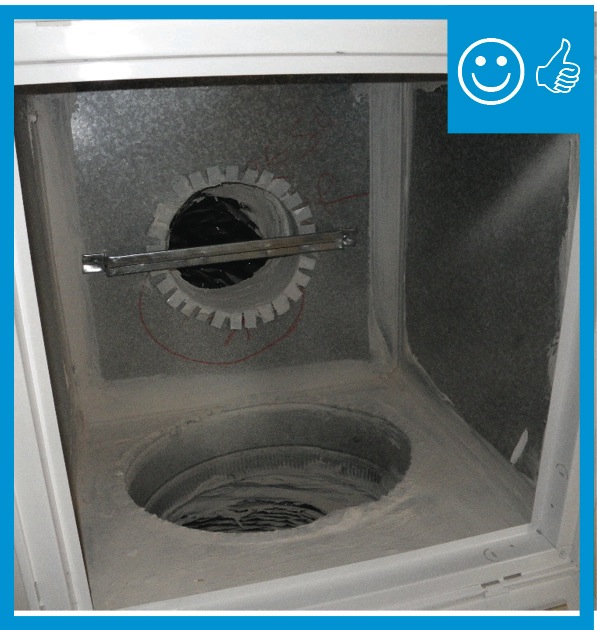

One common type of supply ventilation system is known as central fan integrated supply ventilation. When the cooling or heating system is energized, outdoor air is drawn into a filtered intake grille and is ducted directly to the return side plenum of the air handler. The outdoor air duct has a balancing damper (BD), which is manually set to adjust the amount of incoming outside air to meet the target cubic feet per minute flow rate determined in the Manual D calculations. In dry climates, this fresh air intake duct is open all the time and provides a dedicated passive opening for makeup air.

Central-fan-integrated supply ventilation with exhaust fans.

Figure 2 - The central fan integrated supply ventilation system can provide whole-house ventilation while bathroom and kitchen exhaust fans provide spot ventilation. Reference

In humid climates (those where the average outdoor dew point is often in the mid 70s), the outside air duct is equipped with a second damper. This is a motorized damper and is referred to as the outdoor air damper (ODAD); it is only open when the compressor is operating so that the incoming outdoor air is dehumidified before it enters the conditioned space. The ODAD prevents warm humid air from being pulled into the system when the compressor is not operating. This prevents condensation from taking place on the internal parts of the air handler or furnace, which can eventually cause the parts to rust. Because the ODAD is only open and allowing active ventilation when the compressor is operating, this system is known as run-time ventilation.

The run-time vent system would not meet ASHRAE 62.2 during shoulder seasons because the compressor does not operate enough, so an electronic controller is added to control the motorized damper. The controller counts the minutes the cooling system is running and after an hour, if the ASHRAE 62.2 minutes requirement has not been met, the controller will open the damper and turn on the fan to make up the minutes. However, the controller will not open the damper unless the compressor has been off for at least 5 minutes. The 5 minutes gives all of the air handler parts enough time to warm up so that the humid air that enters the unit won’t condense on cold parts, potentially causing equipment damage.

In a humid climate, to meet ASHRAE 62.2, active dehumidification must be added to the run-time vent system to handle the moisture that is brought in during the shoulder seasons when the damper is open and the compressor is not operating. In Florida, when it is 95°F outside, the compressor (AC) runs about 80% of the time. When it is 80°F outside, the compressor only runs about 40% to 50% of the time. The dehumidifier can be a separate unit attached to the central air handler or a stand-alone unit.

Exhaust-Only Ventilation

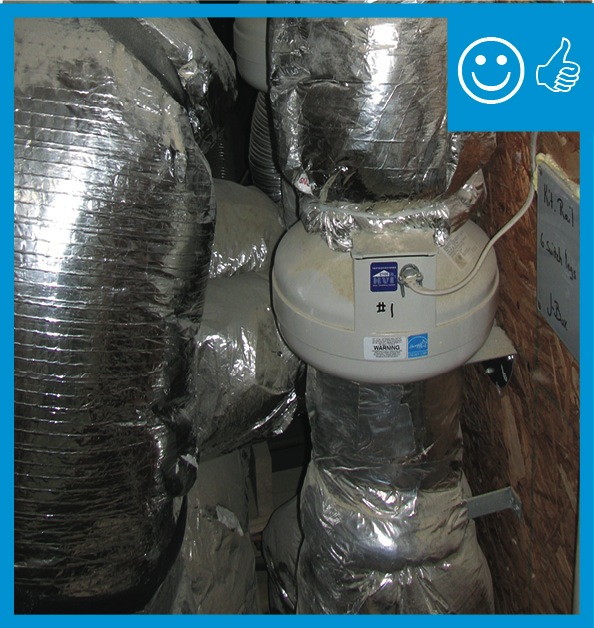

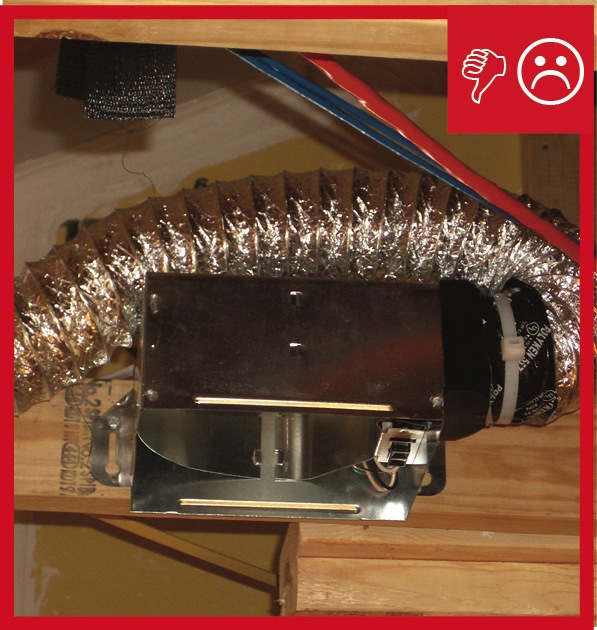

Exhaust-only ventilation is the reverse of supply-only ventilation; stale air leaves the building from a known location (through exhaust fans ducted to the outdoors) and outdoor air enters the building from an unknown location. For every cubic foot of air exhausted out of the building, a cubic foot of air has to come into the building from somewhere. Again, that "somewhere" is the many air leaks through the building envelope that connect the conditioned space to unconditioned spaces or directly to the outdoors. With this strategy, the outdoor air entering the building is neither filtered nor conditioned. The target ventilation rate is met by operating a (quiet) exhaust fan at a specific flow rate for a scheduled runtime each hour.

This strategy works well in cold-dry climates because the air outdoors is generally drier than the air indoors (in tightly built homes). Unlike the older, leaky homes built years ago, newer high-performance homes are built to be more air tight so they tend to accumulate more moisture as water vapor in the indoor air from cooking, bathing, clothes washing, etc. Exhaust fans are needed to safely remove this moisture before condensation becomes an issue.

With exhaust-only ventilation, the building is under negative pressure

Figure 3 - With exhaust-only ventilation, the building is under negative pressure. Reference

The make-up air moving through the building envelope helps to keep building materials dry when this strategy is used in cold, dry climates. This would not be a good strategy in humid climates where the water vapor content outdoors is typically higher than it is indoors.

Balanced Ventilation

Balanced systems intentionally provide both supply and exhaust. The best means for providing this balanced ventilation is with a heat recovery ventilator (HRV) or an energy (or enthalpy) recovery ventilator (ERV). Both provide a controlled way of ventilating a home while minimizing energy loss because they incorporate a heat exchanger that uses conditioned air from the outgoing exhaust air to pre-condition the "fresh" incoming air. The heat exchanger transfers heat but does not allow the intermingling of outgoing and incoming air.

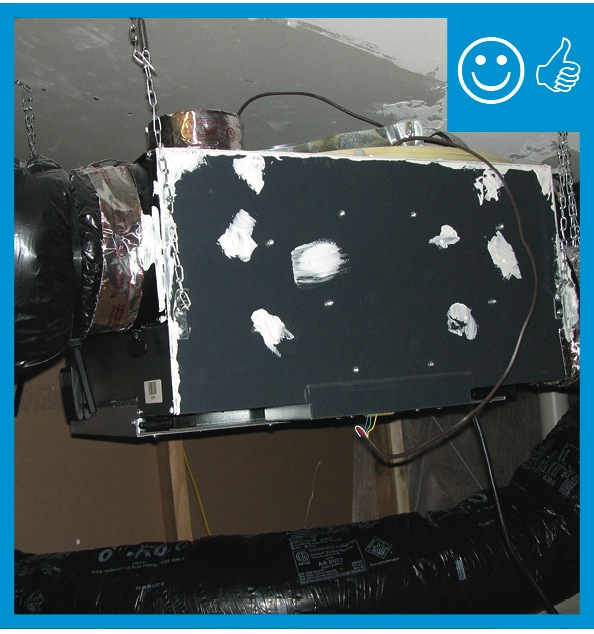

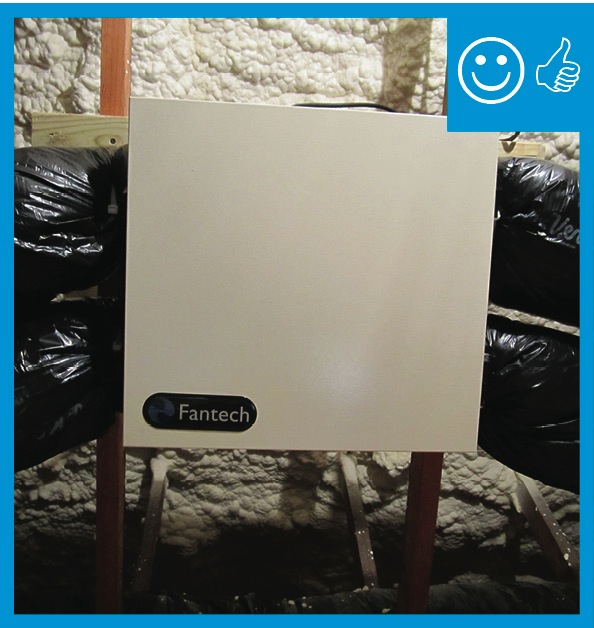

Heat Recovery Ventilator (HRV) or Energy (Enthalpy) Recovery Ventilator (ERV)

Figure 4 - Heat Recovery Ventilator (HRV) or Energy (Enthalpy) Recovery Ventilator (ERV). Reference

The incoming and outgoing air volumes are balanced and air is evenly distributed throughout the house. These ventilators are whole-house systems.  Although they can share the central furnace’s air handler and duct system, ideally, these systems will have their own ducts. The main difference between an HRV and an ERV is the way the heat exchanger works.

An HRV or ERV provides balanced ventilation by pulling in the same amount of outdoor air that is being exhausted back to the outdoors

Figure 5 - An HRV or ERV provides balanced ventilation by pulling in the same amount of outdoor air that is being exhausted back to the outdoors. Reference

With an ERV, the heat exchanger transfers water vapor along with heat energy, while an HRV only transfers heat. See the manufacturers' specifications for determining which model is best in which climate and install it according to their directions for best performance, especially in regard to ERVs in humid climates. Most ERVs can recover about 70% to 80% of the sensible energy in the exiting air (Rudd 2011). With respect to summertime operation, ERVs seem to perform best during peak outdoor conditions and lose efficiency during low-temperature, high-humidity conditions.

Intermittently Balanced

Another ventilation strategy that is somewhat controversial among experts is the "itermittently balanced" system, which combines supply and exhaust but does not include an HRV or ERV (Rudd 2011). Supply and exhaust ventilation systems are combined to make use of the benefits and economies of each system, although the net result may be an alternating unbalanced system (sometimes supply ventilation and sometimes exhaust ventilation), or an intermittently balanced system, or a fully balanced system (if carefully controlled with electronic controllers to provide equal amounts of incoming and outgoing air). An example of this type of system could be central-fan-integrated supply ventilation with simultaneous continuous or intermittent exhaust. Another strategy could be to provide a background level of distributed supply ventilation coincident with heating and cooling demand then activate “fill-in” exhaust during the balance of the time (Rudd 2011).

Central-fan-integrated supply ventilation with single- or multi-point exhaust from bathrooms, for intermittently balanced whole-house ventilation

Figure 6 - Central-fan-integrated supply ventilation with single- or multi-point exhaust from bathrooms, for intermittently balanced whole-house ventilation. Reference

How to Design a Whole-House Ventilation System

1.  Calculate the target ventilation rate for the home based on the square footage of floor area and number of bedrooms, using the formula in Figure 7 from Formula 4.1a in ASHRAE 62.2-2010.

Target Ventilation, Formula 4.1a from ASHRAE 62.2-2010

Figure 7 -  Target Ventilation, Formula 4.1a from ASHRAE 62.2-2010

2.  Once the target ventilation has been identified, select a ventilation strategy that will best do the job given the climate.

3.  Determine the operating time - how long will the fan have to run to supply the target ventilation for each 24-hour period?

4.  Install the system according to the manufacturer's specifciations.

Example - for a 3-bedroom, 2,000-sq.ft. home, with an exhaust-only ventilation strategy,  and a target ventilation rate of 50 CFM you would need to install a 50 CFM fan with an adjustable-speed DC motor for continuous operation. If you wanted to install a 100 CFM fan instead, you could determine what the run time would need to be using the formula below (Figure 8), from ASHRAE 62.2-2010.

Formula 4.2 for fan flow rate required to achieve an effective ventilation rate

Figure 8 - Formula 4.2 for fan flow rate required to achieve an effective ventilation rate from ASHRAE 62.2-2010

Considering that we want the fan to run at least once in a four-hour period, our Ventilation Effectiveness (e) is 1.0 (see Table 4.2, which shows 1.0 for a cycle time of 0-4 meaning that the fan would run at least once in each four-hour period or six times in a day.  Also the designer has determined that the Fraction On-Time will be 0.5 or 50% of the time. So to calculate the required fan air flow (Qf) to meet the target ventilation rate (Qr) based on an intermittent run time, the calculation would look like this:

Q f  =  Q r  /  (ef)
Q f  =  50 CFM  / (1.0 x 0.5)
Q f  =  50 /0.5
100 = 50 / 0.5

So, 100 CFM is the size of the fan that is required if we are going to run the fan at least once every four hours for 50% of the time to meet the target ventilation rate. The fan could be set with a controller on any timer schedule that would meet the 50% run time, for example 10 minutes on-10 minutes off, or 30 minutes per hour, etc.

Ensuring Success

The energy rater will verify that installed ventilation system meets code requirements and matches the whole-house mechanical ventilation design specified in the ENERGY STAR HVAC Design Report, if ENERGY STAR certification is sought.



Climate

Humid Climates

In hot-humid climates (Baechler et al, 2010), when appropriate levels of ventilation are used to remove pollutants, moist outdoor air is also moved through the building. With increased ventilation rates, humidity levels tend to increase as well (Fairey et al, 2014, Hodgson et al., 2005, Rudd et al., 2005), sometimes even above threshold limits for mold and mildew growth. This results in quite the conundrum for builders and designers in those areas.  For these homes, field research (Hodgson et al., 2005, Kerrigan and Norton, 2014) suggests that there adding supplimental dehumidification can help minimize the time that indoor humidity levels are above critical levels (approximately 60% RH).

Consider a 2,500 sq.ft., four-bedroom home. The required ventilation rate would be 63 CFM. In a hot-humid climate like Sarasota, Florida, according to the ACCA Manual J Table 1, the outdoor 1% summer design condition is 92°F with a coincidental wet bulb of 79°F. The moisture content of the air is 129 grains per pound of air. A pound of air occupies about 14.3 cubic feet. So our target ventilation will move about 4.4 (63/14.3) pounds of air into the building per minute. Also, with it comes 5,676 (4.4x129) grains of moisture. In an hour, we have transported 340,560 grains of moisture. There is 7,006 grains of moisture in one pound of water (roughly one pint). Thus, the target ventilation will bring in 48 pints or 3 gallons of water during one hour of operating time; that is equivalent to moving 72 gallons of water through the home in a 24-hour period.

With no active dehumidification, the home accumulates water until the grains per pound of air indoors is equal to the grains per pound of air outdoors. In the Sarasota, Florida, area where the moisture levels are 129 grains per pound of air outdoors, it will be 129 grains per pound indoors. If the home had 8-foot ceilings, it would contain 20,000 cubic feet or about 1,428 pounds of air. At 129 grains per pound, there would be about 26 pints of water in vapor form in the air at all times. If the AC system was oversized and it could easily maintain 75°F with very little run time, the indoor relative humidity would be 98% and the dew point would be 74°F.

The following table of featured Zero Energy Ready Home (ZERH) builders depicts how balanced ventilatiton is the preferred choice of ventilation systems in all climates.

Table 1. Ventilation Types Installed by Zero Energy Ready Home Builders

Ventilation Types Installed by Zero Energy Ready Home builders

A recent literature review under development by the Pacific Northwest National Laboratory summarizes some of the most recent information available on how ventilation type affects indoor air quality in different climate regions. The following information summarizes broad recommendations for each climate region.

Table 2. Ventilation Recommendations by Climate

Climate

Recommended Ventilation Type

  Cold/Very Cold

  HRV or Exhaust

  Marine

HRV or Supply

  Mixed-Humid

ERV or Supply

  Hot-Humid

ERV or Supply with supplemental dehumidification

  Hot-Dry/Mixed-Dry

ERV or Supply

As seen in Table 2 above, when using mechanical ventilation to achieve the desired levels of air changes per hour, balanced ventilation is recommended for all homes, in all climates. When balanced ventilation is not an option due to budget constraints, a secondary option for each climate region is provided.
