Sill Plates

Please Register or Login to Provide Feedback.

Climate

In Climate Zones 1 through 3, a continuous stucco cladding system adjacent to sill and bottom plates is permitted to be used in lieu of sealing plates to foundation or sub-floor with caulk, foam, or equivalent material.

climate zone map



Please Register or Login to Provide Feedback.

Description

For a home to perform efficiently, the walls, ceiling, and foundation that comprise the building shell must be connected to provide a continuous air barrier. Any seams where two different building components come together in the building shell represent a potential source of air leakage that must be sealed with an appropriate sealing material as described below. The sill plate where the wall meets the concrete foundation is especially susceptible to air leakage for two reasons: because the concrete surface is sometimes rough, preventing a smooth seam between the foundation and the sill plate and because of the stack effect, which naturally pulls air in through the lower part of the building, where the sill plate is located.

The sill plate (sometimes called the mud sill) is the board laid horizontally directly on top of the foundation wall. It consists of usually one layer of 2x6 or 2x8 pressure-treated lumber. In platform construction, the band joist and floor joists rest on the sill plate. They support the subfloor and the base plate (also known as a bottom plate or sole plate) which sits on the subfloor and to which the wall studs are attached. The sill plate is attached to the foundation wall with anchor bolts that are embedded in the concrete of the foundation wall.

The best way to air seal the sill plate is to place a sill sealer (also called a sill gasket) on the concrete before laying down the sill plate. Sill sealer is a pliable foam product that is available in varying widths up to 10 inches wide. It comes in rolls and is rolled out over the concrete along the foundation perimeter. The flexible sill sealer product conforms to any irregularities in the surface of the concrete. A waterproof closed-cell foam product should be selected that will both air seal and provide a capillary break preventing any moisture that migrates up through the concrete from reaching the wood of the sill plate.  The rot-resistant product also prevents insect and rodent intrusion. Some builders seal the sill plate to the foundation wall with two large beads of caulk but a sill seal product that covers the whole sill plate area is preferable because of its waterproofing capability and inherent uniformity.

The seam between the sill plate and the rim joist above is sealed with caulk. The entire sill plate-rim joist area can be further air sealed and insulated with spray foam, but sill plate joints and seams with rim joists should first be caulked. The hole where the anchor bolt protrudes through the sill plate can also be caulked.

Sill sealer installation could be done by the framer. This task should be included in the contract for the appropriate trade depending on the workflow at the specific job site.

How to Air Seal the Sill Plate

  1. Lay the sill plate boards along the perimeter of the foundation. The edge of the sill plate is setback from the outside face of the foundation a distance equal to the thickness of the exterior sheathing. Mark the locations of the anchor bolts and drill holes for the bolts. Lay the boards on the sill to ensure they fit then set them aside (Koel 2008).
  2. Install termite shield if desired. The termite shield is a strip of 26-gauge aluminum, copper, or galvanized sheet metal laid along the outer edge of foundation wall. The outer edge hangs out from the exterior wall and is bent down at an angle to form a drip edge and a diverter, which makes termite presence more visible. The shield is sealed to the concrete with epoxy and joints in the flashing are glued with epoxy or are soldered (BSC 2009b).
  3. Roll out sill sealer along the perimeter of the foundation wall. Press down, and cut if needed to allow anchor bolts to come through the sealer. Apply caulk around anchor bolts.
  4. Lay sill board back in place over termite shield, sill sealer, and anchor bolts and bolt down with washers and nuts.
  5. Install rim joists. Caulk at rim joist-sill plate seams (BSC 2009c).

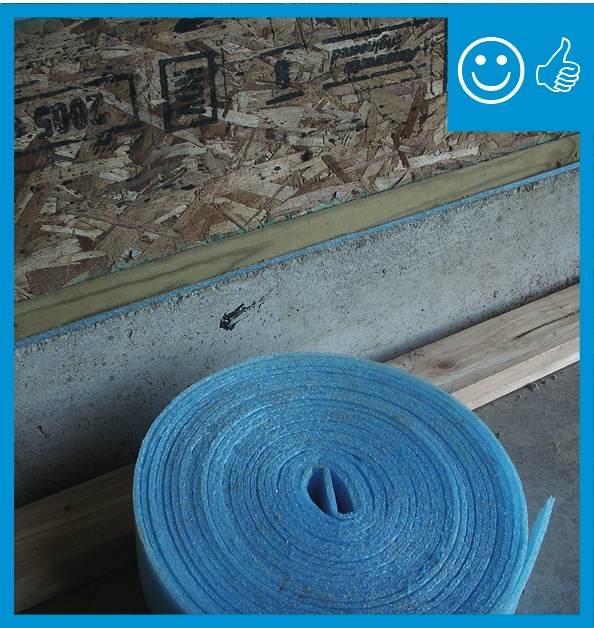

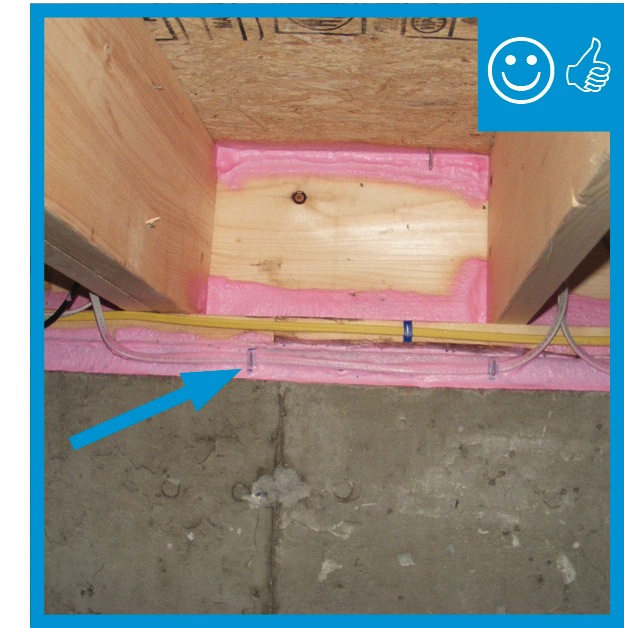

Install a sill gasket between the sill plate and the foundation wall

Figure 1 - The sill plate-foundation wall juncture is sealed with a pliable closed-cell foam sill sealer Reference

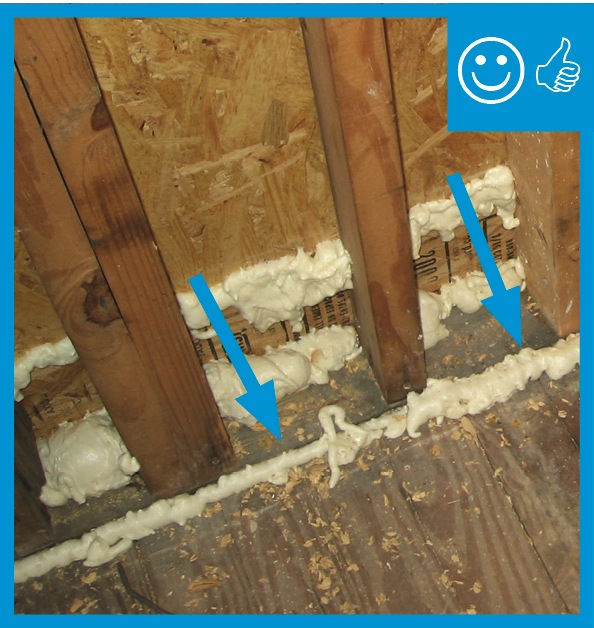

Seal the sill plate to the rim joist with caulk

Figure 2 - The top of the sill plate is sealed to the rim joist with a bead of caulk. All joints in the sill plate are sealed with caulk Reference

A termite shield and a sill gasket are installed between the sill plate and the foundation on a raised slab foundation


Figure 3 - A sill sealer and termite shield are installed between the sill plate and the foundation on a raised slab foundation Reference

Spray foam provides a critical seal between the subfloor, rim joist, and sill plate



Figure 4 - Spray foam provides a critical seal that further air seals and insulates the subfloor-rim joist-sill plate juncture Reference

Ensuring Success

Before drywall is installed, visually inspect that a foam gasket has been installed under the sill plate and that the sill plate is caulked to the rim joist.

Scope

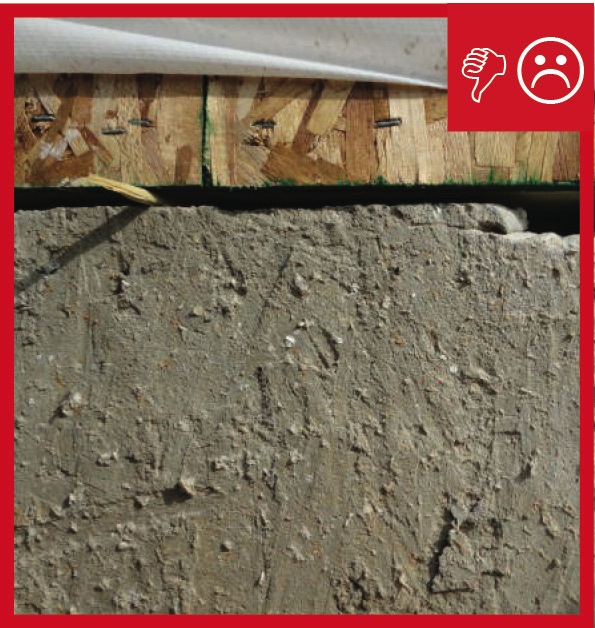

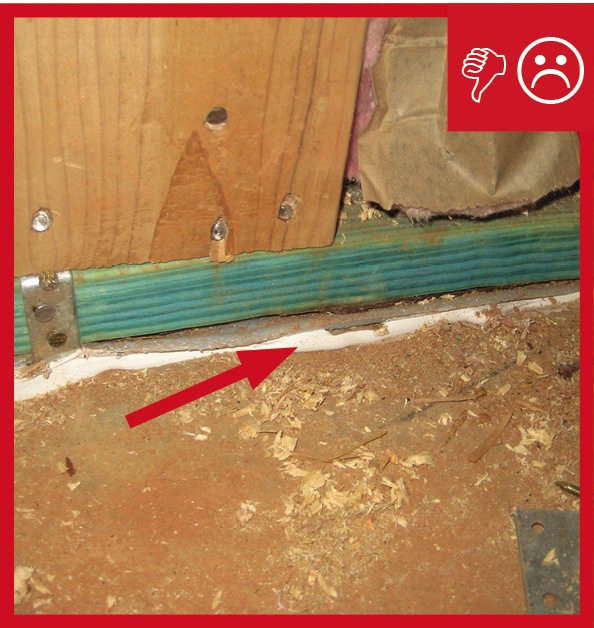

All sill plates adjacent to conditioned space sealed to foundation or sub-floor with caulk. Foam gasket also placed beneath sill plate if resting atop concrete or masonry and adjacent to conditioned space

Air Sealing

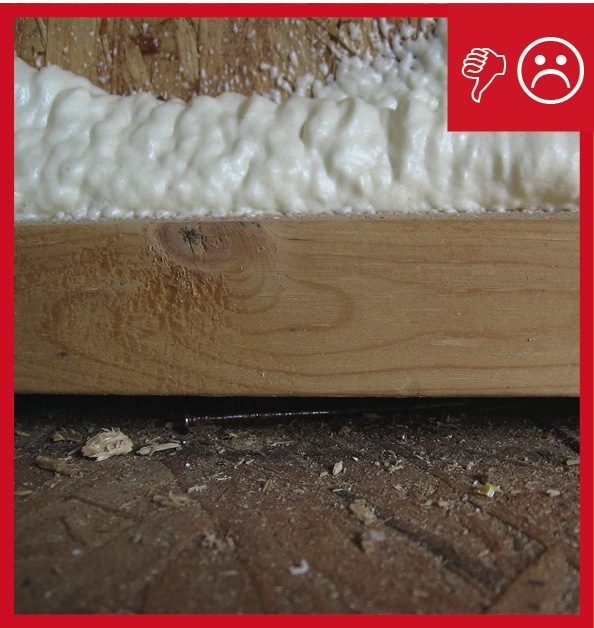

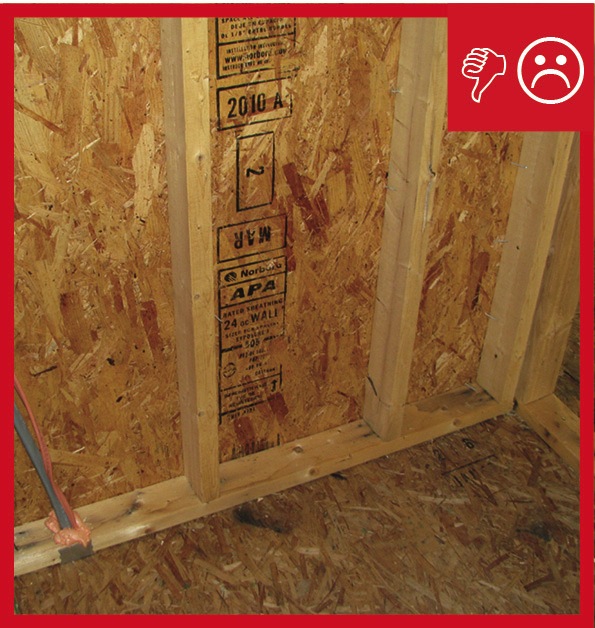

All sill plates adjacent to conditioned space sealed to foundation or sub-floor with caulk, foam, or equivalent material. Foam gasket also placed beneath sill plate if resting atop concrete or masonry and adjacent to conditioned space.

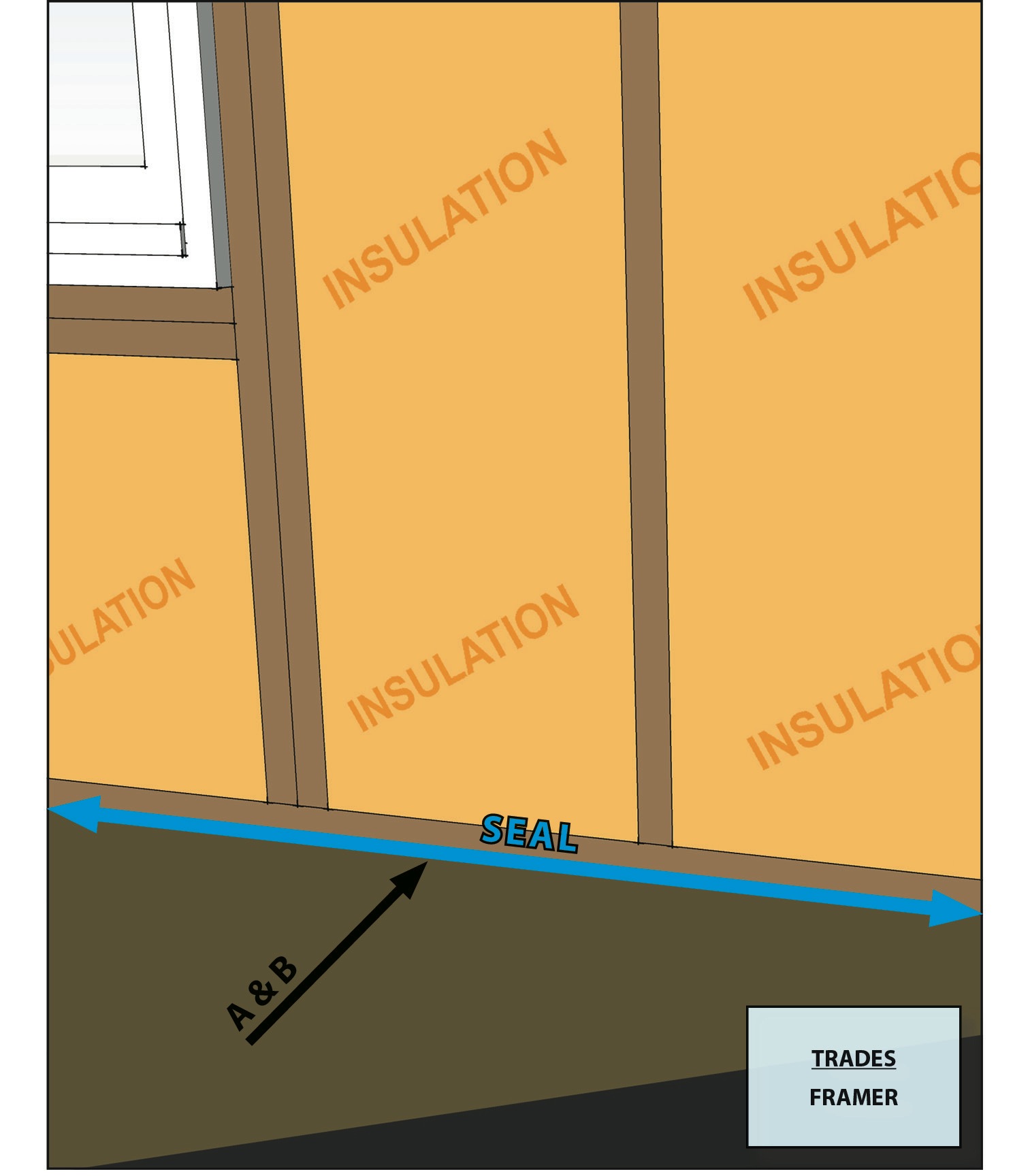

  1. Locate all sill plates of all exterior walls, common walls, and vertical members at foundation step downs.
  2. Install a gasket to prevent air leakage and seal all exterior wall sill plates to the sub-floor or foundation to prevent air leakage.

ENERGY STAR Notes:

In Climate Zones 1 through 3, a continuous stucco cladding system adjacent to sill and bottom plates is permitted to be used in lieu of sealing plates to foundation or sub-floor with caulk, foam, or equivalent material.

ENERGY STAR Notes for Existing Homes:

Existing sill plates (e.g., in a home undergoing a gut rehabilitation) on the interior side of structural masonry or monolithic walls are exempt from this Item. In addition, other existing sill plates resting atop concrete or masonry and adjacent to conditioned space are permitted, in lieu of using a gasket, to be sealed with caulk, foam, or equivalent material at both the interior seam between the sill plate and the subfloor and the seam between the top of the sill plate and the sheathing.
