Attic Access Panels/Doors/Stairs

Please Register or Login to Provide Feedback.

Climate

No climate specific information applies.

Please Register or Login to Provide Feedback.

Description

Good air-sealing and a continuous air barrier between the attic and the home’s conditioned (living) space are important, not only to save energy and reduce fuel bills, but also to prevent moisture problems in the attic. Sealing holes in the attic ceiling reduces the house’s “suction” (or stack effect) so less contaminants are drawn up into the house from the ground such as radon and other soil gases (Lstiburek 2010). Openings used for access to the attic such as access panels, doors into kneewalls, or dropdown stairs should be air sealed and insulated.  To air seal, weather stripping should be added to either the frame or panel of the attic access panel or door and latch bolts or mechanical fastener should be installed that will pull the access door tight to the weatherstripping for an airtight seal. To reduce heat loss, these access panels, doors, or stairs should be insulated. Panels and doors can be insulated by gluing rigid foam to the panel or attaching batt insulation with bolts and wiring or metal strapping. Pull-down stair kits can be purchased with rigid insulation already attached to the panel Alternatively some pull-down stair kits come with rigid insulation already attached to the inside of the back door panel, between the panel and the stairs. Or a rigid foam box-shaped cover can be constructed or purchased that fits over the stairs and is lifted and placed out of the way when accessing the attic.

The insulated and gasketed attic cover might be installed by the framer or the insulation contractor. This task should be included in the contract for the appropriate trade depending on the workflow at the specific job site.

How to Air Seal Attic Access Panels

  1. Install wood trim pieces on the ceiling side of attic access hole framing. The trim should extend one-half inch to one inch around the inside edge of the access hole forming a ledge. The access panel will rest on this trim.

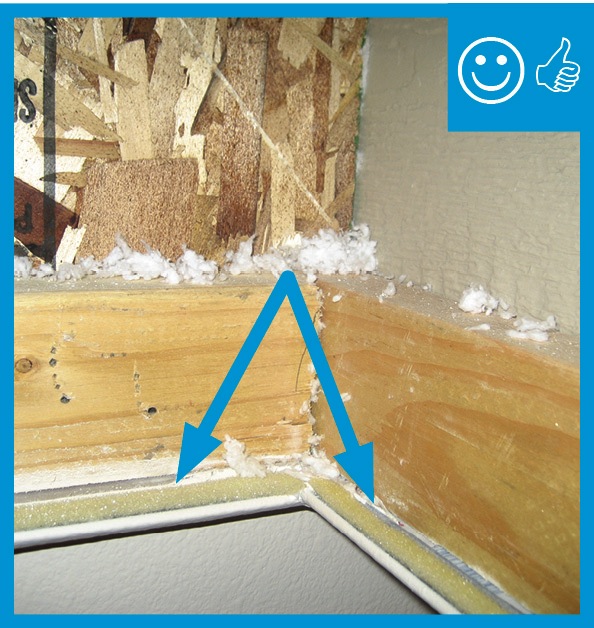

  2. Install weather stripping along the top of this ledge.
  3. Cut the access panel with even edges and one-quarter inch to one-half inch of clearance around the edges.

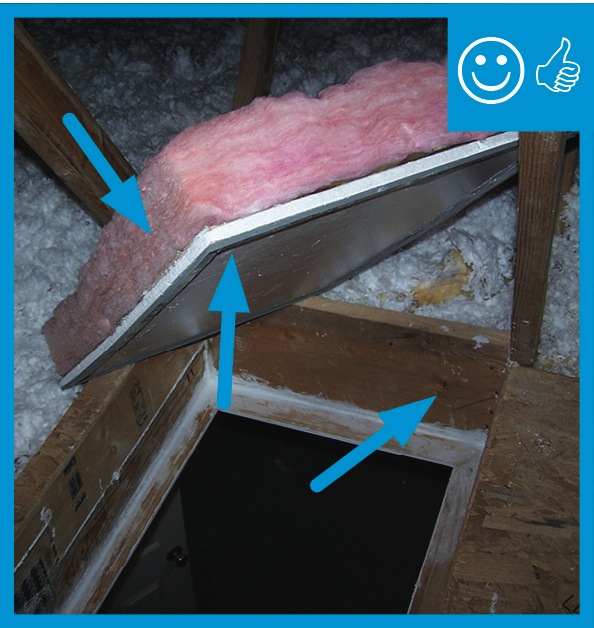

  4. Insulate the top of the access panel with rigid foam or fiberglass batt insulation that is glued or fastened with bolts and wires to the panel.

Air seal the attic access panel with a continuous gasket of weather stripping

Figure 1 - Air seal the attic access panel with a continuous gasket of weather stripping Reference

How to Air Seal Attic Pull-Down Stairs

  1. Install 1x2 or 1x3 wood trim pieces to surround the inside edge of the access hole framing. When closed, the back panel of the stairs will be rest up against this trim, so recess the trim enough to ensure the back panel will be flush with the ceiling.
  2. Install weather stripping along the bottom edge of this trim or along the inside top edge of the back panel to act as a continuous gasket.
  3. Install additional weather stripping along the top of this trim to provide air sealing for a box-shaped cover that will insulate the stairs.
    a. Construct or purchase a box made of rigid foam insulation sized to fit the access hole. This box can be lifted and placed out of the way when accessing the attic. Additional batt insulation can be attached to the top of this box if desired.
    b. Alternatively some pull-down stair kits come with rigid insulation already attached to the inside of the back door panel, between the panel and the stairs.
  4. Add 1x8s or plywood strips cut to desired height to each side of the drop-down stairs framing to act as insulation dams to keep blown-in attic insulation from falling into the stairs.

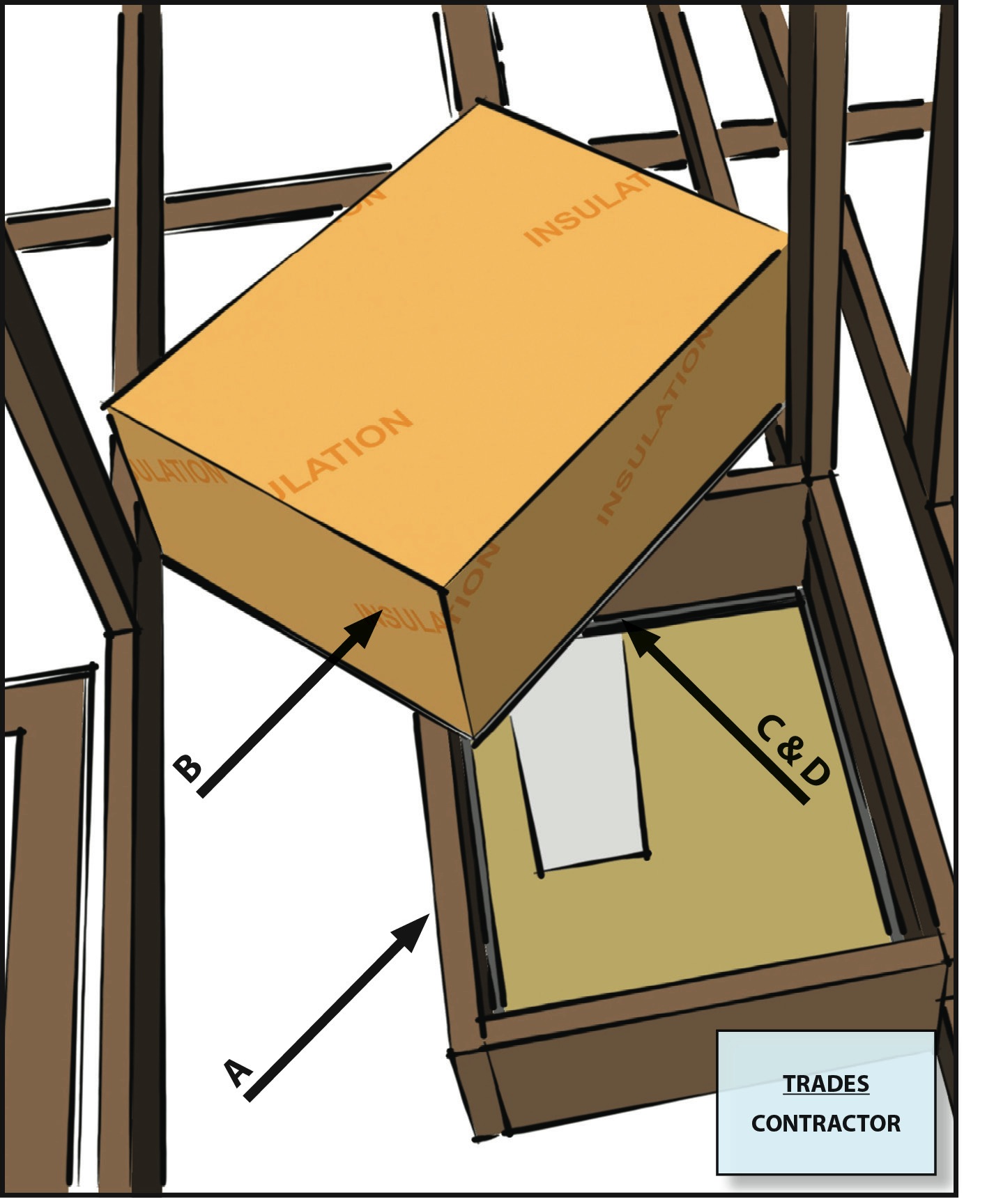

Air seal the attic access pull-down stairs opening with weather stripping and construct or purchase a rigid foam box to insulate the opening

Figure 2 - Air seal the attic access pull-down stairs opening with weather stripping and construct or purchase a rigid foam box to insulate the opening Reference

How to Air Seal an Attic Door

  1. Install weather stripping along the inside door frame and threshold.
  2. Install a latch that will pull the door tight to the frame and the weather stripping. Do not undercut the door.
  3. Insulate the attic side of the door by gluing rigid foam to it or attaching batt insulation with screws and wire. glued into place.

Air seal the attic kneewall door opening with weather stripping

Figure 3 - Air seal the attic kneewall door opening with weather stripping and insulate the door panel Reference

How to Air Seal an Attic Kneewall Drawer or Closet

  1. Build framing for the drawer or closet box.
  2. Insulate the framing rigid foam.
  3. Line the box with drywall, OSB, or plywood that is caulked at the seams.

Air seal and insulate drawer and closet boxes in attic kneewalls

Figure 4 - Build an airtight box around any drawers or closets built into attic knee walls that extend into uninsulated attic space. Insulate along air barrier (shown in yellow on drawing). Caulk at seams (red dots). Reference

Ensuring Success

Consider installing attic access panels or drop-down stairs in unconditioned parts of the home, such as a garage or porch ceiling. If an attic access is installed in a conditioned room of the home, visually inspect that weather stripping has been installed around the opening and that the door or panel closes tightly along its entire perimeter. Air leakage can be detected during a blower door test with a smoke pencil, IR camera, or by feeling air flow with the hand.

Scope

Attic access panels and drop-down stairs equiped with a durable ≥ R-10 insulated cover that is gasketed (i.e., not caulked) to produce continuous air seal when occupant is not accessing the attic

Air Sealing

Attic access panels and drop-down stairs equipped with a durable insulated cover that is gasketed (i.e., not caulked) to produce continuous air seal when occupant is not accessing the attic.

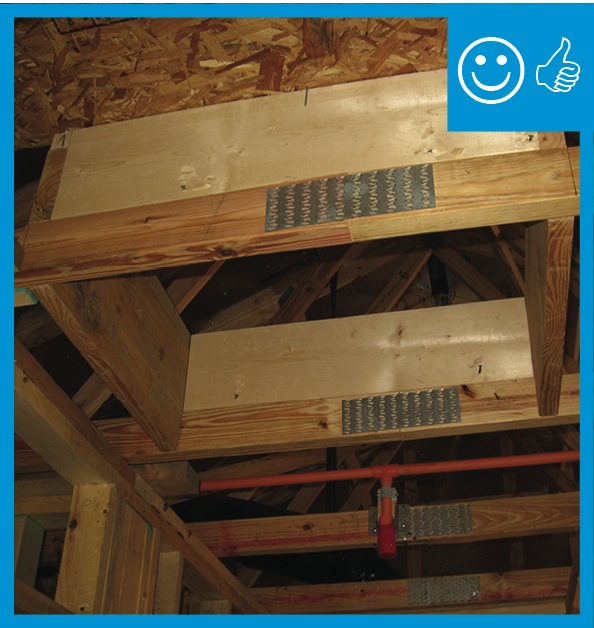

  1. If installing ceiling access to the attic, building science experts recommend installing additional blocking to create insulation dams.
  2. Install an attic access panel that is equipped with an insulated cover.
  3. Seal all gaps and holes to unconditioned space with caulk or foam.
  4. Install a continuous gasket around the attic access panel.

ENERGY STAR Notes:

ENERGY STAR requires attic access panels and drop-down stairs to be equipped with a durable >= R-10 insulated cover. However, newer residential energy codes require attic access panels to be insulated to at least the level of surrounding surfaces. Check the Compliance section of this guide for applicable code requirements.

Examples of durable covers include, but are not limited to, pre-fabricated covers with integral insulation, rigid foam adhered to cover with adhesive, or batt insulation mechanically fastened to the cover (e.g., using bolts, metal wire, or metal strapping).

Training

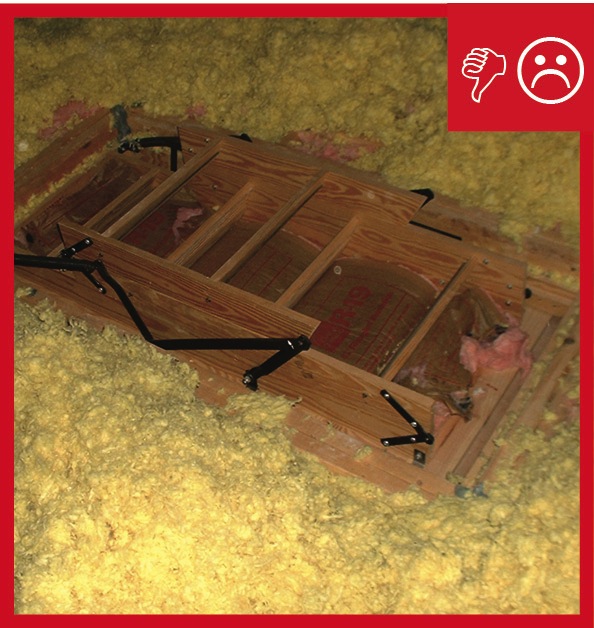

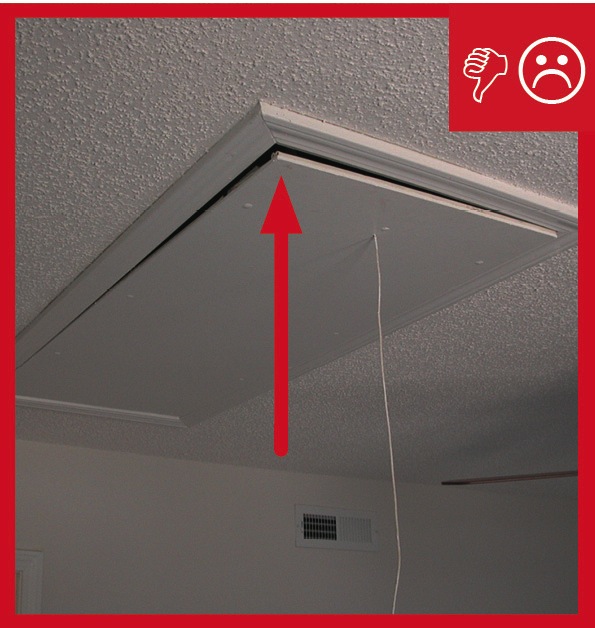

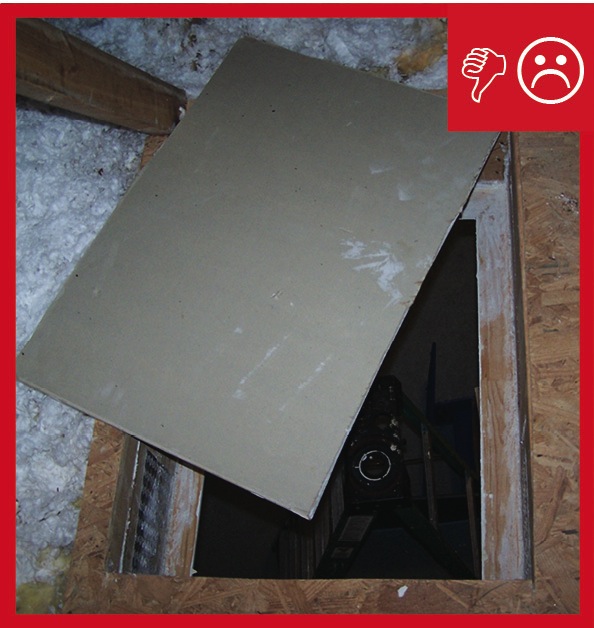

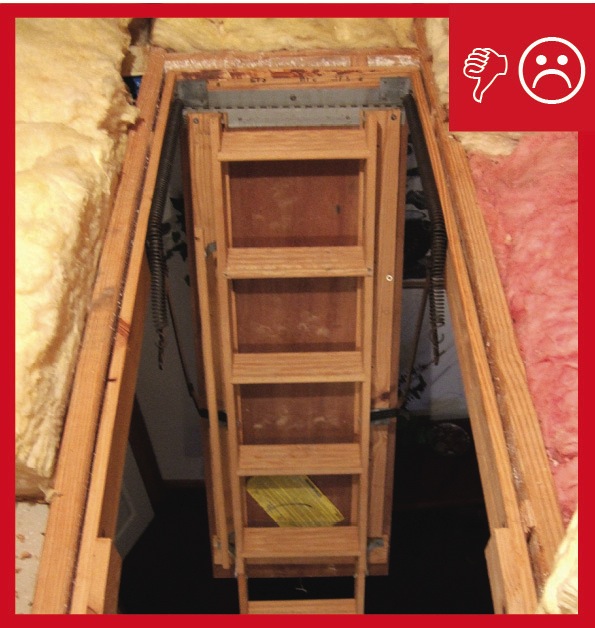

Right and Wrong Images

Presentations

None Available

Videos

None Available

CAD Images

Compliance

ENERGY STAR Version 3, (Rev. 07)

Thermal Enclosure Checklist, Air Sealing. Attic access panels and drop-down stairs equipped with a durable >= R-10 insulated cover that is gasketed (i.e., not caulked) to produce continuous air seal when occupant is not accessing the attic.  Examples of durable covers include, but are not limited to, pre-fabricated covers with integral insulation, rigid foam adhered to cover with adhesive, or batt insulation mechanically fastened to the cover (e.g., using bolts, metal wire, or metal strapping)

DOE Challenge Home

Exhibit 1: Mandatory Requirements. Certified under ENERGY STAR Qualified Homes Version 3

2009 IECC

Section 402.2.3 Access hatches and doors. Access doors separating conditioned from unconditioned space are weather-stripped and insulated (without insulation compression or damage) to at least the level of insulation on the surrounding surfaces.*

2009 IRC

Section N1102.2.3 Access hatches and doors. Access doors separating conditioned from unconditioned space are weather-stripped and insulated (without insulation compression or damage) to at least the level of insulation on the surrounding surfaces.*

2012 IECC

Table R402.4.1.1 Air Barrier and Insulation Installation, Ceiling/attic: Access openings, drop down stairs or knee wall doors to unconditioned attic spaces are insulated and sealed.*

2012 IRC

Section N1102.2.4 Access hatches and doors. Access doors separating conditioned from unconditioned space are weather-stripped and insulated (without insulation compression or damage) to at least the level of insulation on the surrounding surfaces.* Table N11402.4.1.1 Air Barrier and Insulation Installation, Ceiling/attic: Access openings, drop down stairs or knee wall doors to unconditioned attic spaces are insulated and sealed.*

*Due to copyright restrictions, exact code text is not provided.  For specific code text, refer to the applicable code.

More Info.

Case Studies

  1. Author(s): PNNL
    Organization(s): PNNL
    Publication Date: February 2013

    Case study about new home construction in the marine climate that achieved 50% savings over the 2004 IECC.

  2. Author(s): PNNL
    Organization(s): PNNL
    Publication Date: February 2013

    Case study about a new construction building project of 20 homes that earned HERS scores that represent greater than 50% energy savings in heating and cooling over the 2004 IECC.

References and Resources*

  1. Author(s): Baechler, Gilbride, Hefty, Cole, Williamson, Love
    Organization(s): PNNL, ORNL
    Publication Date: April 2010

    Report identifying the steps to take, with the help of a qualified home performance contractor, to seal unwanted air leaks while ensuring healthy levels of ventilation and avoiding sources of indoor air pollution.

  2. Author(s): DOE
    Organization(s): DOE
    Publication Date: June 2013

    Standard requirements for DOE's Challenge Home national program certification.

  3. Author(s): EPA
    Organization(s): EPA
    Publication Date: June 2013

    Standard document containing the rater checklists and national program requirements for ENERGY STAR Certified Homes, Version 3 (Rev. 7).

  4. Author(s): Lstiburek
    Organization(s): BSC
    Publication Date: January 2010

    Fact sheet providing detailed information about air sealing attics.

  5. Author(s): EPA
    Organization(s): EPA
    Publication Date: October 2011

    Guide describing details that serve as a visual reference for each of the line items in the Thermal Enclosure System Rater Checklist.
