Fully Sealed Continuous Weather Resistance Barrier

Please Register or Login to Provide Feedback.

Climate

No climate specific information Applies.

Please Register or Login to Provide Feedback.

Description

Most exterior wall cladding systems leak. Wind pressure and capillary action can drive rainwater through the many cracks, joints and small gaps in a building's exterior, and with typical residential siding systems, it is nearly impossible to seal all those holes. Even if a builder succeeds in sealing a majority of the holes, the caulks and sealants used to seal them will not last as long as the exterior cladding materials, and the sealants will need to be reapplied periodically. A wall that tries to block entry of water using caulks and sealants is sometimes called a "barrier wall," but it is not a very practical system for residential buildings (BSC 2007).

A more practical way to protect building exteriors from rainwater relies on a "drainage approach," achieved by installing a drainage plane beneath the exterior cladding. With this approach, any water that leaks through the cladding will run into a water-resistant surface, and safely drain down the wall. For a detailed Building America sponsored research report about taped insulating sheathing drainage planes, see this reference: Grin and Lstiburek 2012.

To work effectively, the drainage plane must be designed and installed to channel water away from the building. This will involve the following (Smegal and Lstiburek 2012):

  • Lapping drainage plane materials over all exterior wall flashings so water flowing down the walls is directed away from the building. Common wall flashings include flashing at the base of walls, sidewall flashing where roofs intersect walls, and flashings around window and door openings.
  • Carefully sealing around all penetrations through the wall. Examples of common wall penetrations include those for water spigots, exhaust vent outlets, HVAC line sets, and wiring for outdoor light fixtures and receptacles.

While the primary function of a weather-resistant barrier is rainwater control, the drainage plane may also serve as an air barrier if the seams in the drainage plane are taped or otherwise sealed. An effective air barrier is critical to long-term durability of the building, particularly in hot and cold climates where moisture-laden air moving into the enclosure may cause condensation problems (Lstiburek 2006).

Drainage Plane Materials

Materials that may be used to create an effective drainage plane include:

House wrap, sealed or taped at all joints: A wide variety of plastic house wrap materials, perforated and non-perforated, exist on the market. Perforated products have tiny holes punched in them. The holes allow water vapor to pass through the material but are small enough to block droplets of liquid water, which are held together by surface tension and too large to pass through the holes. Non-perforated products rely on tiny interstitial gaps between fibers or woven bands of plastic that allow water vapor to diffuse through the material. To evaluate the differences, look for the performance results of ASTM tests for water holdout and permeability (DOE 2000).

Rigid foam insulation, fully taped at all “butt” joints: There are three common varieties of rigid foam insulation on the market that can be used for creating an exterior drainage plane (BSC 2007):

  • Expanded polystyrene (EPS; sometimes referred to as "bead board"): Unfaced EPS foam should not be used as a drainage plane, as the boards will absorb water (see Table 1 below). If EPS foam is chosen as continuous exterior insulation, cover the installed foam boards with a weather-resistant barrier, such as house wrap. There are some faced EPS foam products on the market that are appropriate for use as a drainage plane material. Careful cutting and handling is needed when using EPS boards, as the edges of the boards can break off easily.
  • Extruded polystyrene (XPS) provides a durable matrix of closed cells that holds-out water well, provided the "butt" joints between panels are taped. For best results, use XPS panels with shiplap joints. The lap will allow water to drain out of the joints between the foam boards. Note, that even if shiplap joints are used, the joints still need to be taped.
  • Polyisocyanurate (commonly referred to as "polyiso"). Faced polyiso foams can be used as a drainage plane, provided the "butt" joints between panels are taped. Unfaced polyiso foam will absorb water and should not be used as a drainage plane unless the installed boards are covered with a weather-resistant barrier, such as house wrap.

Note in Table 1 that key differences exist in the properties of different foam sheathings. For use as a drainage plane, the water absorption rate is critical. Only unfaced XPS or faced polyisocyanurate can be used as a drainage plane without installation of an additional weather-resistant barrier. New EPS products that include a facing are not included in this table; these may be appropriate for use as a drainage plane.


Table 1 - Material Properties of Rigid foam Insulation  Reference

Material Properties of Rigid foam Insulation

 All foam boards are subject to degradation from the ultra-violet (UV) rays of the sun and should be covered with cladding soon after installation on the exterior of walls. Foam boards that become wet prior to installation can also warp. It is important to store materials on site in a covered, dry location.

Building paper typically comes in 36-inch-wide rolls in two common weights designated as #15 and #30. The numbers are from a time when asphalt-impregnated felt weighed 15- or 30-pounds per square (one square = 100 square feet). Today products are made with asphalt impregnated Grade-D building paper and weigh considerably less per square, but the designations are still used by product manufacturers to distinguish lighter and heavier weight materials.

Compared with house wraps, all building papers tend to tear more easily during installation. They also absorb water more readily than house wraps, and are less resistant to ultra-violet light from sunlight (BSC 2007).

Other water-resistant barriers recognized by ICC Evaluation Service (ICC-ES) include liquid-applied membranes, as well as peel-and-stick adhesive-backed membranes. These products are typically used more on commercial jobs than residential jobs. However, such products are becoming increasingly available to residential contractors. Building America sponsored research suggests that the use of liquid-applied membranes provides distinct advantages for residential drainage planes (Smegal and Lstiburek 2012).

Installing House Wrap and Building Paper

Installation of building wraps, including house wrap and building paper, is typically done by the subtrades that install the cladding system. In most parts of the United States, the drainage plane materials are installed over exterior walls before the windows get installed. However, in some parts of the western United States (predominately in stucco markets) the drainage plane may be installed after the windows have been installed.

Before installing any drainage plane material, be sure to review the installation guidelines provided by the product manufacturer. General guidelines for installing most common house wraps and building paper are provided below. The installation procedures for house wrap and building paper are roughly the same. The primary differences are:

  • More courses are usually required for building papers, due to the short width of building paper rolls.
  • Different sealants are required to bond flashing materials and seal penetrations. Generally, tape is not used for building papers, as the bond will not last very long. Some caulks may be appropriate. For any drainage plane material, even house wrap, always check with the product manufacturer for recommendations on compatible sealants. For a detailed Building America sponsored research report about taped insulating sheathing drainage planes, see this reference: Grin and Lstiburek 2012

For installing either house wrap or building paper, follow this overall guidance (DOE 2000):

1. Start at the bottom of exterior walls, and work your way up, installing each subsequent course so it overlaps the course below, as shown in Figure 1.

Drainage Plane Installation Sequence. Start at the bottom and work up the wall. This installation sequence is critical for ensuring that water flows down and out, away from the building.

Figure 1 - Drainage Plane Installation Sequence. Start at the bottom and work up the wall. This installation sequence is critical for ensuring that water flows down and out, away from the building. Reference

2. Unroll house wrap or building paper horizontally. Begin at a building corner, leaving a 6- to 16-inch overlap to wrap around the corner. The amount of overlap will vary according to product manufacturer’s recommendations. The first course should overlap the flashing at the base of the walls. For details on installing base flashings, see Flashing at Bottom of Exterior of Walls. Also, be sure to overlap the vertical leg of any deck flashing, roof-wall flashing, or other flashing, using a consistent "shingle-style" lapping method. This will require installing flashings before installing the drainage plane to avoid "reverse shingling." (See this mistake in Figure 2.)

The Mistake of Reverse Shingling

Figure 2 - The Mistake of Reverse Shingling. This photo shows a problem in the sequence of installing exterior drainage plane materials. Any water draining down the house wrap on these walls will drain behind the flashing on the intersecting roof. This is a condition known as reverse shingling. The flashing should have been installed before the house wrap, and the house wrap brought over the vertical leg of the roof-wall flashing.  Reference

3. Roll out the material over window and door openings, and come back afterwards to integrate it with window and door flashings. For details on integrating drainage plane materials with window and door flashings, see Fully Flashed Window and Door Openings.

Installation Details for Weather-Resistant Barriers. This image summarizes the key installation details for installing house wrap.

Figure 3 -  Installation Details for Weather-Resistant Barriers. This image summarizes the key installation details for installing house wrap.  Reference

4. Stagger the ends of each course, so seams between courses do not align, and overlap all seams, following manufacturer recommendations. A 4- to 6-inch inch overlap for vertical seams is typical, and a 2-inch overlap for horizontal seams is typical.

5. Secure house wrap or building paper to the wall sheathing or framing members using wide-crown staples or nails with a large head. For wood frame construction, cap nails that have a large plastic washer are recommended. Space fasteners following manufacturer guidelines; every 12 to 18 inches is typical.

Cap Nail Securing a Weather-Resistant Barrier

Figure 4 - Cap Nail Securing a Weather-Resistant Barrier. Best practice in wood frame construction calls for nails with a large plastic washer to secure house wrap and building paper to the exterior of walls.  Reference

6. Seal penetrations (such as light fixtures, water spigots, exhaust vents or piping for mechanicals) with tape, caulk, or sealant. Follow the product manufacturer's recommendations when selecting caulks and sealants to be sure they are compatible with the drainage plane materials.

7. For house wrap materials that will serve as an air barrier, tape all horizontal and vertical seams. In addition, caulk the top edge at the top wall plate, and the bottom edge that overlaps the base flashing. Be sure to use a sealant that is formulated to adhere to the flashing material and is compatible with the house wrap.

8. Install the cladding system as soon as possible after the house wrap or building paper has been installed. Any house wrap or building paper will tear, or the holes created by the fasteners will elongate if left exposed to repetitive wind loading for extended periods of time. In addition, ultra-violet (UV) light from the sun breaks down house wraps and building paper. Building paper is especially vulnerable to UV degradation. Some house wraps are more UV-resistant than others, but all have limitations on how long they can be left exposed to sunlight.

 Concerns with Different Cladding Materials

When house wrap or building paper is used for the drainage plane, different cladding systems may require different preparations.

Wood and fiber-cement board siding. Moisture moving through wood may leach compounds known as surfactants. These compounds reduce the surface tension of water, allowing water to soak through house wraps. To reduce the leaching of surfactants from the wood, the siding boards should be coated on all sides with clear, water-repellent wood preservative, followed by a coat of primer and two coats of finish paint (DOE 2000).

Best practice with board siding calls for installing the siding on furring strips (or a drainable nylon mat) installed over the drainage plane. This provides an air gap between the siding and weather-resistant barrier that improves drainage and increases the drying potential on the backside of the cladding. Building America recommends a gap of at least 1/6-inch behind lap siding and a drainage space of ¾ inch between stucco and plastic house wraps to control liquid-phase water penetration. A 1-inch air gap is needed behind brick veneer as required by the 2009 International Residential Code (IRC) (Baechler et al. 2010).

Furred-Out Siding. To improved drainage behind wood or fiber-cement siding, install the siding boards on vertical furring strips.

Figure 5 - Furred-Out Siding. To improved drainage behind wood or fiber-cement siding, install the siding boards on vertical furring strips.  Reference

Masonry veneer. Brick and other masonry veneers tend to absorb water. For this reason, these claddings are sometimes referred to as "reservoir claddings" (Lstiburek 2008). To prevent the water absorbed by the masonry from leaking into the framed wall, building codes often require a minimum 1-inch gap behind masonry veneer. Care must be taken by masons to avoid letting mortar clog this gap. If the mortar squeeze-out is too great, it can act as a bridge to channel water to the framed wall by capillary action. Maintaining an open space behind brick will also allow convective airflow through the space that will promote drying (BSC 2005).

Another problem with reservoir claddings is sometimes referred to as "solar drive." When water-loaded masonry is warmed by the sun, the water will tend to evaporate out of the brick. The moisture drive (i.e., direction the moisture will travel) will be from the warmer area to the colder, so it will move towards the inside of the building when the sun is on the masonry exterior. This moisture can pass through any vapor-permeable house wrap or building paper installed as a drainage plane on the framed wall. Solar drive is not a problem when the house wrap has been installed over a semi-permeable OSB sheathing, but it can be a problem if the framed wall has been sheathed with fiber board.

Stucco.  Hard-coat stucco tends to adhere to wet stucco, and this allows water to soak through a single layer of house wrap or building paper (BSC 2007). For this reason, building codes in stucco markets often require two layers of building paper, or a layer of building paper over a house wrap. Best practice calls for building paper behind the stucco and then a layer over a "wrinkled" or grooved house wrap that provides small channels to promote drainage. The first layer of paper directly behind the stucco creates a bond breaker. Water that soaks through this layer will encounter the second layer and drain safely down the wall and way from the building.

Installing Foam Sheathing

To install the foam boards over exterior walls, follow this overall guidance:

1. Use 1-inch diameter plastic cap nails, or 3/8-inch head roofing nails, or broad-crown staples (minimum 3/4-inch crown). All fasteners must be installed through to the studs, and therefore must be long enough to penetrate wood studs at least 3/4-inch. Secure the foam boards 12 inches on-center around the perimeter, and 16 inches on-center in the field (Foam Sheathing Coalition 2011).

Do not overdrive the nails or staples. This is easy to do with a pneumatic nailer or stapler if the air pressure is not properly regulated. The result of too much air pressure will result in divots around each fastener that can catch water and reduce the water hold-out capacity of the foam as a drainage plane.

The Mistake of Overdriven Fasteners

Figure 6 - The Mistake of Overdriven Fasteners. The air pressure on a pneumatic nailer needs to be reduced, otherwise the nails will penetrate the foam sheathing too far. The resulting divots in the surface will catch and hold water, allowing it to penetrate the drainage plane.  Reference

 2. Integrate window and door flashings. Typically this involves:
*   installing a pan flashing to drain the bottom of the window or door opening;
*   bedding the nail flange of the window in sealant when setting the window;
*   installing jam flashings, followed by a head flashing, over the window nail flanges.

Detailed step-by-step guidance for installing windows with foam sheathing can be found through Building Science Corporation.

3. Seal around wall penetrations (such as those from plumbing and mechanicals) with expanding foam. Try not to overfill the cavity; any excess foam will have to be trimmed back prior to installing the cladding.

4. Tape joints with 2- 7/8-inch construction tape. Center the tape over the joint. Do not use narrow tape, as it will not be wide enough to cover the nails that secure the edges of the foam boards at each seam. Also, be sure to use a construction tape recommended by the foam manufacturer. Ordinary duct tape will not adhere to rigid foam for very long.

5. Install the cladding system as soon as possible after installing the rigid insulating sheathing. All foam sheathings (as well as the expanding foam sealants used to seal penetrations) will degrade from prolonged exposure to ultra-violet (UV) light from the sun.

When installing cladding, take care to stagger joints, so they don't align with the joints in the foam sheathing as shown in the figure below.

The Mistake of Not Staggering  Siding and Foam Sheathing Joints

Figure 7 - The Mistake of Not Staggering  Siding and Foam Sheathing Joints. The joint in the rigid foam beneath this fiber-cement should have been taped. But, even if it had been properly taped, this would be meager protection from water driven by wind-pressure and capillary action through the end joint in the siding.  Reference

A Vapor Barrier Concern with Foam Sheathing

Rigid foam insulation products that have good water hold-out properties (namely XPS and faced polyiso), and are appropriate for use as a drainage plane, tend to have low permeance, and will limit the amount of moisture that can evaporate out of wall assemblies. In cold climates, and in the cooler seasons of a mixed humid climate, there is a potential for creating a double-sided vapor barrier, if a vapor barrier has been installed on the interior surface of the wall assembly (which is often required by code).

To avoid moisture problems when an interior vapor barrier has been installed, the insulating sheathing must be thick enough to ensure that the dew point temperature is not reached within the wall assembly. Guidance on the foam thickness can be taken from the IRC requirements defined in Table R601.3.1 (adapted in Table 2 below). When the foam is installed to this minimum thickness, a Class III (i.e., latex wall paint) vapor barrier can be used, eliminating a permeable interior control layer, which allows the wall to dry to the inside.

Table 2 - IRC Table R601.3.1 - Guidance on Foam Thickness  Reference

Climate zone

Minimum R-value of foam sheathing

Marine 4

R-2.5 for 2x4 walls

R 3.75 for 2x6 walls

5

R-5 for 2x4 walls

R-7.5 for 2x6 walls

6

R-7.5 for 2x4 walls

R-11.25 for 2x6 walls

 For more detailed guidance on specifying the thickness of rigid foam sheathing, refer to this Building America sponsored work.

Installing Other Water-Resistant Barriers

Follow manufacturer guidelines for installing other water-resistant barriers, including liquid-applied membranes and self-adhesive (paper-backed) membranes.

Liquid-applied membranes are applied by spraying, rolling or brushing the material over exterior wall sheathing. Most systems include a manufacturer-specific tape or transition membrane over sheathing joints and at corners. General installation guidelines can be found in these Building America sponsored reports: Smegal and Lstiburek 2012 and Grin and Lstiburek 2012.

Ensuring Success

Visually inspect the exterior walls before siding is installed to ensure that the weather-resistive barrier or rigid foam sheathing is correctly installed and correctly integrated with wall flashings to direct water out and down away from the wall cavities. Seams in house wrap and rigid foam insulation should be taped, and the tape must adhere uniformly to the substrate without peeling or open "fish mouths" (i.e., folds in the tape that create an opening that does not adhere to the house wrap or rigid foam sheathing).

Inspection of Taped Joint.  In the photo shown here, tape has been applied, but it is not sealing the seams. Before siding is installed, check that the tape on the seams has bonded to the house wrap

Figure 1 - Inspection of Taped Joint.  In the photo shown here, tape has been applied, but it is not sealing the seams. Before siding is installed, check that the tape on the seams has bonded to the house wrap.

Scope

Fully sealed continuous drainage plane behind exterior cladding that laps over flashing in Detail 2.1. Additional bond-break drainage plane layer provided behind all stucco and non-structural masonry cladding wall assemblies

Water Managed Above Grade Wall Assembly

Fully sealed continuous drainage plane behind exterior cladding that laps over flashing in item 2.1 of the ENERGY STAR Water Management System Builder Checklist. Additional bond-break drainage plane layer provided behind all stucco and non-structural masonry cladding wall assemblies.

Any of the following systems may be used:

  1. A monolithic weather-resistant barrier (i.e., house wrap) sealed or taped at all joints.
  2. Weather resistant sheathings (e.g., faced rigid insulation) fully taped at all “butt” joints.
  3. Lapped shingle-style building paper or felts.
  4. Other water-resistant barrier recognized by ICC Evaluation Service (ICC-ES) or other accredited agency.

ENERGY STAR Notes:

Any of the following systems may be used: a monolithic weather-resistant barrier (i.e., house wrap) sealed or taped at all joints; weather resistant sheathings (e.g., faced rigid insulation) fully taped at all “butt” joints; lapped shingle-style building paper or felts; or other water-resistive barrier recognized by ICC-ES or other accredited agency.

ENERGY STAR Notes for Existing Homes:

These Items not required for existing structural masonry walls (e.g., in a home undergoing a gut rehabilitation). Note this exemption does not extend to existing wall assemblies with masonry veneers.

Training

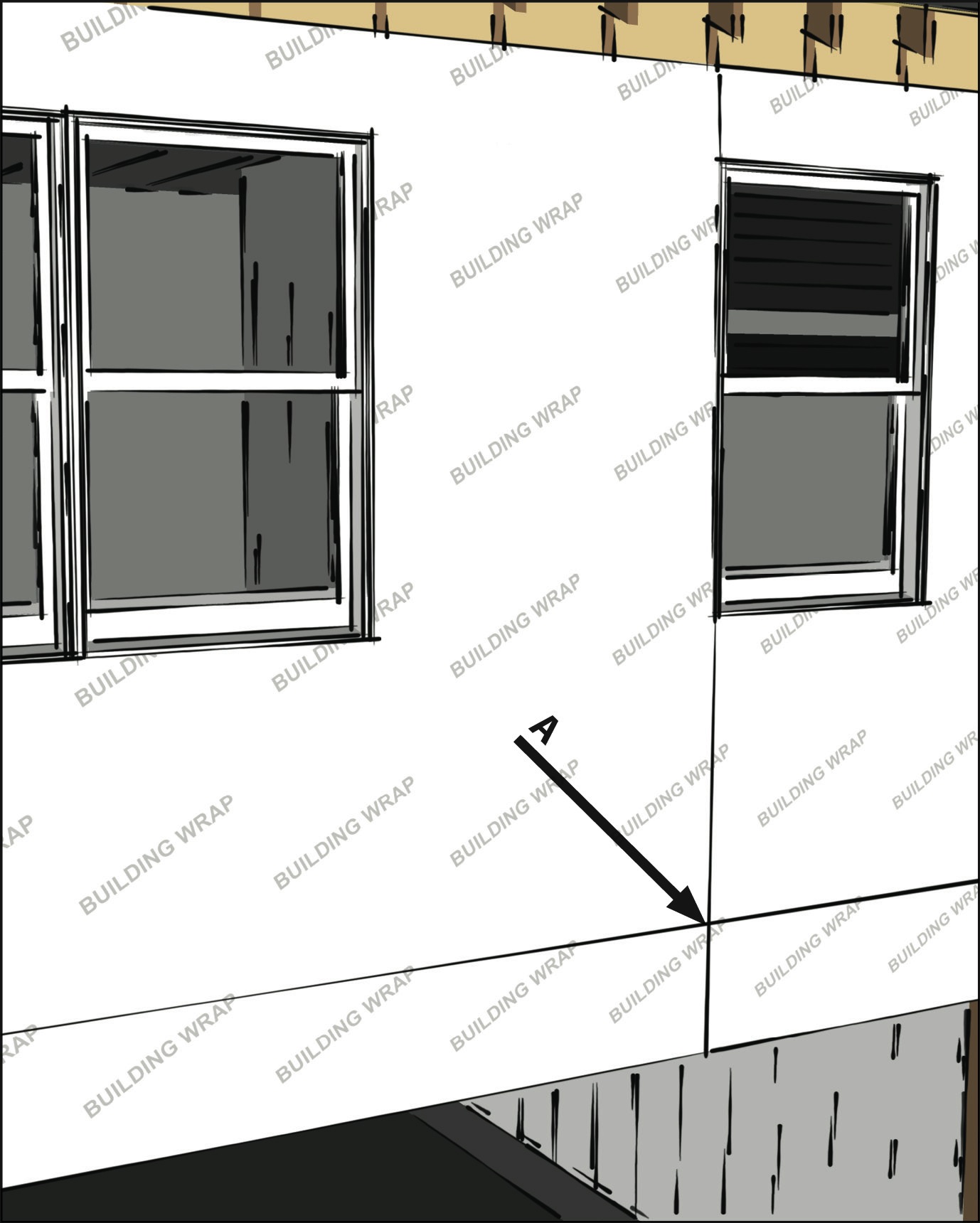

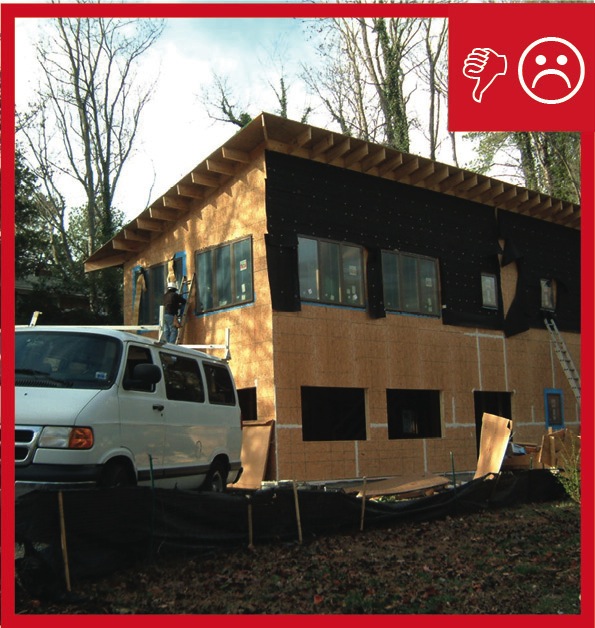

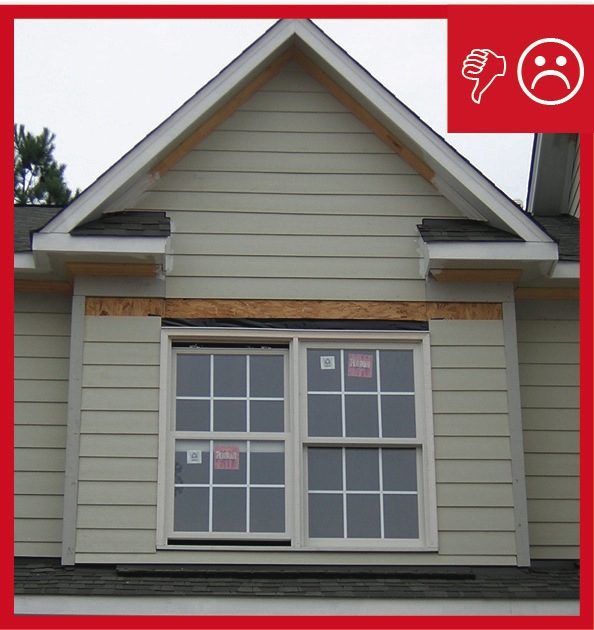

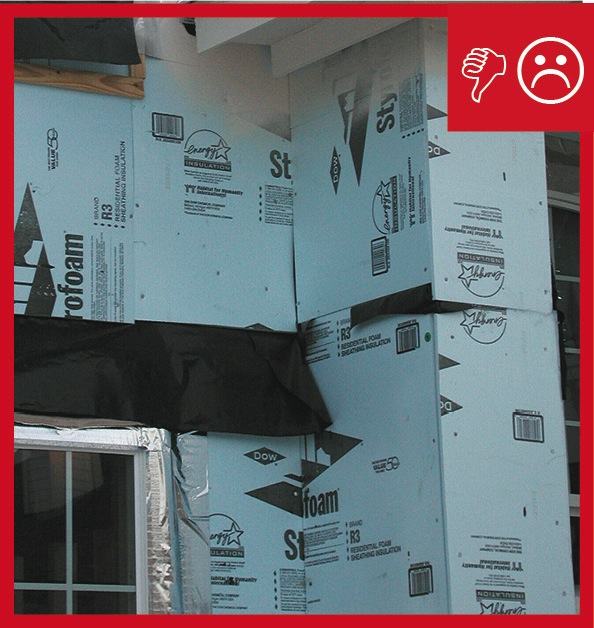

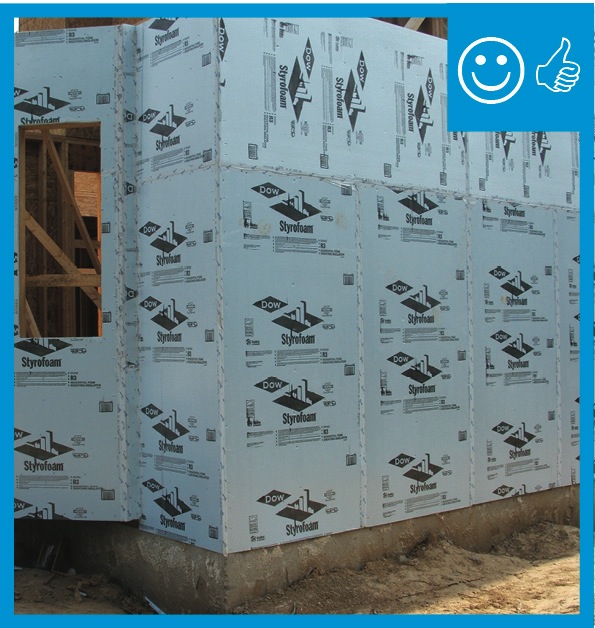

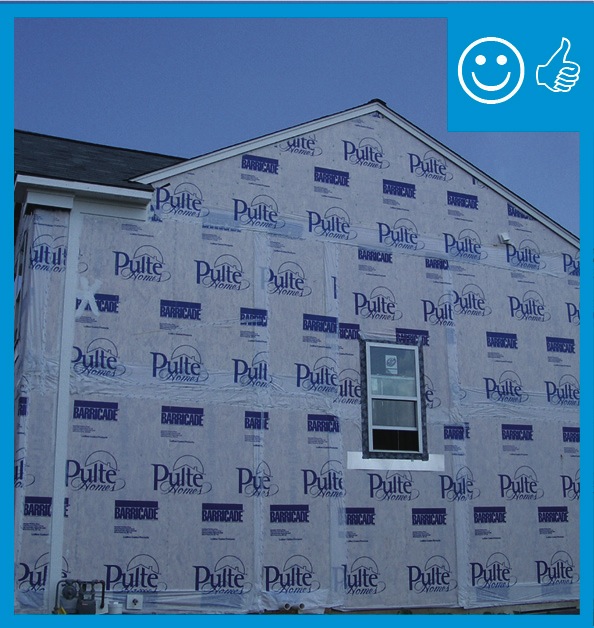

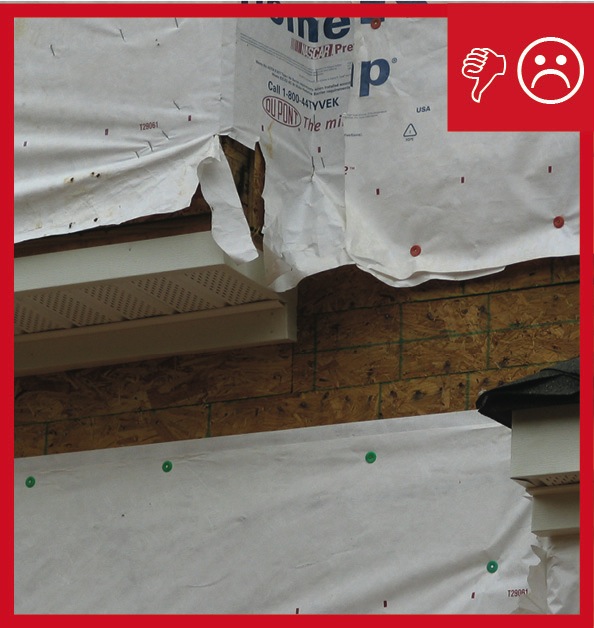

Right and Wrong Images

Presentations

None Available

CAD Images

None Available

Compliance

ENERGY STAR Version 3, (Rev. 07)

Water Management Checklist, Water-Managed Wall Assembly. Fully sealed continuous drainage plane behind exterior cladding that laps over flashing in item WM 2.1. Additional bond-break drainage plane layer provided behind all stucco and non-structural masonry cladding wall assemblies.  Any of the following systems may be used: a monolithic weather-resistant barrier (i.e., house wrap) sealed or taped at all joints; weather resistant sheathings (e.g., faced rigid insulation) fully taped at all “butt” joints; lapped shingle-style building paper or felts; or other water-resistive barrier recognized by ICC-ES or other accredited agency.

These Items not required for existing structural masonry walls (e.g., in a home undergoing a gut rehabilitation). Note this exemption does not extend to existing wall assemblies with masonry veneers.

DOE Challenge Home

Exhibit 1: Mandatory Requirements. Certified under ENERGY STAR Qualified Homes Version 3.

2009 IRC

Section R703.1.1 Water resistance. Exterior wall envelope to be designed and constructed to prevent water accumulation within the wall assembly by providing a water-resistant barrier behind the exterior veneer as required in Section R703.2 and a means draining to the exterior any water that does enter the assembly. Protection against condensation to be provided per Section R601.3. Exception:  Weather-resistant exterior wall envelope isn’t required over concrete and masonry walls designed in accordance with Chapter 6 and flashed in accordance with Section R703.7 or 703.8. Compliance with Section 703.2 and Section 703.8 isn’t required for envelopes demonstrated to resist wind-driven rain in accordance with ASTM E 331. Section R703.2 Water-resistive barrier.  One layer of No. 15 asphalt felt (free from holes and breaks and complying with ASTM D 226 for Type I felt) or other approved barrier to be applied over studs or sheathing of all exterior walls.  The felt or material must be applied horizontally, with the upper layer lapped over the lower layer no less than 2 inches.  Where joints occur, the felt must be lapped at least 6 inches.  The felt or other material must be continuous to the top of the walls and terminated at penetrations and building appendages in a manner that meets requirements of Section R703.1. Exceptions:  water-resistive barrier may be omitted in detached accessory buildings, under exterior wall finish materials per Table R703.4, and under paperbacked stucco lath when the paper backing is an approved water-resistive barrier.*

2012 IRC

Section R703.1.1 Water resistance. Exterior wall envelope to be designed and constructed to prevent water accumulation within the wall assembly by providing a water-resistant barrier behind the exterior veneer as required in Section R703.2 and a means draining to the exterior any water that does enter the assembly. Protection against condensation to be provided per Section R601.3. Exception:  Weather-resistant exterior wall envelope isn’t required over concrete and masonry walls designed in accordance with Chapter 6 and flashed in accordance with Section R703.7 or 703.8. Compliance with Section 703.2 and Section 703.8 isn’t required for envelopes demonstrated to resist wind-driven rain in accordance with ASTM E 331. Section R703.2 Water-resistive barrier.  One layer of No. 15 asphalt felt (free from holes and breaks and complying with ASTM D 226 for Type I felt) or other approved barrier to be applied over studs or sheathing of all exterior walls.  The felt or material must be applied horizontally, with the upper layer lapped over the lower layer no less than 2 inches.  Where joints occur, the felt must be lapped at least 6 inches.  The felt or other material must be continuous to the top of the walls and terminated at penetrations and building appendages in a manner that meets requirements of Section R703.1. Exceptions:  water-resistive barrier may be omitted in detached accessory buildings, under exterior wall finish materials per Table R703.4, and under paperbacked stucco lath when the paper backing is an approved water-resistive barrier.*

*Due to copyright restrictions, exact code text is not provided.  For specific code text, refer to the applicable code.

More Info.

Case Studies

None Available

References and Resources*

  1. Author(s): Lstiburek
    Organization(s): BSC
    Publication Date: June 2008

    Research study discussing how housewraps restrict or permit the passage of water molecules based on size, but cannot control the direction in which the water vapor molecules move.

  2. Author(s): Baechler, Gilbride, Hefty, Cole, Williamson, Love
    Organization(s): PNNL, ORNL
    Publication Date: September 2010

    Report providing builders in marine climates with guidance for building homes that have whole-house energy savings of 40% over the Building America benchmark with no added overall costs for consumers.

  3. Author(s): DOE
    Organization(s): DOE
    Publication Date: June 2013

    Standard requirements for DOE's Challenge Home national program certification.

  4. Author(s): EPA
    Organization(s): EPA
    Publication Date: June 2013

    Standard document containing the rater checklists and national program requirements for ENERGY STAR Certified Homes, Version 3 (Rev. 7).

  5. Author(s): Grin, Lstiburek
    Organization(s): BSC
    Publication Date: February 2012

    Research study providing simple, long term, and durable solutions when using tapes and flashing membranes in conjunction with the exterior face of rigid polymeric foam sheathing to create the drainage plane of a wall system.

  6. Author(s): BSC
    Organization(s): BSC
    Publication Date: October 2007
    Guide provides information about enhanced thermal enclosures and performance.
  7. Author(s): BSC
    Organization(s): BSC, NREL
    Publication Date: May 2005

    Report with guidance for installing windows with foam sheathing on wood-frame walls.

  8. Author(s): Foam Sheathing Coalition
    Organization(s): Foam Sheathing Coalition
    Publication Date: December 2011

    Document that gives a step-by-step approach for designing attachments for cladding materials through foam sheathing.

  9. Author(s): DOE
    Organization(s): DOE
    Publication Date: October 2000

    Brochure with information about how to select and install house wrap and other weather-resistive barriers.

  10. Author(s): Lstiburek
    Organization(s): BSC
    Publication Date: October 2006

    Information sheet providing definitions, applications, and techniques for applying air barriers.

  11. Author(s): BSC
    Organization(s): BSC
    Publication Date: November 2007

    Document providing guidance on water management concepts and applications.

  12. Author(s): Smegal, Lstiburek
    Organization(s): BSC
    Publication Date: April 2012

    Report summarizing current research, summarizes issues that have been experienced with current best practices, and recommends ways in which the best practices can be improved for water managing sheathings.

  13. Author(s): EPA
    Organization(s): EPA
    Publication Date: February 2011

    Guide describing details that serve as a visual reference for each of the line items in the Water Management System Builder Checklist.
