Walls Behind Fireplaces
 |
Scope
Fully Aligned Air Barriers

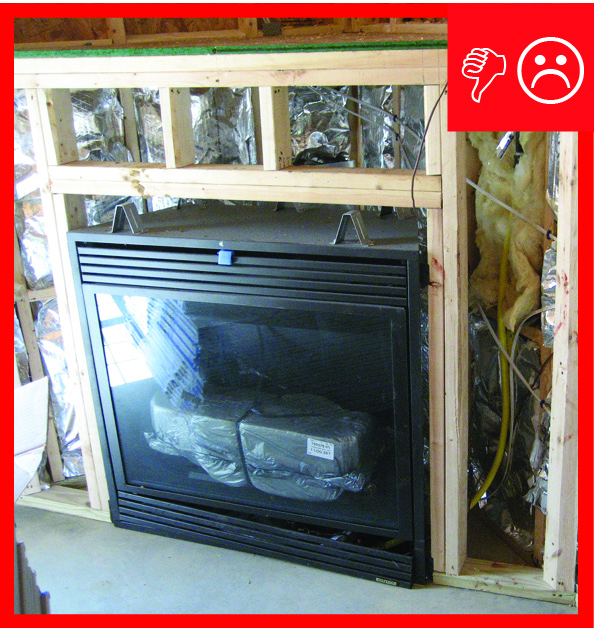

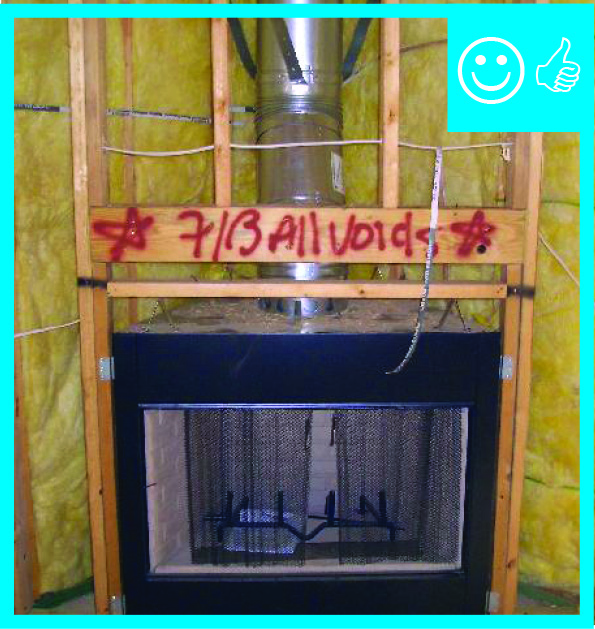

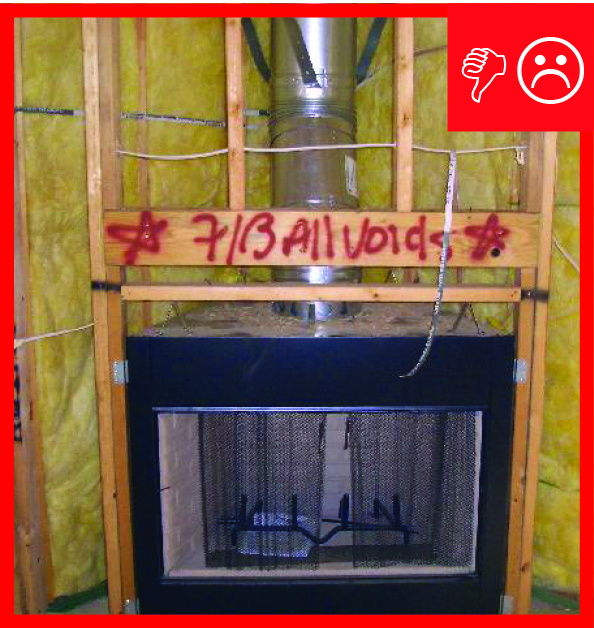

- Install insulation without misalignments, compressions, gaps, or voids in all exterior wall cavities behind all fireplaces.
- Back with a fire-proof rigid air barrier or other supporting material to create a continuous thermal barrier and prevent a fire hazard.*
- Seal all seams, gaps, and holes of the air barrier with fire-rated caulk or foam before fireplace installation.
* ENERGY STAR recommends using a rigid air barrier, but it is not a requirement.
Notes:
An air barrier is defined as any durable solid material that blocks air flow between conditioned space and unconditioned space, including necessary sealing to block excessive air flow at edges and seams and adequate support to resist positive and negative pressures without displacement or damage. ENERGY STAR recommends, but does not require, rigid air barriers. Open-cell or closed-cell foam shall have a finished thickness ≥ 5.5 inches or 1.5 inches, respectively, to qualify as an air barrier unless the manufacturer indicates otherwise. If flexible air barriers such as house wrap are used, they shall be fully sealed at all seams and edges and supported using fasteners with caps or heads ≥ 1 inch diameter unless otherwise indicated by the manufacturer. Flexible air barriers shall not be made of kraft paper, paper-based products, or other materials that are easily torn. If polyethylene is used, its thickness shall be ≥ 6 mil.
ENERGY STAR highly recommends, but does not require, inclusion of an interior air barrier at band joists in Climate Zone 4 through 8.
All insulated vertical surfaces are considered walls (e.g., above and below grade exterior walls, knee walls) and must meet the air barrier requirements for walls, with the exception of adiabatic walls in multifamily dwellings. All insulated ceiling surfaces, regardless of slope (e.g., cathedral ceilings, tray ceilings, conditioned attic roof decks, flat ceilings, sloped ceilings), must meet the requirements for ceilings.
|
|
Description
When a fireplace is installed on an exterior wall, it is important to install an air barrier behind it after installing insulation but before the fireplace is installed. An air barrier is defined as any durable, solid material that blocks air flow between conditioned space and unconditioned space, including necessary sealing to block excessive air flow at edges and seams and adequate support to resist positive and negative pressures without displacement or damage. Air barrier material behind fireplaces must tolerate heat. Air barrier material can include thin sheet goods such as rigid insulation, sheet metal, or dry wall. These materials may be installed by insulators, framers, or subcontractors or vendors hired specifically to install the fireplace. This task should be included in the contract for the appropriate trade depending on the workflow at the specific job sites.
Note when designing the fireplace location, adequate clearance must be provided between the chimney and firebox and the insulation and air barrier material, as required by local codes and the manufacturer’s recommendations.
How to Insulate and Air Seal the Wall behind Your Fireplace
- Insulate the exterior wall enclosing the fireplace and chimney to the top of the second floor ceiling with rigid foam exterior sheathing taped at the seams and sealed at the edges.
- Install fire stop blocking.
- Install support blocking for thin-profile structural sheathing.
- Apply insulation (batt or spray foam) within the framing of the wall up to the ceiling or roof line.

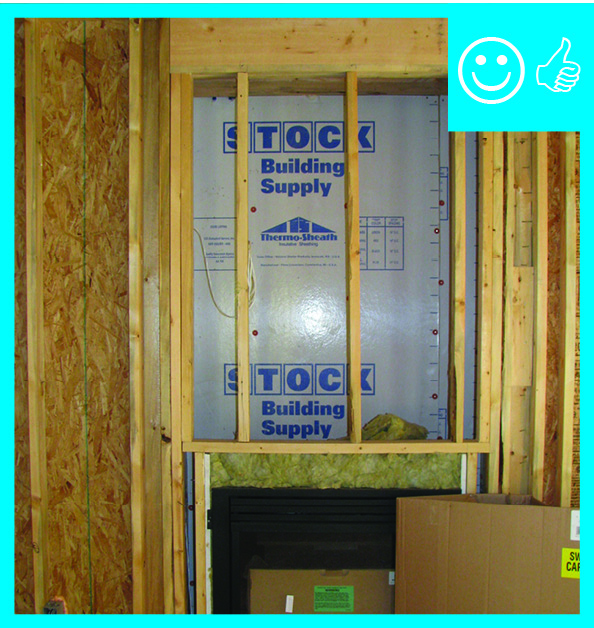

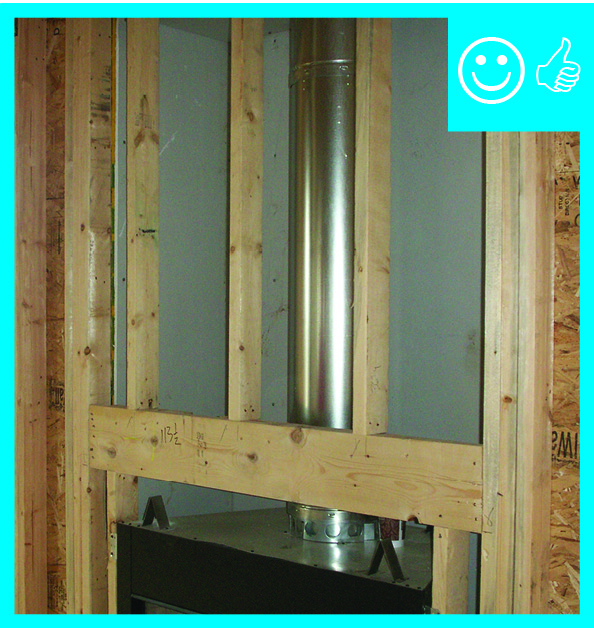

- Install a thin structural sheathing material (e.g., drywall, rigid insulation, lightweight steel or aluminum sheeting). Bend the liner at the corners or seal seams with a bead of adhesive. Make
- Tape the liner to the enclosure opening on both the sides and at the top of the fireplace enclosure.
- Install the fireplace and chimney and closure framing.

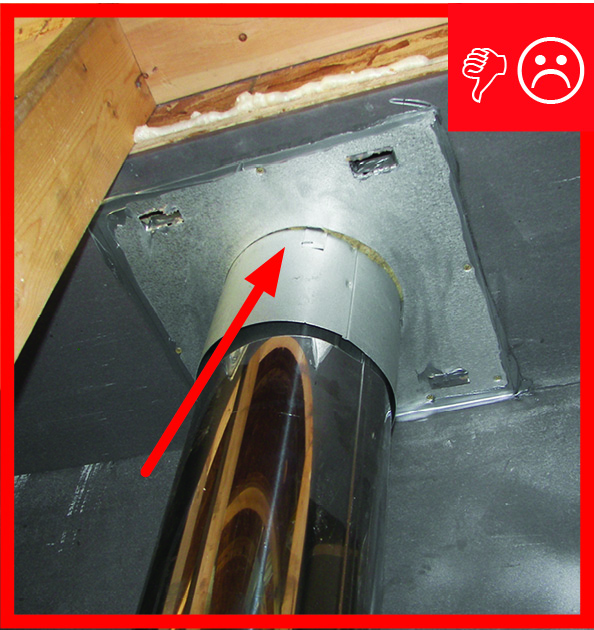

- After the new fireplace insert and chimney are installed, seal the enclosure by placing a sheet-metal fire stop around the chimney pipe where it enters the firebox.

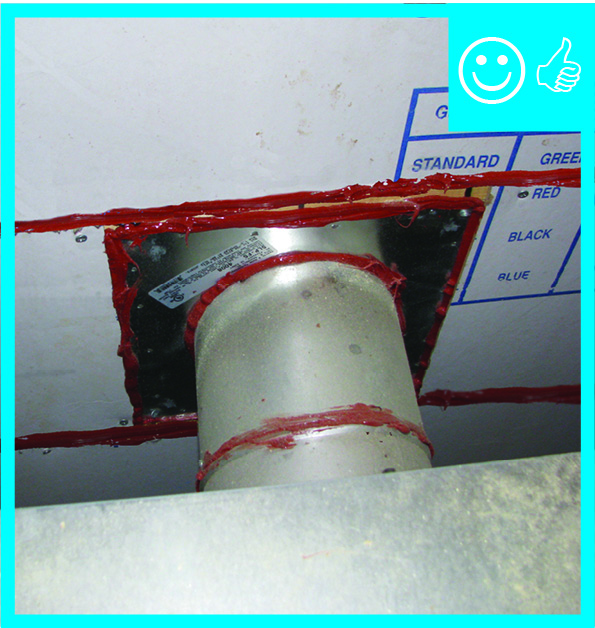

- Seal the joints and seams of the fire stop with an approved high-temperature sealant.

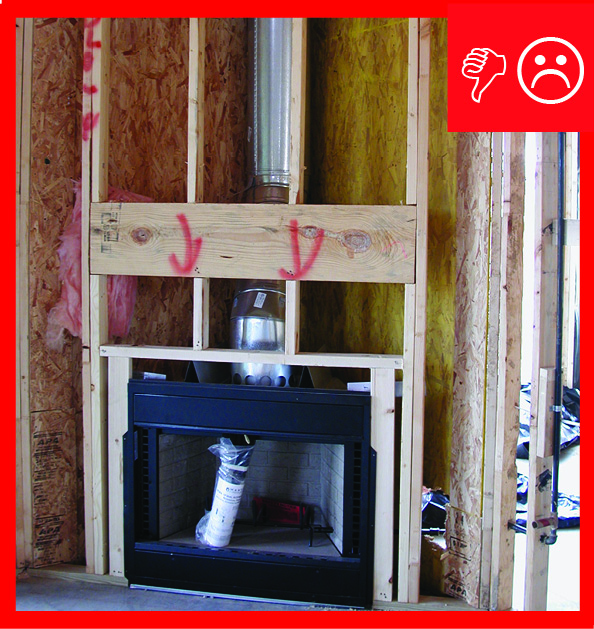

Figure 1 - Draft stopping and air barrier at fireplace enclosure, plan view

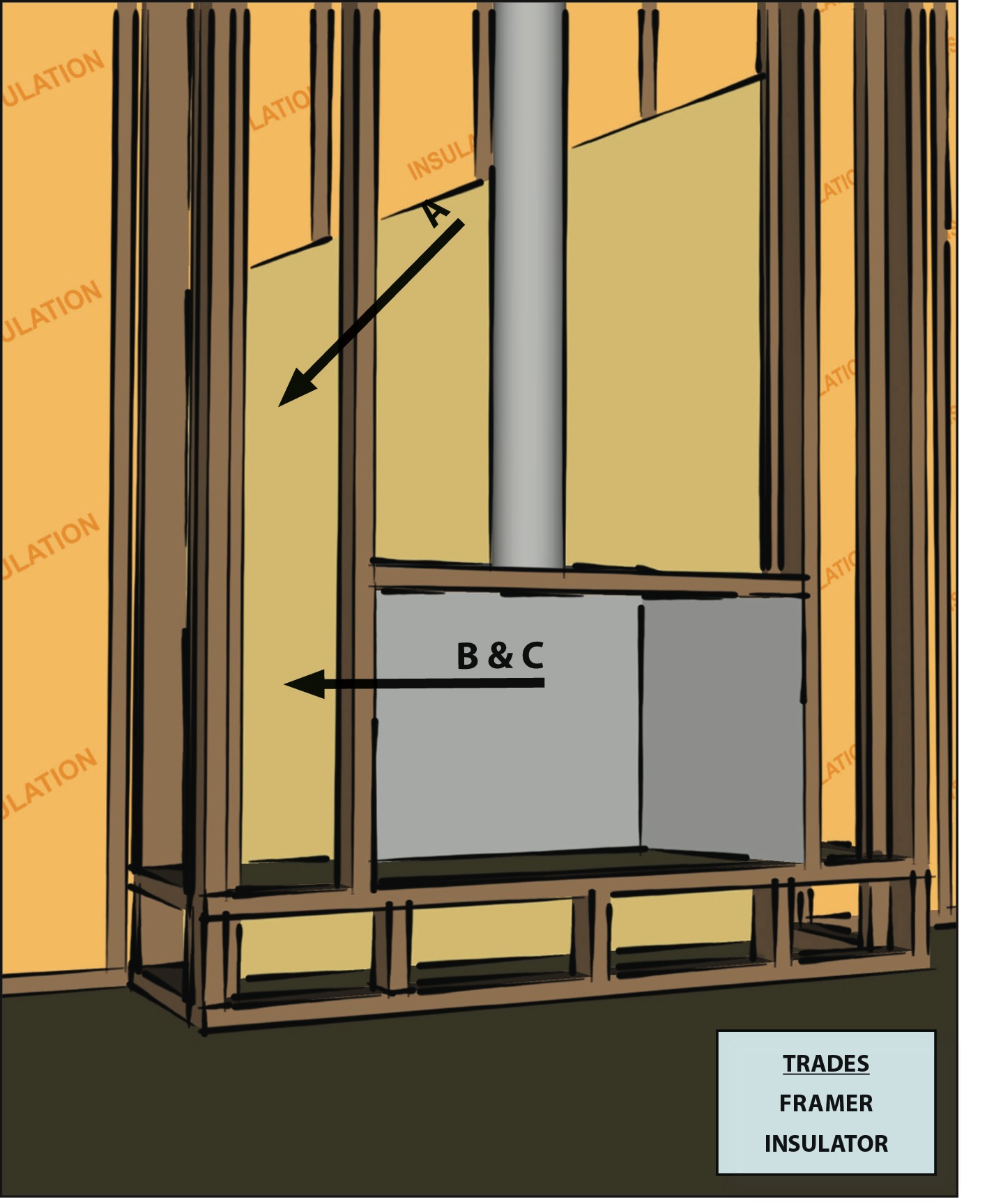

Figure 2 - Draft stopping and air barrier at fireplace enclosure, side view
Ensuring Success
Air barrier effectiveness is measured at the whole-house level. High-performance branding programs and the IECC code require that builders meet specified infiltration rates at the whole-house level. See the “compliance” tab for these specified infiltration rates. Blower door testing may help indicate whether air leakage behind a fireplace has been successfully sealed. An infrared camera can be used in conjunction with the blower door testing to inspect the insulation and to detect air leakage behind the fireplace from the outside.
Climate
ENERGY STAR Version 3, (Rev. 6)
Thermal Enclosure Checklist, Fully-Aligned Air Barriers. A complete air barrier shall be provided that is fully aligned with the insulation at exterior surface of walls in all climate zones; and also at interior surface of walls for Climate Zones 4-8.
DOE Challenge Home
Exhibit 2: DOE Challenge Home Target Home. Infiltration (ACH50): Zones 1-2: 3; Zones 3-4: 2.5; Zones 5-7: 2; Zone 8: 1.5. Envelope leakage shall be determined by an approved verifier using a RESNET-approved testing protocol.
