Total Duct Leakage

Please Register or Login to Provide Feedback.

Scope


Distribution Systems



Total duct leakage ≤ 8 CFM25 per 100 ft2 of conditioned floor area as documented by a rater using a RESNET-approved testing protocol

  1. Seal all seams, gaps, and holes of all trunk duct connections before installing insulation, preferably with mastic.
  2. Install insulation without misalignments, compressions, gaps, or voids around all connections and exposed ductwork.
  3. Seal duct insulation in place. Mastic is recommended for sealing.
  4. ENERGY STAR recommends testing ducts only after completing a visual inspection of proper duct sealing.



Notes:

Duct leakage shall be determined and documented by a rater using a RESNET-approved testing protocol only after all components of the system have been installed including the air handler, the ductwork, the duct boots, and the register grilles atop the finished surface (e.g., drywall, carpeting, flooring). Leakage limits shall be assessed on a per-system, rather than per-home, basis. For balanced ventilation ducts that are not connected to space heating or cooling systems, a rater is permitted to visually verify, in lieu of duct leakage testing, that all seams and connections are sealed with mastic or metal tape and all duct boots are sealed to floor, wall, or ceiling using cault, foam or mastic tape.



Building America recommends duct leakage testing in all homes.

Duct Testing Tips

  • Test duct system for leakage after all previous steps have been properly completed.
  • Visually inspecting ducts prior to drywall installation allows for easier corrections.
  • Recommend sealing the air handler unit with tape to reduce duct leakage. In addition, leaving a roll of tape behind allows the technician to reseal the unit after servicing it.
  • If duct leakage is too high, use a theatrical smoke machine to illustrate duct leakage to the HVAC contractor.



Description


Duct leakage testing should be performed after all components of the system have been installed (including the air handler, ductwork, register boxes/boots, and all air devices such as diffusers, registers, or grills). Leakage limits should be assessed on a per-system, rather than per-home, basis. Duct leakage is determined and documented by a rater using a Residential Energy Services Network, Inc. (RESNET)-approved testing protocol. The accepted protocols are found in RESNET's Mortgage Industry National Home Energy Rating Systems Standards, Chapter 8, Section 803.3 (RESNET 2006).



Duct leakage testing per RESNET standards is performed using a duct tester such as the Minneapolis Duct Blaster or the Retrotec Duct Tester. The duct tester consists of three components: a calibrated fan that is used to either pressurize or depressurize the duct, a device to measure fan flow and building pressure, and supplies such as cardboard and tape or adhesive plastic sheeting to seal off the supply and return registers during the test. The fan is used to pressurize or depressurize the duct system to 25 pascals (0.10 inch water column [IN WC]) (RESNET Standards). Once at 25 pascals pressure, the air flow through the duct tester is read in cubic feet of air flow per minute at 25 pascals; this measurement is abbreviated as CFM25.





A technician conducts a duct blaster test

Figure 1 - A technician conducts a duct blaster test. Reference





Two types of tests are performed: total duct leakage and leakage to the outdoors:



The “total” duct leakage test measures how much leakage there is for all of the ductwork connected to the HVAC system, including ducts located both outdoors and indoors. The ENERGY STAR Qualified Homes Version 3 HVAC Quality Installation Rater Checklist Note 4.1 requires that "total" duct leakage be < 8 CFM25 per 100 square feet (ft2) of conditioned floor area.



The "duct leakage to the outdoors" test measures only duct leakage outside of the home’s air barrier, i.e., leakage to the outdoors, for example, into an unconditioned attic or crawlspace. The ENERGY STAR Qualified Homes Version 3 HVAC Quality Installation Rater Checklist Note 4.2 requires that duct leakage to the "outdoors" be < 4 CFM25 per 100 ft2 of conditioned floor area. For smaller homes (those with < 1,200 ft2 of conditioned floor area), measured duct leakage to outdoors shall be < 5 CFM25 per 100 ft2 of conditioned floor area. For more on duct leakage to outdoors testing, see Duct Leakage to Outdoors.



For ducts in unconditioned spaces, both tests should be conducted, according to ENERGY STAR Version 3, Rev 6.



When ducts are located in conditioned spaces, only the "total" duct leakage test needs to be conducted if certain conditions apply according to ENERGY STAR Version 3, Rev 6. Testing of duct leakage to the outside can be waived if all ducts and air handling equipment are located within the home’s pressure and thermal boundaries AND envelope leakage has been tested to be less than or equal to half of the Prescriptive Path infiltration limit for the Climate Zone where the home is to be built. Alternatively, testing of duct leakage to the outside can be waived if total duct leakage is < 4 CFM25 per 100 ft2 of conditioned floor area (or < 5 CFM25 per 100 ft2 of conditioned floor area for smaller homes that have less than 1,200 ft2 of conditioned floor area).



One might question why duct leakage needs to be tested at all if the ducts and air handler are located in conditioned space. High-performance homes are homes built tight using materials that greatly retard heat transfer through conduction, convection, and radiation. As a result, high-performance homes require smaller HVAC systems. For example, 20 years ago, a 2,000-ft2 home required a 4- or 5-ton air conditioner for cooling. Today, a 2,000-ft2 home requires only a two-ton unit. This downsizing results in energy and cost savings. However, air handler fans have a standard air flow rate of 400 CFM per ton. If the system size is cut in half, the air flow is also cut in half. Therefore, it becomes even more important that the conditioned air not get lost in duct leakage.



The measured duct leakage can be compared to rated air handler flow to get a sense of the energy penalty that duct leaks are contributing in Btu/h. (This is not an ENERGY STAR requirement.) Cooling systems move 400 cubic feet of air per minute over the evaporator coil per ton of cooling. Each cubic foot of air moved will carry with it 30 Btu/h. A 2.5-ton cooling system moves 1,000 CFM of air and puts out 30,000 Btu/h. If that system has a measured duct leakage of 10% (100 CFM25), it is losing 3,000 Btu/h (1/4 ton) of cooling to the outdoors.



Leakage limits are assessed on a per-system, rather than per-home, basis. So, for example, if a home has two furnaces, duct leakage must be measured in each system and compared to the square footage that the system conditions. Each system must meet the “total” and “outdoors” leakage requirements to qualify for the ENERGY STAR program.





How to Test "Total" Duct Leakage





The duct tester and blower door are set up to measure leakage to the outdoors

Figure 2 - The duct tester is set up to measure total duct leakage. The manometer shows that this duct system is leaking 100 cubic feet per minute at -25 Pascals of pressure (100 CFM25). (Note, the duct tester is set up to depressurize the duct system.)  Reference





  1. Connect the duct tester by attaching the duct that comes connected to the calibrated fan to a return duct grill with duct tape. Set up the duct tester to either pressurize or depressurize the duct system (follow manufacturer's instructions).
  2. Temporarily seal shut all of the other supply and return duct registers using cardboard and tape or removable adhesive plastic.
  3. Set up the manometer to measure pressure and air flow according to the manufacturer's instructions.
  4. Connect the "input" on the pressure side of the manometer to the return (the black tube in Figure 2).
  5. Turn on the fan to pressurize (or depressurize) the ductwork to 25 pascals. Leave at least one door or window open between the building and outside to prevent changes in building pressure.
  6. Once a steady 25 pascals of pressure is reached in the duct system, note the manometer reading for CFM. This reading of the fan air flow needed to maintain 25 pascals of pressure is the amount of air escaping through the leaks in the duct system, indicated in cubic feet per minute.
  7. Reconnect the input (black tube in Figure 2) to a supply duct in a part of the house that is some distance from the return. Repeat steps 5 and 6. Record the duct leakage.
  8. Add the two duct leakage measurements together and divide by two. This will give the most accurate duct leakage measurement for total duct leakage.



Ensuring Success


After ducts are installed and before drywall is installed, the duct system should be visually inspected by a HERS rater to ensure that all duct connections are properly fastened and sealed, preferably with mastic. After all HVAC components, including registers and grilles, have been installed over finished surfaces (such as drywall or carpeting), the ducts should be tested for air leakage and proper air flow.



A HERS rater should confirm and document that duct leakage to the outdoors is 4 cubic feet of air flow per minute at 25 pascals (CFM25) per 100 ft2 of conditioned floor area using a RESNET-approved testing protocol, such as a duct blaster test. An optional, additional duct blaster test can be conducted prior to drywall installation to measure duct leakage. If the leakage level is above 4 CFM25 per 100 ft2 of conditioned floor area, the builder, rater, or HVAC contractor may use a smoke machine to determine exact locations of leakage so they can be sealed before drywalling. If the Prescriptive Path has been chosen, the rater should also visually inspect that ducts are fully insulated (to R-8 for supply ducts and R-6 for returns and other ducts) along the length, including all connections, and that the insulation is not compressed by tight strapping, by framing members, or by excessive bending.



Climate


No climate specific information applies.

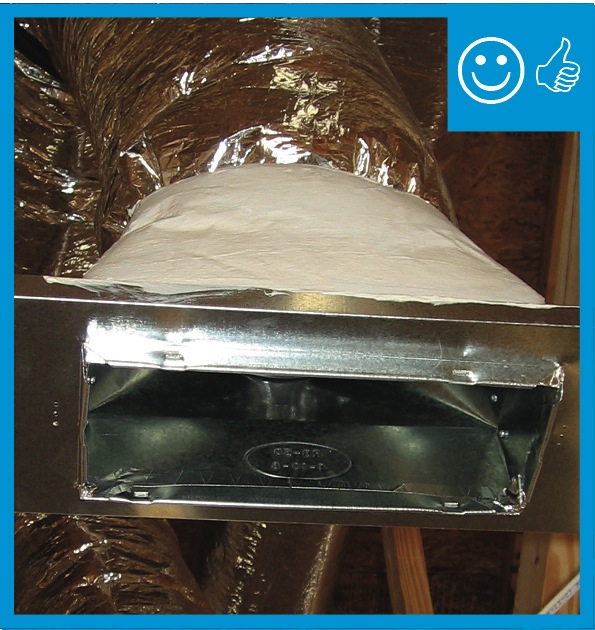

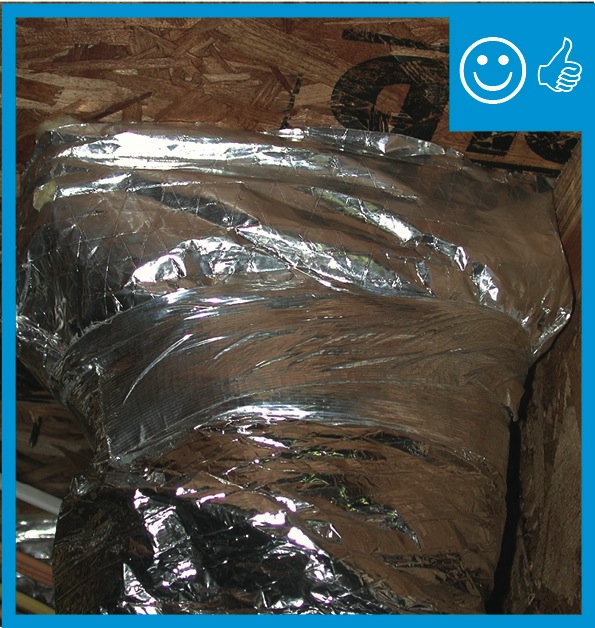

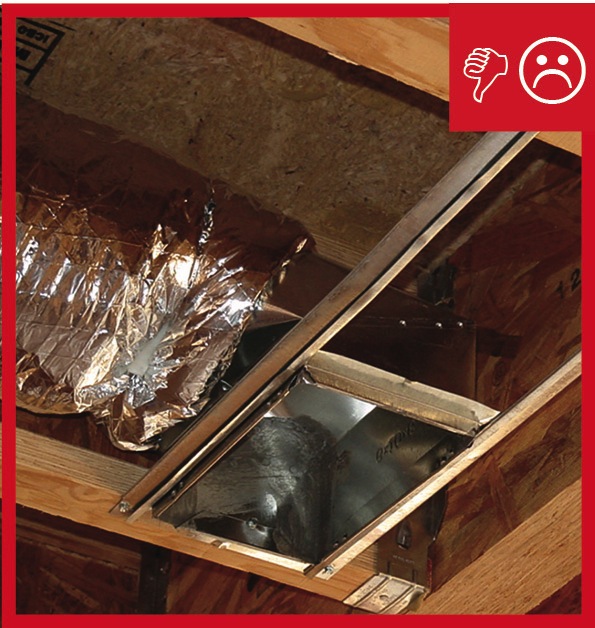

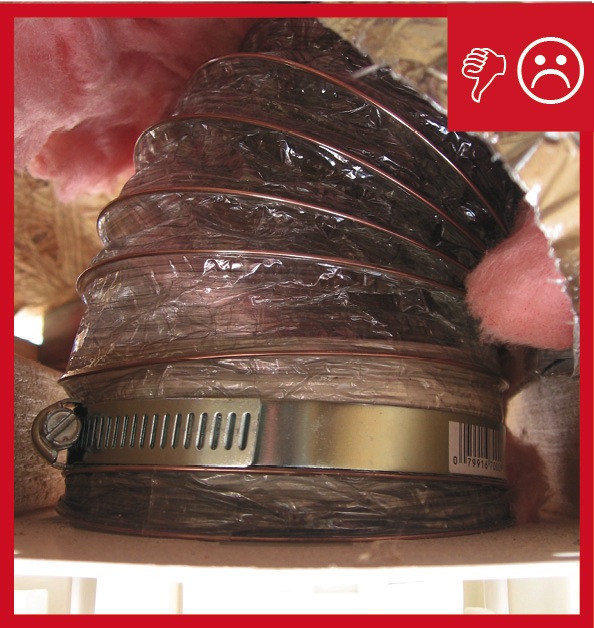

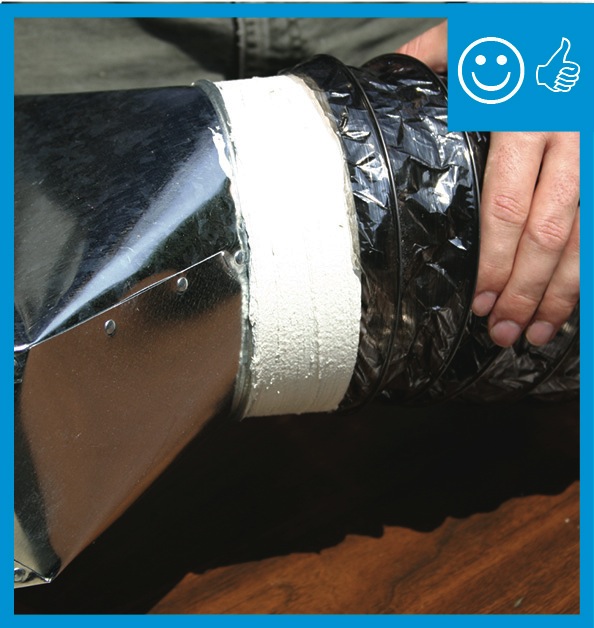

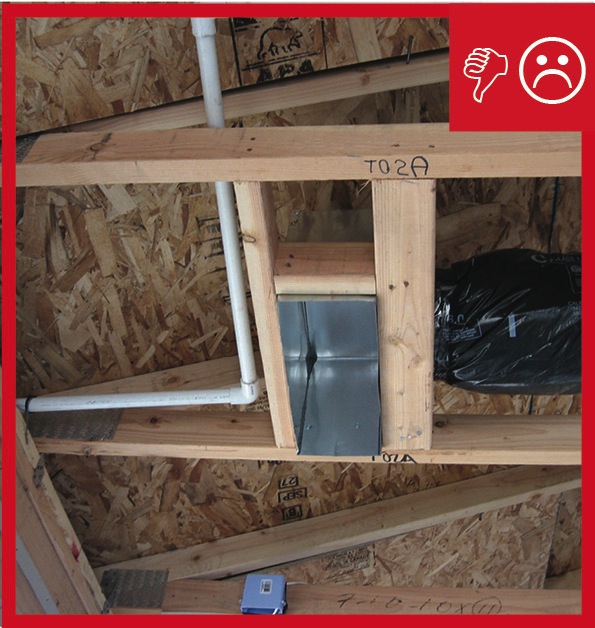

Right and Wrong Images



Presentations

None Available



Videos

None Available




CAD Images

None Available




Compliance


ENERGY STAR Version 3, (Rev. 6)

HVAC System Quality Checklist, Duct Leakage. Total Rater-measured duct leakage to outdoors ≤ 8 CFM25 per 100 ft2 of conditioned floor area. Duct leakage shall be determined and documented by a rater using a RESNET-approved testing protocol only after all components of the system have been installed including the air handler, the ductwork, the duct boots, and the register grilles atop the finished surface (e.g., drywall, carpeting, flooring). Leakage limits shall be assessed on a per-system, rather than per-home, basis. For balanced ventilation ducts that are not connected to space heating or cooling systems, a rater is permitted to visually verify, in lieu of duct leakage testing, that all seams and connections are sealed with mastic or metal tape and all duct boots are sealed to floor, wall, or ceiling using cault, foam or mastic tape.



DOE Challenge Home

Exhibit 1: Mandatory Requirements. Certified under ENERGY STAR Qualified Homes Version 3.


2009 IECC

Section R403.2.2 Sealing (Mandatory). Duct tightness test has been performed and meets one of the following test criteria: Postconstruction total leakage test (including air handler enclosure): Less than or equal to 12 cfm per 100 ft2. Rough-in total leakage test with air handler installed: Less than or equal to 6 cfm per 100 ft2 of conditioned floor area.*


2009 IRC

Section N1103.2.2 Sealing. Duct tightness test has been performed and meets one of the following test criteria: Postconstruction total leakage test (including air handler enclosure): Less than or equal to 12 cfm per 100 ft2. Rough-in total leakage test with air handler installed: Less than or equal to 6 cfm per 100 ft2 of conditioned floor area.*



2012 IECC

Section R403.2.2 Sealing (Mandatory). Duct tightness test has been performed and meets one of the following test criteria: (1) Postconstruction total leakage test (including air handler enclosure): Less than or equal to 4 cfm per 100 ft2 of conditioned floor area. (2) Rough-in total leakage test with air handler installed: Less than or equal to 4 cfm per 100 ft2 of conditioned floor area.*



2012 IRC

Section N1103.2.2 Sealing (Mandatory). Duct tightness test has been performed and meets one of the following test criteria: (1) Postconstruction total leakage test (including air handler enclosure): Less than or equal to 4 cfm per 100 ft2 of conditioned floor area. (2) Rough-in total leakage test with air handler installed: Less than or equal to 4 cfm per 100 ft2 of conditioned floor area.*





*Due to copyright restrictions, exact code text is not provided.  For specific code text, refer to the applicable code.







Case Studies

None Available


References

  1. 2009 IECC—International Energy Conservation Code

    2009 IECC, International Energy Conservation Code. International Code Council, Washington, D.C.

  2. 2009 IRC—International Residential Code for One and Two Family Dwellings

    2009 IRC, International Residential Code for One and Two Family Dwellings. 2009. Fifth Printing. International Code Council, Washington, D.C.

  3. 2012 IECC—International Energy Conservation Code

    2012 IECC, International Energy Conservation Code.  International Code Council, Washington, D.C.

  4. 2012 IRC—International Residential Code for One and Two Family Dwellings

    2012 IRC, International Residential Code for One and Two Family Dwellings. 2012. Second Printing. International Code Council, Washington, D.C.

  5. DOE Challenge Home National Program Requirements

    DOE. 2012. DOE Challenge Home National Program Requirements (Rev. 02). Office of Energy Efficiency and Renewable Energy, U.S. Department of Energy, Washington, D.C.

  6. ENERGY STAR Qualified Homes, Version 3 (Rev. 06) Inspection Checklist for National Program Requirements

    EPA. 2012. ENERGY STAR Qualified Homes, Version 3 (Rev. 06) Inspection Checklist for National Program Requirements. U.S. Environmental Protection Agency, Washington, D.C.

  7. HVAC System Quality Installation Rater Checklist

    EPA. 2011. HVAC System Quality Installation Rater Checklist. U.S. Environmental Protection Agency, Washington, D.C.

  8. Manual D—Residential Duct Systems

    Rutkowski, H. 2009. Manual D—Residential Duct Systems, 3rd Edition. Prepared by the Air Conditioning Contractors of America (ACCA).

  9. Mortgage Industry National Home Energy Rating Systems Standards

    RESNET. 2006. Mortgage Industry National Home Energy Rating Systems Standards. Residential Energy Services Network.
