Minimal Framing at Doors/Windows

Please Register or Login to Provide Feedback.

Framing limited at all windows and doors

Scope


Reduced Thermal Bridging



Framing limited at all windows and doors*

  1. Limit framing to a maximum of one pair of king studs per window opening.
  2. Limit framing to a maximum of one pair of jack studs per window opening to support the header and window sill.
  3. Install additional jack studs only as needed for structural support and cripple studs only as needed to maintain on-center spacing of studs.
  4. Limit framing to necessary structural requirements for each door opening.


* All items of 4.4.5a-4.4.5e of the ENERGY STAR Thermal Enclosure System Rater Checklist must be installed to comply with ENERGY STAR.


Notes:

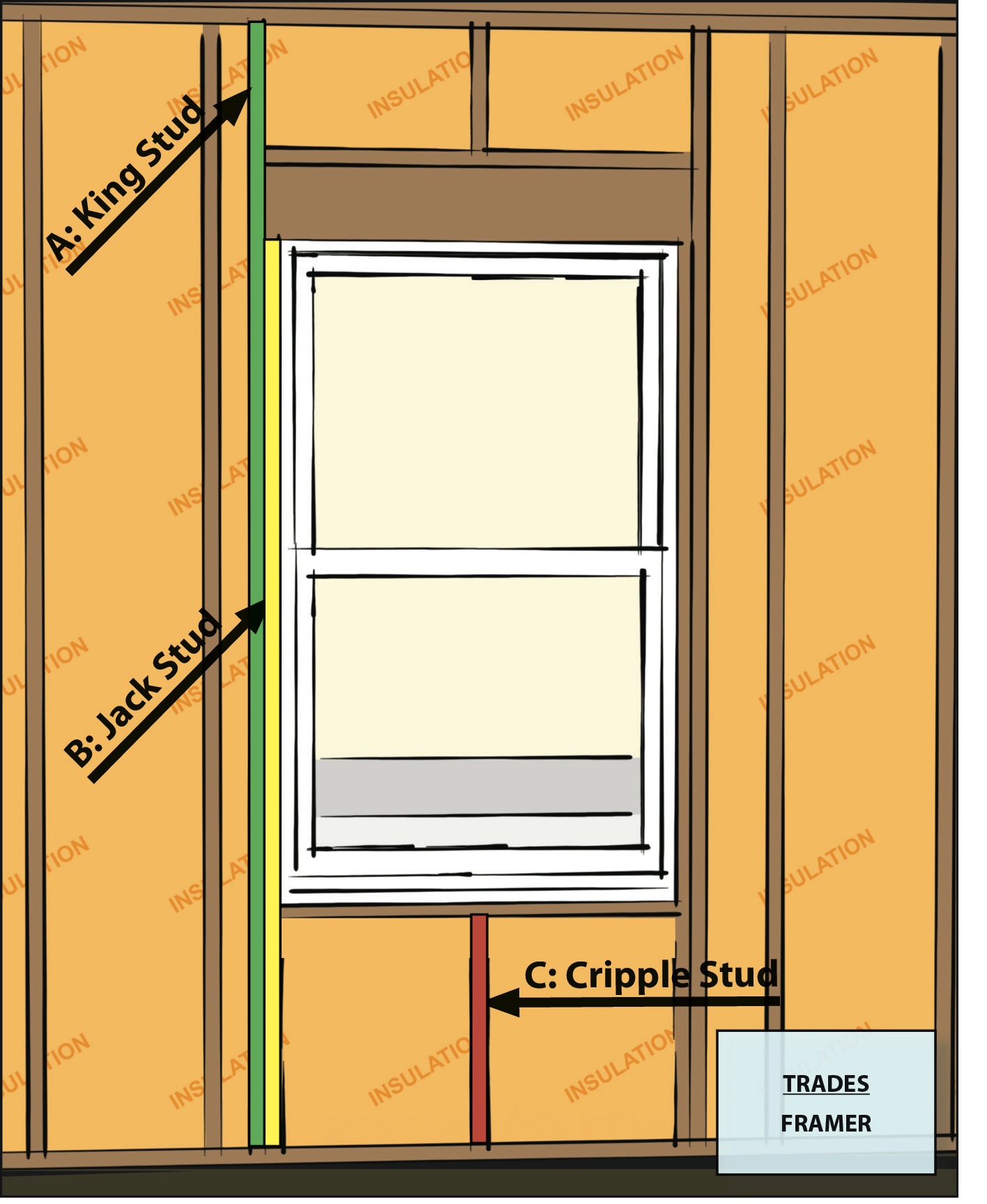

King Stud (green in image): Full lengths placed around openings, such as windows and doors. Jack Stud (yellow in image): A supportive stud at the inset of the king stud, typically used to frame windows or doors. Cripple Stud (red in image): A trimmed stud inserted between the jack studs, above a header or beneath a window.


Up to 10% of the total exterior wall surface area is exempted from the reduced thermal bridging requirements to accommodate intentional designed details (e.g., architectural details such as thermal fins, wing walls, or masonry fireplaces; structural details, such as steel columns). It shall be apparent to the Rater that the exempted areas are intentional designed details or the exempted area shall be documented in a plan provided by the builder, architect, designer, or engineer. The rater need not evaluate the necessity of the designed detail to qualify the home.

Mass walls utilized as the thermal mass component of a passive solar design (e.g., a Trombe wall) are exempt from this item. To be eligible for this exemption, the passive solar design shall be comprised of the following five components: an aperture or collector, an absorber, thermal mass, a distribution system, and a control system. For more information, visit the Energy Savers website.



Mass walls that are not part of a passive solar design (e.g., CMU block or log home enclosure) shall either utilize the strategies outlined in Item 4.4 (of the ENERGY STAR Thermal Enclosure System Rater Checklist). Or, the pathway in the assembly with the least thermal resistance, as determined using a method consistent with the 2009 ASHRAE Handbook of Fundamentals, shall provide ≥ 50% of the applicable assembly resistance, defined as the reciprocal of the mass wall equivalent U-factor in the 2009 IECC – Table 402.1.3. Documentation identifying the pathway with the least thermal resistance and its resistance value shall be collected by the rater and any Builder Verified or Rater Verified box under Item 4.4 (of the ENERGY STAR Thermal Enclosure System Rater Checklist) shall be checked.



Framing at windows shall be limited to a maximum of one pair of king studs and one pair jack studs per window opening to support the header and window sill. Additional jack studs shall be used only as needed for structural support and cripple studs only as needed to maintain on-center spacing of studs.

Description


FiIn stud-framed walls, extra studs are often installed around windows and doors, even when they are not needed to bear structural loads. Window and door openings should have no more than one pair of king studs, one pair of jack studs, and the minimum number of cripple studs needed to maintain on-center spacing of studs. Adding more studs than necessary wastes lumber and reduces the wall’s thermal resistance because the lumber blocks cavity space that could be filled with insulation and because each stud represents a thermal bridge that can transfer heat between the interior and exterior of the building.

Building scientists estimate that standard stud construction may use 5% to 10% more board feet of lumber than necessary and add up to 30% more pieces of lumber than needed (Lstiburek 2010). By using advanced framing techniques, builders can reduce the amount of lumber used and save money as well. Building Science Corporation found savings of up to $1,000 per home in materials and labor were possible for production builders who used a combination of several advanced framing techniques (Lstiburek and Grin 2010). Advanced framing techniques should be specified in the framer’s contract. For more about advanced framing, see Minimum Wall Studs.

The framing pieces that surround windows and doors include king, jack, and cripple studs, headers, and sills. The full-length stud on each side of a door or window is called a king stud. A header is a piece of framing installed horizontally directly above the door or window opening and extending to the king stud on each side of the opening. The header rests on jack studs that are nailed in place next to the king stud on each side of the opening; jack studs extend to the bottom plate of the wall. A saddle or sill is another horizontal piece that goes under the window opening and is nailed to the inside of each jack stud. Because typical stud spacing is 16- or 24-inch on center and most windows and doors are wider than this, cripple studs are installed below window openings from the sill to the bottom plate in the location where a common stud would have been if the space had not been left open to accommodate the door or window. Depending on the header height, cripples are sometimes located above the window extending from the header to the top plate.



Traditional and advanced framing of windows and doors



Figure 1 - Traditional framing often uses more lumber than needed, especially around doors and windows. Advanced framing uses several techniques to minimize framing.  Reference





How to Install Minimal Framing at Doors and Windows



  1.  Design homes on a two-foot grid with 2x6 studs spaced 24 inches on-center (See Minimum Wall Studs). Align windows and doors with this two-foot stud spacing to reduce the number of extra king studs needed.



Advanced framing details throughout house include limiting jack and king studs

Figure 2 - Advanced framing details throughout house include recommendations for eliminating jack studs and aligning king studs with standard stud spacing where possible.  Reference





  2.  Hang insulated headers with metal hangers instead of jack studs.

  3.  Attach 2x2s to the outside edge of the kings studs if nailers are needed to attach trim or siding, rather than using extra king studs, if “nailable” OSB sheathing is not installed.



Insulated headers can be hung with metal hangers instead of jack studs to reduce lumber usage

Figure 3 - Insulated headers can be hung with metal hangers instead of jack studs to reduce lumber usage  Reference



Ensuring Success


Advanced framing details should be specified in the construction plans (i.e., framing elevations should be provided) and these plans should be reviewed by the site supervisor and lead framer. The construction supervisor should ensure that framing crews are knowledgeable of or trained in advanced framing techniques. The framing should be visually inspected by the site supervisor before the drywall is installed.



Climate


No climate specific information applies.

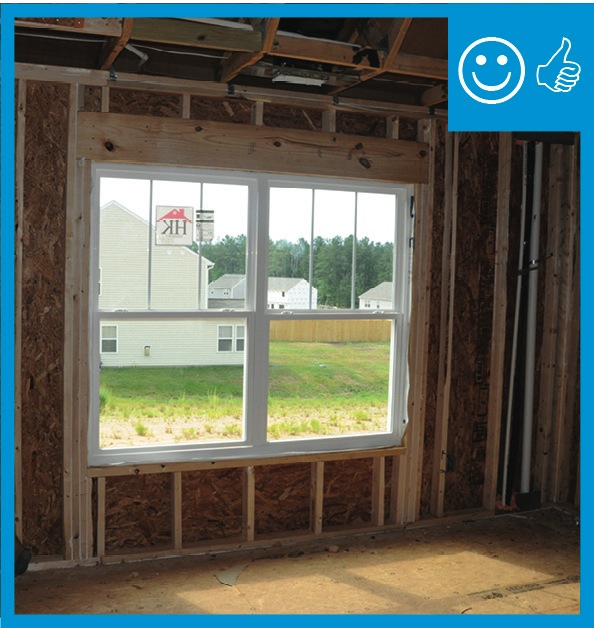

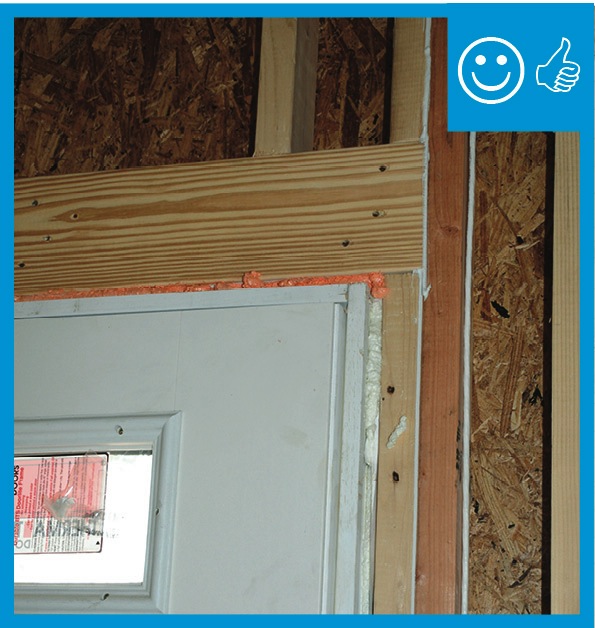

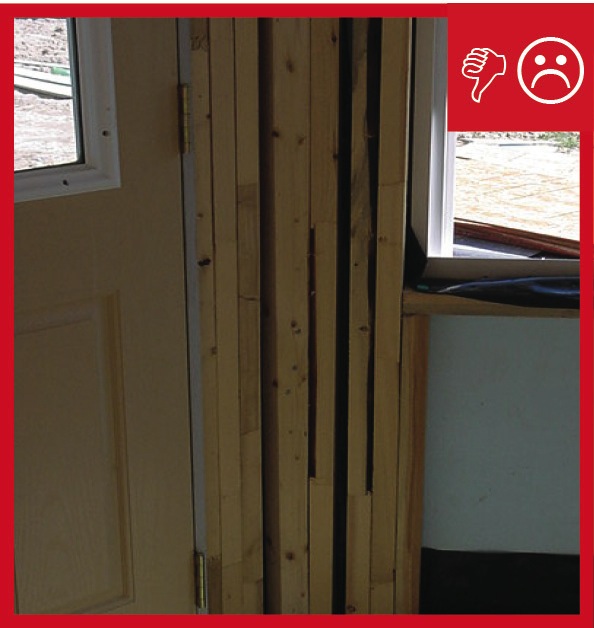

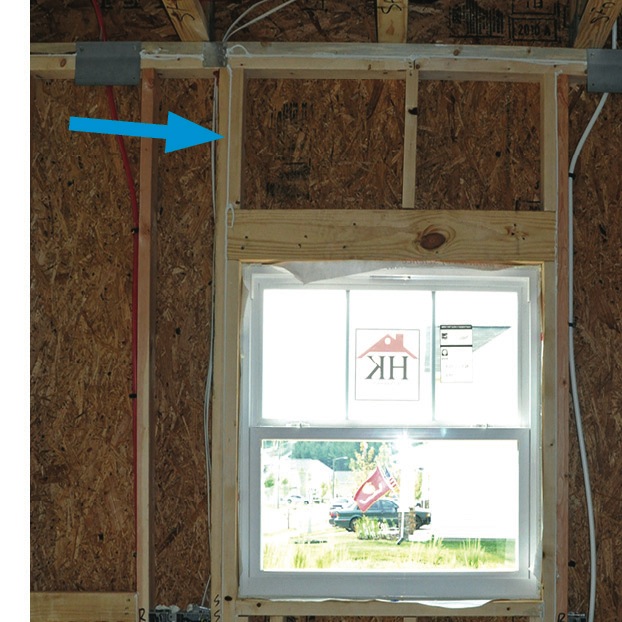

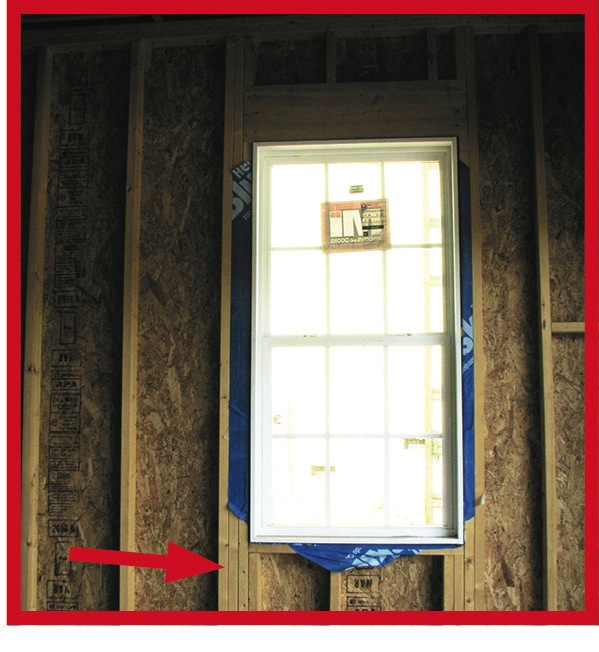

Right and Wrong Images



Presentations

None Available



Videos

None Available




CAD Images




Compliance


ENERGY STAR Version 3, (Rev. 6)

Thermal Enclosure Checklist, Reduced Thermal Bridging. Reduced thermal bridging at above-grade walls separating conditioned from unconditioned space (rim / band joists exempted) using advanced framing. Framing at windows shall be limited to a maximum of one pair of king studs and one pair jack studs per window opening to support the header and window sill. Additional jack studs shall be used only as needed for structural support and cripple studs only as needed to maintain on-center spacing of studs.



DOE Challenge Home

Exhibit 1: Mandatory Requirements. Certified under ENERGY STAR Qualified Homes Version 3.



AAMA/WDMA/CSA 101/I.S.2/A440-08 NAFS

North American Fenestration Standard/Specification for Windows, Doors, and Skylights.  Available from AAMA.  This is a voluntary standard/specification that covers requirements for the following components for new construction and retrofits: single and dual windows, single and dual side-hinged door systems, sliding doors, tubular daylighting devices, and unit skylights.



ANSI/BHMA A156.22-2012

Door Gasketing and Edge Seal Systems. Available from ANSI. This standard sets performance and installation of gasketing systems applied to doors and/or frames.  It includes definitions, general information, and tests.



ASTM E-2112-07

Standard Practice for Installation of Exterior Windows, Doors and Skylights. Available from ASTM. The standard covers fenestration product installation from pre-installation through post-installation procedures in new and existing construction.



2009 IECC

This topic is not specifically addressed in the 2009 IECC.



2009 IRC

This topic is not specifically addressed in the 2009 IRC.



2012 IECC

This topic is not specifically addressed in the 2012 IECC.



2012 IRC

This topic is not specifically addressed in the 2012 IRC.



Case Studies

None Available


References

  1. 2009 IECC—International Energy Conservation Code

    2009 IECC, International Energy Conservation Code. International Code Council, Washington, D.C.

  2. 2012 IECC—International Energy Conservation Code

    2012 IECC, International Energy Conservation Code.  International Code Council, Washington, D.C.

  3. Advanced Framing Technique

    Adapted from DOL. 2012. Advanced Framing Technique. U.S. Department of Labor YouthBuild.

  4. Advanced Wall Framing

    U.S. Department of Energy (DOE). 2002. Advanced Wall Framing. DOE/GO-102000-0770. Prepared by National Association of Home Builders Research Center, Southface Energy Institute, and Oak Ridge National Laboratory Building Technology Center and the National Renewable Energy Laboratory for the U.S. Department of Energy.

  5. Building America Special Research Project- Deployment of Advanced Framing at the Community Scale

    Lstiburek, J. and A. Grin. 2010. Building America Special Research Project-Deployment of Advanced Framing at the Community Scale. RR-1004. Prepared by the Building Science Corporation for the Department of Energy, Building America Program.

  6. Building Science Insights: Advanced Framing

    Lstiburek, J. 2010. Building Science Insights: Advanced Framing. BSI-030. Building Science Corporation.

  7. DOE Challenge Home National Program Requirements

    DOE. 2012. DOE Challenge Home National Program Requirements (Rev. 02). Office of Energy Efficiency and Renewable Energy, U.S. Department of Energy, Washington, D.C.

  8. Door Gasketing and Edge Seal Systems (ANSI/BHMA A156.22-2012)

    American National Standards Institute (ANSI). 2012. Door Gasketing and Edge Seal Systems. ANSI/BHMA A156.22-2012. American National Standards Institute, Washington D.C.

  9. ENERGY STAR Qualified Homes, Version 3 (Rev. 06) Inspection Checklist for National Program Requirements

    EPA. 2012. ENERGY STAR Qualified Homes, Version 3 (Rev. 06) Inspection Checklist for National Program Requirements. U.S. Environmental Protection Agency, Washington, D.C.

  10. North American Fenestration Standard/Specification for Windows, Doors, and Skylights

    American Architectural Manufacturers Association (AAMA), Window and Door Manufacturers Association (WDMA), Canadian Standards Association (CSA). 2008. North American Fenestration Standard/Specification for Windows, Doors, and Skylights. American Architectural Manufacturers Association.

  11. Standard Practice for Installation of Exterior Windows, Doors and Skylights

    American Society for Testing and Materials (ASTM). 2007.  Standard Practice for Installation of Exterior Windows, Doors and Skylights. ASTM E2112-07. American Society for Testing and Materials, West Conshohocken, PA.

  12. Thermal Enclosure System Rater Checklist Guidebook

    EPA. 2011. Thermal Enclosure System Rater Checklist Guidebook. U.S. Environmental Protection Agency, Washington, D.C.
