Attic Knee Walls
Scope
Fully Aligned Air Barrier
- Install a top and bottom plate or blocking at the top and bottom of all knee wall cavities.
- Back attic knee walls with a rigid air barrier or other supporting material to prevent insulation from sagging and create a continuous thermal barrier*
- Seal all seams, gaps, and holes of the air barrier with caulk or foam.
- Install insulation without misalignments, compressions, gaps, or voids in all knee wall cavities.
* ENERGY STAR recommends using a rigid air barrier, but it is not a requirement.
Notes:
An air barrier is defined as any durable solid material that blocks air flow between conditioned space and unconditioned space, including necessary sealing to block excessive air flow at edges and seams and adequate support to resist positive and negative pressures without displacement or damage. ENERGY STAR recommends, but does not require, rigid air barriers. Open-cell or closed-cell foam shall have a finished thickness ≥ 5.5 inches or 1.5 inches, respectively, to qualify as an air barrier unless the manufacturer indicates otherwise. If flexible air barriers such as house wrap are used, they shall be fully sealed at all seams and edges and supported using fasteners with caps or heads ≥ 1 inch diameter unless otherwise indicated by the manufacturer. Flexible air barriers shall not be made of kraft paper, paper-based products, or other materials that are easily torn. If polyethylene is used, its thickness shall be ≥ 6 mil.
ENERGY STAR highly recommends, but does not require, inclusion of an interior air barrier at band joists in Climate Zone 4 through 8.
All insulated vertical surfaces are considered walls (e.g., above and below grade exterior walls, knee walls) and must meet the air barrier requirements for walls, with the exception of adiabatic walls in multifamily dwellings. All insulated ceiling surfaces, regardless of slope (e.g., cathedral ceilings, tray ceilings, conditioned attic roof decks, flat ceilings, sloped ceilings), must meet the requirements for ceilings.
Description
Knee walls, the walls that separate conditioned from unconditioned space in an attic, can be a source of significant air leakage if a continuous air barrier is not provided to prevent unconditioned air from flowing under the knee wall and under the floor boards of the attic room. There are two ways to block off this air flow: either a continuous air barrier can be provided from the top of the knee wall down to the attic floor, including the spaces between the attic floor joists from the bottom of the knee wall to the ceiling deck below, or a continuous air barrier can be installed from the top of the knee wall along the attic roofline to the top plate of the home’s exterior wall. With either method the air barrier should be installed before installing attic floor insulation to the unconditioned portion of the attic. An air barrier is defined as any durable, solid material that blocks air flow between conditioned space and unconditioned space, including necessary sealing to block excessive air flow at edges and seams and adequate support to resist positive and negative pressures without displacement or damage. Air barrier material can include thin sheet goods such as rigid insulation, dry wall, OSB, plywood, or rolled batt insulation that is covered with spray foam. These materials may be installed by insulators, framers, or drywallers. This task should be included in the contract for the appropriate trade depending on the workflow at the specific job site.
Air barrier effectiveness is measured at the whole-house level. High-performance branding programs and the 2009 IECC require that builders meet specified infiltration rates at the whole-house level. See the “compliance” tab for these specified infiltration rates.
How to Air Seal Knee Walls along the Roofline
- Insulate and air seal the ceiling of the attic room.
- Continue the insulation along the roofline to the roof edge.
- Cover the insulation with a sheet material (drywall or rigid foam insulation) that is caulked where it meets the plywood floor sheathing, which is extended to the outside wall.
Figure 1 - One way to air seal and insulate kneewalls – add insulation and a rigid air barrier along roof line of unconditioned attic space outside kneewall
How to Insulate and Air Seal Floor Joist Cavities under Knee Walls
Step 1a: Insert solid wood blocking or rigid foam board in the floor cavity openings. Seal the edges with a continuous bead of caulk or foam sealant.
Figure 2 - Air seal floor joist cavities under kneewall with rigid foam, plywood, or OSB caulked in place
-OR-
Step 1b: Stuff cavities with rolls of fiberglass batt and cover them with spray foam to the edges.
Figure 3 - Stuff cavities under kneewalls with rolls of fiberglass batt and spray foam in place
Step 2: Add insulating sheathing to the knee wall framing.
Step 3: Fill the attic floor joist bays with insulation (batt, blown, or spray foam) to meet or exceed the code minimum R-value.
Figure 4 - Cover insulated kneewall with rigid foam, caulked at edges. Add attic floor insulation
Ensuring Success
Blower door testing, conducted as part of whole-house energy performance testing, may help indicate whether air leakage at knee walls has been successfully sealed. An infrared camera may also be used to determine air leakage at the knee wall, if a sufficient temperature difference exists between the attic and the conditioned space of the house to see the leakage. An experienced technician can also check for air leaks beneath the knee walls with a smoke pencil or by feeling for leaks with the back of the hand.
Climate
ENERGY STAR Version 3, (Rev. 6)
Thermal Enclosure Checklist, Fully-Aligned Air Barriers. A complete air barrier shall be provided that is fully aligned with the insulation at exterior surface of walls in all climate zones; and also at interior surface of walls for Climate Zones 4-8.
DOE Challenge Home
Exhibit 2: DOE Challenge Home Target Home. Infiltration (ACH50): Zones 1-2: 3; Zones 3-4: 2.5; Zones 5-7: 2; Zone 8: 1.5. Envelope leakage shall be determined by an approved verifier using a RESNET-approved testing protocol.

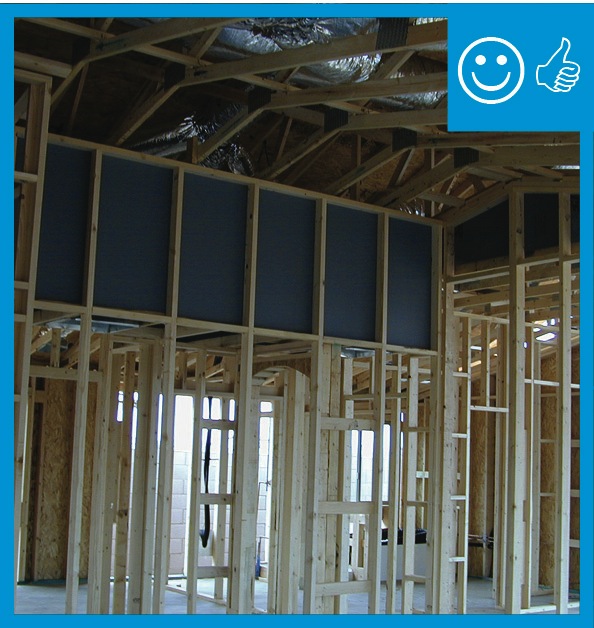

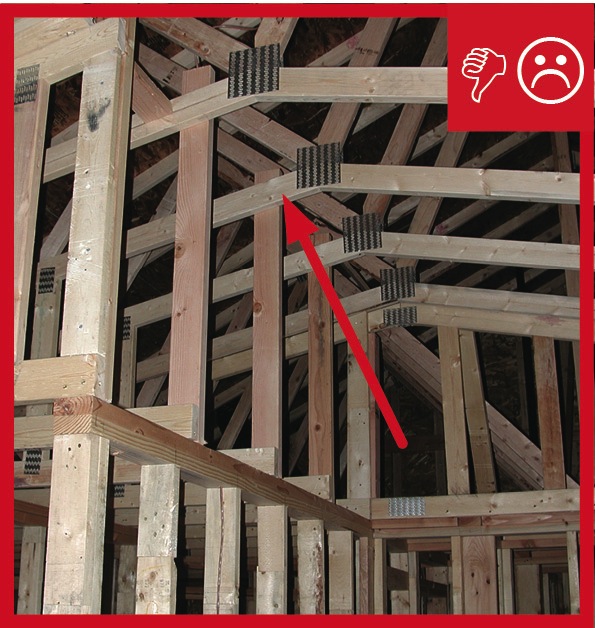

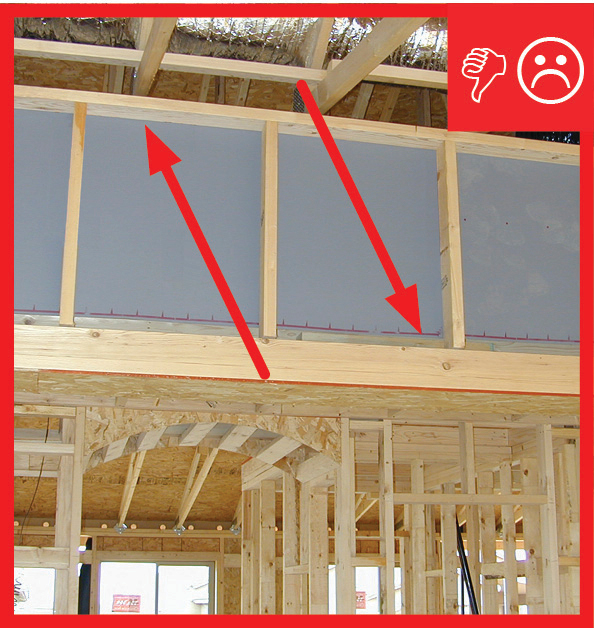

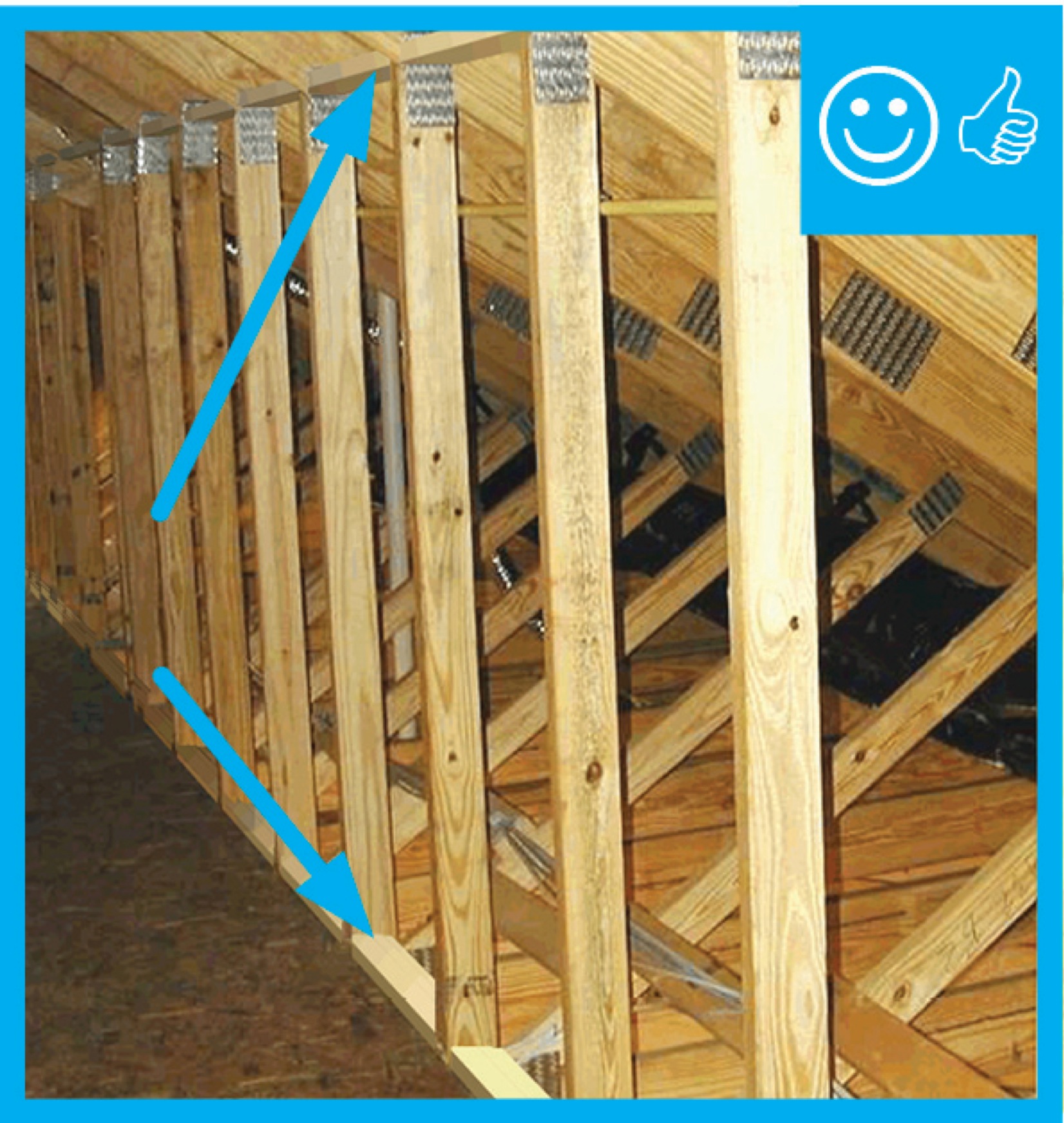

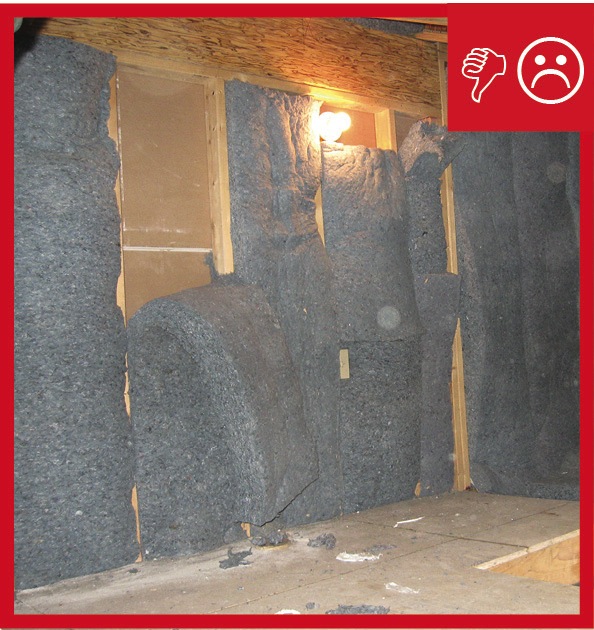

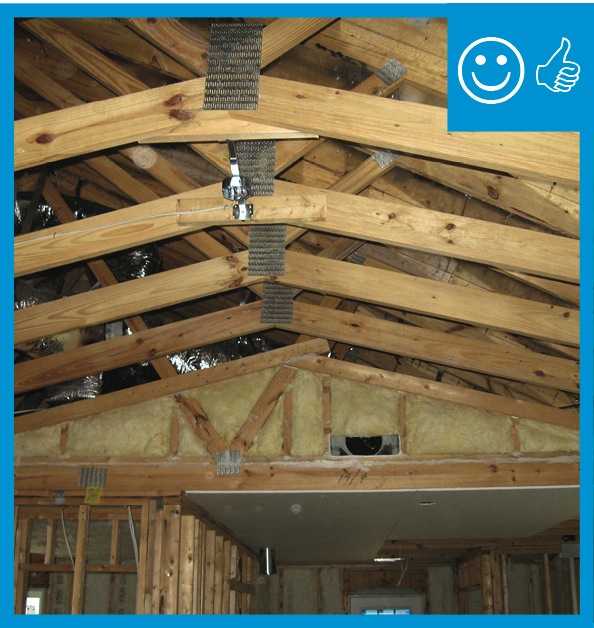

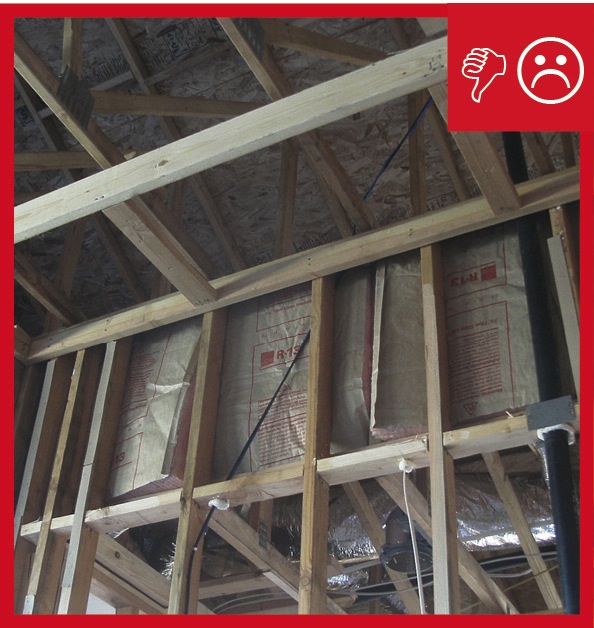

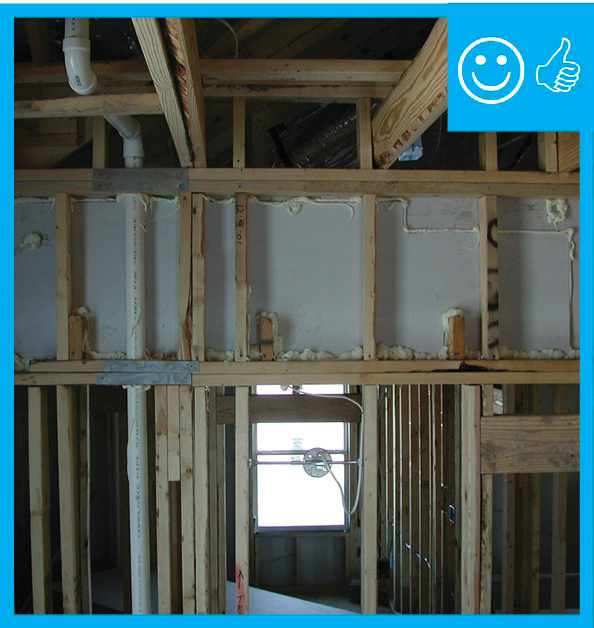

Right and Wrong Images
Presentations
None Available
Videos
None Available
CAD Images
Compliance
ENERGY STAR Version 3, (Rev. 6)
Thermal Enclosure Checklist, Fully-Aligned Air Barriers. A complete air barrier shall be provided that is fully aligned with the insulation at exterior surface of walls in all climate zones; and also at interior surface of walls for Climate Zones 4-8. All insulated vertical surfaces are considered walls (e.g., above and below grade exterior walls, knee walls) and must meet the air barrier requirements for walls, with the exception of adiabatic walls in multifamily dwellings.
Exhibit 2: DOE Challenge Home Target Home. Certified under ENERGY STAR Qualified Homes Version 3. Infiltration (ACH50): Zones 1-2: 3; Zones 3-4: 2.5; Zones 5-7: 2; Zone 8: 1.5. Envelope leakage shall be determined by an approved verifier using a RESNET-approved testing protocol. Building envelope assemblies, including exterior walls and unvented attic assemblies (where used), shall comply with the relevant vapor retarder provisions of the 2012 International Residential Code.
Standard Specification for Air Barrier (AB) Material or System for Low-Rise Framed Building Walls. This specification covers minimum performances and specification criteria for an air barrier material or system for framed, opaque walls of low-rise buildings. The provisions are intended to allow the user to design the wall performance criteria and increase air barrier specifications for a particular climate location, function, or design.
Self-Adhered Sheet Air Barrier. 2006. Air Barrier Association of America, Walpole, MA. This specification for self-adhered sheet air barriers is developed by a professional association, the Air Barrier Association of America, to provide guidance to the design professional.
Fluid-Applied Air and Vapor Barrier. 2012. Air Barrier Association of America, Walpole, MA. This specification for air barriers that are fluid-applied and also act as vapor barriers is developed by a professional association, the Air Barrier Association of America, to provide guidance to the design professional.
Closed Cell, Medium-Density Spray Polyurethane Foam Air Barrier. 2011. Air Barrier Association of America, Walpole, MA. This specification for closed cell, medium-density spray polyurethane foam air barriers is developed by a professional association, the Air Barrier Association of America, to provide guidance to the design professional.
Fluid-Applied Vapor Permeable Air Barrier. 2012. Air Barrier Association of America, Walpole, MA. This specification for fluid-applied vapor permeable air barriers is developed by a professional association, the Air Barrier Association of America, to provide guidance to the design professional.
Section 402.4.1, Building thermal envelope. Knee walls to be sealed. Table 402.4.2 Air Barrier and Insulation Inspection Component Criteria, Air barrier and thermal barrier: Exterior wall insulation is installed in substantial contact and continuous alignment with the air barrier. Air permeable insulation is not used as a sealing material.*
Section N1102.4.1, Building thermal envelope. Knee walls to be sealed. Table N1102.4.2 Air Barrier and Insulation Inspection Component Criteria, Air barrier and thermal barrier: Exterior wall insulation is installed in substantial contact and continuous alignment with the air barrier. Air permeable insulation is not used as a sealing material.*
Table R402.4.1.1 Air Barrier and Insulation Installation, Walls: Knee walls to be sealed. Table R402.4.1.1, Air barrier and thermal barrier: A continuous air barrier is installed in the building envelope including rim joists and exposed edges of insulation. Breaks or joints in the air barrier are sealed. Air permeable insulation is not used as a sealing material.*
Table N1102.4.1.1 Air Barrier and Insulation Installation, Walls: Knee walls to be sealed. Table N1102.4.1.1, Air barrier and thermal barrier: A continuous air barrier is installed in the building envelope including rim joists and exposed edges of insulation. Breaks or joints in the air barrier are sealed. Air permeable insulation is not used as a sealing material.*
* Due to Copyright restrictions, exact code text is not provided. For specific code text, refer to the applicable code.
